Les illustrations peuvent montrer des accessoires non inclus dans le volume de livraison standard. Les illustrations et les données techniques peuvent varier légèrement en raison du développement constant. Erreurs et modifications réservées !
Caractéristiques
Nombre d'animaux
5 Chevaux
Familie
Equipe Familie, 18000 kg
Anzahl Schlafplätze
5

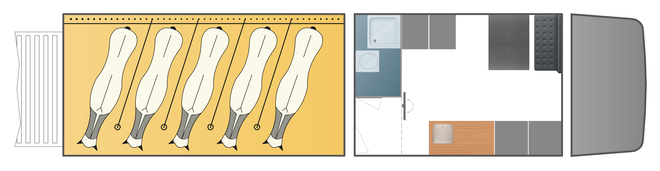

Makes every trip a pleasure: The Equipe S5 for up to five horses in a slant position. Separately connected living quarters offers all passengers high standard of comfort and one or two additional sleeping berths in the topsleeper above the drivers cab.
Spécifications techniques
Base
Nombre d'animaux
5 Chevaux
Wohnung
Royal 350 cm
Badezimmer
Kleines Bad mit WC
Poids
PTAC
18000 kg
Charge utile
5650 kg
Dimension extérieure
Gesamtlänge
10310 mm
Gesamtbreite
2550 mm
Gesamthöhe
4000 mm
Dimension intérieure largeur
longueur intérieure
4860 mm
largeur intérieure
2440 mm
hauteur intérieure
2450 mm
Équipement standard
Parois
-
Coque en général
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Insulated sandwich roof 50 mm thick (GRP)
- Rear loading flap, rubber floored, with lifting assistance, lockable
- 24mm high density plywood platform
-
Caisse Espace pour chevaux
- Tethering rings
- slidable H-partitions (4pc. ) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Hay net hooks (1 per horse)
- Feeding trough for hanging, black plastic, with suspension (5pc.)
- Aluminum partition profiling
- Window, vertically sliding 450x600mm with integral window grille (5x)
- Roof skylights (2)
- Lighting switchable from the driver's cab (5 lights in horse area)
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
Châssis
-
Châssis
- 2x12V/170 Ah batteries
- 175 kW / 238 hp
- Radio with USB port
- Mercedes-Benz Antos 18 L
- Tank 290 l
- AdBlue® tank 60 l
- PowerShift 3 transmission
- Front spring, 7.5 t, 1-leaf
- Trailer coupling
- trailer socket. 24-V, 15 pole
- Front mirror, heatable
- main mirror electrically adjustable, on drivers side
- Wide angle mirror heatable
- Extended central locking systems
- Multifunction steering wheel
- Cruisecontrol
- Functional seat for passenger
- Driver swing seat standard
Intérieur
-
Séjour
- Extension ladder at the front door with latch
- All furnitures in solid construction with safety catches
- PVC flooring
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
- Walls panelled with laminated plastic sheeting
- Lockable entrance door with 3-point closure
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Two opposing benches for 4 persons with seat cushion
- Lowerable table
- Mirror
- 4 coat hooks in the entrance area
- Door mat with emblem Böckmann
- Living room window above the bench, 900x600 mm, multifunctional,
-
Cuisine
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- cabinet with drawer and towel rail under the work surface
- Living room window above kitchen, multi-functional,
- Ppotlights above kitchenette
- Sink with tab
- Salle de bain
-
Dormir
- Mattress in topsleeper (including ladder) for 1-2 persons
- Seats convertible to the lying surface for 1 person
- Sleeping space above the bath (for 1 person) including ladder
-
Éclairage
- 6 halogen spotlights in the ceiling, 1 radiator (reading lamp) in
Divers
- Installation électrique
-
Peinture
- Painture: white
-
Eau/eaux usées
- Waste water tank 200 l
- Fresh water tank 200 l
Accessoires
Parois
-
Coque en général
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box medium
-
Caisse Espace pour chevaux
- Sélection possibilité d'attache
- Airliner rail with 10 tying chains
- Sélection bat-flanc
- Partition completely closed
- Autres options d'équipement
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 500W
- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7 Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Caisse Sellerie
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Châssis
-
Châssis
- Sélection puissance battérie
- 2x12V/220 Ah batteries
- Sélection motorisation
- 260 hp / 354 KW
- Sélection radio
- Radio / navigation system, Bluetooth, comfort
- CD-radio, Bluetooth
- Autres options d'équipement
- electric windows
- Middle seat with 3-point seat belt
- Fog light / LED-Daytime running light
Intérieur
-
Séjour
- Sélection échelle vers l'entrée
- Folding steps insted of extension ladder, with treads of alu
- Autres options d'équipement
- Window (bullseye) in front door
- Accesss way to the cabin, covered with laminate
- Electro-pneumatic lifting device for folding steps
- TV flat screen 22
- Blinds for living room window
- Blinds for living room window (370x500mm)
- Groom apartment 1000mm (minus space for one horse),
- Pop-Out
- Pop-Up
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Cuisine
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
- Microwave (230V)
-
Salle de bain
- Macerator toilet instead cassette toilet
-
Éclairage
- LED ambient lighting
Divers
-
Installation électrique
- Sélection jeu électrique
- Electrical basic package 2
- Electrical basic package 3
- Autres options d'équipement
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
- 4800W generator (diesel generator)
-
Chauffage
- Split air conditioning,cooling cap.3500W,4200W heat output,
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Peinture
- Sélection peinture
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Autres options d'équipement
- Lettering 2-Horse-Heads left and right
-
Eau/eaux usées
- Sélection réservoir d'eaux usées
- Waste tank 300 l (Surcharge)
- Sélection réservoir d'eau
- Fresh water tank 300 l (Surcharge)
- Autres options d'équipement
- Warm water, 15 l
-
Accessoires
- la feger
- Sellerie mobile L
- Sellerie mobile XL
- Shovel
- First-aid box
- Warning triangle
