Les illustrations peuvent montrer des accessoires non inclus dans le volume de livraison standard. Les illustrations et les données techniques peuvent varier légèrement en raison du développement constant. Erreurs et modifications réservées !
Caractéristiques
Nombre d'animaux
3 Chevaux
Familie
Equipe Familie, 15000 kg
Anzahl Schlafplätze
5

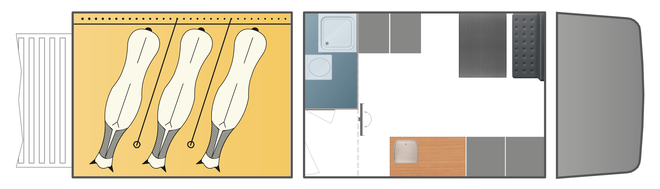

Makes every trip a pleasure: The Equipe S3 for up to three horses in a slant position. Separately connected living quarters offers all passengers high standard of comfort and one or two additional sleeping berths in the topsleeper above the drivers cab.
Spécifications techniques
Base
Nombre d'animaux
3 Chevaux
Wohnung
Royal 350 cm
Badezimmer
Kleines Bad mit WC
Poids
PTAC
15000 kg
Charge utile
5640 kg
Dimension extérieure
Gesamtlänge
8610 mm
Gesamtbreite
2550 mm
Gesamthöhe
4000 mm
Dimension intérieure largeur
longueur intérieure
3260 mm
largeur intérieure
2440 mm
hauteur intérieure
2450 mm
Équipement standard
Parois
-
Coque en général
- Rear loading flap, rubber floored, with lifting assistance, lockable
- Insulated sandwich roof 50 mm thick (GRP)
- Double ribbed hollow profile, 25 mm, anodized aluminum
- 24mm high density plywood platform
-
Caisse Espace pour chevaux
- Tethering rings
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
- Lighting switchable from the driver's cab (3 lights in horse area)
- Roof skylight
- Window, vertically sliding 450x600mm with integral window grille (3x)
- Aluminum partition profiling
- Feeding trough for hanging, black plastic, with suspension (3pc.)
- Hay net hooks (1 per horse)
- Cordon in front of the loading flap
- Rubber flooring 30 mm (liquid rubber)
Châssis
-
Châssis
- 2x12V/100 Ah batteries
- Front passenger seat, simple
- Driver swing seat standard
- Tank 120 l
- 177 hp /130 KW
- Daytime Running Light
- main mirror electrically adjustable, on drivers side
- Front mirror, heatable
- AdBlue® tank 25 l
- Mercedes-Benz Atego Neu 15 L
- PowerShift 3 transmission
- Cruisecontrol
- front springs parabolic
Intérieur
-
Séjour
- Extension ladder at the front door with latch
- PVC flooring
- Walls panelled with laminated plastic sheeting
- Lockable entrance door with 3-point closure
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- All furnitures in solid construction with safety catches
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Two opposing benches for 4 persons with seat cushion
- Lowerable table
- Mirror
- 4 coat hooks in the entrance area
- Door mat with emblem Böckmann
- Living room window above the bench, 900x600 mm, multifunctional,
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
-
Cuisine
- Sink with tab
- Ppotlights above kitchenette
- Living room window above kitchen, multi-functional,
- cabinet with drawer and towel rail under the work surface
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- Salle de bain
-
Dormir
- Sleeping space above the bath (for 1 person) including ladder
- Seats convertible to the lying surface for 1 person
- Mattress in topsleeper (including ladder) for 1-2 persons
-
Éclairage
- 6 halogen spotlights in the ceiling, 1 radiator (reading lamp) in
Divers
- Installation électrique
-
Peinture
- Painture: white
-
Eau/eaux usées
- Waste water tank 200 l
- Fresh water tank 200 l
Accessoires
Parois
-
Coque en général
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Caisse Espace pour chevaux
- Sélection possibilité d'attache
- Airliner rail with 6 tying chains
- SES
- Partition completely closed
- Autres options d'équipement
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 500W
- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7 Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Caisse Sellerie
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Châssis
-
Châssis
- Sélection puissance battérie
- 2x12V/165 Ah batteries
- Sélection siège passager
- Passenger suspension seat, comfort
- Sélection siège chauffeur
- Driver's suspension seat, comfort
- Sélection taille réservoir
- Tank 180 l
- Puissance moteur
- 220 hp / 299 KW
- Autres options d'équipement
- Trailer coupling
- trailer socket. 12-V, 13 pole
- electric windows
- Air Conditioning
- Extended central locking systems
- Middle seat with 3-point seat belt
- Halogen fog lamp
- CD-radio, Bluetooth
Intérieur
-
Séjour
- Sélection échelle vers l'entrée
- Folding steps insted of extension ladder, with treads of alu
- Autres options d'équipement
- Window (bullseye) in front door
- Accesss way to the cabin, covered with laminate
- Electro-pneumatic lifting device for folding steps
- TV flat screen 22
- Blinds for living room window
- Blinds for living room window (370x500mm)
- Groom apartment 1000mm (minus space for one horse),
- Pop-Out
- Pop-Up
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Cuisine
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
- Microwave (230V)
-
Salle de bain
- Macerator toilet instead cassette toilet
-
Éclairage
- LED ambient lighting
Divers
-
Installation électrique
- Sélection jeu électrique
- Electrical basic package 2
- Electrical basic package 3
- Autres options d'équipement
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
- 4800W generator (diesel generator)
-
Chauffage
- Split air conditioning,cooling cap.3500W,4200W heat output,
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Peinture
- Sélection peinture
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Autres options d'équipement
- Lettering 2-Horse-Heads left and right
-
Eau/eaux usées
- Sélection réservoir d'eaux usées
- Waste tank 300 l (Surcharge)
- Sélection réservoir d'eau
- Fresh water tank 300 l (Surcharge)
- Autres options d'équipement
- Warm water, 15 l
- Accessoires
