Les illustrations peuvent montrer des accessoires non inclus dans le volume de livraison standard. Les illustrations et les données techniques peuvent varier légèrement en raison du développement constant. Erreurs et modifications réservées !
Caractéristiques
Nombre d'animaux
2 Chevaux
Familie
Compact Familie, 4500 kg
Anzahl Schlafplätze

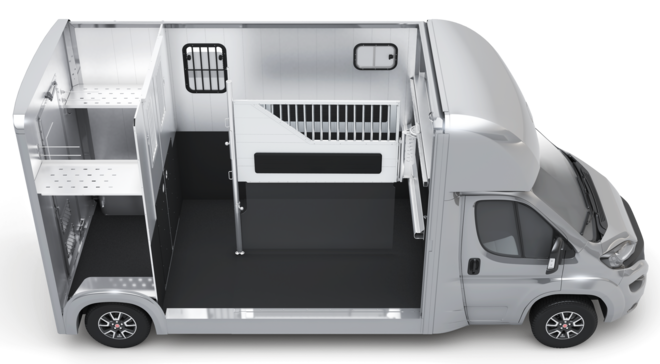

The horse compartment of the Compact L Plus Stall is equipped with a variable floor to ceiling partition wall, a three-door system and a passage to the tack room. The side padding on the aluminium partition wall and side wall provides the requisite safety. The three-door system enables flexible use of the horse compartment. The chassis of the L Plus variant is 630 mm longer than the basic model and therefore offers more space for individual designs.
Spécifications techniques
Base
Nombre d'animaux
2 Chevaux
Wohnung
Badezimmer
Poids
PTAC
4500 kg
Charge utile
1530 kg
Dimension extérieure
Gesamtlänge
6800 mm
Gesamtbreite
2114 mm
Gesamthöhe
3130 mm
Dimension intérieure largeur
longueur intérieure
4230 mm
largeur intérieure
2040 mm
hauteur intérieure
2400 mm
Équipement standard
Parois
-
Coque en général
- Flap above loading ramp

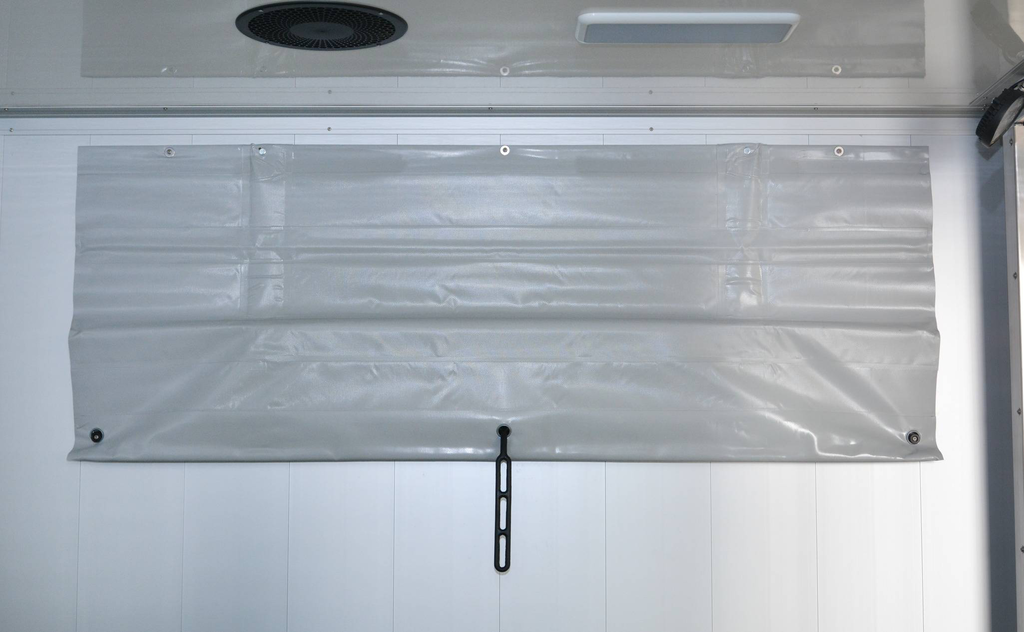

- Roller blind (alcove closure)
- Aluminum corner profiles, rounded
- Structure made of 18 mm aluminum profiles
- Roof spoiler on tailgate integrated brake and clearance lights (LED)
- Roof ventilator 12 V., switchable from the drivers cab
- Alcove
- Roof skylight, big version, incl. closing support
- Horizontal sliding window in left side panel 450x300mm
- Windows (2x) vertically sliding 450x600mm with integral window grille
- 1 hook for a jacket at the back wall of the cab
- Loading ramp (side) with rubber with special step bars and side stop
-
Caisse Espace pour chevaux
- Barrier belt in front of the loading flap
- Rubber floor, glued and sealed
- hay net hooks ( 2x)
- Kick protection in the back of the horse area
- Side padding for partition wall and left side wall
- LED-Light in horse area
- Tethering rings (4 x )
- Feeding troughs, plastic (2x) for hanging
- Kick protection at left side
- Aluminium floor on galvanized AL-KO chassis
- Fixed partition, aluminium, with transparent PVC curtain
- Door panel before H-partition, closed, swivel mounted
- Connecting doors (2x) between horses area / tack room,swivel mounted
-
Caisse Sellerie
- Lockable outside door
- Tack room, about 1410x2000 mm
- Tabouret
- LED-Light in tack room
- Saddle-rack ( 2 x )
- Mirror at door (2x)
- Forced ventilation in the door
- Shelves left and right
- Snaffle hooks (9x )
- Tire-botte
Divers
-
Peinture
- Decal Horsetrucks by Böckmann on both sides and behind (anthracite)
- Decal Horses in front and behind (anthracite)
- Paint: RAL white
- Accessoires
Châssis
-
Châssis
- Co driver seat adjustable height and slope with armrest
- Fix & Go Kit (instead of spare wheel)
- Manual gearbox
- 160 HP Multijet (118 KW), diesel engine, 4 cylinders
- Seat Covers Leatherette grey
- lane-departure warning
- Daytime Running Light
- Fuel tank 90 L
- overspeed 90 km/h
- Euro 6d-TEMP
- Central locking with remote control
- Mechanical Break Assistant
- Cup holder
- Stowage compartment under the roof
- Power windows
- Driver air bag
- Sensor for oil level monitoring
- Electronic engine imobiliser
- Elimination of cabin back wall
- ESC incl. overturn prevention
- grey bumper of PVC
- Digital tachograph without calibration
- Armrest and lumbar support for driver seat
- Prewire for bodybuilder incl. socket at the b-pillar
- Fiat Transporter Ducato Maxi with Alko-low bed frame, hot-dip galvan.
- AM/FM and DAB antenna in right-hand wing mirror
- power heated exterior mirrors
- smart tachograph
- Summer tires on 16 steel rims
Accessoires
Parois
-
Coque en général
- Equipement au-dessus de la rampe de chargement
- Lift-up flap with window above loading ramp
- Double-wing door above loading ramp instead of flap
- Sélection séparation alcôve
- Flap, aluminum anodized (alcove closure)
- Autres options d'équipement
- Tie bar, folding,
- Tethering rings
- Additional Roof skylight, big version
- Lock for loading ramp
- Surrounding lighting
- Video camera system (wired) for horse trailer
- Video socket
-
Caisse Espace pour chevaux
- Sélection barrière devant rampe de chargement
- Stop board before loading ramp instead cordon, pivotable
- Autres options d'équipement
- Air-liner rail mounted both sides
- Anchoring rope with panic hook (set)
- Additional butt-bars (with Multi Safe System)
- Kickpad
- Kickpads (pair)
- Air conditioning in the horse compartment
- Excrement slide
- LED-working illumination for the vicinity of the loading flap.
- LED-Light in horse area, additional
- Calming illumination (blue)
- Kick protection between partition hangers
- Dust protection between saddle - and horse compartment
- Temperature control (according to regulation EG 1/2005)
- Animal transport report
- Partition H Stainless steel grid attachment
- Wear mat
- Video monitoring incl. reversing camera
- Sélection bat-flanc
- Movable partition, aluminium, with transparent PVC curtain
- Version élément de porte devant bat-flanc
- Head partition instead of dividing door
-
Caisse Sellerie
- Sélection porte espace sellerie
- Lockable double-wing door in the rear to the saddle room
- Autres options d'équipement
- Step below the door
- Bag net additional
- Strapontin
- Clothes rail in the saddle room
- Shelf-system with storage boxes in tack room
- Saddle rack additional
- Snaffle hooks, additional
Divers
-
Installation électrique
- battery guard
- Double socket 230V in saddle compartment
- Socket 12V in saddle compartment
-
Peinture
- Sélection décor à l'avant et à l'arrière
- Decal Horsetrucks by Böckmann on both sides and behind (gold)
- Decal Horsetrucks by Böckmann on both sides and behind (silver)
- Sélection décor à l'avant et à l'arrière
- Decal Horses in front and behind (gold)
- Decal Horses in front and behind (silver)
- Sélection peinture
- RAL paintwork body
- RAL paintwork body / cab
- RAL paintwork body / cab / plastic parts
- Metallic painting body
- Metallic painting body / cab
- Metallic painting body / cab / plastic parts
- Autres options d'équipement
- Decors on the truck as desired / effort
- Paint exterior mirrors
-
Accessoires
- Fire extinguisher
- Sellerie mobile L
- Sellerie mobile XL
- First-aid box
- Warning triangle
- Warning lamp
- Safety vest
Châssis
-
Châssis
- Sélection siège passager
- Passenger double seat with folding table in medium backrest
- Sélection roue de secours ou kit
- Spare wheel (full-size) incl. spare wheel holder
- Sélection boîte de vitesse
- 9-gear-automatic transmission
- Sélection motorisation
- 180 HP Multijet (131 KW), diesel engine, 4 cylinders
- Sélection housse de siège
- Seat covers artificial leather (driver and double seat bench)
- Seat covers artificial leather (driver and single passenger seat)
- Sélection assistence de maintien des voies
- Lane-departure warning and traffic sign recognition
- Sélection feu d'éclairage de jour
- Daytime Running Light LED
- Sélection taille réservoir
- Fuel tank 120 L
- Limiteur de vitesse
- Elimination overspeed
- tachygraphe intelligent
- ommission smart tachograph
- Pneus d'été sur jante en caier 16"
- All-Season tires
- Alloy rim 16 Diamond
- Winter tires
- Autres options d'équipement
- 7 intotainmentsystem with touchscreen + DAB
- 7 infotainment system with touchscreen + NAV + DAB
- Mirrors for vehicle width 2.35 m
- Autonomous heater (Webasto)
- Battery (110 Ah)
- Cruise control
- Floor mat (fabric)
- Floor mat (rubber)
- Door mat (cab)
- Manual air conditioning with pollen filter,outside temperature display
- Automatic single zone air conditioning with pollen filters
- Leather covers double row of seats
- Single row of seats in leather
- Leather covers with heated seats (single row of seats)
- Leather covers with seat heating, double row of seats
- Front fog lamps
- Full wheel covers
- Rain and light sensor
- Light bordering, black
- Black grill (piano coating)
- Seat heating, double seat row
- Seat heating, single seat row
- Seat heating for the driver
- Fixed trailer coupling (trailer ball)
- Traction+ with downhill assistant
- USB charging port
- Reinforced alternator 200 Ah
- Additional heater under the driver's seat in the direction of travel
