Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Tipper trailers
Total weight
1500 kg
Number of axles
1

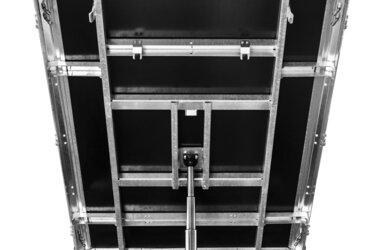

The RK-AL 2514 offers you the proven Böckmann quality of the tipper range already in the basic version. With its compact dimensions of 2560 mm in length and 1400 mm in width, this tipper impresses with its easy handling - even in narrow streets. With the robust frame construction, the solid steel profile bridge and the standard V-tow bar, it is equipped for the highest demands.
The Böckmann added valuesBasic models
Well thought out construction
Safe and low-maintenance
Practical accessories
Technical data
Base
Jockey wheel
Tires
13.0 Zoll
Swinging rear flap
Loading height
710 mm
Overrun brake
Weight
Total weight
1500 kg
Payload
1021 kg
External dimensions
Total length
3910 mm
Total width
1470 mm
Total height
990 mm
Internal dimensions
Interior length
2560 mm
Interior width
1400 mm
Interior height
300 mm
Standard features
Body
-
Side walls
- front wall foldable

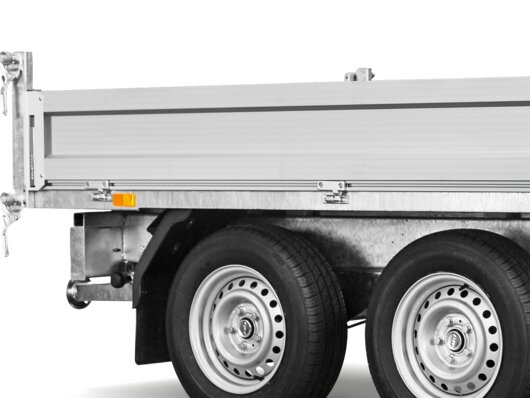

- alu sidewalls, 300 mm, long stroke locks, with rear flap
-
Attachments
- corner rungs removable
-
Floor
- steel sheet flooring
Other
-
Hydraulik systems

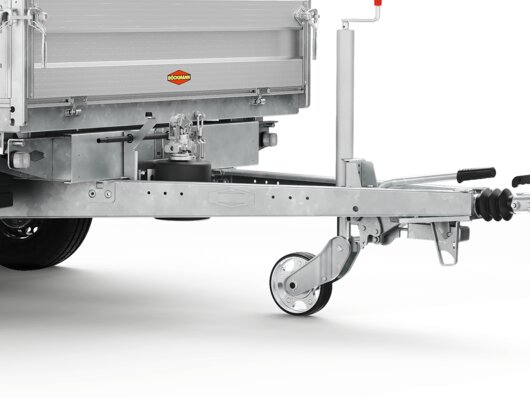

- hydraulic with hand pump
Chassis
-
Chassis

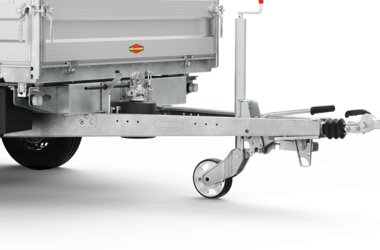

- self-supporting drawbar 1260 mm
-
Jockey wheel
- normal support wheel
Accessories
Accessory packages
-
Autumn Package - sheet metal attachment -
- steel sheet attachment 600 mm, 3-sides swivelling
- container net
-
Autumn Package -grass rails -
- grass rails 600 mm, 3-sided oscillating
- container net
Chassis
-
Chassis
- wheel shock absorbers (2 pcs)
- Jockey wheel
Body
-
Side walls
- alu sidewalls, 500 mm, long stroke locks, with rear swinging flap
- alu sidewalls, 300 mm, long stroke locks, with rear swinging flap
-
Attachments
- Selection of rear supports
- telescopic crank drop legs (per pair)
- Selection attachments
- spare wheel 13"(195/50R13)
- Spare wheel holder, mounted on front profile
- spare wheel mount, fitted under the trailer floor
- storage case (plastic)
- ladder rack (front wall)
-
Attachments

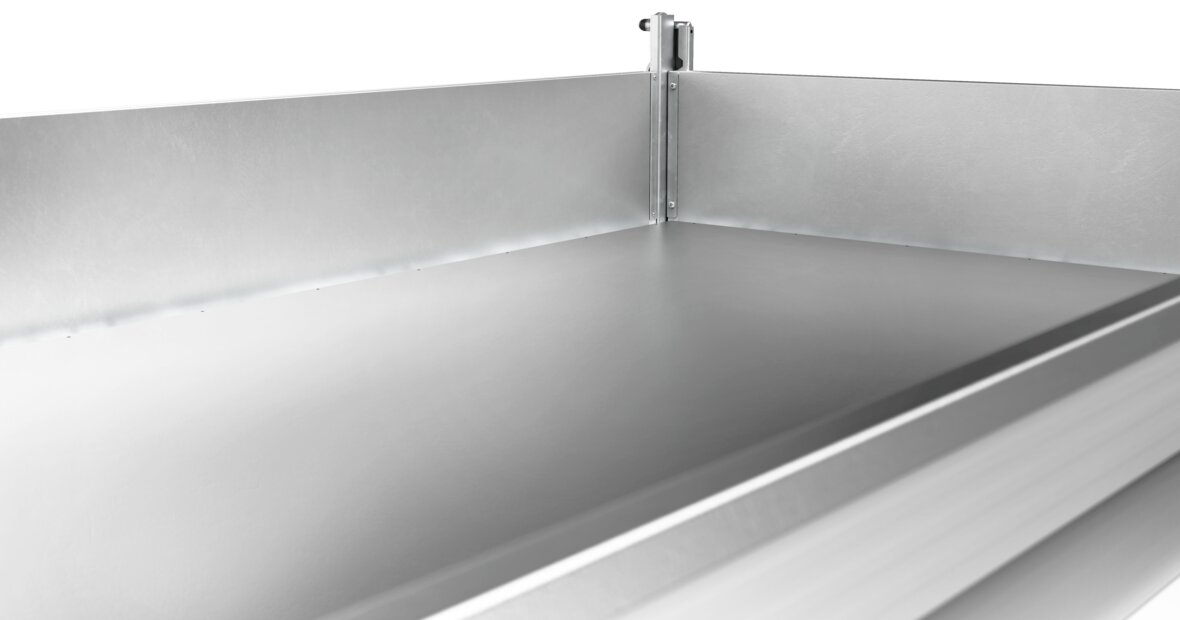

- steel sheet attachment 600 mm, 3-sides swivelling
- grass rails 600 mm, 3-sided oscillating
- box attachment (alu) 350 mm, 3-sided oscillating
- box attachment (alu) 500 mm, 3-sided oscillating
-
Tarpaulin and hoops
- Selection tarpaulin and hoop (not mounted)
- flat tarpaulin with corner cut-outs
- tarpaulin and hoop, 1300 mm
- tarpaulin and hoop, 1300 mm (version with rear swinging flap)
- Selection colour of tarpaulin
- canvas colour: blue (similar to RAL5010)
- canvas colour: yellow (similar to RAL1021)
- canvas colour: green (similar to RAL6026)
- canvas colour: orange (similar to RAL2011)
- canvas colour: red (similar to RAL3002)
- canvas colour: black (similar to RAL9005)
- canvas colour: white (similar to RAL9016)
- canvas colour: grey (similar to RAL7035)
- Additional equipment for tarpaulins
- bracket for flat canvas
- frame and canvas fitting charge
- tarpaulin labelling, exclusive marking, 2 sides
- tarpaulin labelling, exclusive marking, 3 sides
- tarpaulin labelling, exclusive marking, 4 sides
- tarpaulin labelling, standard marking, 2 sides
- tarpaulin lettering, standard marking, 3 sides
- tarpaulin labelling, standard marking, 4 sides
- tarpaulin labelling, full marking, 2 sides
- tarpaulin labelling, full marking, 3 sides
- tarpaulin labelling, full marking, 4 sides
-
Loading

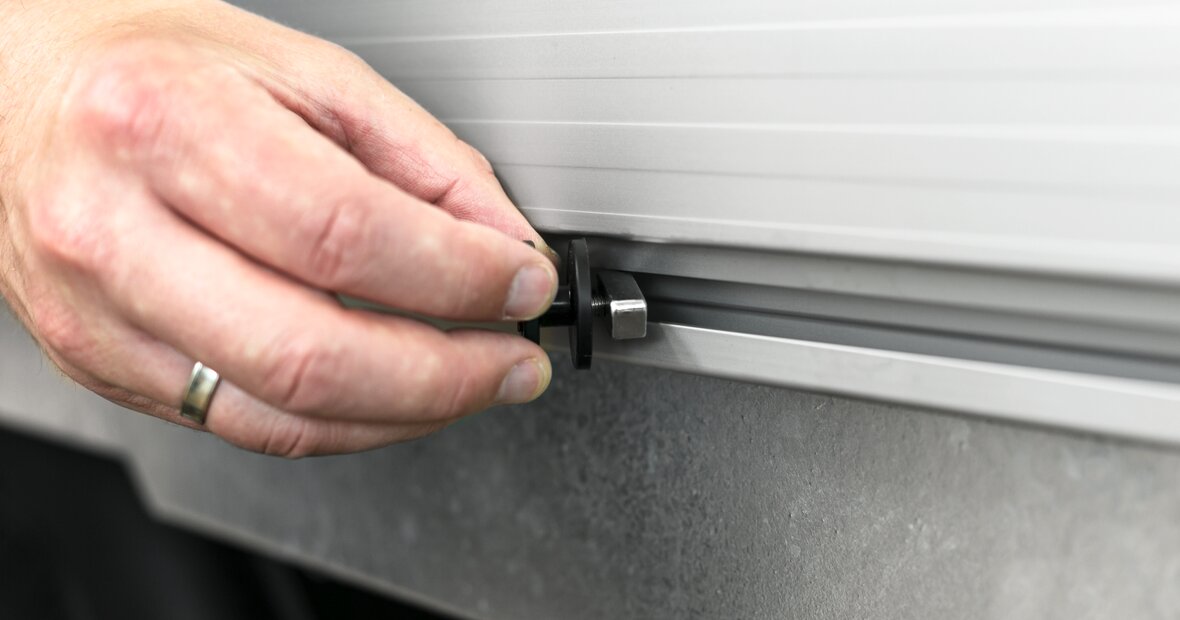

- container net
- container net including 18 flexible net hooks
-

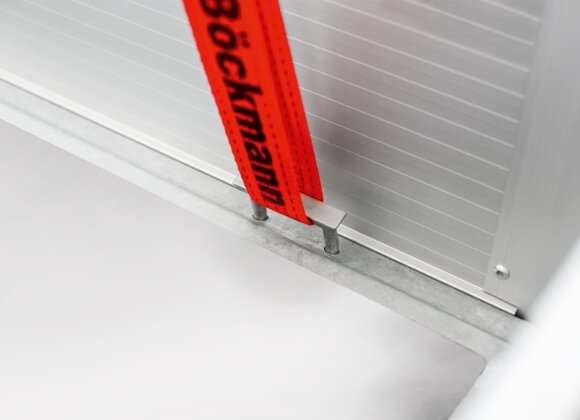

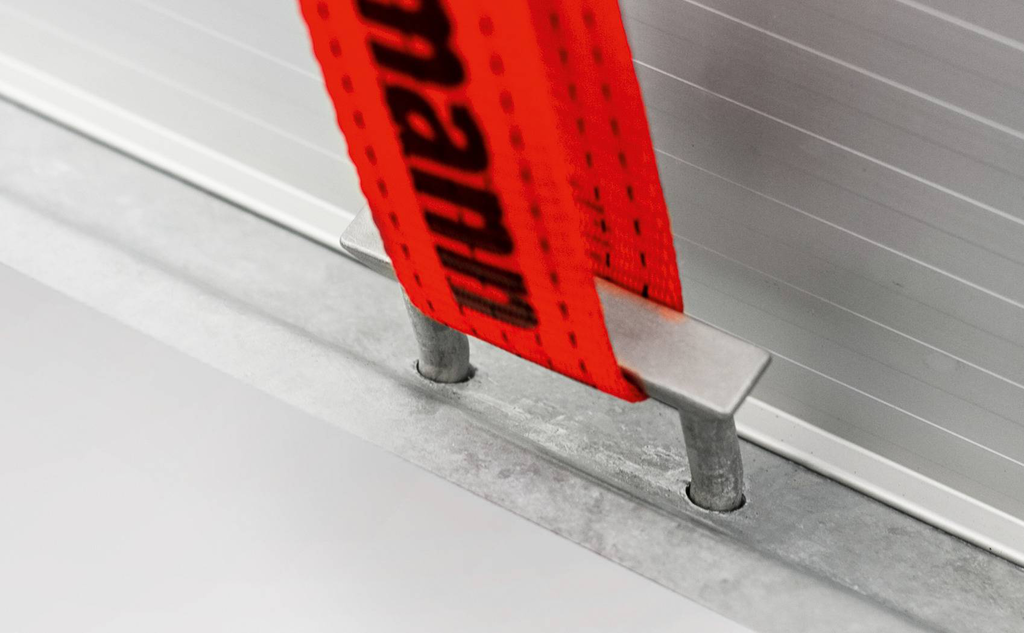

Lashings
- lashing ring
Other
-
Hydraulik systems
- Radio remote control
- wireless remote control
- Selection hydraulic accessories
- charger for electro-hydraulics
- Selection hydraulics
- EasyKipp hydraulic, for cordless screwdrivers,with emergency hand pump
- Electro-hydraulic, integrated permanent charger, emergency hand pump
- electro-hydraulic pump with battery (12V/95Ah) and emergency hand pump
- hydraulic connection for tractor (hand pump/el.pump not applicable)
- Selection hydraulics
- additional tractor connection
