Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Tipper trailers
Total weight
3500 kg
Number of axles
2

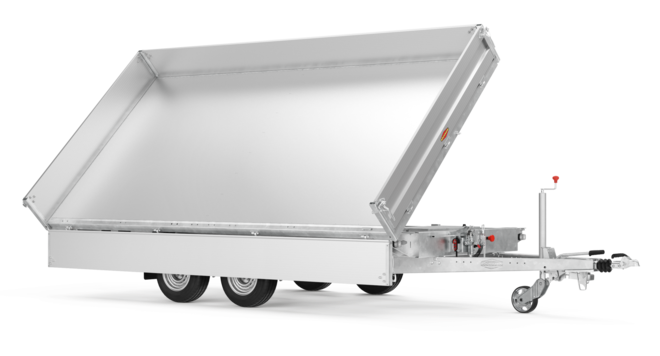

The three-way tipper DK-AL 3718/35 P are vehicles of absolute professional quality and equipment. They impress with a solid and robust construction, an impressive 45 ° tilt angle and a countersunk lashing bracket system. The mechanical sealing on the corner rungs and the 350mm aluminum side walls ensure the safe transport. The screen printed floor that is reinforced with galvanised sheet steel and the angle lever locks make these vehicles reliable on a daily base. As standard, the DK-AL 3718/35 P are among the safest tippers on the market - because the e-hydraulics are standard, just like the simple and CE-compliant emergency stop.
The Böckmann added valuesProfi models
E-HydraulicsSafe and reliable
Durable construction
Thought-out down to the last detail
Practical accessories
Technical data
Base
Jockey wheel
Automatic
Tires
14.0 Zoll
Swinging rear flap
Loading height
780 mm
Overrun brake
Weight
Total weight
3500 kg
Payload
2460 kg
Internal dimensions
Interior length
3740 mm
Interior width
1800 mm
Interior height
350 mm
Standard features
Body
-
Side walls
- front wall foldable
- alu sidewalls, 350 mm, angle lever locks, with rear flap
-
Attachments
- corner rungs removable
-
Floor
- steel sheet flooring
- Lashings
Other
-
Hydraulik systems
- safety support
- electro-hydraulic pump with battery (12 V/95Ah) and emergency hand pum
Chassis
-
Chassis
- self-supporting drawbar 1540 mm
-
Tires and wheels
- Tires 14 ", steel rim
-
Jockey wheel
- heavy duty automatic jockey wheel
Accessories
Accessory packages
Chassis
-
Chassis
- self-supporting drawbar 1540 mm
- height-adjustable overrun device (with trailer hitch)
- options of chassis:
- wheel shock absorbers (4 pcs)
-
Tires and wheels
- 195/50R13 wheels (reduced loading height)
Body
-
Side walls
- side walls without interior cladding
- side walls inside with sheet steel cover
- alu sidewalls, 350 mm, angle lever locks, with rear flap
- alu sidewalls, 350 mm, angle lever locks, with rear swinging flap
- alu sidewalls, 500 mm, angle lever locks, with rear swinging flap
-
Attachments
- Sidewall gallery
- sidewall gallery
- Selection of rear supports
- telescopic crank drop legs (per pair)
- Selection of attachments
- spare wheel 13"(195/50R13)
- spare wheel 14"
- Spare wheel holder, mounted on front profile
- spare wheel mount, fitted under the trailer floor
- storage case (plastic)
- ladder rack (front wall)
-
Attachments
- sheet metal attachment 600 mm, 3-sides swivelling
- grass rails 1000 mm, 3-sided oscillating
- grass rails 600 mm, 3-sided oscillating
- box attachment (alu) 350 mm, 3-sided oscillating
- box attachment (alu) 500 mm, 3-sided oscillating
-
Tarpaulin and hoops
- tarpaulin accessories / lettering
- tarpaulin and hoop mounted
- tarpaulin labelling, exclusive marking, 2 sides
- tarpaulin labelling, standard marking, 2 sides
- tarpaulin labelling, standard marking, 3 sides
- tarpaulin lettering, standard marking, 4 sides
- tarpaulin labelling, full marking, 2 sides
- tarpaulin labelling, full marking, 3 sides
- tarpaulin labelling, full marking, 4 sides
- option tarpaulin and hoop (unassembled)
- flat tarpaulin with corner cut-outs
- tarpaulin and hoop, 1500 mm
- tarpaulin and hoop, 1500 mm (version with rear swinging flap)
- tarpaulin colour
- canvas colour: blue
- canvas colour: yellow
- canvas colour: green
- canvas colour: orange
- canvas colour: red
- canvas colour: black
- tarpaulin colour: white
- tarpaulin: grey
-
Loading
- without loading rails
- Slide-in alum. loading rails, 2,7 t.
- Prepared for slide-in alum. loading rails
- Selection of loading
- container net including 28 flexible net hooks
-
Lashings
- additional lashing ring
Other
-
Hydraulik systems
- Chassis
- wireless remote control
- electro-hydraulic
- Electro-hydraulic, integrated permanent charger, emergency hand pump
- hydraulic connection for tractor (hand pump/el.pump not applicable)
- hydraulics without additional tractor connection
- additional tractor connection
- Selection of hydraulic systems
- charger for electro-hydraulics
