Characteristics
Model family
Plant trailers
Total weight
3500 kg
Number of axles
2

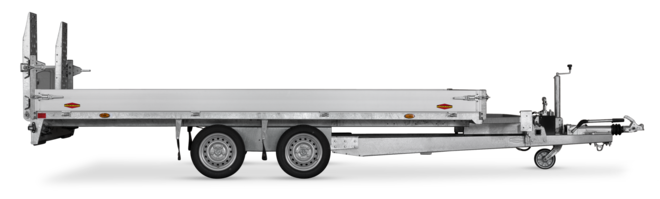

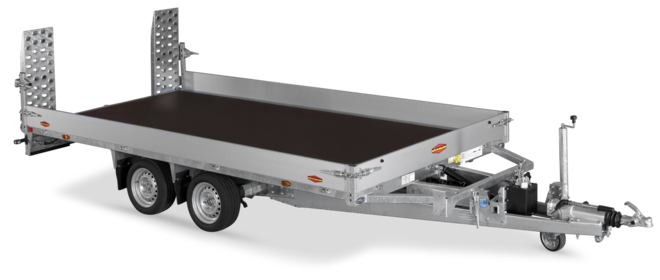

Large or small, wide or narrow: with these hydraulically operated, tilting construction machine transporters almost all vehicles and equipment can be easily transported on the large loading platform of 4300 mm and a width of 2100 mm. Maximum flexibility is key - with the folding and removable walls on three sides and an ideal loading angle due to the low-profile tyres, it can not only be loaded from any side, but is also suitable for transporting low-floor vehicles. With a total weight of 3.5 t the original Böckmann construction machine transporter is a truly professional solution that you can rely on every day.
The Böckmann added valuesMH-models
Well thought out construction
Innovative details
Practical accessories
Technical data
Base

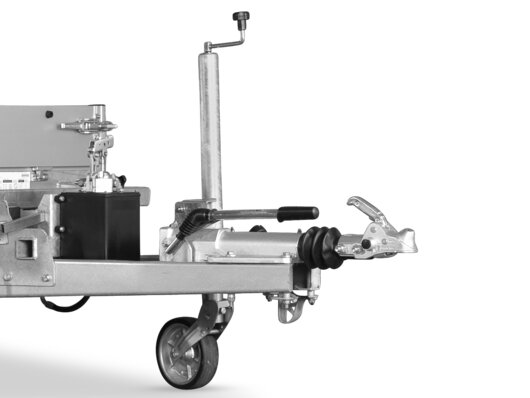

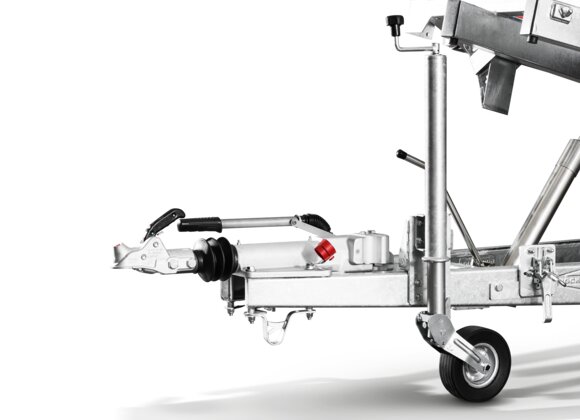

Jockey wheel
Automatic
Tires
13.0 Zoll

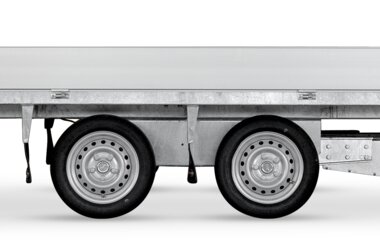

Loading height
661 mm
Overrun brake
Weight
Total weight
3500 kg
Payload
2617 kg
External dimensions
Total length
6259 mm
Total width
2239 mm
Total height
1607 mm
Internal dimensions
Interior length
4300 mm
Interior width
2100 mm
Interior height
200 mm
Standard features
Body
-
Side walls
- sidewalls 200 mm, foldable (alu-anod.)
-
Attachments
- Basic LED lighting
- reversing light (with 13 pin plug)
-
Floor

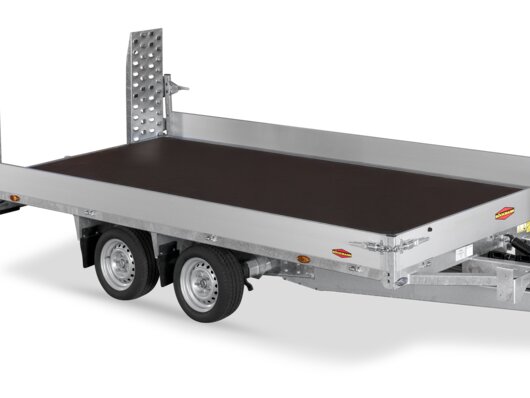

- wooden screen print flooring
-
Loading

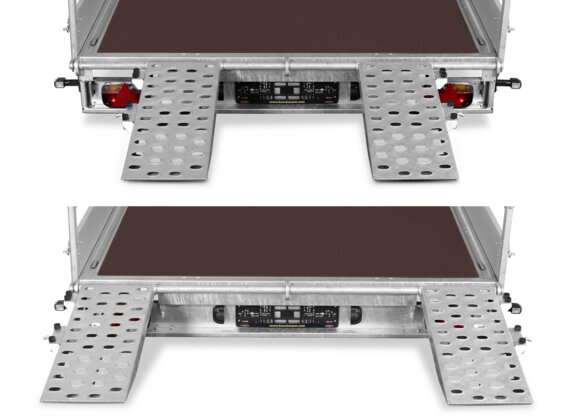

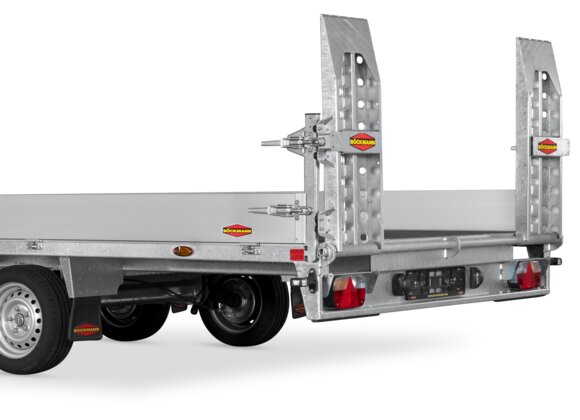

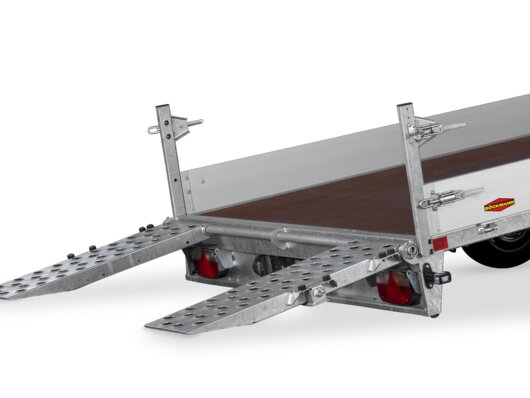

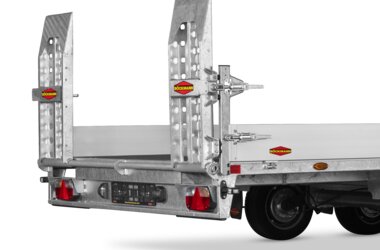

- folding steel drive-on rails, perforated, sliding
Other
-
Hydraulik systems

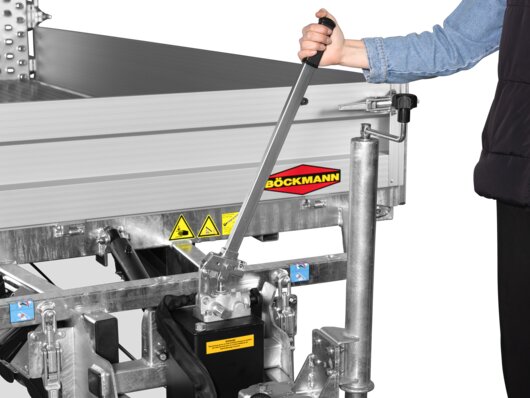

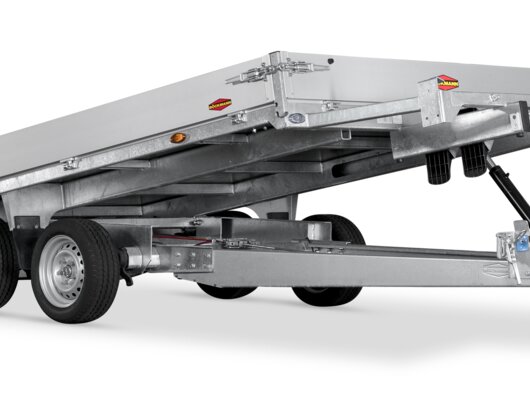

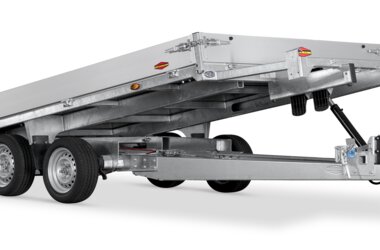

- hydraulic tilting device
Chassis
Accessories
Body
-
Side walls
- sidewalls 200 mm fold.(alu-anod.) with middle posts

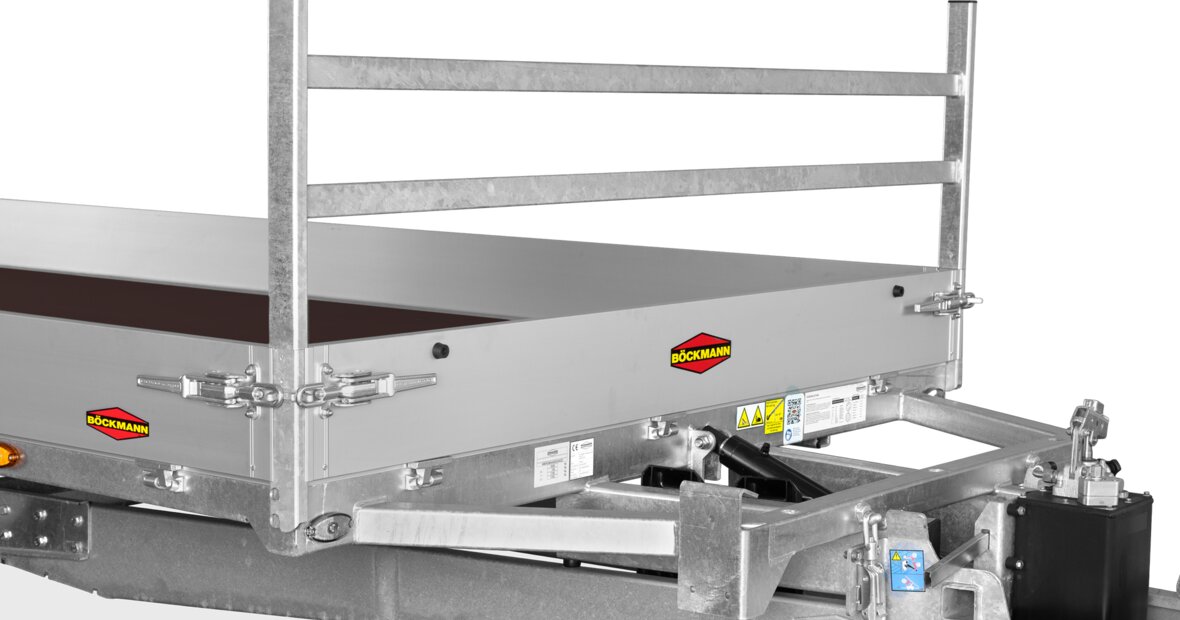

- sidewalls 200 mm fold.(alu-anod.) with sidewall gallery
- sidewalls 350 mm, foldable (alu-anod.)
-
Attachments
- Selection of rear lighting unit
- LED lighting (marker, clearance and rear lights)
- Selection attachments
- sheet metal flap at rear

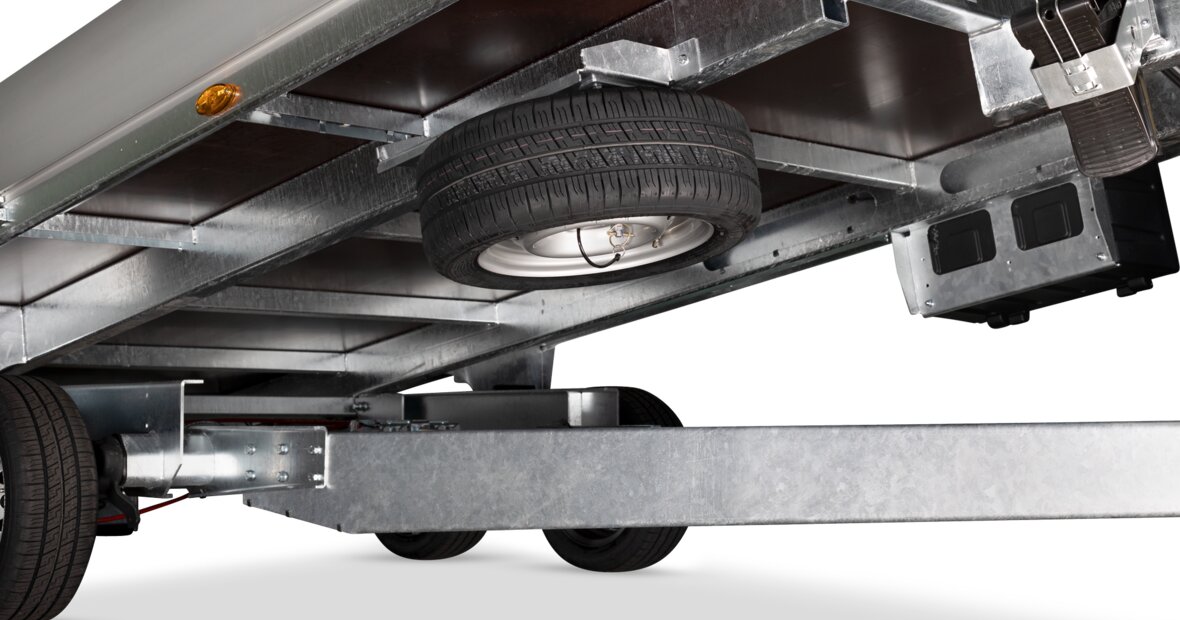

- spare wheel 13"(195/50R13)
- spare wheel holder (mounted)

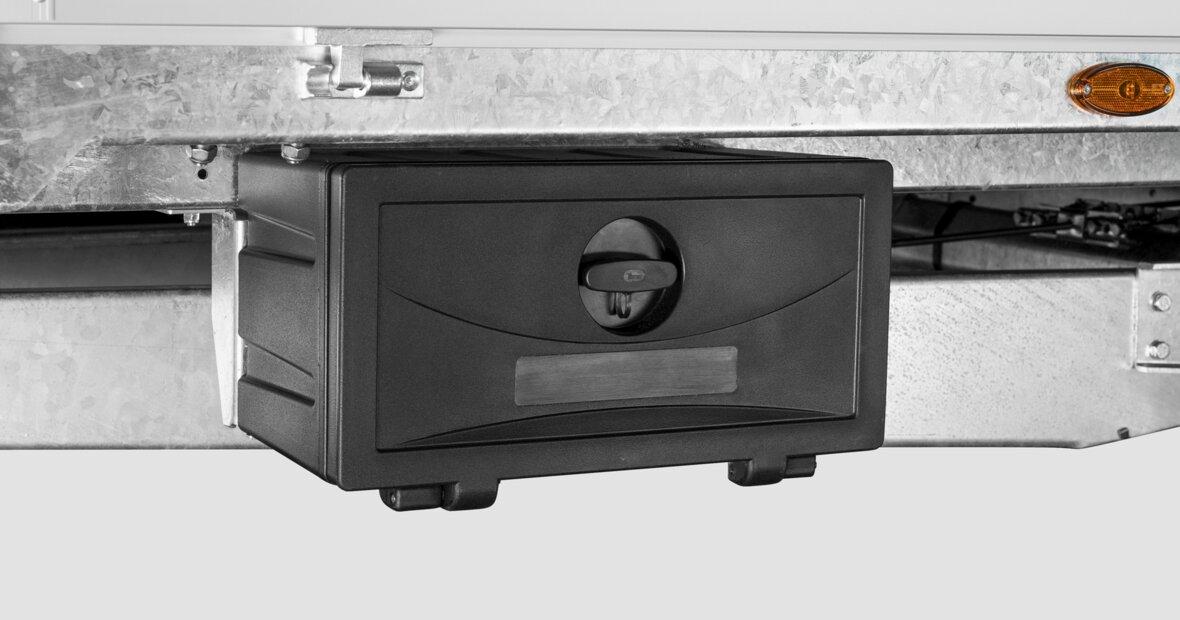

- storage case (plastic)

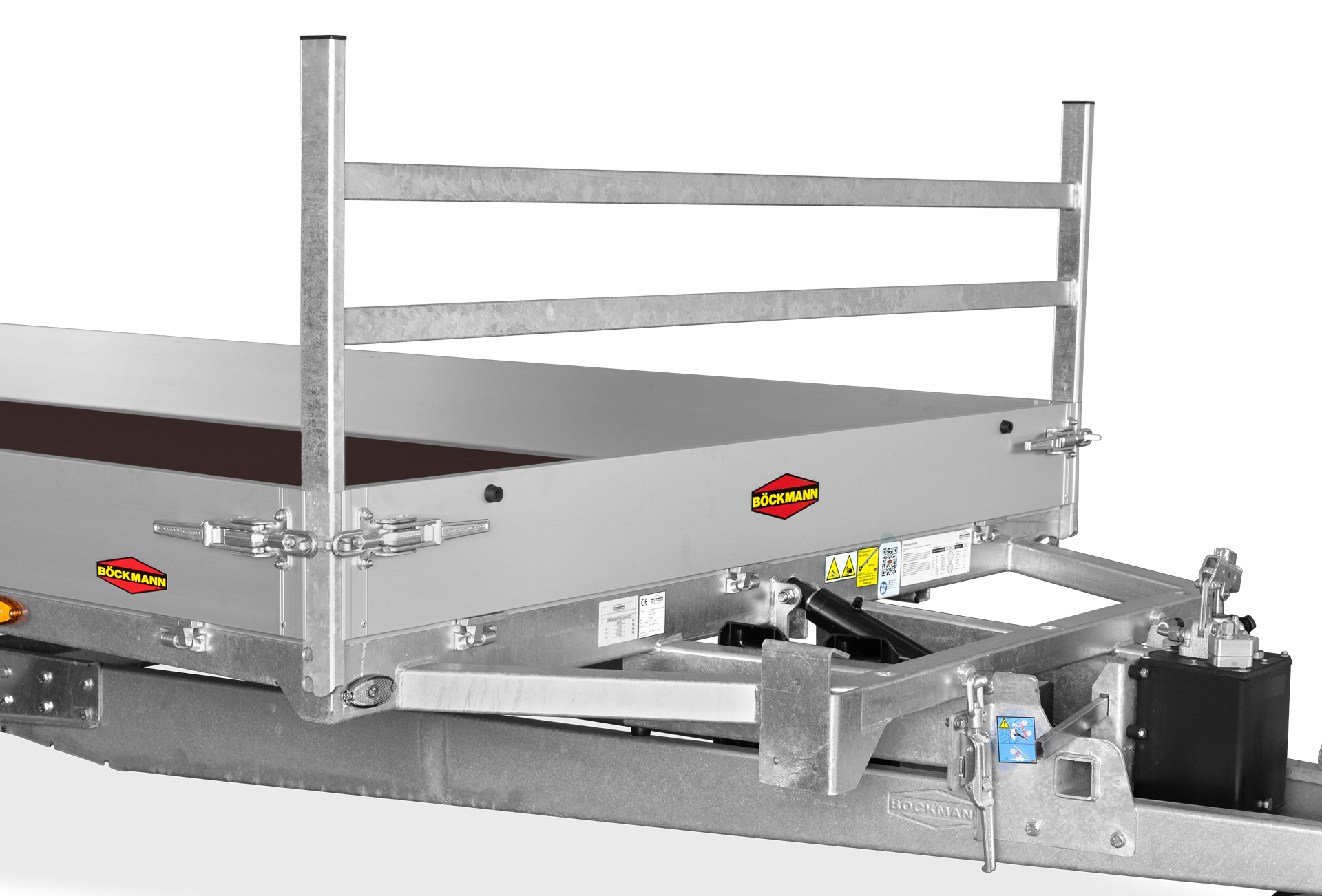

- ladder rack (front wall)
- guide roller for cable winch
-
Attachments
- grass rails 600 mm (3-sides)
-
Floor

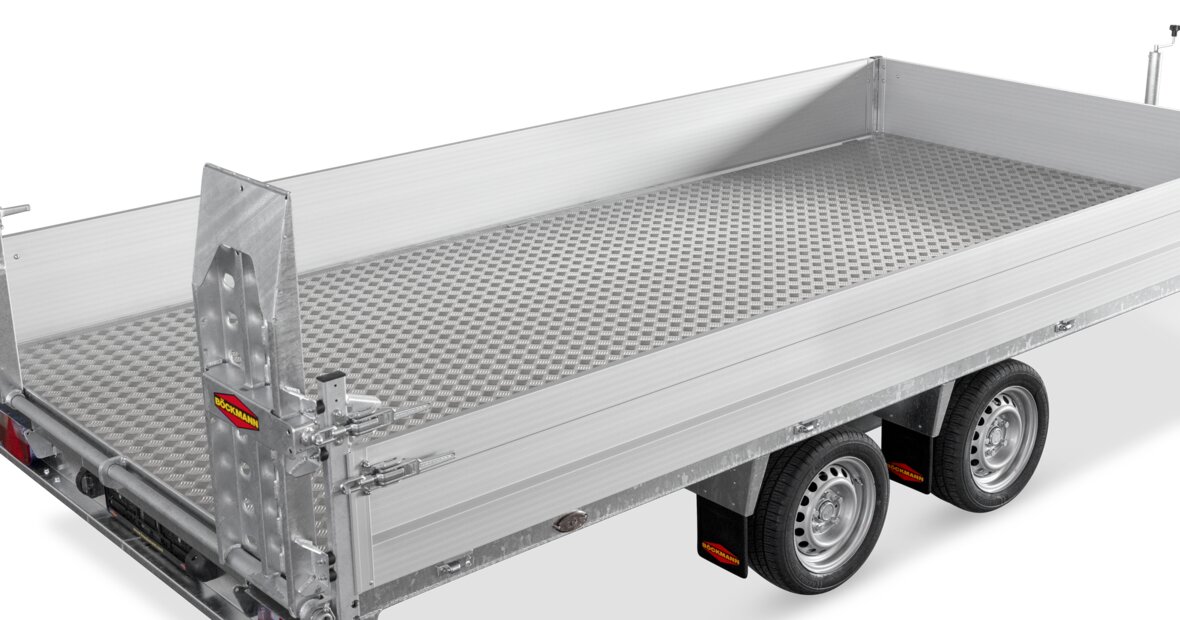

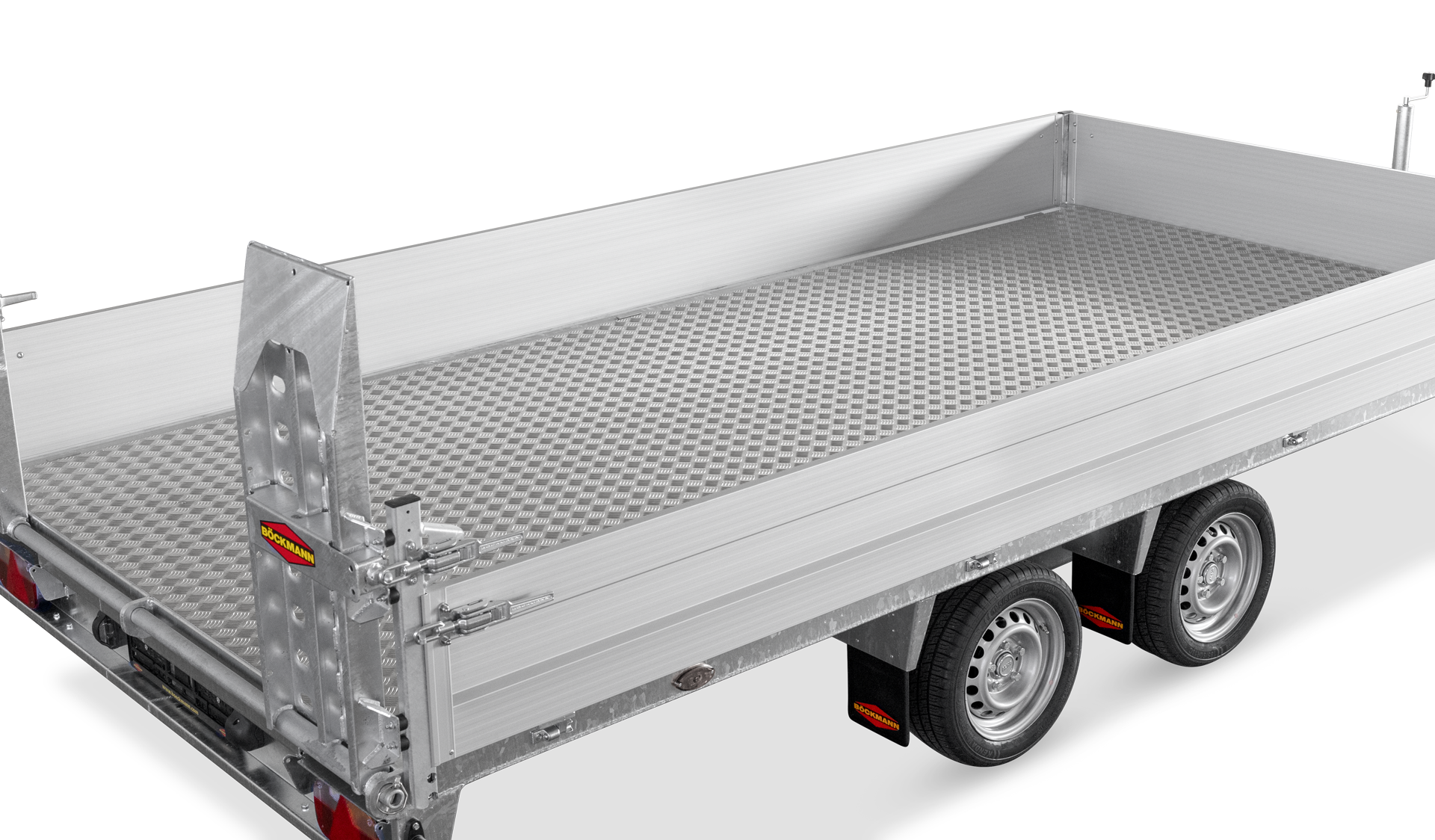

- aluminium checker plate flooring
-
Loading
- Rail / rear flap selection
- rear flap 200mm (alu-anod.), under-slung drive-on steel rails
- Selection loading

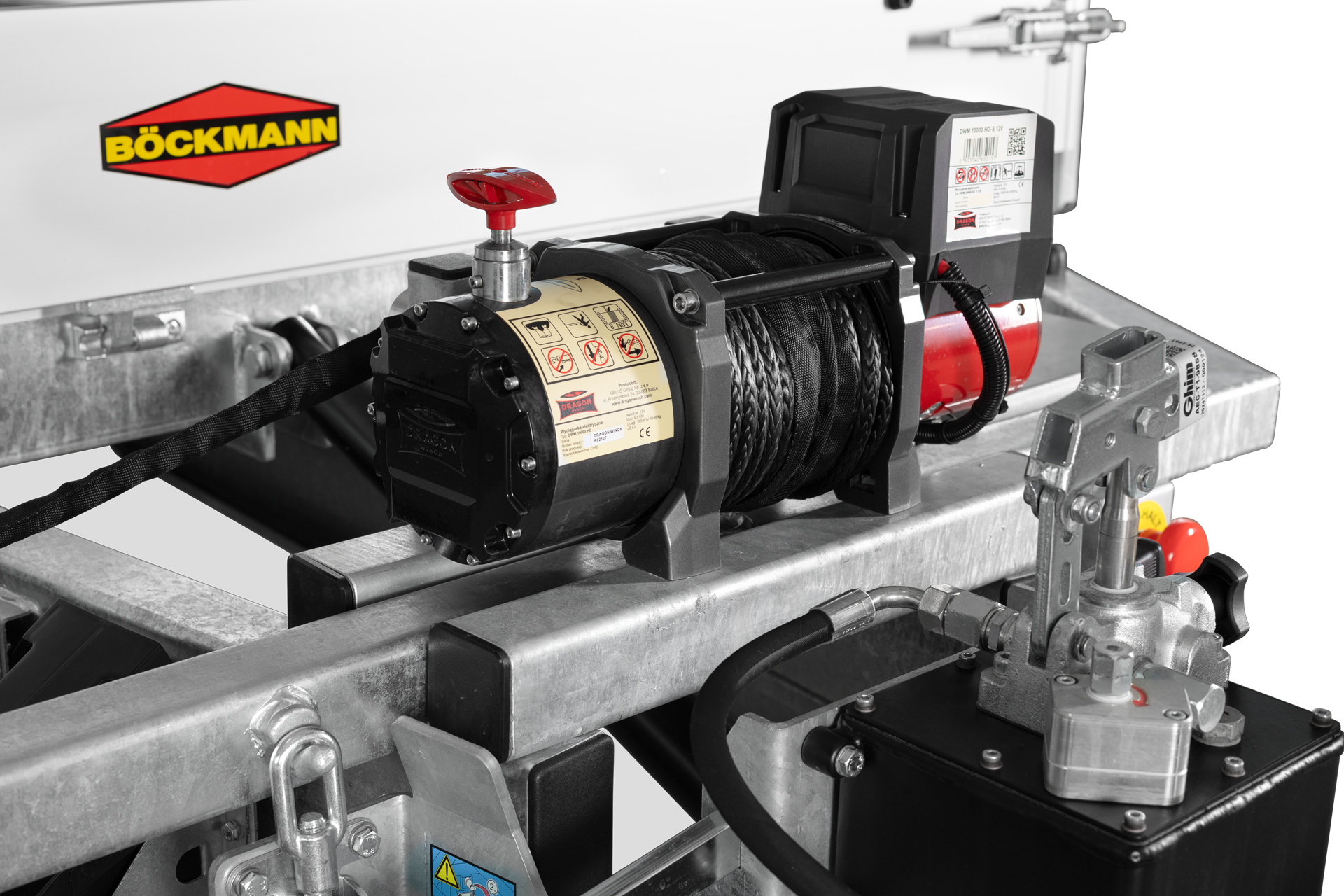

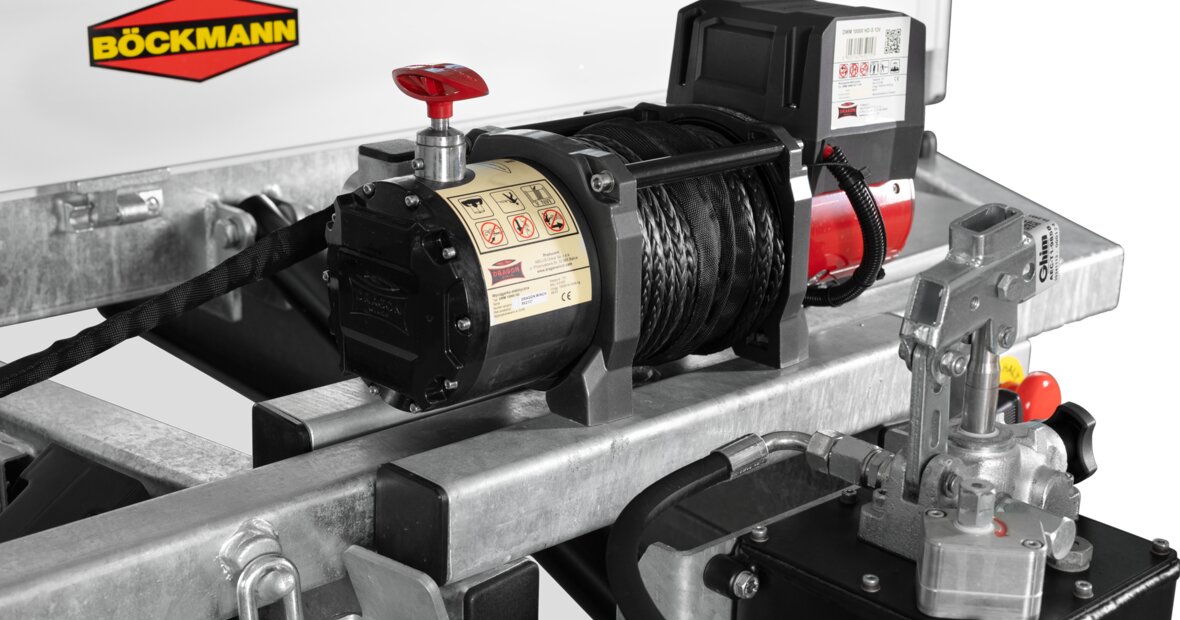

- electric winch
- mechanical cable winch (900 kg) with guide roller
- intermediate grid (with lifting mechanism)
-
Lashings

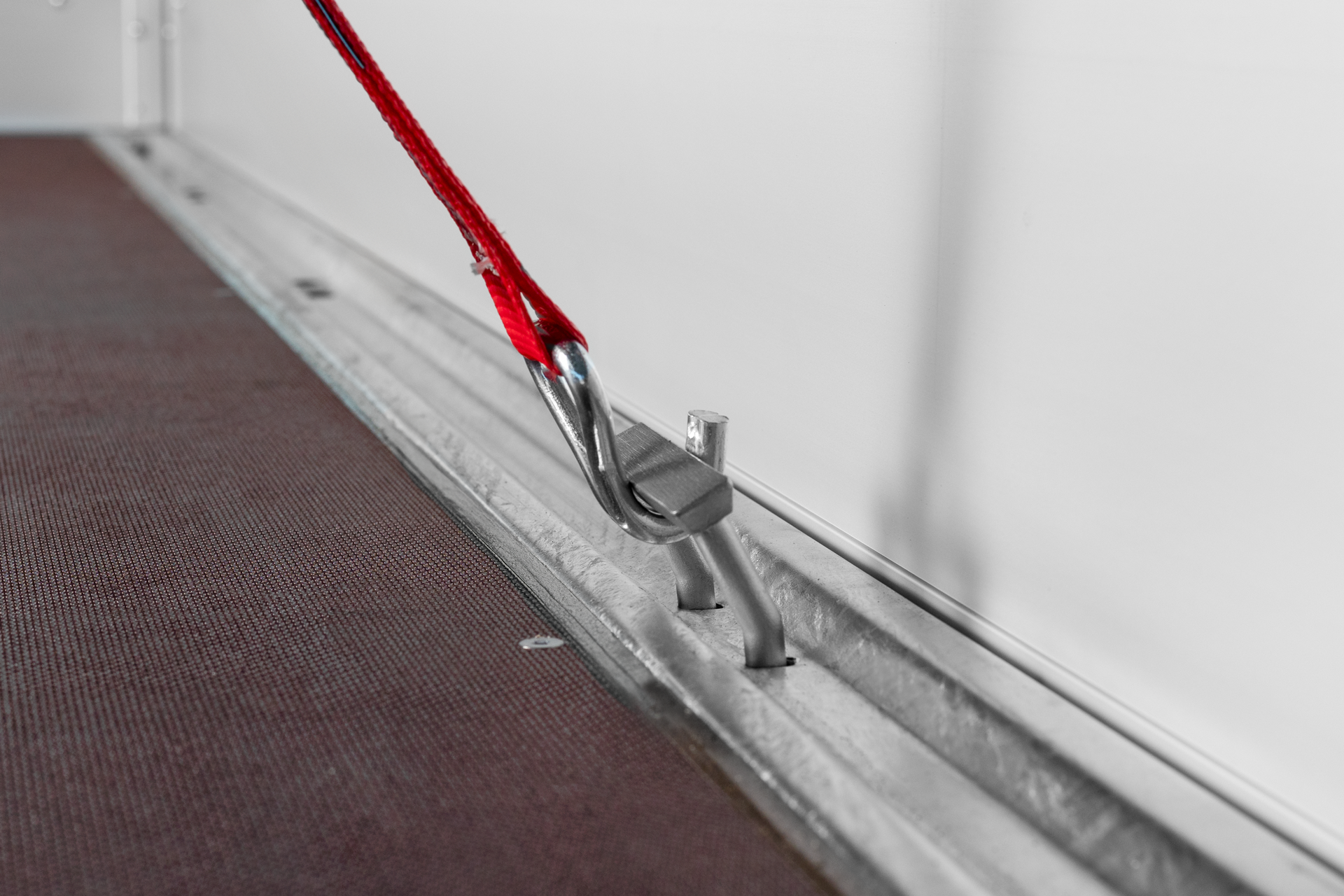

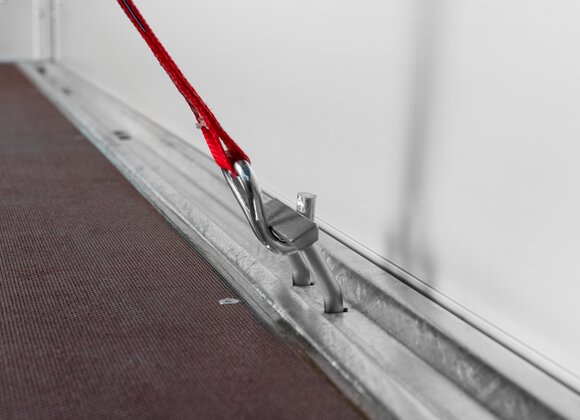

- additional lashing ring
Other
-
Hydraulik systems
- EasyKipp hydraulic, for cordless screwdrivers
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
