Equipe L 4.12 (L)
Price on request

Characteristics

Number of animals
4 Horses
Family
Equipe family, 12000 kg
Number of sleeping places

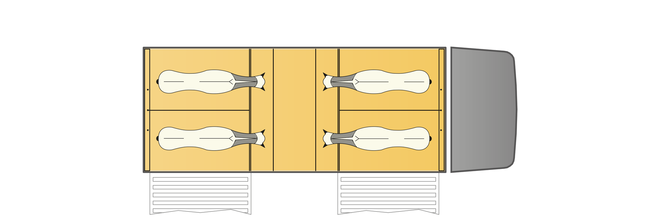

The Equipe L4 for up to four horses in lengthwise position has an impressive range of features. The large loading ramps at the side offer horse and riders an equally high standard of comfort particularly during the loading.

Technical data

Base
Number of animals Number of animals
4 Horses
Apartments Apartments
Bathroom Bathroom
Weight
Total weight Total weight
12000 kg
Payload Payload
3450 kg
External dimensions
Total length Total length
8250 mm
Total width Total width
2550 mm
Total height Total height
4000 mm
Internal dimensions
Interior length Interior length
6450 mm
Interior width Interior width
2440 mm
Interior height Interior height
2450 mm

Standard features

Body

  • Body general
    • 2 feed alleys (aluminum checker plate floor) with separate external
    • 2 Loading ramps with rubber covering with special step bars+side stop
    • 24mm high density plywood platform
    • Double ribbed hollow profile, 25 mm, anodized aluminum
    • Insulated sandwich roof 50 mm thick (GRP)
  • Body Horse department

Chassis

  • Selection battery power
    • 2x12V/100 Ah batteries
  • Selection driver's seat
    • Driver swing seat standard
  • Selection front passenger seat
    • Front passenger seat, simple
  • Selection tank size
    • Tank 120 l
  • 177 hp /130 KW
  • AdBlue® tank 25 l
  • Cruisecontrol
  • Daytime Running Light
  • Front mirror, heatable
  • front springs parabolic
  • main mirror electrically adjustable, on drivers side
  • Mercedes-Benz Atego Neu 12 L
  • PowerShift 3 transmission

Other

  • Electrical system
    • AGM battery 200 AH
    • battery guard
    • CEE input socket (230 V) with fuse and charger
  • Paintwork
    • Painture: white

Accessories

Body

Chassis

  • Selection battery power
    • 2x12V/165 Ah batteries
  • Selection driver's seat
    • Driver's suspension seat, comfort
  • Selection front passenger seat
    • Passenger suspension seat,
  • Selection tank size
    • Tank 180 l
  • CHASSIS / CAB OPTIONS
    • Air Conditioning
    • CD-radio, Bluetooth
    • electric windows
    • Extended central locking systems
    • Halogen fog lamp
    • Middle seat with 3-point seat belt
    • Trailer coupling
    • trailer socket. 12-V, 13 pole

Other

  • Paintwork
    • Lettering "2-Horse-Heads" left and right
  • Accessories
