Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!

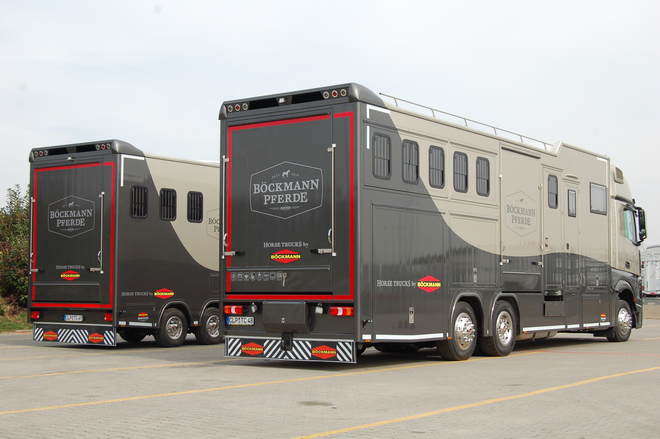

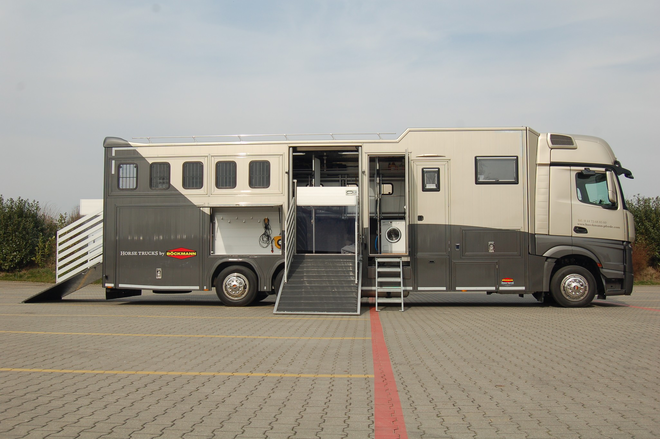

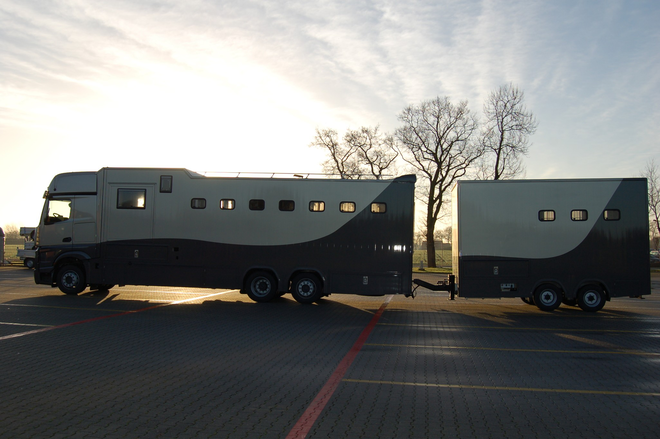

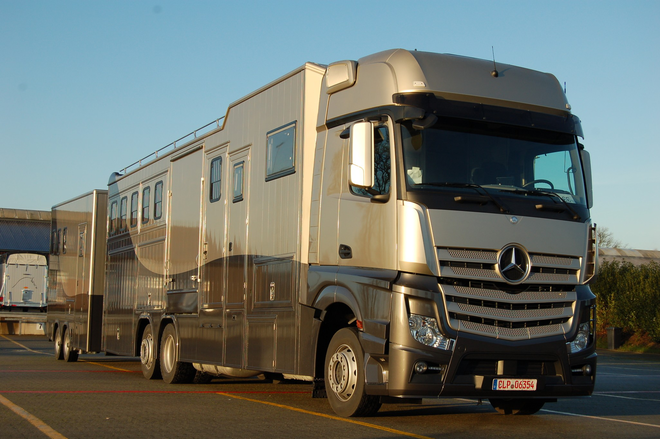

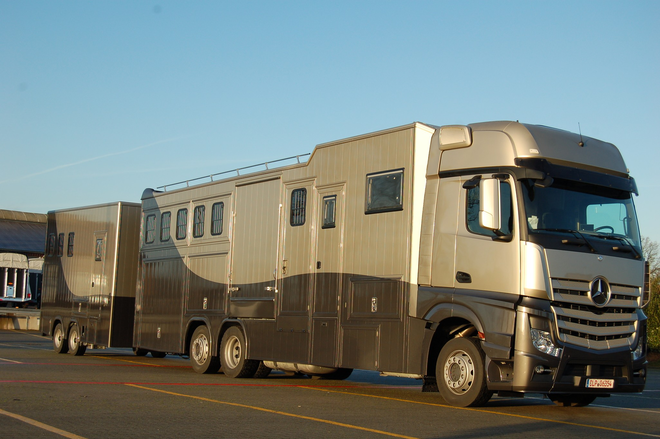

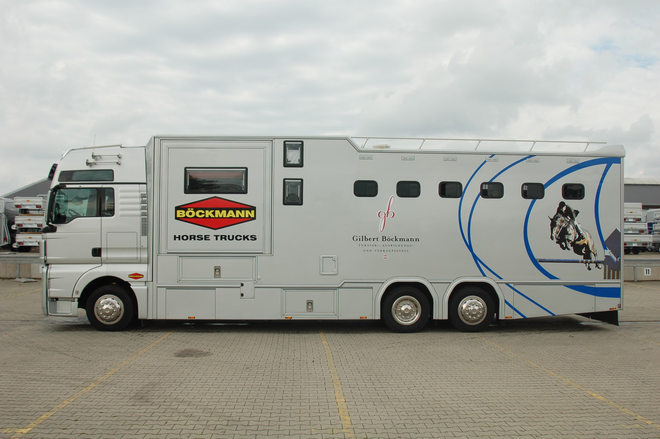

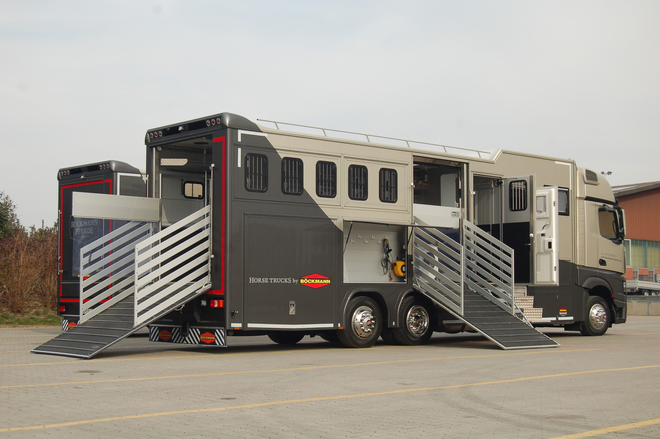

Big Equipe S 7.25.26
Price on request

Characteristics

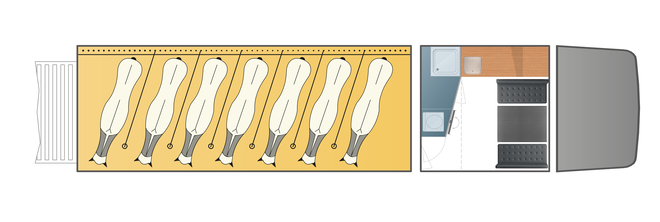

Number of animals
7 Horses
Family
Equipe family, 26000 kg
Number of sleeping places
3
Some competitions are already won on the way to the event: The Big Equipe S with a large horse compartment for up to seven horses, spacious living quarters and XXL drivers cab is really impressive and will also spark your enthusiasm. Unsurpassed space and comfort. What more can you ask?

Technical data

Base
Number of animals Number of animals
7 Horses
Apartments Apartments
Deluxe 250 cm
Bathroom Bathroom
Small bathroom
Weight
Total weight Total weight
26000 kg
Payload Payload
11375 kg
External dimensions
Total length Total length
11460 mm
Total width Total width
2550 mm
Total height Total height
4000 mm
Internal dimensions
Interior length Interior length
6460 mm
Interior width Interior width
2440 mm
Interior height Interior height
2450 mm

Standard features

Body

Chassis

  • Chassis
    • Driver seat standard
    • Mercedes-Benz Actros Neu 25 L
    • Tank 630 l
    • 240 kW / 326 hp
    • AdBlue® tank 60 l
    • PowerShift 3 transmission
    • Cruisecontrol
    • Front spring, 7.5 t, 2-leaf
    • Trailer coupling
    • trailer socket. 24-V, 15 pole
    • Front mirror, heatable
    • main mirror electrically adjustable, on drivers side
    • Wide angle mirror heatable
    • Extended central locking systems
    • Functional seat for passenger
    • Radio with USB port
    • electric windows
    • Multifunction steering wheel
    • Air Conditioning

Internal Space

  • Living area
    • Extension ladder at the front door with latch
    • All furnitures in solid construction with safety catches
    • Topsleeper, insulated, lined with carpet, incl mattress and ladder
    • PVC Flooring
    • Walls panelled with laminated plastic sheeting
    • Lockable entrance door with 3-point closure
    • Separation to horse area by 25mm anodized.Aluminium Double web profile
    • Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
    • Two opposing benches for 4 persons with seat cushion
    • Lowerable table
    • Mirror
    • 4 coat hooks in the entrance area
    • Door mat with emblem Böckmann
    • Living room window above the bench, 900x600 mm, multifunctional,
  • Kitchen
    • Kitchenette with work surface
    • 230 V sockets (2x) above kitchenette
    • cabinet with drawer and towel rail under the work surface
    • Living room window above kitchen, multi-functional,
    • Ppotlights above kitchenette
    • Sink with tab
  • Bathroom
  • Sleeping
  • Lighting
    • 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper

Accessories

Body

Chassis

  • Chassis
    • Pilot's seat, with armrests, adjustable, rotatable

Internal Space

Other

  • Electrical system
    • Selection electricity
    • Electrical basic package 2
    • Electrical basic package 3
    • Further equipment options
    • AGM auxiliary battery 200 AH
    • Hydraulic package
    • 3,5 - 4 KW generator (diesel generator)
  • Heating
    • Ceiling air conditioner
    • Combi boiler, diesel D6 6000 watts (hot water and heating)
    • Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
    • Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
  • Paintwork
    • Selection painting
    • Paint, complete in metallic-colors (except PVC parts of the chassis)
    • Paint, complete in RAL-Colors
    • Paint of plastic parts (cab), metallic-colors
    • Paint of plastic parts (cab), RAL colors
    • Further equipment options
    • Lettering "2-Horse-Heads" left and right
  • Water / wastewater
    • Selection waste water tank
    • Waste tank 300 l (Surcharge)
    • Selection fresh water tank
    • Fresh water tank 300 l (Surcharge)
    • Further equipment options
    • Warm water, 15 l
