Characteristics
Number of animals
2 Horses
Model family
Compact family, 4500 kg
Sleeping berth

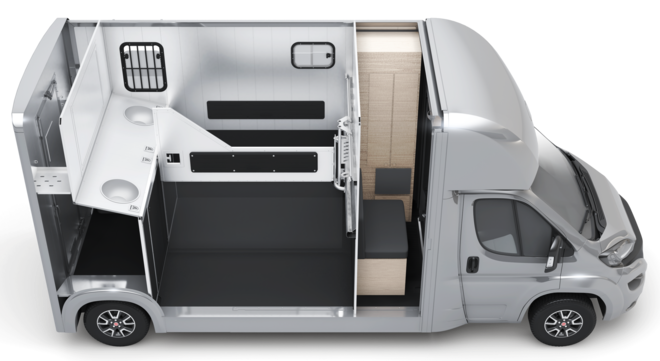

The horse compartment of the Compact L Sport Tour is equipped with an adjustable partition wall and a fixed breast wall (with a pass-door to the tack room as an option). The feeding troughs of stainless steel embedded in the feeding table are easily accessible to the horse. The tack room and horse compartment are securely separated. A living area of 700 mm is located between the driver's cab and the horse compartment. The chassis of the L variant is 270 mm longer than the basic model and therefore offers more space for individual designs.
Technical data
Base
Number of animals
2 Horses
Living quater
Bathroom
Weight
Total weight
4500 kg
Payload
1650 kg
External dimensions
Gesamtlänge
6440 mm
Gesamtbreite
2114 mm
Gesamthöhe
3130 mm
Internal dimensions
Interior length
3770 mm
Interior width
2040 mm
Interior height
2400 mm
Standard features
Body
-
Body general
- Flap above loading ramp
- Aluminum corner profiles, rounded
- Structure made of 18 mm aluminum profiles
- Roof spoiler on tailgate integrated brake and clearance lights (LED)
- Roof ventilator 12 V., switchable from the drivers cab
- Alcove
- Roof skylight, big version, incl. closing support
- Horizontal sliding window in left side panel 450x300mm
- Windows (2x) vertically sliding 450x600mm with integral window grille
- Loading ramp (side) with rubber with special step bars and side stop
- Selection saddle chamber laterally right rear
- Living room left side without window
-

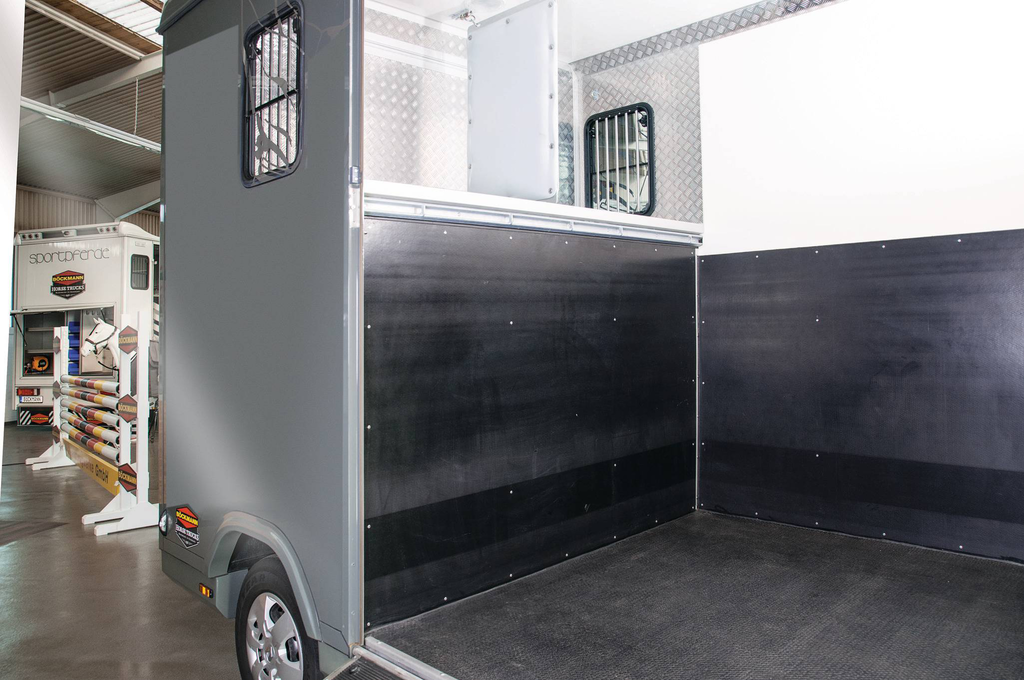

Body Horse department
- Feeding table, with wall and window
- Barrier belt in front of the loading flap
- Breast wall with kick protection
- Tethering rings (4 x )
- Rubber floor, glued and sealed
- hay net hooks ( 2x)
- Kick protection in the back of the horse area
- Side padding for partition wall and left side wall
- Kick protection at left side
- LED-Light in horse area
- Partition wall alum. (L) with PVC panel and integrated head section
- Aluminium floor on galvanized AL-KO chassis
-
Tack room
- Lockable outside door
- stool for access
- Forced ventilation in the door
- Tack room, about 1010x2000 mm
- Snaffle hooks (9x )
- bootjack
- Shelves left and right
Chassis
-
Chassis
- Co driver seat adjustable height and slope with armrest
- Fix & Go Kit (instead of spare wheel)
- Manual gearbox
- 160 HP Multijet (118 KW), diesel engine, 4 cylinders
- Seat Covers Leatherette grey
- lane-departure warning
- Daytime Running Light
- Fuel tank 90 L
- overspeed 90 km/h
- Armrest and lumbar support for driver seat
- AM/FM and DAB antenna in right-hand wing mirror
- Euro 6d-TEMP
- Central locking with remote control
- Mechanical Break Assistant
- Cup holder
- Stowage compartment under the roof
- Power windows
- Driver air bag
- Sensor for oil level monitoring
- Electronic engine imobiliser
- Elimination of cabin back wall
- ESC incl. overturn prevention
- grey bumper of PVC
- Digital tachograph without calibration
- Prewire for bodybuilder incl. socket at the b-pillar
- Fiat Transporter Ducato Maxi with Alko-low bed frame, hot-dip galvan.
- power heated exterior mirrors
- smart tachograph
- Summer tires on 16" steel rims
Internal Space
-
Living area
- Selection fridge
- PVC flooring
- Open back wall of the cab
- LED Lamp in living area
Other
-
Paintwork
- Decal "Horsetrucks by Böckmann" on both sides and behind (anthracite)
- Paint: RAL white
- Decal "Horses" in front and behind (anthracite)
- Accessories
Accessories
Body
-
Body general
- Equipement above loading ramp
- Lift-up flap with window above loading ramp
- Double-wing door above loading ramp instead of flap
- Front door, lockable
- Exterior door with window,370x500mm, erectable incl.rollo+mosquito net
- Front door, lockable
- Options for living area left wall
- Window for living room (left)
- Further equipment options
- Tie bar, folding,
- Tethering rings
- Additional Roof skylight, big version
- Lock for loading ramp
- Surrounding lighting
-
Body Horse department
- Version feeding table
- Trough, stainless steel, (2x) in feeding table (with wall and window)
- Selection barrier in front of loading ramp
- Stop board before loading ramp instead cordon, pivotable
- Selection kick protection
- Door in breast-wall (wicket door for mobil tack trunk) 817 x 1075mn
- Selection partition
- Movable partition, aluminium, with transparent PVC curtain
- Further equipment options
- Anchoring rope with panic hook (set)
- Kickpad
- Kickpads (pair)
- Air conditioning in the horse compartment
- Head partition
- Excrement slide
- LED-working illumination for the vicinity of the loading flap.
- LED-Light in horse area, additional
- Calming illumination (blue)
- Kick protection between partition hangers
- Temperature control (according to regulation EG 1/2005)
- Animal transport report
- Wear mat
- Video monitoring incl. reversing camera
-
Tack room
- Selection walk-in tack room door
- Lockable double-wing door in the rear to the saddle room
- Further equipment options
- Step below the door
- Bag net additional
- folding seat
- Clothes rail in the saddle room
- Shelf-system with storage boxes in tack room
- Saddle rack additional
- Snaffle hooks, additional
Chassis
-
Chassis
- Selection front passenger seat
- Passenger double seat with folding table in medium backrest
- Passenger Seat rotatable
- Selection spare wheel or set
- Spare wheel (full-size) incl. spare wheel holder
- Selectrion gears
- 9-gear-automatic transmission
- Selection motorisation
- 180 HP Multijet (131 KW), diesel engine, 4 cylinders
- Selection seat covers
- Seat covers artificial leather (driver and double seat bench)
- Seat covers artificial leather (driver and single passenger seat)
- Selection lane departure warning system
- Lane-departure warning and traffic sign recognition
- Selection daytime running lights
- Daytime Running Light LED
- Selection tank size
- Fuel tank 120 L
- Speed limiter
- Elimination overspeed
- Smart tachograph
- ommission smart tachograph
- Summer tyres on steel rim 16 inch
- All-Season tires
- Alloy rim 16 "Diamond"
- Winter tires
- Further equipment options
- 7" intotainmentsystem with touchscreen + DAB
- 7 ?infotainment system with touchscreen + NAV + DAB
- Mirrors for vehicle width 2.35 m
- Autonomous heater (Webasto)
- Battery (110 Ah)
- Cruise control
- Driver's seat rotatable
- Floor mat (fabric)
- Floor mat (rubber)
- Door mat (cab)
- Manual air conditioning with pollen filter,outside temperature display
- Automatic single zone air conditioning with pollen filters
- Leather covers double row of seats
- Single row of seats in leather
- Leather covers with heated seats (single row of seats)
- Leather covers with seat heating, double row of seats
- Front fog lamps
- Full wheel covers
- Rain and light sensor
- Light bordering, black
- Black grill (piano coating)
- Seat heating, double seat row
- Seat heating, single seat row
- Seat heating for the driver
- Fixed trailer coupling (trailer ball)
- Traction+ with downhill assistant
- USB charging port
- Reinforced alternator 200 Ah
- Additional heater under the driver's seat in the direction of travel
Internal Space
-
Living area
- Selection refrigerator
- Refrigerator (12V)
- Equipement of seats (for flat selection)
- Seat with artificial leather (Apartmante 1)
- Seat with artificial leather (Apartmante 2)
- Seat with artificial leather (Apartmante 3)
- Seat with leather cover (Apartmante 1)
- Seat with leather cover (Apartmante 2)
- Seat with leather cover (Apartmante 3)
- Further equipment options
- Door mat with emblem Böckmann
- Mirror 900x300mm
- Diesel auxiliary heating, 2000 watts
- TV SAT equipment, fully automatic
- TV with DVBT antenna
- Blackout curtain front and side windows
- Selection flat type
- Video camera system (wired) for horse trailer
- Video socket
- Apartment 1: jacket cabinet, 2 drawers, folding table,
- Apartment 2: jacket cabinet, open compartment,
- Apartment 3: jacket cabinet, open compartment, fixed bench
-
Sleeping
- Mattress in alcove (incl. ladder)
Other
-
Electrical system
- 4-fold socket 230V in living quarter
- battery guard
- Double socket 230V in saddle compartment
- Socket 12V in saddle compartment
- Socket 12V in living quarter
-
Paintwork
- Selection decor front and back
- Decal "Horsetrucks by Böckmann" on both sides and behind (silver)
- Further equipment options
- Decors on the truck as desired / effort
- Paint exterior mirrors
- Selection painting
- RAL paintwork body
- RAL paintwork body / cab
- RAL paintwork body / cab / plastic parts
- Metallic painting body
- Metallic painting body / cab
- Metallic painting body / cab / plastic parts
- Selection decor front and back
- Decal "Horses" in front and behind (silver)
-
Accessories
- Fire extinguisher
- Saddle-cabinet L
- Saddle-cabinet XL
- First-aid box
- Warning triangle
- Warning lamp
- Safety vest
