Characteristics
Number of animals
2 Horses
Model family
Compact family, 4250 kg
Sleeping berth

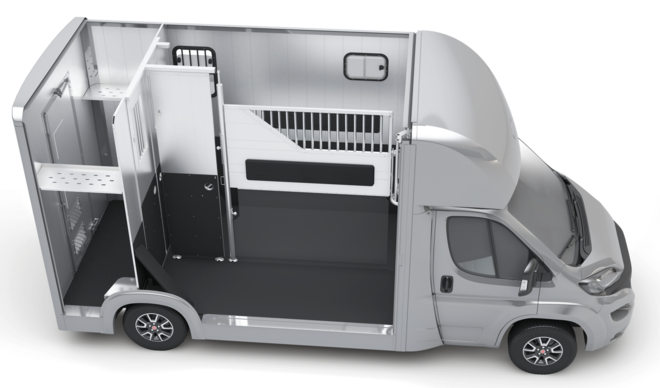

The horse compartment of the Compact Stall is equipped with a variable floor to ceiling partition wall, a three-door system and a passage to the tack room. The side padding on the aluminium partition wall and side wall provides the requisite safety. The three-door system enables flexible use of the horse compartment.
Technical data
Base
Number of animals
2 Horses
Living quater
Bathroom
Weight
Total weight
4250 kg
Payload
1460 kg
External dimensions
Gesamtlänge
6170 mm
Gesamtbreite
2114 mm
Gesamthöhe
3130 mm
Internal dimensions
Interior length
3600 mm
Interior width
2040 mm
Interior height
2400 mm
Standard features
Body
-
Body general
- Flap above loading ramp
- Roller blind (alcove closure)
- Aluminum corner profiles, rounded
- Structure made of 18 mm aluminum profiles
- Roof spoiler on tailgate integrated brake and clearance lights (LED)
- Roof ventilator 12 V., switchable from the drivers cab
- Alcove
- Roof skylight, big version, incl. closing support
- 1 hook for a jacket at the back wall of the cab
- Horizontal sliding window in left side panel 450x300mm
- Windows (2x) vertically sliding 450x600mm with integral window grille
- Loading ramp (side) with rubber with special step bars and side stop
-
Body Horse department
- Barrier belt in front of the loading flap
- Rubber floor, glued and sealed
- hay net hooks ( 2x)

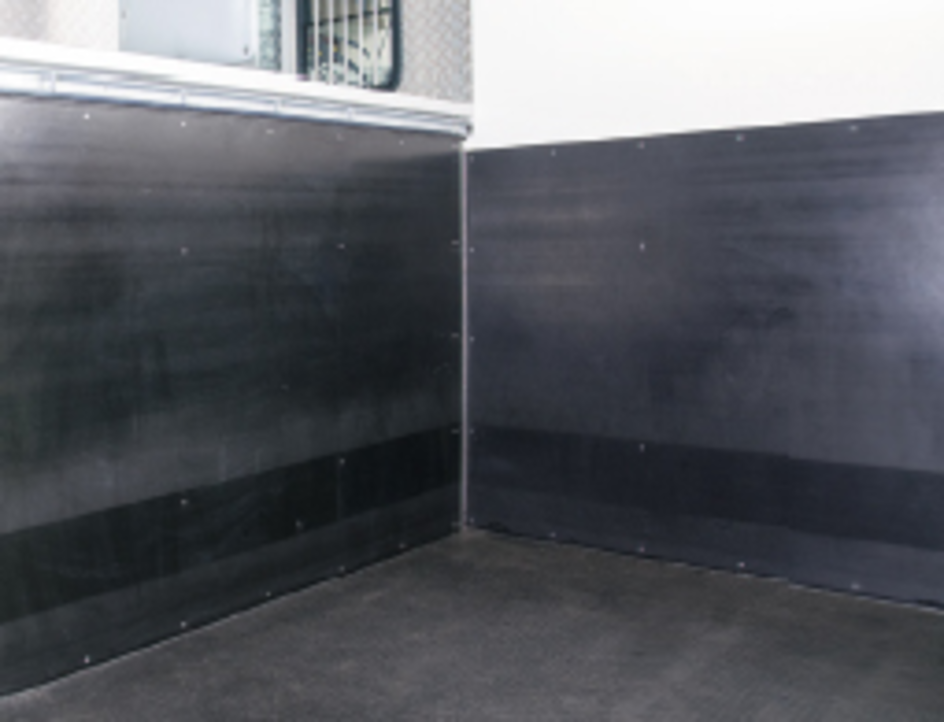

- Kick protection in the back of the horse area
- Side padding for partition wall and left side wall
- APP Floor (additional on steel sheet floor)
- LED-Light in horse area
- Tethering rings (4 x )
- Feeding troughs, plastic (2x) for hanging
- Kick protection at left side
- Fixed partition, aluminium, with transparent PVC curtain
- Door panel before H-partition, closed, swivel mounted
- Connecting doors (2x) between horses area / tack room,swivel mounted
-
Tack room
- Lockable outside door
- stool for access
- LED-Light in tack room
- Saddle-rack ( 2 x )
- Tack room, about 910x2000 mm
- Mirror at door (2x)
- Forced ventilation in the door
- bootjack
- Shelves left and right
- Snaffle hooks (9x )
Other
-
Paintwork
- Decal "Horsetrucks by Böckmann" on both sides and behind (anthracite)
- Decal "Horses" in front and behind (anthracite)
- Paint: RAL white
- Accessories
Chassis
-
Chassis

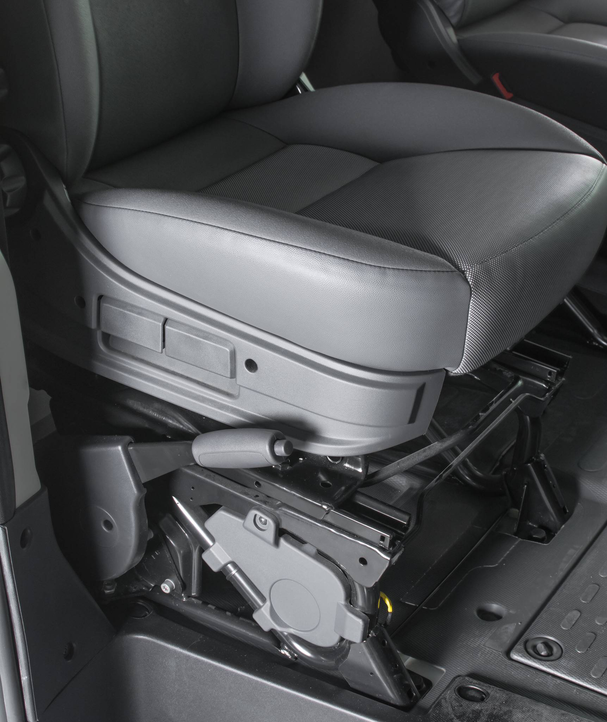

- Co driver seat adjustable height and slope with armrest
- Fix & Go Kit (instead of spare wheel)
- Manual gearbox
- 160 HP Multijet (118 KW), diesel engine, 4 cylinders
- Seat Covers Leatherette grey
- lane-departure warning
- Daytime Running Light
- Fuel tank 90 L
- overspeed 90 km/h

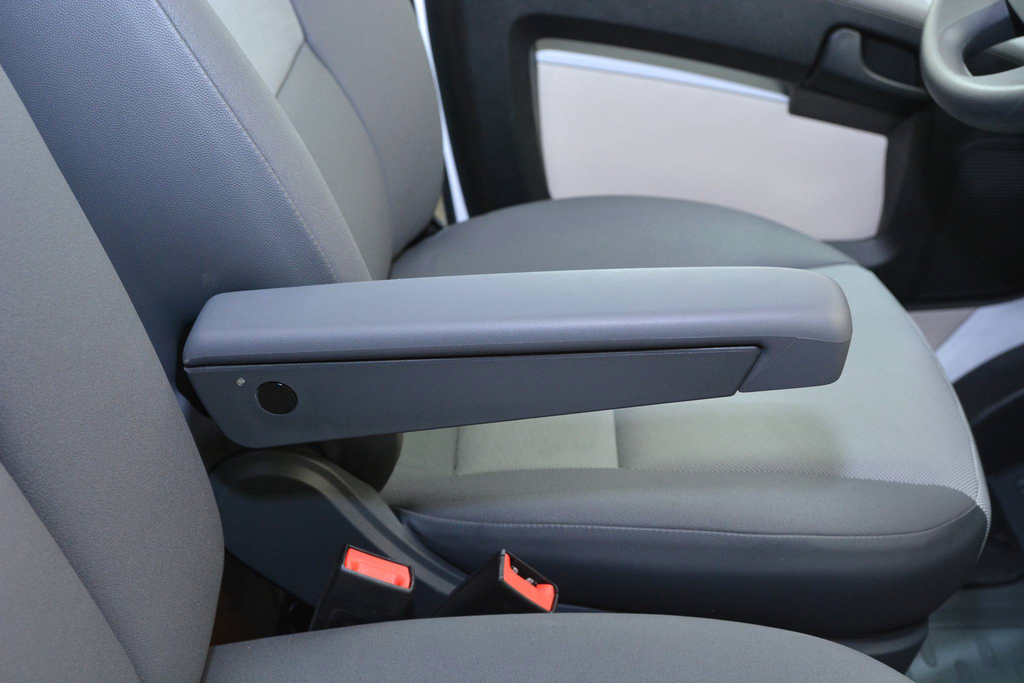

- Armrest and lumbar support for driver seat
- Prewire for bodybuilder incl. socket at the b-pillar
- Euro 6d-TEMP
- Central locking with remote control
- Mechanical Break Assistant

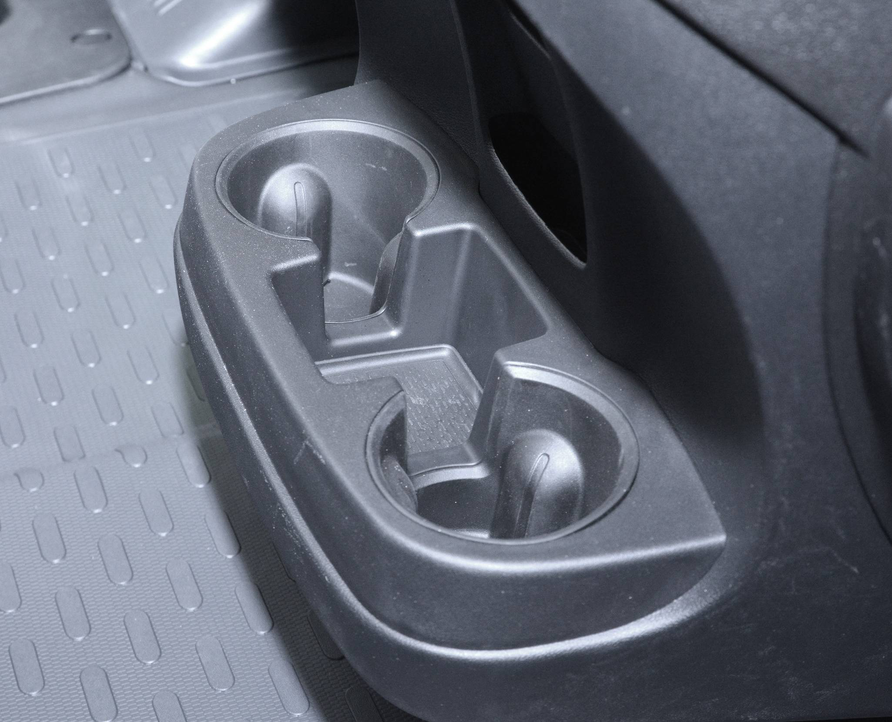

- Cup holder

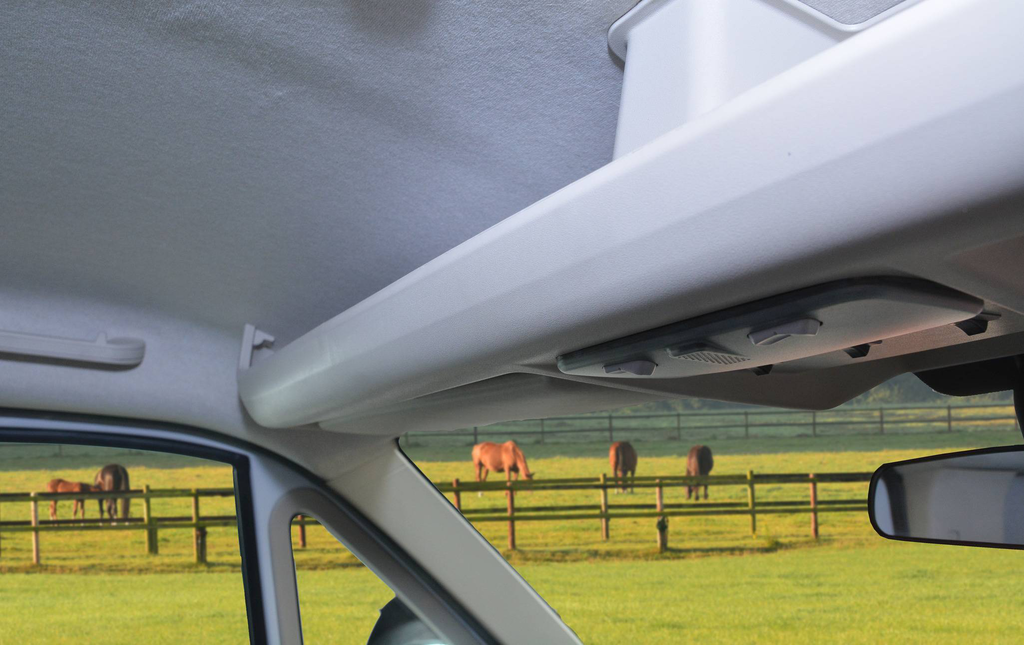

- Stowage compartment under the roof
- Power windows
- Driver air bag
- Sensor for oil level monitoring
- Electronic engine imobiliser
- Elimination of cabin back wall
- ESC incl. overturn prevention
- grey bumper of PVC
- Digital tachograph without calibration
- Flat-bottom chassis
- Fiat Transporter Ducato Maxi 40
- AM/FM and DAB antenna in right-hand wing mirror
- power heated exterior mirrors
- smart tachograph
- Summer tires on 16" steel rims
Accessories
Body
-
Body general
- Equipement above loading ramp
- Lift-up flap with window above loading ramp
- Double-wing door above loading ramp instead of flap
- Selection Alkoven partition
- Flap, aluminum anodized (alcove closure)
- Further equipment options
- Tie bar, folding,
- Tethering rings
- Additional Roof skylight, big version
- Lock for loading ramp
- Surrounding lighting
- Video camera system (wired) for horse trailer
- Video socket
-
Body Horse department
- Selection barrier in front of loading ramp
- Stop board before loading ramp instead cordon, pivotable
- Further equipment options
- Air-liner rail mounted both sides
- Anchoring rope with panic hook (set)
- Additional butt-bars (with Multi Safe System)
- Kickpad
- Kickpads (pair)
- Air conditioning in the horse compartment
- Excrement slide
- LED-working illumination for the vicinity of the loading flap.
- LED-Light in horse area, additional
- Calming illumination (blue)
- Kick protection between partition hangers
- Dust protection between saddle - and horse compartment
- Temperature control (according to regulation EG 1/2005)
- Animal transport report
- Partition H Stainless steel grid attachment
- Wear mat
- Video monitoring incl. reversing camera
- Selection partition
- Movable partition, aluminium, with transparent PVC curtain
- Version door element in front of partition wall
- Head partition instead of dividing door
-
Tack room
- Selection walk-in tack room door
- Lockable double-wing door in the rear to the saddle room
- Further equipment options
- Step below the door
- Bag net additional
- folding seat
- Clothes rail in the saddle room
- Shelf on the left side additionally
- Shelf on the right side additionally
- Shelf-system with storage boxes in tack room
- Saddle rack additional
- Anodized aluminum cabinet, ceiling height in high tack room
- Snaffle hooks, additional
Other
-
Electrical system
- battery guard
- Double socket 230V in saddle compartment
- Socket 12V in saddle compartment
-
Paintwork
- Selection decor front and back
- Decal "Horsetrucks by Böckmann" on both sides and behind (gold)
- Decal "Horsetrucks by Böckmann" on both sides and behind (silver)
- Further equipment options
- Decors on the truck as desired / effort
- Paint exterior mirrors
- Selection decor front and back
- Decal "Horses" in front and behind (gold)
- Decal "Horses" in front and behind (silver)
- Selection painting
- RAL paintwork body
- RAL paintwork body / cab
- RAL paintwork body / cab / plastic parts
- Metallic painting body
- Metallic painting body / cab
- Metallic painting body / cab / plastic parts
-
Accessories
- Fire extinguisher
- Saddle-cabinet L
- Saddle-cabinet XL
- First-aid box
- Warning triangle
- Warning lamp
- Safety vest
Chassis
-
Chassis
- Selection front passenger seat
- Passenger double seat with folding table in medium backrest
- Selection spare wheel or set
- Spare wheel (full-size) incl. spare wheel holder
- Selectrion gears
- 9-gear-automatic transmission
- Selection motorisation
- 180 HP Multijet (131 KW), diesel engine, 4 cylinders
- Selection seat covers
- Seat covers artificial leather (driver and double seat bench)
- Seat covers artificial leather (driver and single passenger seat)
- Selection lane departure warning system
- Lane-departure warning and traffic sign recognition
- Selection daytime running lights
- Daytime Running Light LED
- Selection tank size
- Fuel tank 120 L
- Speed limiter
- Elimination overspeed
- Smart tachograph
- ommission smart tachograph
- Summer tyres on steel rim 16 inch
- All-Season tires
- Alloy rim 16 "Diamond"
- Winter tires
- Selection total weight
- Weight reduction to 3,5 to
- Upweighted total weight to 4.5 t
- Further equipment options
- 7" intotainmentsystem with touchscreen + DAB
- 7 ?infotainment system with touchscreen + NAV + DAB
- Mirrors for vehicle width 2.35 m
- Autonomous heater (Webasto)
- Battery (110 Ah)
- Cruise control
- Floor mat (fabric)
- Floor mat (rubber)
- Door mat (cab)
- Manual air conditioning with pollen filter,outside temperature display
- Automatic single zone air conditioning with pollen filters
- Leather covers double row of seats
- Single row of seats in leather
- Leather covers with heated seats (single row of seats)
- Leather covers with seat heating, double row of seats
- Front fog lamps
- Full wheel covers
- Rain and light sensor
- Light bordering, black
- Black grill (piano coating)
- Seat heating, double seat row
- Seat heating, single seat row
- Seat heating for the driver
- Fixed trailer coupling (trailer ball)
- Traction+ with downhill assistant
- USB charging port
- Reinforced alternator 200 Ah
- Additional heater under the driver's seat in the direction of travel
