Characteristics
Number of animals
2 Horses
Model family
Compact family, 3500 kg
Sleeping berth

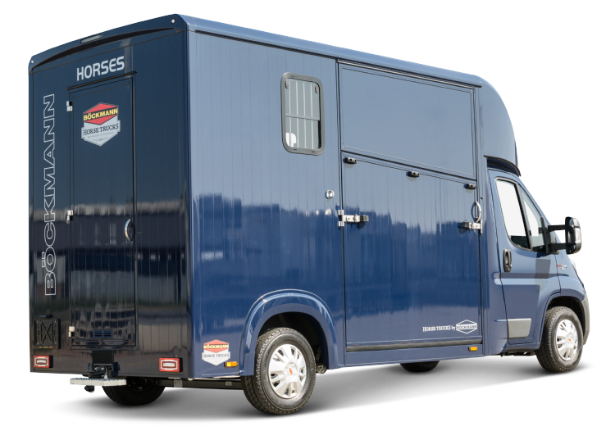

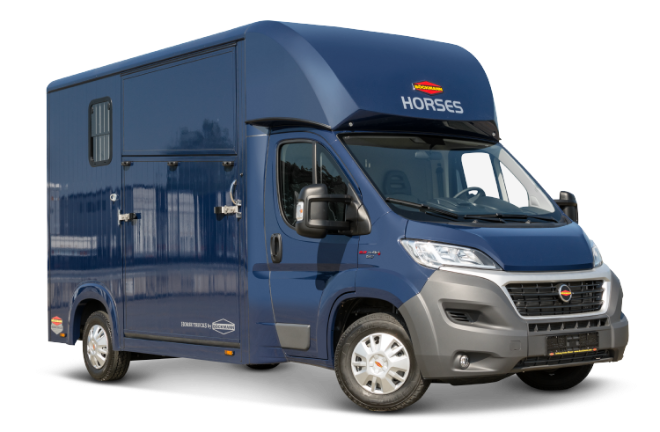

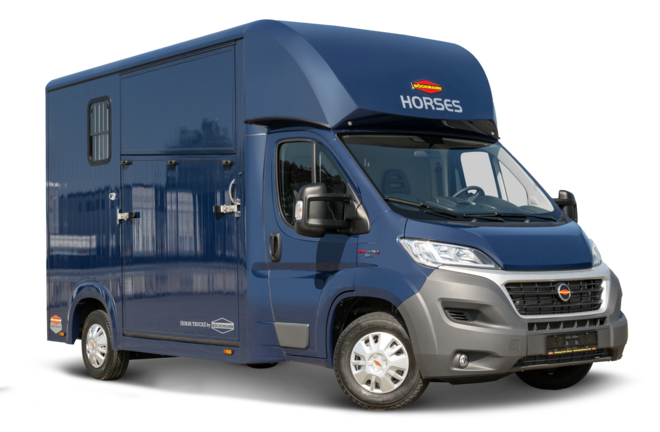

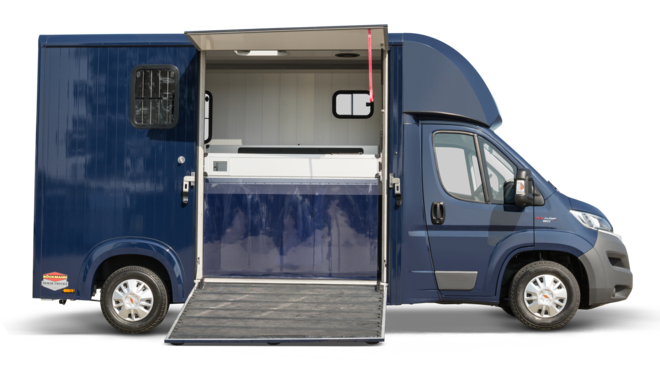

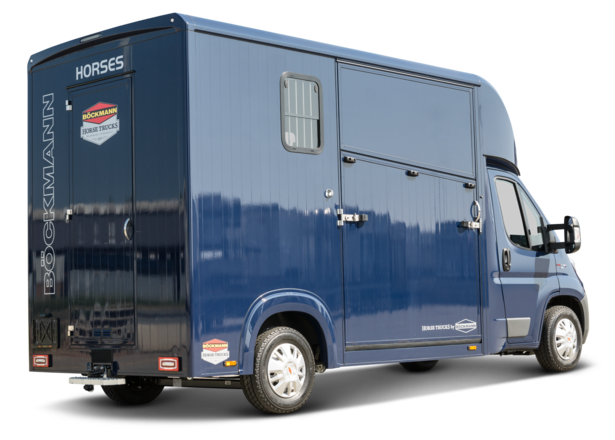

Our new entry-level model to the Compact family, the Esprit, offers all important features without any compromise in terms of stability, safety or the usual Böckmann quality. This is how the entry-level price was reduced to a minimum. The efficient configuration allows for more payload than other vehicles of this category. Customization is possible, too, given the extensive range of optional accessories.
Technical data
Base
Number of animals
2 Horses
Living quater
Bathroom
Weight
Total weight
3500 kg
Payload
850 kg
External dimensions
Gesamtlänge
6170 mm
Gesamtbreite
2114 mm
Gesamthöhe
3100 mm
Internal dimensions
Interior length
3600 mm
Interior width
2040 mm
Interior height
2400 mm
Standard features
Body
-
Body general
- Roof ventilator 12 V., switchable from the drivers cab
- Roof spoiler on tailgate integrated brake and clearance lights (LED)
- Structure made of 18 mm aluminum profiles
- Aluminum corner profiles, rounded
- Flap above loading ramp
- Alcove
- Roof skylight, big version, incl. closing support
- Horizontal sliding window in left side panel 450x300mm
- Windows (2x) vertically sliding 450x600mm with integral window grille
- Roller blind (alcove closure)
- 1 hook for a jacket at the back wall of the cab

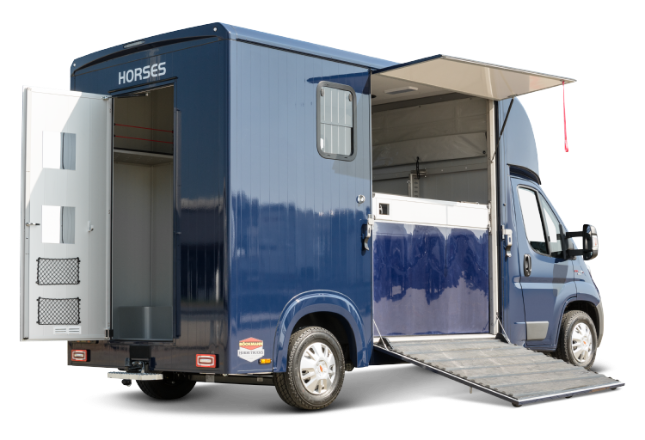

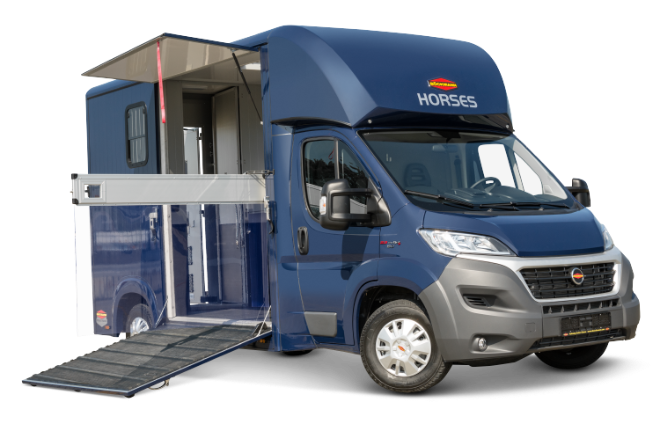

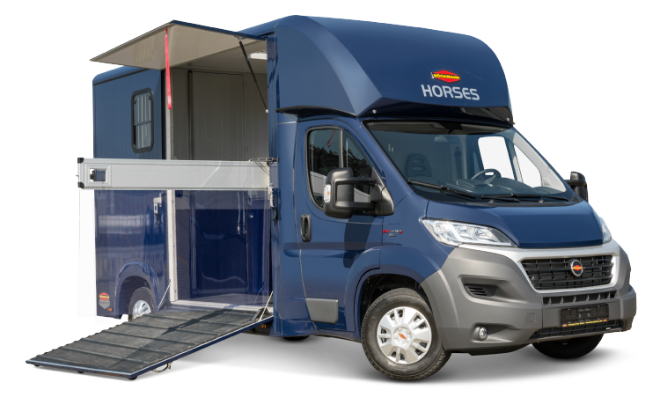

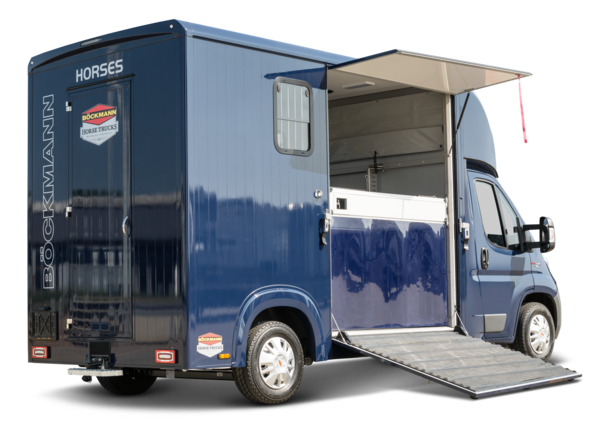

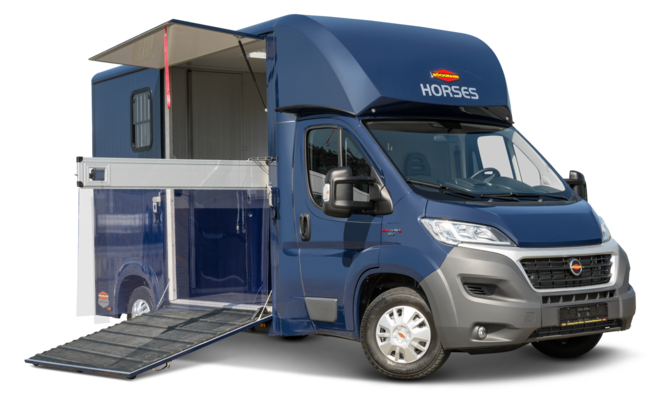

- Loading ramp (side) with rubber with special step bars and side stop
-
Body Horse department
- LED-Light in horse area
- Tethering rings (4 x )
- Feeding troughs, plastic (2x) for hanging
- Rubber floor, glued and sealed
- Barrier belt in front of the loading flap
- hay net hooks ( 2x)
- Kick protection at left side
- APP Floor (additional on steel sheet floor)
- Kick protection in the back of the horse area
- Side padding for partition wall and left side wall
- Partition wall alum. (L) with PVC panel
-
Tack room
- stool for access
- LED-Light in tack room
- Saddle-rack ( 2 x )
- Mirror at door (2x)
- Lockable outside door
- Forced ventilation in the door
- bootjack
- Snaffle hooks (9x )
- Tack room, about 910x2000 mm
Other
-
Paintwork
- Decal "Horsetrucks by Böckmann" on both sides and behind (anthracite)
- Decal "Horses" in front and behind (anthracite)
- Paint: RAL white
- Accessories
Chassis
-
Chassis
- Co driver seat adjustable height and slope with armrest
- Fix & Go Kit (instead of spare wheel)
- Daytime Running Light
- Power windows
- Driver air bag
- Sensor for oil level monitoring
- Electronic engine imobiliser
- Elimination of cabin back wall
- ESC incl. overturn prevention
- grey bumper of PVC
- Prewire for bodybuilder incl. socket at the b-pillar
- Manual gearbox
- Flat-bottom chassis
- Central locking with remote control
- Fuel tank 90 L
- Mechanical Break Assistant
- Euro 6d-TEMP
- Summer tires on 16" steel rims
- 140 HP Multijet (103 KW), diesel engine, 4 cylinders
- AM/FM and DAB antenna in right-hand wing mirror
- power heated exterior mirrors
- Seat Covers Leatherette grey
- Fiat Transporter Ducato 35
Accessories
Body
-
Body general
- Tie bar, folding,
- Tethering rings
- Additional Roof skylight, big version
- Lock for loading ramp
- Surrounding lighting
- Video camera system (wired) for horse trailer
- Video socket
-
Body Horse department
- Anchoring rope with panic hook (set)
- Kickpad
- Kickpads (pair)
- Air conditioning in the horse compartment
- Excrement slide
- LED-working illumination for the vicinity of the loading flap.
- Calming illumination (blue)
- Kick protection between partition hangers
- Temperature control (according to regulation EG 1/2005)
- Animal transport report
- Wear mat
- Video monitoring incl. reversing camera
-
Tack room
- Step below the door
- Bag net additional
- Clothes rail in the saddle room
- Saddle rack additional
- Snaffle hooks, additional
Other
-
Electrical system
- Double socket 230V in saddle compartment
- Socket 12V in saddle compartment
-
Paintwork
- Selection decor front and back
- Decal "Horsetrucks by Böckmann" on both sides and behind (gold)
- Decal "Horsetrucks by Böckmann" on both sides and behind (silver)
- Selection decor front and back
- Decal "Horses" in front and behind (gold)
- Decal "Horses" in front and behind (silver)
- Further equipment options
- Decors on the truck as desired / effort
- Paint exterior mirrors
- Selection painting
- RAL paintwork body
- RAL paintwork body / cab
- RAL paintwork body / cab / plastic parts
- Metallic painting body
- Metallic painting body / cab
- Metallic painting body / cab / plastic parts
-
Accessories
- Fire extinguisher
- First-aid box
- Warning triangle
- Warning lamp
- Safety vest
Chassis
-
Chassis
- Selection front passenger seat
- Passenger double seat with folding table in medium backrest
- Selection spare wheel or set
- Spare wheel (full-size) incl. spare wheel holder
- Selection daytime running lights
- Daytime Running Light LED
- Further equipment options
- 7" intotainmentsystem with touchscreen + DAB
- Mirrors for vehicle width 2.35 m
- Autonomous heater (Webasto)
- Cruise control
- Door mat (cab)
- Manual air conditioning with pollen filter,outside temperature display
- Automatic single zone air conditioning with pollen filters
- Armrest and lumbar support for driver seat
- Front fog lamps
- Full wheel covers
- Rain and light sensor
- Light bordering, black
- Black grill (piano coating)
- Fixed trailer coupling (trailer ball)
- Traction+ with downhill assistant
- USB charging port
- Additional heater under the driver's seat in the direction of travel
