Characteristics
Model family
vehicle transporters and boat trailers
Total weight
3500 kg
Number of axles
2

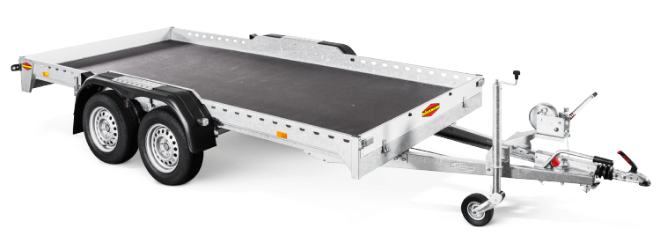

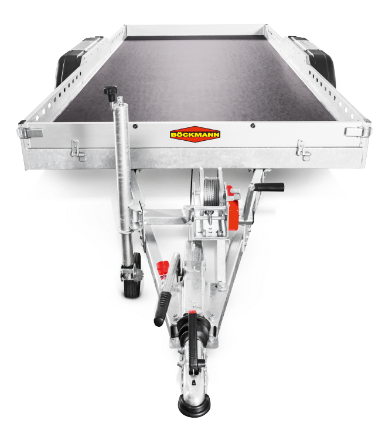

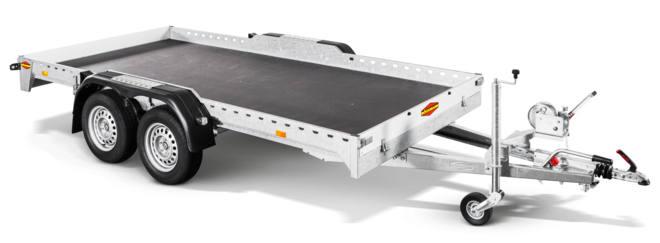

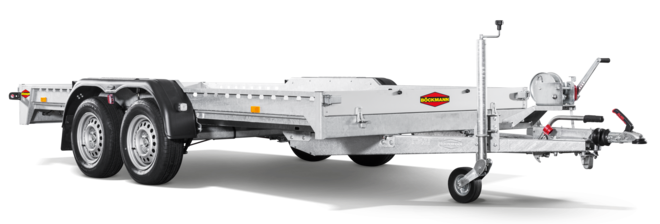

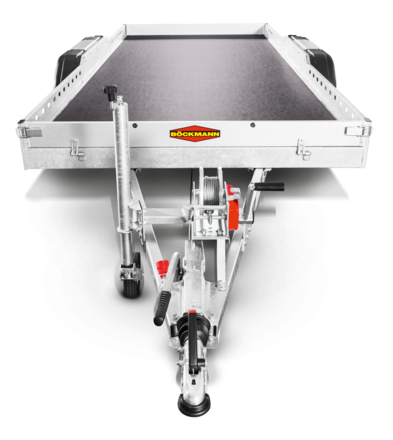

The low-loader universal transporter is the ideal professional vehicle for daily use. It stands out from the crowd with its solid workmanship and versatility. It is ideal for a wide range of uses as a vehicle transporter - even for 3-wheel vehicles - as well as for transporting heavy construction machinery. The reason is the total weight of 3.5 tonnes, and if you don't need to transport any vehicle, this range of models is also an excellent choice for transporting piece goods and bulky items.
Technical data
Base

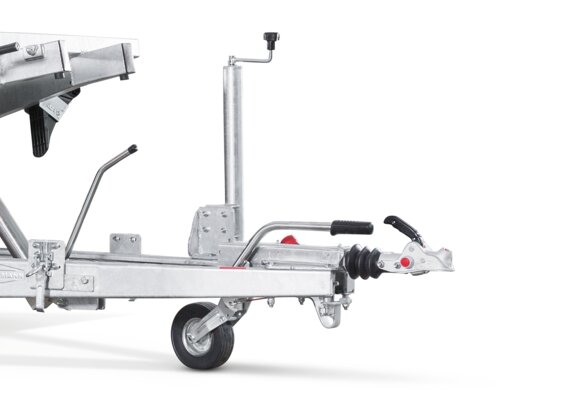

Jockey wheel
Automatic
Tires
14.0 Zoll
Loading height
555 mm
Overrun brake
Weight
Total weight
3500 kg
Payload
2755 kg
Internal dimensions
Interior length
4030 mm
Interior width
1900 mm
Interior height
150 mm
Standard features
Body
-
Side walls
- front wall foldable

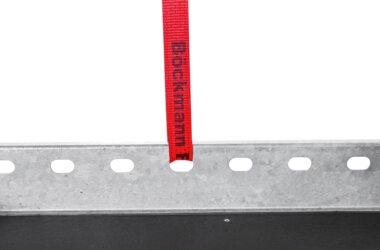

- side walls with integrated railing
- Attachments
-
Loading
- Without cable winch
- Without loading rails

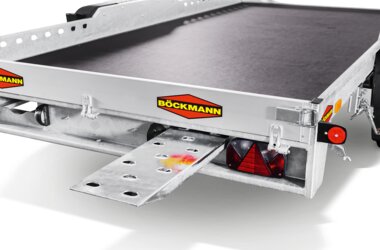

- mounting for the steel rails
Chassis
-
Chassis
- axle with rubber suspension system, free of service
- V-tow bar with 1500 mm length
- 5 solid steel-longitudinal supports
- Jockey wheel
Accessories
Body
- Attachments
-

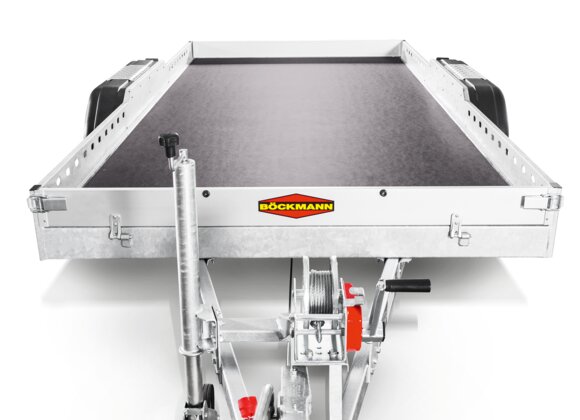

Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Loading
- Selection cable winch
- cable winch with winch bracket
- Selection retractable drive-on rails

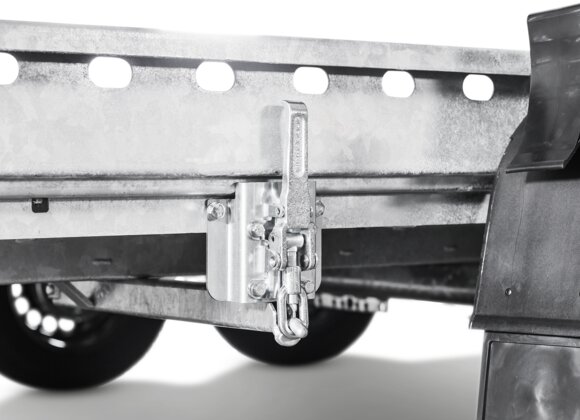

- under-slung steel drive-on rails, clamping device, load.cap.2,4t/pair
- Selection loading
- bicycle support rail
- motorcycle drive-on rail fixed to sidewall (inside)
- motorcycle support rail, fixed to bottom of trailer
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
