Characteristics
Model family
vehicle transporters and boat trailers
Total weight
750 kg
Number of axles
1
Maximum efficiency: Irrespective of whether you want to transport a Smart, a ride-on lawn mower or a motorcycle. With an interior length of 2515 mm you will always have space to spare. With the aluminium anodised superstructure and the mounted, solid sliding supports for optimum stability during loading and unloading in original Böckmann professional quality. With its comprehensive range of accessories you can equip your 'Böckmann' exactly as you want.
Technical data
Base
Jockey wheel
Tires
13.0 Zoll
Loading height
500 mm
Weight
Total weight
750 kg
Payload
545 kg
External dimensions
Total length
3630 mm
Total width
1960 mm
Total height
700 mm
Internal dimensions
Interior length
2515 mm
Interior width
1500 mm
Interior height
150 mm
Standard features
Body
-
Side walls

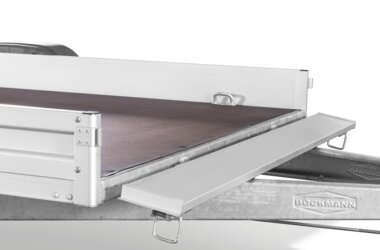

- drop down front wall
- sidewalls alu-anodized
-
Attachments
- security lighting
- plug, 13 pin

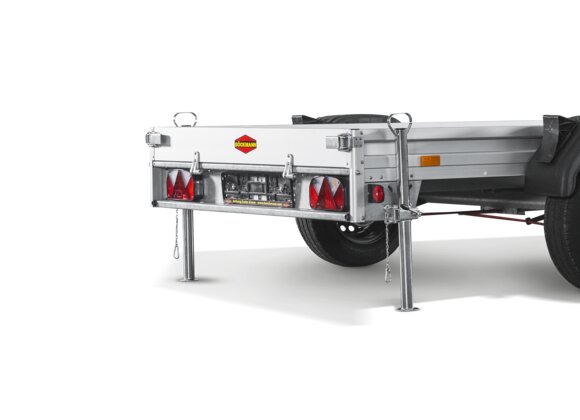

- pushing-down supports in the back
-
Lashings

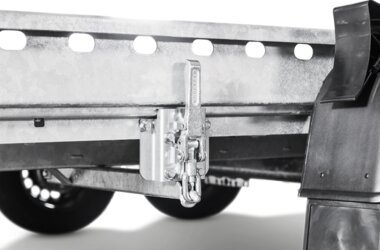

- curtain buckles
- Lashings
Chassis
-
Chassis

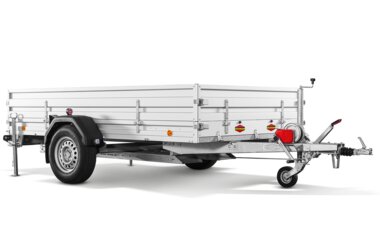

- Double sided alu anodized construction with integrated aluminium frame
- axle with rubber suspension system, free of service
- 2 crossmember

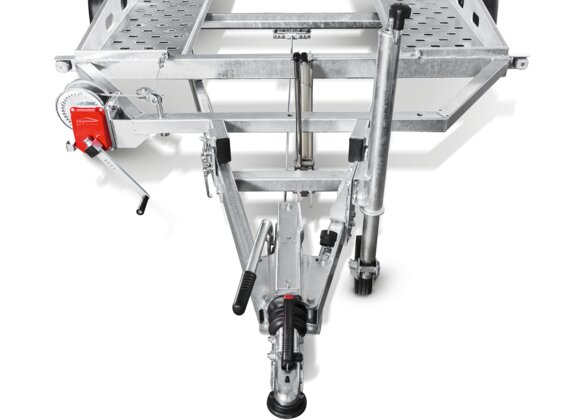

- Jockey wheel
Accessories
Body
-
Attachments

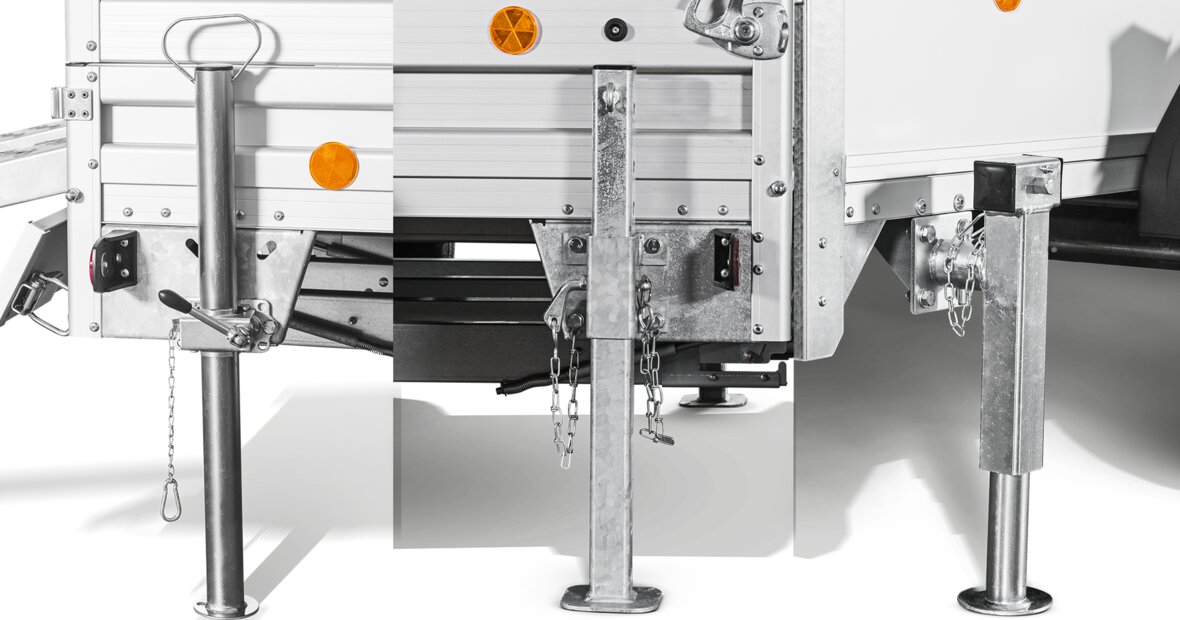

- Selection support legs at rear
- reinforced sliding supports (surcharge)
- telescopic crank drop legs (surcharge)
- Selection attachments
- retaining ropes at rear wall
- spare wheel 13"
- spare wheel holder (mounted)
-
Floor

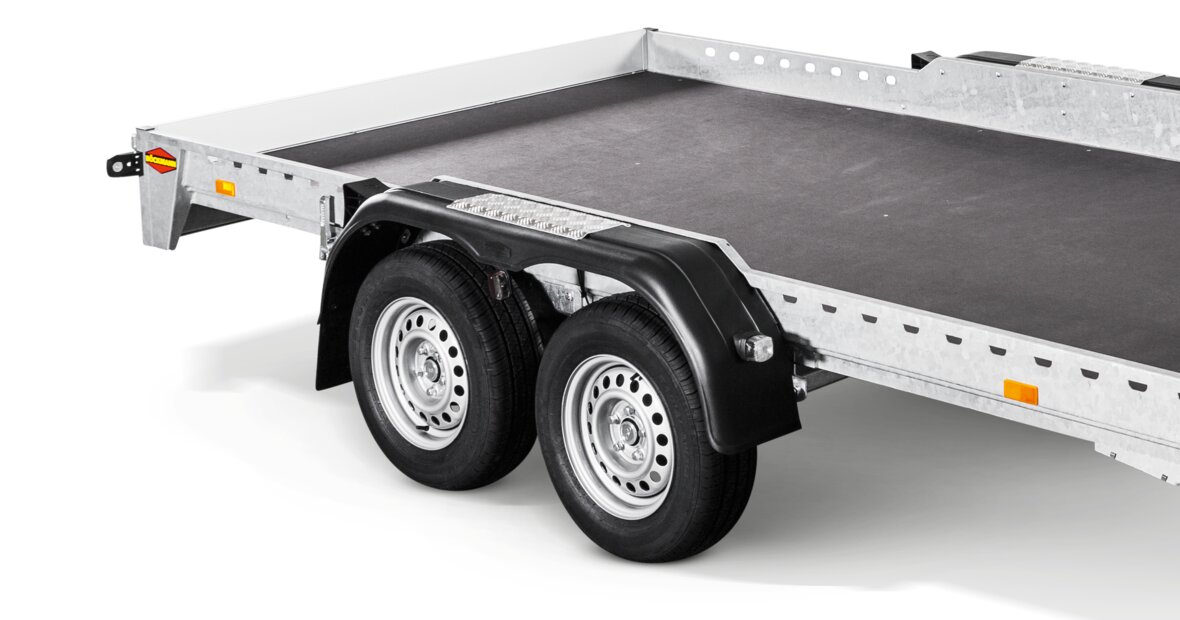

- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Tarpaulin and hoops
- Selection tarpaulin and hoop (not mounted)

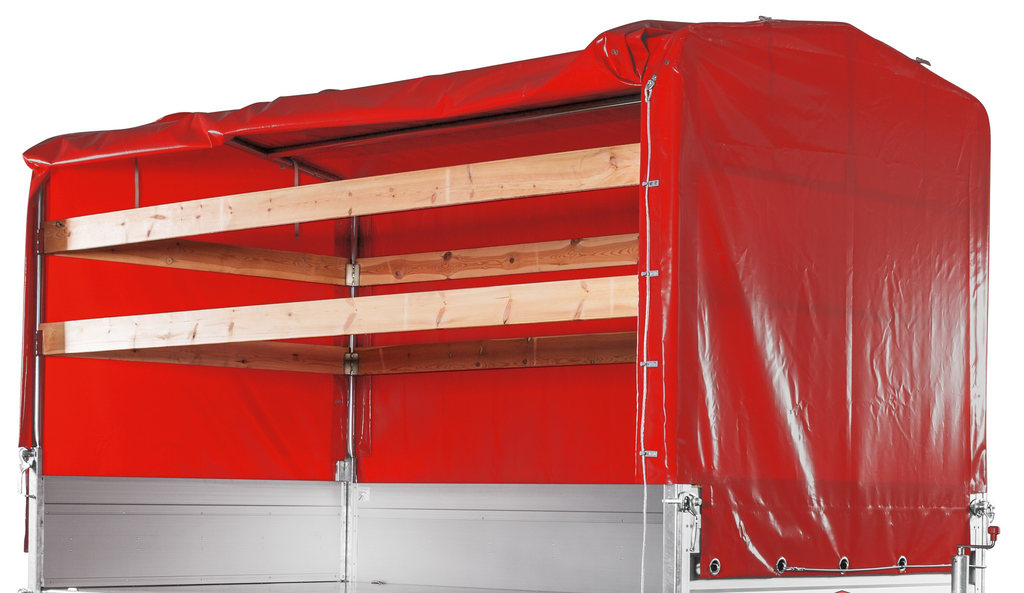

- frame and PVC canvas, 1200 mm (without pitch)
- frame and PVC canvas, 1400 mm (without pitch)
- Additional equipment for tarpaulins
- frame and canvas fitting charge
- tarpaulin labelling, exclusive marking, 2 sides
- tarpaulin labelling, exclusive marking, 3 sides
- tarpaulin labelling, exclusive marking, 4 sides
- tarpaulin labelling, standard marking, 2 sides
- tarpaulin lettering, standard marking, 3 sides
- tarpaulin labelling, standard marking, 4 sides
- tarpaulin labelling, full marking, 2 sides
- tarpaulin labelling, full marking, 3 sides
- tarpaulin labelling, full marking, 4 sides
- Selection colour of tarpaulin
- canvas colour: blue (similar to RAL5010)
- canvas colour: yellow (similar to RAL1021)
- canvas colour: green (similar to RAL6026)
- canvas colour: orange (similar to RAL2011)
- canvas colour: red (similar to RAL3002)
- canvas colour: black (similar to RAL9005)
- canvas colour: white (similar to RAL9016)
- canvas colour: grey (similar to RAL7035)
-
Loading
- bicycle support rail
- motorcycle drive-on rail fixed to sidewall (inside)
- motorcycle support rail, fixed to bottom of trailer

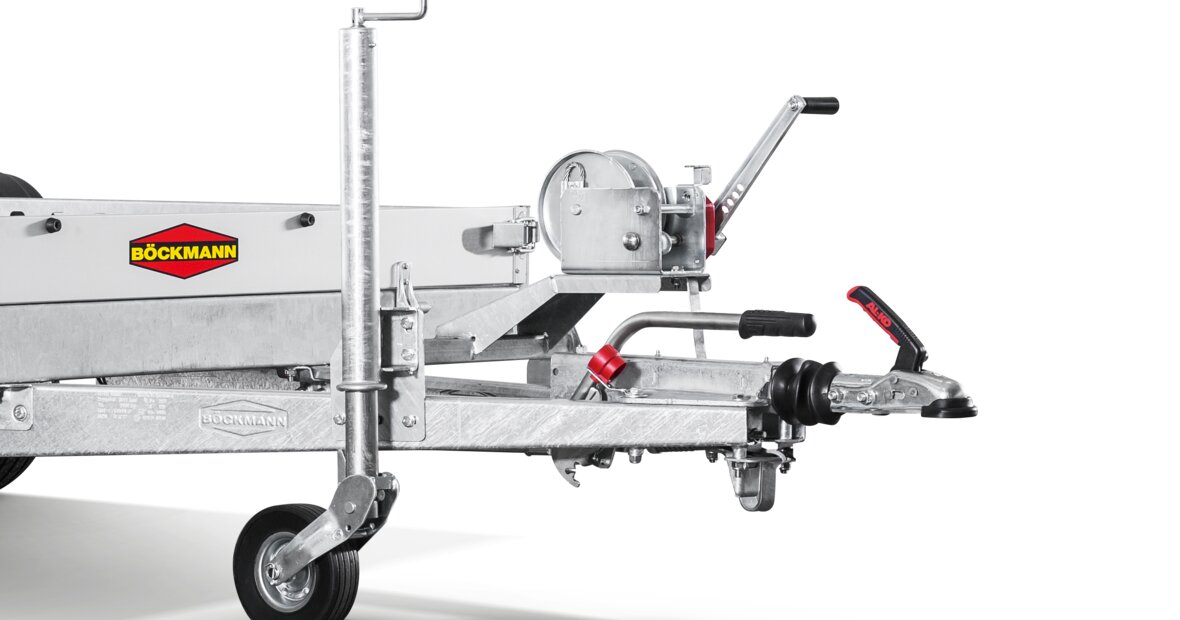

- cable winch with winch bracket

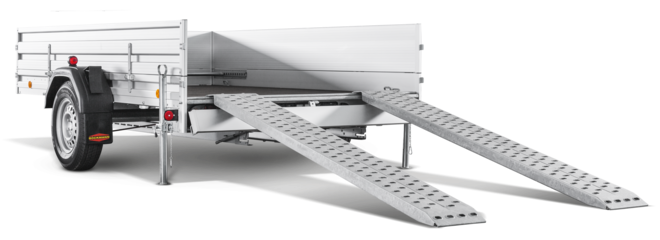

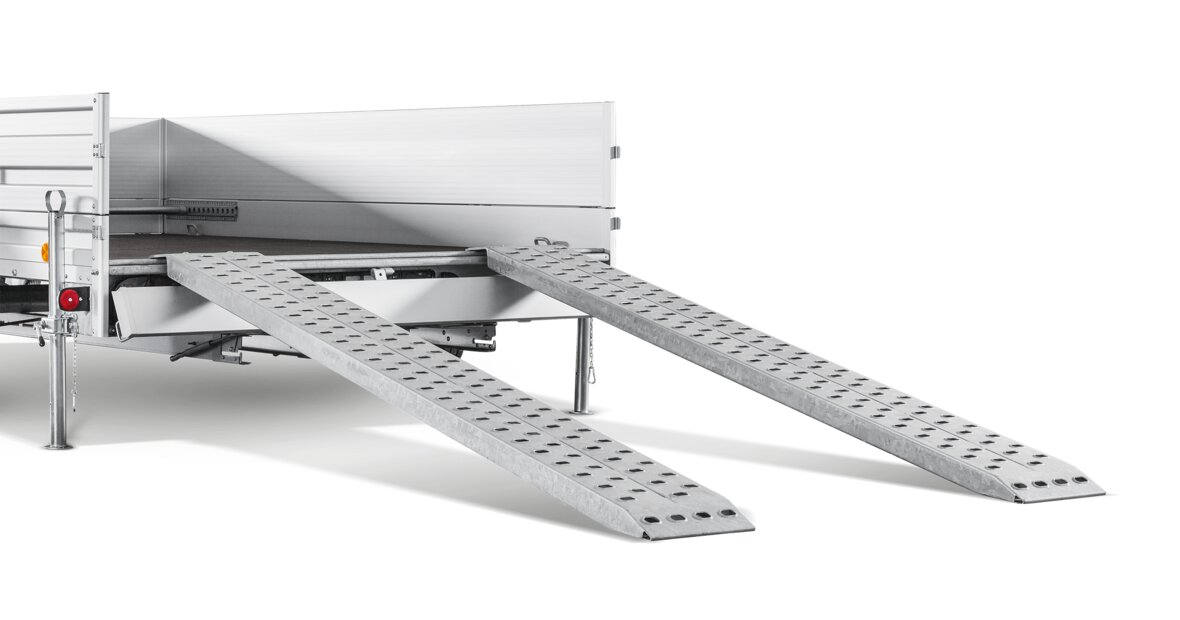

- steel drive-on rail (2000x250mm) loading capacity 1000 kg/pcs
-
Lashings
- 2 anchor rails (600 mm) incl. barrier rod
- countersunk lashing ring
Chassis
-
Chassis
- wheel shock absorbers (2 pcs)
