Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
vehicle transporters and boat trailers
Total weight
3500 kg
Number of axles
2

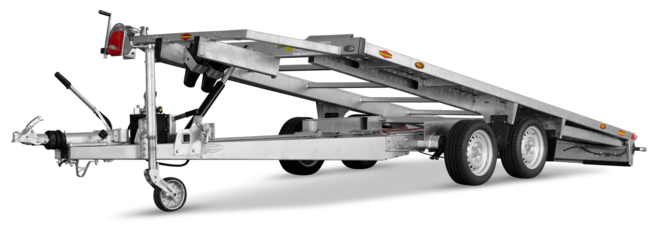

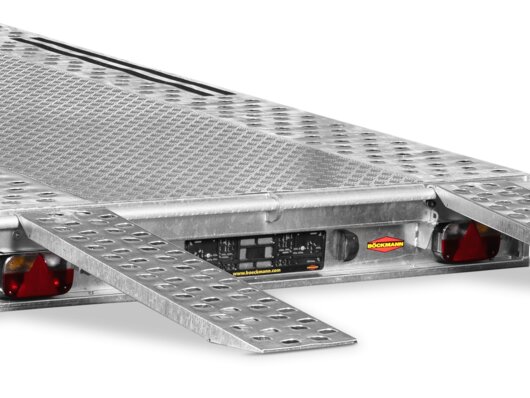

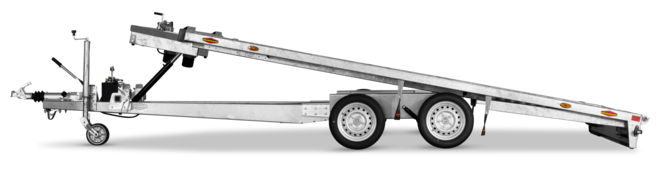

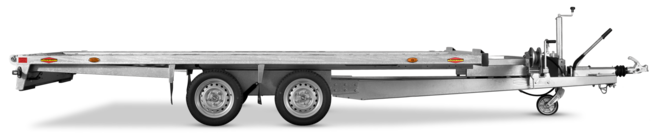

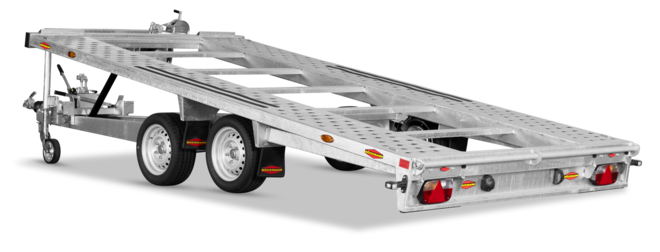

Attention professionals: With a loading area length of 5000 mm, you can comfortably and safely transport vehicles with a long wheelbase. And you can do it particularly quickly: with the original Böckmann quick-loading system. In combination with the outstanding hydraulic safety lifting system and a flat drive-on angle, you have a true professional solution by your side that will impress you every day. And all at a price-performance ratio that is unmatched. A vehicle transporter that will continue to set standards in the future!
The Böckmann added valuesAH-models
Well thought out construction
Innovative details
Practical accessories
Technical data
Base

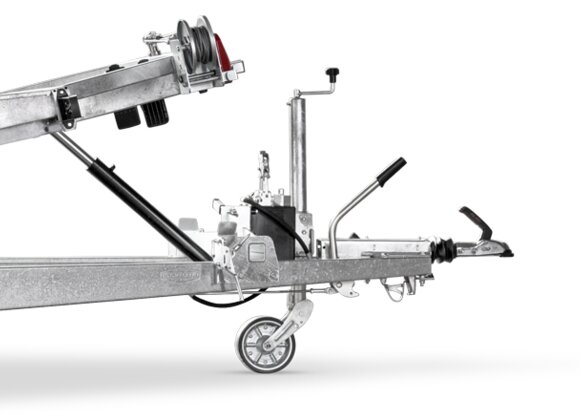

Jockey wheel
Automatic
Tires
13.0 Zoll
Loading height
646 mm
Overrun brake
Weight
Total weight
3500 kg
Payload
2592 kg
External dimensions
Total length
6956 mm
Total width
2165 mm
Total height
1145 mm
Internal dimensions
Interior length
5000 mm
Interior width
2100 mm
Interior height
0 mm
Standard features
Body
-
Body general
- tiltable durable basic construction
-
Attachments
- Basic LED lighting
- specially strong border for lights

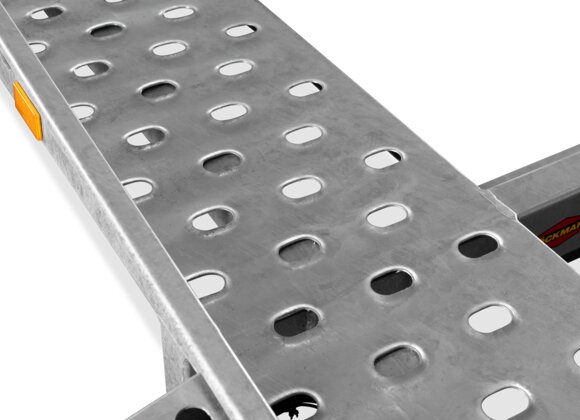

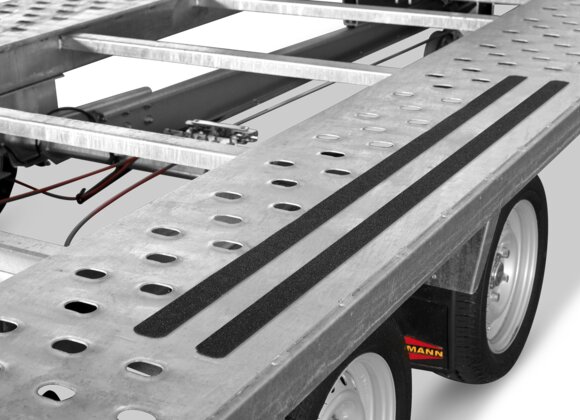

- perforated skid-proofed rail
- reversing light (with 13 pin plug)
-
Loading

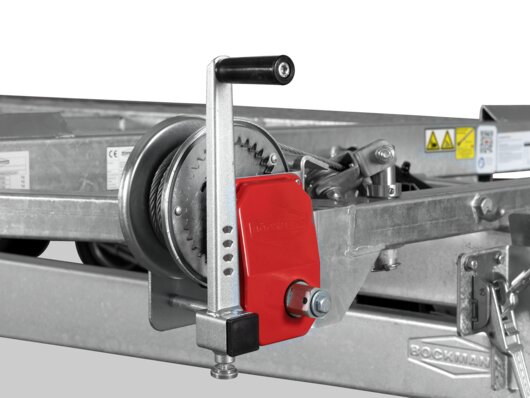

- mechanical cable winch (900 kg) with guide roller

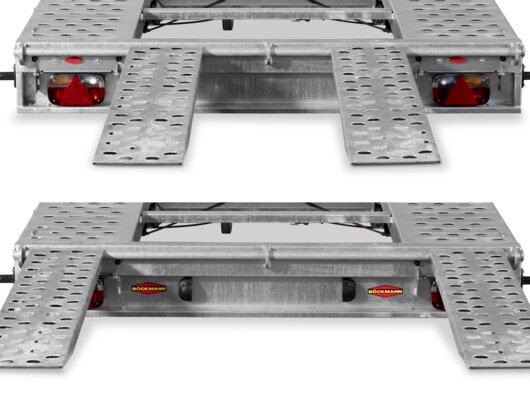

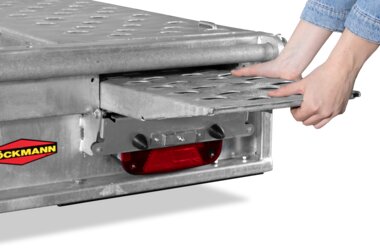

- extendable drive-on rails
- winch block
-
Lashings

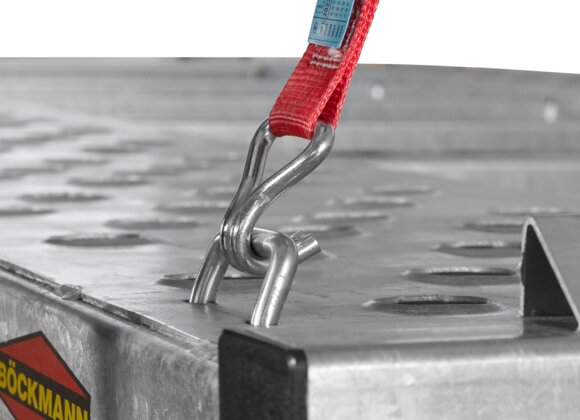

- 4 lashing shackles mounted in the track
Other
-
Hydraulik systems

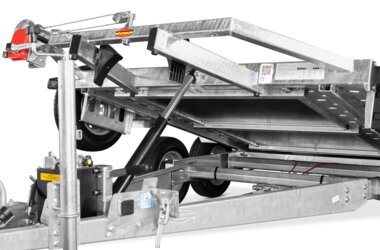

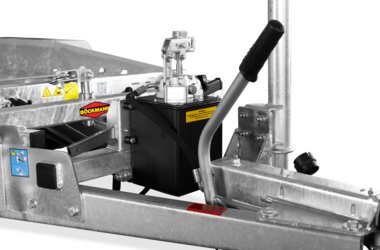

- hydraulic tilting device
Chassis
-
Chassis
- axle with rubber suspension
Accessories
Body
-
Side walls
- sides in yellow
- sides in black
-
Attachments
- Selection of rear lighting unit
- LED lighting (marker, clearance and rear lights)
- Selection attachments
- spare wheel 13"(195/50R13)
- spare wheel holder (mounted)

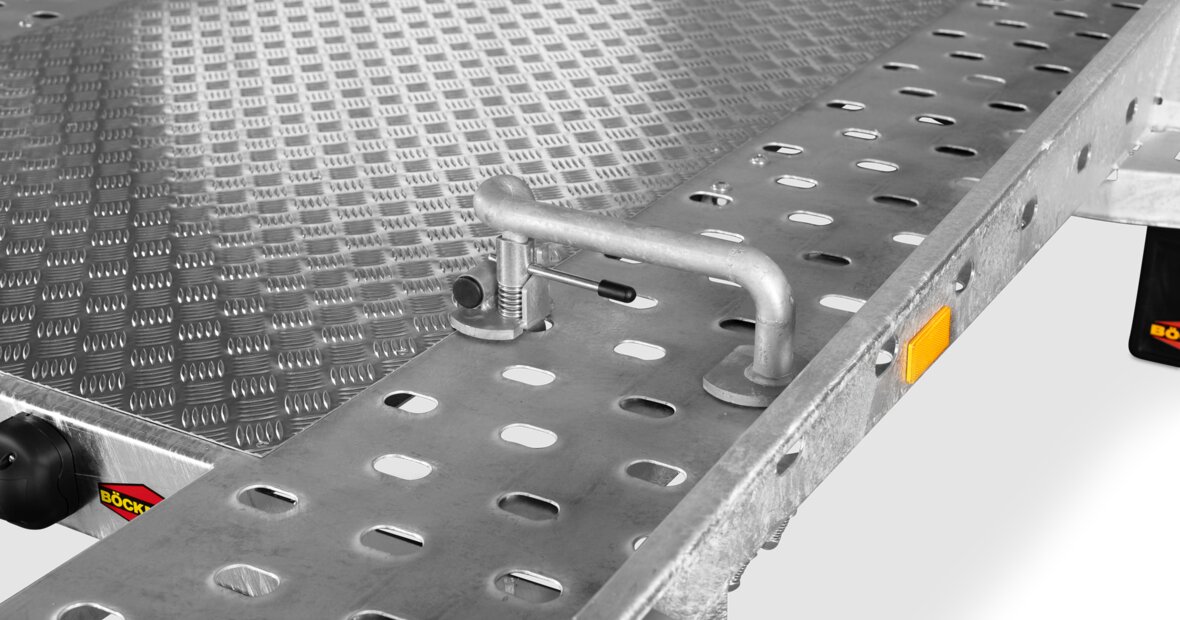

- securing clamps (pair)
- additional guide roller for cable winch
-
Floor

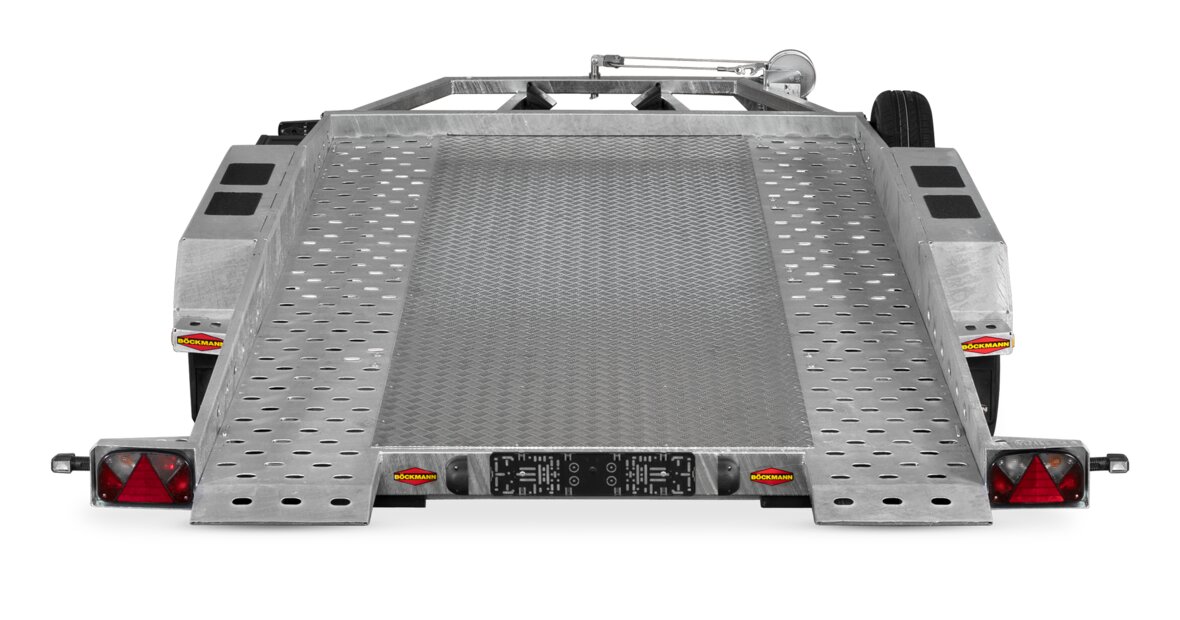

- loading area closed (wood)
- closed loading area (wood) covered with alu checker plate
-
Loading
- electric winch
- Lashings
Other
-
Hydraulik systems
- EasyKipp hydraulic, for cordless screwdrivers
Chassis
-
Chassis

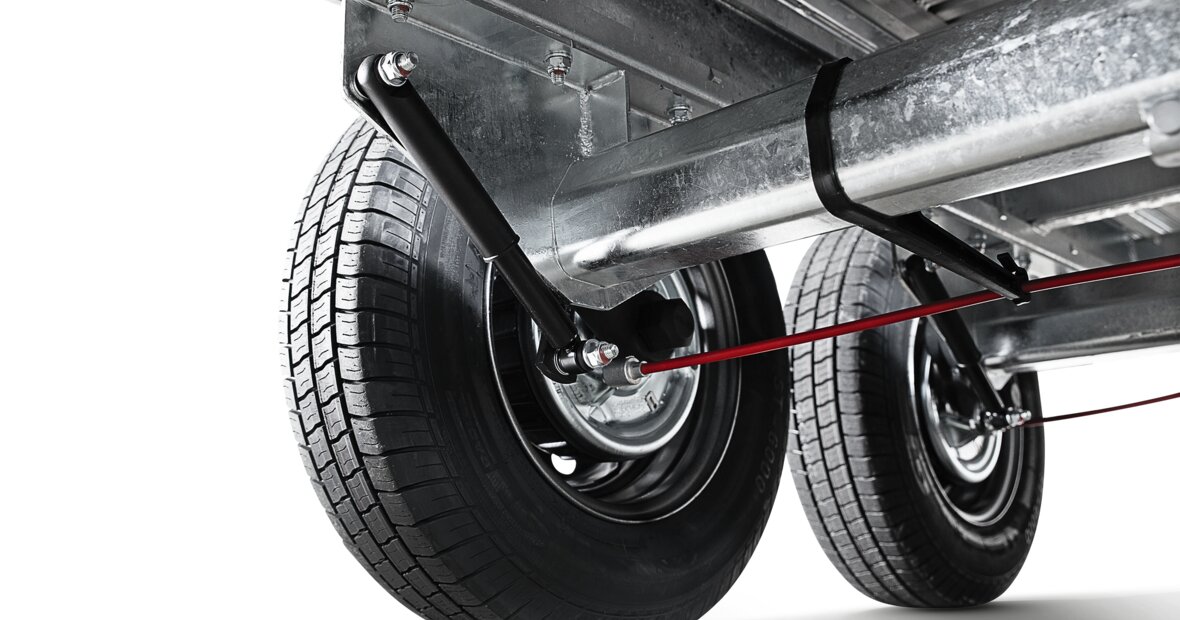

- wheel shock absorbers (4 pcs)
