Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Van trailers
Total weight
750 kg
Number of axles
1

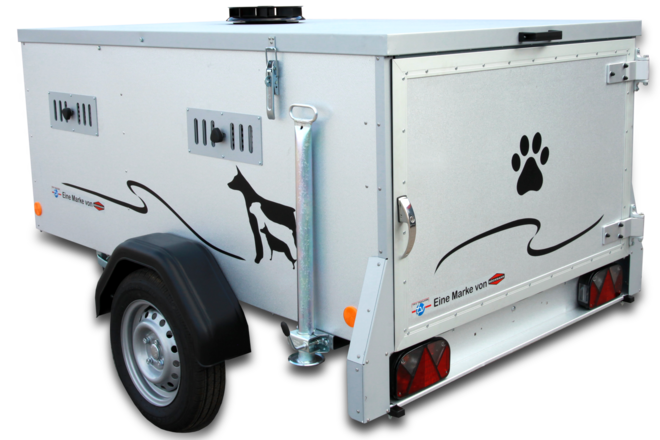

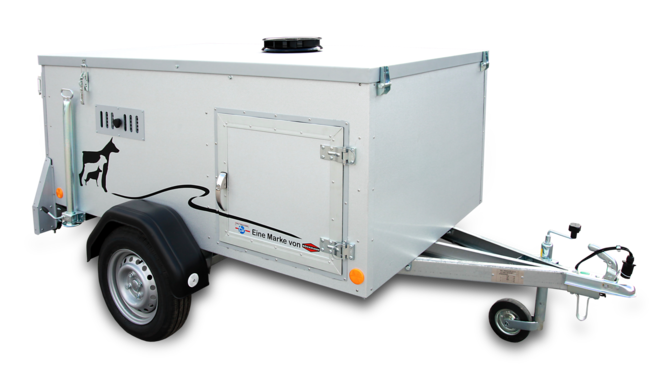

Your dogs will travel safely and comfortably with our dog trailers. The HT-EU2/3 Dog3 Plus model has enough space for 3 dogs. The side walls and lid are insulated with 25 mm polystyrene. The interior walls are additionally clad with galvanized sheet metal. A large fan in each side of the box and a large fan in the lid ensure good ventilation. Behind the door at the rear are two grilles that can be opened. A second entrance is on the right-hand side and has a lockable door with a separate grille. The Plus version is around 14 cm higher than the Basic version. It also has an extra compartment under the lid.
Technical data
Base
Jockey wheel
Longitudinal members
3
Tires
13.0 Zoll
Loading height
0 mm
Weight
Total weight
750 kg
Payload
340 kg
Internal dimensions
Interior length
2030 mm
Interior width
1235 mm
Interior height
820 mm
Standard features
Body
-
Body color
- Drop sides 1.5mm sheet steel, galvanised inside, 25mm polystyrene
-
Side walls
- 1 door on the right side
- 1 rear wing-door
-
Attachments
- 2 sliding supports mounted at the rear
- plastic fenders
- plug, 7-pin
- Lid
-
Floor
- 15 mm thick wooden floor with slip-resistant screen-printed surface
-
Ventilation
- roof vent
Chassis
-
Chassis
- rubber spring axle with independent suspension
-
Chassis
- 3 side members
- Jockey wheel
Internal Space
-
further interior
- storage shelf
- Dog box interior dimensions 2 x 1160x600x670 mm, 1 x 1175x770x670 mm
- 1 sliding ventilator and outward-opening mesh door per dog box
