KT 4018/27 H

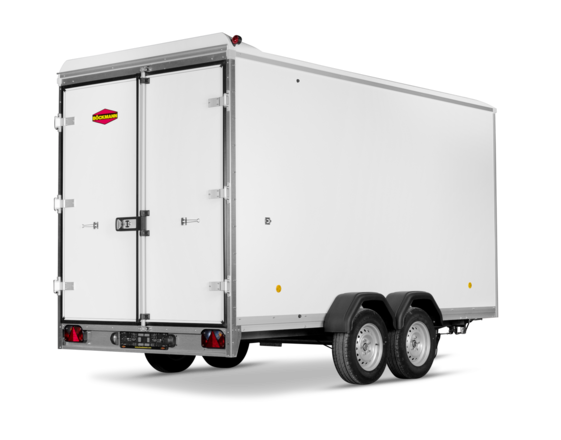

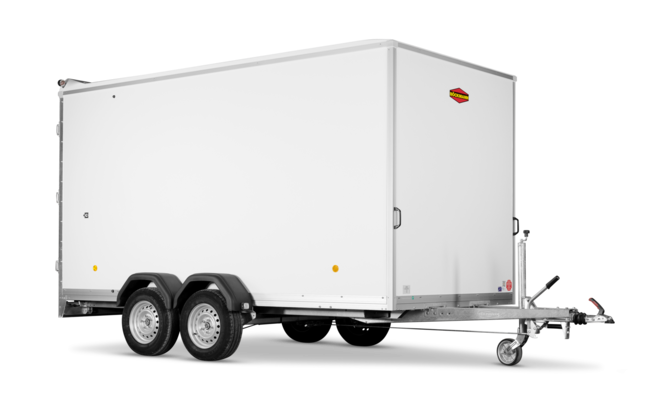

Böckmann Kofferanhänger Tandem KT 4018/27 H.

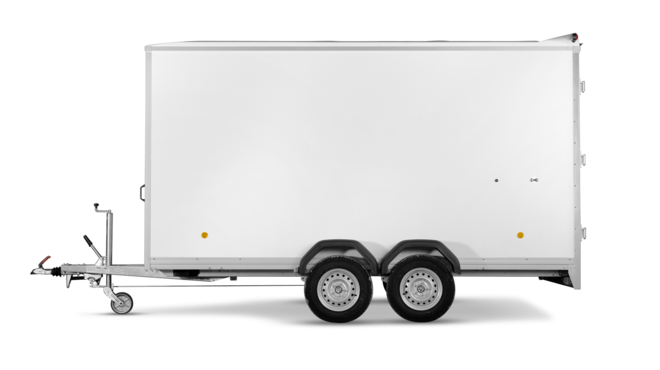

Böckmann Kofferanhänger Tandem KT 4018/27 H.

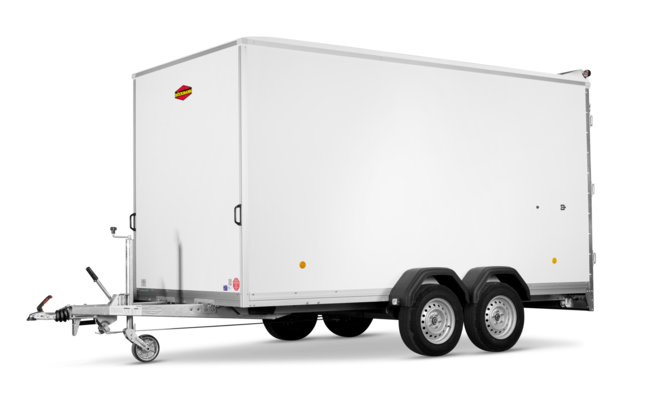

Böckmann Kofferanhänger Tandem KT 4018/27 H.

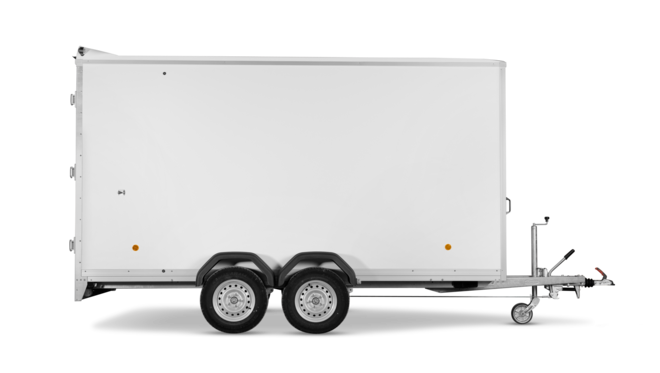

Böckmann Kofferanhänger Tandem KT 4018/27 H.

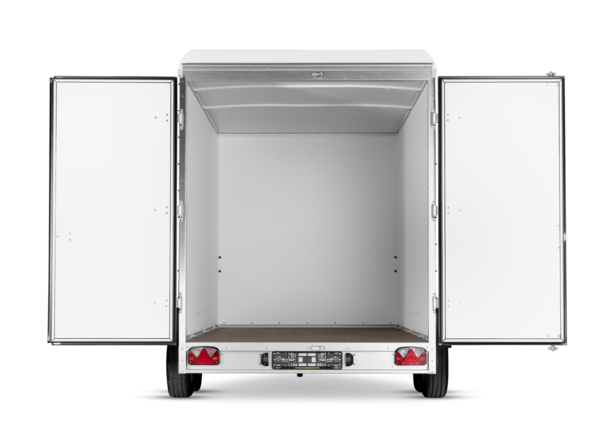

Böckmann Kofferanhänger Tandem KT 4018/27 H.

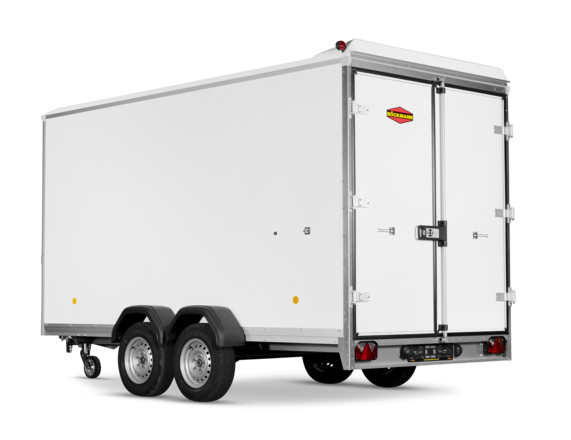

Böckmann Kofferanhänger Tandem KT 4018/27 H.

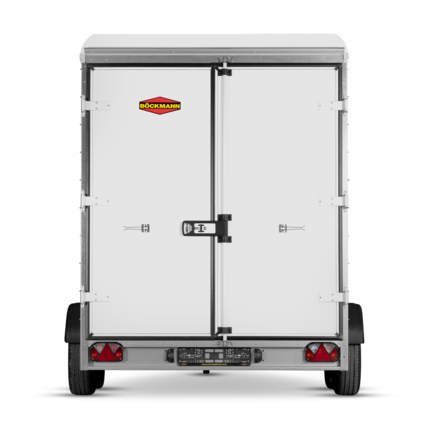

Böckmann Kofferanhänger Tandem KT 4018/27 H.

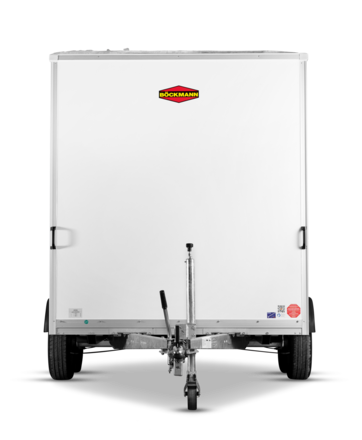

Böckmann Kofferanhänger Tandem KT 4018/27 H.
Böckmann Kofferanhänger Tandem KT 4018/27 H.
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
KT 4018/27 H
Price on request
Overview
Technical data
Compare
Configure

Characteristics

Model family
Van trailers
Total weight
2700 kg
Number of axles
2
The largest in this range! This plywood box trailer with a white superstructure has excellent framework conditions: The construction is made of an aluminium double web profile and is therefore extremely stable. The inside advantages are also impressive: With an inside length of 4000 mm there is lots of space for bulky loads. With this Twin-axle version you will master all heavy transport jobs practically and safely.

The Böckmann added valuesKT-models

Böckmann Kofferanhänger Tieflader Tandem
Robust construction

Solid frame construction made of anodised aluminium profiles, continuous steel cross beams (from 4018 with longitudinal beams) and plywood sidewalls that are multi-bonded and plastic-coated ensure robustness, weather resistance and colour stability.

Böckmann Mehrwerte Kofferanhänger Tieflader Ladehöhe
Loading heights

For particularly easy loading and unloading of the van trailer, the F-models have a very low loading height of 440 mm. For the standard models it is 560 mm.

Böckmann Mehrwerte Tieflader KT CFlex Lock System
The new CFlexLock system

enables the individual lashing eyes to be moved flexibly. DIN 12640 TÜV-certified 600 daN tensile force per lashing point for all lashing angles (vertical, longitudinal and transverse). Completely freely usable base plate without obstacles along the side wall.

Well thought out construction

Böckmann Mehrwerte Kofferanhänger Tieflader massives Automatik-Stützrad
Massive automatic jockey wheel

for a safe stand and quick cranking up.
Böckmann Mehrwerte Tieflader Einachser Heckansicht
Solid door construction

The door construction consists of a solid rear portal frame with a lockable single or double wing door (depending on the model) and additional reinforcement on the inside. The door is opened by an anodised aluminium espagnolette with a plastic handle and can be fixed by a stop on the side of the trailer. Rubber seal with double rubber lip protects against moisture.
Böckmann Mehrwerte Kofferanhänger Tieflader Tandem V-Deichsel
V-drawbar

The V-drawbar with flat handbrake lever is bolted to the chassis, making it particularly easy to operate and maintain - for a long service life for your trailer.

Böckmann Mehrwerte Kofferanhänger Scharniere
Solid anodised aluminium hinges

withstand even the greatest loads.

Innovative details

Böckmann Mehrwerte Kofferanhänger Tieflader Dachkonstruktion

Roof construction

The models have a flat polyester roof with a spoiler including rain drain above the door.

Böckmann Mehrwerte Kofferanhänger Tieflader Drehstangenverschluss

Espagnolette lock

Solid, stainless steel espagnolette made of anodised aluminium square tube.
Böckmann Mehrwerte Kofferanhänger Tieflader Eckwinkel

Corner angles

Anodised aluminium corner angles screwed and riveted to the frame ensure high torsional rigidity.
Böckmann Mehrwerte Kofferanhänger Rangiergriffe

Manoeuvring handles

2 robust handles facilitate manoeuvring.
Böckmann Mehrwerte Kofferanhänger Tieflader Ladehöhe

Full-length screen printed floor plate

for a stable, bolted and non-slip loading area, multi-bonded and sealed.
Böckmann Mehrwerte Kofferanhänger Türdichtungen

Door joints and sealings

Rubber sealing with double sealing lip and sealing of the whole structure protect against moisture.
Böckmann Mehrwerte Tieflader KT Innenbeleuchtung

Interior lighting

Convenient operation thanks to the easily accessible and separate light switch for the interior lighting on the right-hand side wall.
Böckmann Mehrwerte Tieflader KT Werkzeug CFlex Zurrösen

CFlex lashing rings spanner

for easy loosening of the lashing ring bolts. Attached to the right-hand side wall of the trailer.

Practical accessories

Versenkte Verzurrösen im Böckmann Kofferanhänger

Recessed lashing ring

For a safe lashing of the load (maximum tensile forse of 250 daN).

Versenkte Verzurrösen im Böckmann Kofferanhänger
Zusätzliche Tür seitlich am Kofferanhänger

Additional door

On request, an additional door can be fitted at the front or side. This gives you additional quick access to the loading area.

Zusätzliche Tür seitlich am Kofferanhänger
KTP-Modell von Böckmann mit Auffahrrampe

Drive-on ramp

A drive-on ramp (incl. lifting device and throw-on plate) can be installed instead of a wing door. For non-slip and comfortable loading, we offer three types of flooring: aluminium checker plate, rubber flooring or silicone coating.

KTP-Modell von Böckmann mit Auffahrrampe

Technical data

Base
Jockey wheel
Automatic
Longitudinal members
2
Tires
Böckmann Icon für die Tieflader.
14.0 Zoll
Loading height
580 mm
Overrun brake
Weight
Total weight
Böckmann Icon für die Kofferanhänger.
2700 kg
Payload
Böckmann Icon für die Kofferanhänger.
1717 kg
passageway dimensions
Headroom
Böckmann Icon für die Kofferanhänger.
1,948 mm
Passage width
Böckmann Icon für die Kofferanhänger.
1,800 mm
External dimensions
Total length
Böckmann Icon für die Kofferanhänger.
5458 mm
Total width
Böckmann Icon für die Kofferanhänger.
2395 mm
Total height
Böckmann Icon für die Kofferanhänger.
2757 mm
Internal dimensions
Interior length
Böckmann Icon für die Kofferanhänger.
4000 mm
Interior width
Böckmann Icon für die Kofferanhänger.
1875 mm
Interior height
Böckmann Icon für die Kofferanhänger.
2085 mm

Standard features

Body

Chassis

Internal Space

Accessories

Body

Chassis

  • Chassis
    • wheel shock absorbers (4 pcs)
