Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Family
Van trailers
Total weight
1350 kg
Number of axles
1

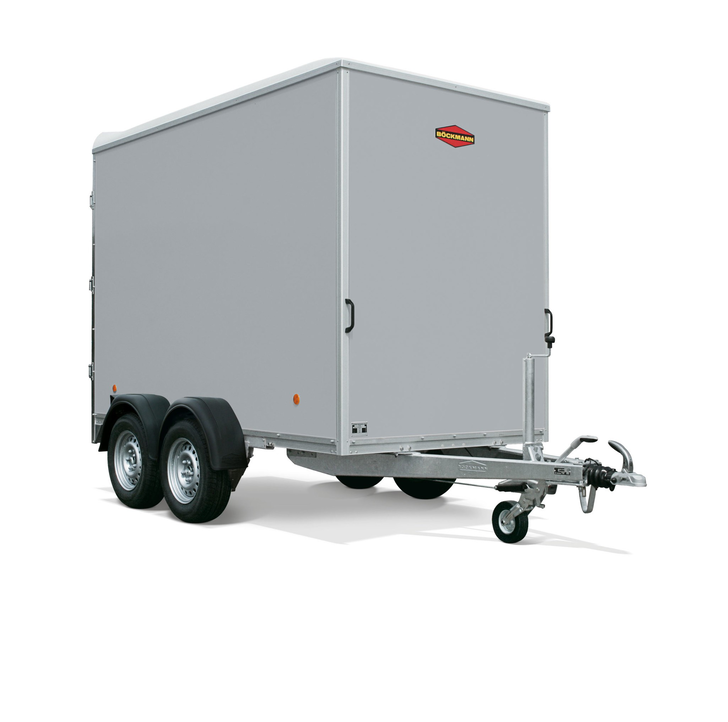

Simply practical! The plywood box trailers of the KT series with a white or optionally grey plywood superstructure have an impressively robust design, a number of practical details and a high-quality polyester roof with a spoiler. With a height of 1585 mm the standard model already provides lots of space for transporting your goods.
Technical data
Base
Jockey wheel
Tires
14.0 Zoll
Loading height
560 mm
Overrun brake
Weight
Total weight
1350 kg
Payload
1026 kg
passageway dimensions
Headroom
1,448 mm
Passage width
1,248 mm
External dimensions
Total length
3290 mm
Total width
1850 mm
Total height
2238 mm
Internal dimensions
Interior length
2100 mm
Interior width
1335 mm
Interior height
1585 mm
Standard features
Body
- Body color
- Side walls
-
Attachments
- rear frame galvanized
- polyester roof, white
- Floor
-
Lashings
- 4 lashing rings fixed with sliding blocks
Chassis
-
Chassis
- axle with rubber suspension system, free of service
- aluminium anodised double profile frame and corner rungs
- self-supporting drawbar 1080mm
- 2 crossmembers
- Jockey wheel
Internal Space
Accessories
Body
- Body color
-
Side walls
- Options for right side wall
- folding side section on right side, clearance dimensions: 1700x1050mm
- side door, right side 1315x610 mm
- Options for left side wall
- folding side section on left side, clearance dimensions: 1700x1050mm
- side door, left side 1315x610 mm
- Options for front wall
- front door 1315x500 mm
- Selection wing-door
- 2-wing door
-
Attachments
- spare wheel 14"
- spare wheel holder (mounted)
- sliding drop legs (per pair)
- reinforced sliding drop legs (per pair)
- periphery lighting for reversing
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
- Loading
-
Lashings
- airline rail left
- airline rail left side, mounting height approx. 1000mm
- airline rail left side, mounting height approx. 600mm
- airline rail left side, mounting height approx. 800mm
- AIr
- airline rail right side, mounting height approx. 1000mm
- airline rail right side, mounting height approx. 600mm
- airline rail right side, mounting height approx. 800mm
- Ankerschiene links
- lashing rail left side, mounting height approx. 1000mm
- lashing rail left side, mounting height approx. 600mm
- lashing rail left side, mounting height approx. 800mm
- L
- lashing rail right side, mounting height approx. 1000mm
- lashing rail right side, mounting height approx. 600mm
- lashing rail right side, mounting height approx. 800mm
- Selection lashing systems
- shut-off bar (per pc.)
- fitting with ring for airline rail
- shut-off bar for airline rail
- countersunk lashing ring
- Additional lashing ring with sliding blocks (unmounted)
-
Special accessories
- folding side section on left side (with standard cutout)
- folding side section on right side (with standard cutout)
- step ladder with fold-down extension
- step under light carrier, galvanised 400 mm extendable (width 800mm)
- opening window 900x600mm in side wall left
- opening window 900x600mm in side wall right
- opening window 900x600mm in front wall
- roof vent
- Roof tent gallery
- additional cross bar lock
- rear portal closed
- Ventilation slider incl. installation in side wall left
- Ventilation slider incl. installation in side wall right
- Ventilation slider incl. installation in front wall
- reduction of internal height by 100mm
- reduction of internal height by 200mm
- reduction of internal height by 300mm
- sliding window 450x600mm in left side panel
- sliding window 450x600mm in side wall right
- sliding window 450x600mm in front wall
- slliding window 450x300mm in left side wall
- slliding window 450x300mm in right side wall
- slliding window 450x300mm in front wall
- sliding drop legs in the front
- service flap in left side panel
- service flap in right side panel
- service flap in front panel
- tie-dowwn rail
- telescopic crank drop legs in the front
- side door, left side
- side door, right side
Other
- Lettering
-
Special accessories
- 24-volt lighting system (with 15-pin plug)
- 220 V power socket in the interior (with RCD)
