Characteristics
Model family
Van trailers
Total weight
2000 kg
Number of axles
2
Designed for large jobs: This high-bed trailer design with a white superstructure. This is no problem for the 13' tyres. The low loading height makes both loading and unloading easy. And the low centre of gravity ensures a pleasant driving experience.
The Böckmann added valuesKH-F-models
Well thought out construction
Innovative details
Practical accessories
Technical data
Base
Jockey wheel
Automatic
Tires
13.0 Zoll
Loading height
660 mm
Overrun brake
Weight
Total weight
2000 kg
Payload
1175 kg
passageway dimensions
Headroom
1945 mm
Passage width
1985 mm
Internal dimensions
Interior length
3200 mm
Interior width
2060 mm
Interior height
2008 mm
Standard features
Body
-
Body color
- White plywood body
-
Side walls
- without coating on drive-on ramp
- cross bar lock
- 2-wing door
-
Attachments
- reversing light (with 13 pin plug)
- sandwich roof
- Floor
-
Lashings
- 6 lashing shackles
Chassis
-
Chassis
- low load height
- self-supporting drawbar 1550mm
- standard chassis
- Jockey wheel
Internal Space
Accessories
Body
-
Side walls
- Selection cover on drive-on ramp
- aluminium checker plate on drive-on ramp
- rubber on drive-on ramp
- silicone coating on ramp
- Options for front wall
- front door with step (500x1830 mm)
- Selection door / drive-on ramp

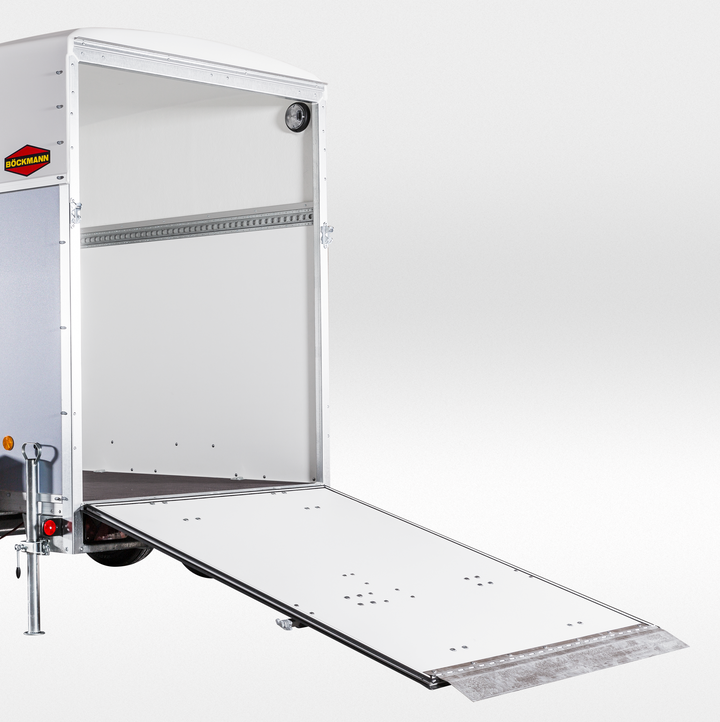

- drive-on ramp instead of door, loading capac. 1200 kg
- Options for right side wall
- folding side section on right side (2600x1800 mm)
- side door with step, right side (710 x 1830 mm)
- Options for left side wall
- folding side section on left side (2600x1800 mm)
- side door with step, left side (710 x 1830 mm)
-
Attachments
- spare wheel 13"(195/50R13)
- Spare wheel holder, mounted on front profile
- Spare wheel holder, mounted under the floor
- telescopic crank drop legs (per pair)
- periphery lighting for reversing
- V-draw-bar with step
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Loading
- alum. loading rails, 2370x310mm, supp. cap. 2000 kg/per pair
- alum. loading rails, 2370x310mm, supp. cap. 2700 kg/per pair
-
Lashings
- airline rail left
- airline rail left side, mounting height approx. 1000mm
- airline rail left side, mounting height approx. 600mm
- airline rail left side, mounting height approx. 800mm
- AIr
- airline rail right side, mounting height approx. 1000mm
- airline rail right side, mounting height approx. 600mm
- airline rail right side, mounting height approx. 800mm
- Ankerschiene links
- lashing rail left side, mounting height approx. 1000mm
- lashing rail left side, mounting height approx. 600mm
- lashing rail left side, mounting height approx. 800mm
- L
- lashing rail right side, mounting height approx. 1000mm
- lashing rail right side, mounting height approx. 600mm
- lashing rail right side, mounting height approx. 800mm
- Selection lashing systems
- shut-off bar (per pc.)
- fitting with ring for airline rail
- shut-off bar for airline rail
- additional lashing ring
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
