KT-AL 3015/27 H

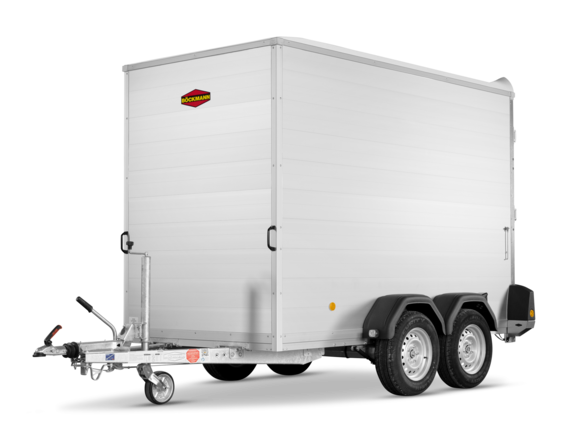

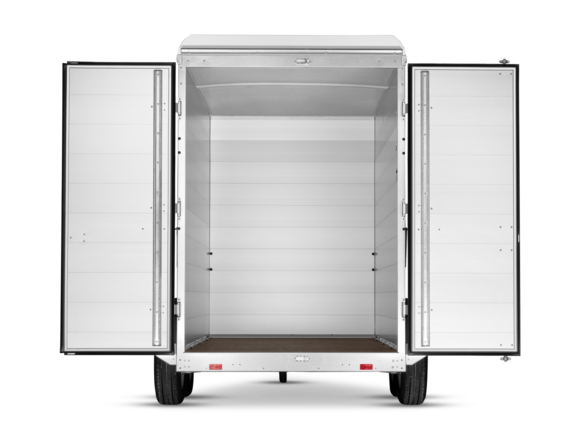

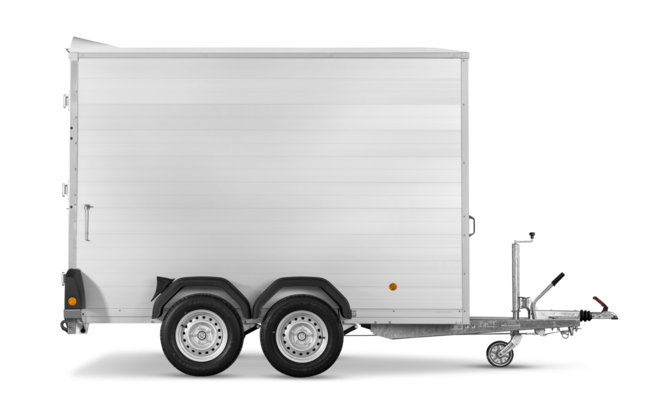

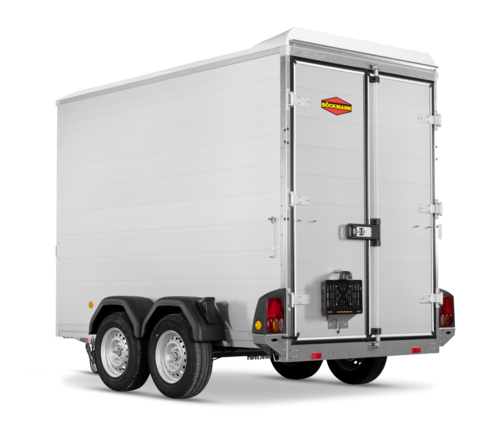

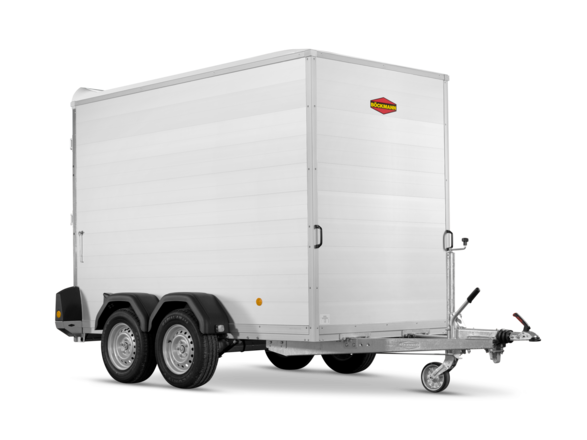

Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.

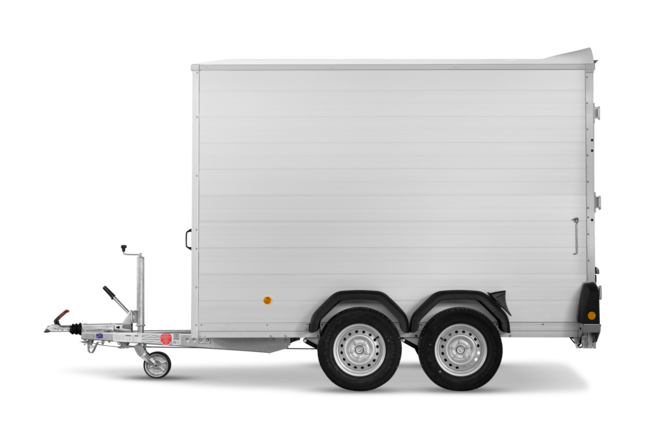

Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.

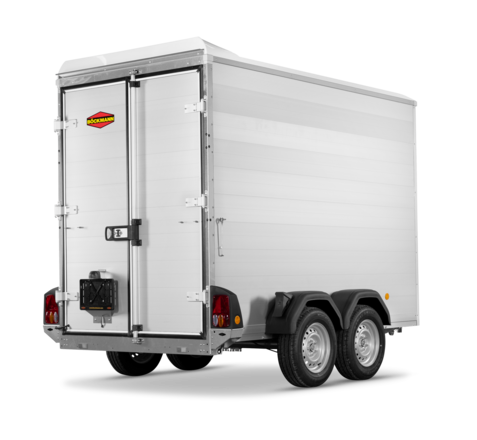

Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.

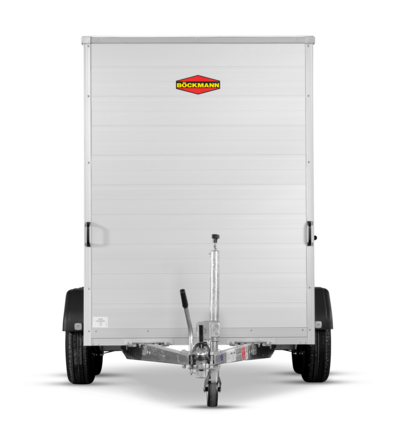

Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.

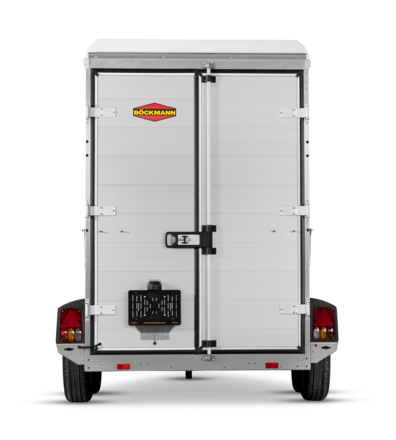

Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.
Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.
Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.
Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.
Böckmann Kofferanhänger Tieflader Tandem KT-AL 3015/27 H F.
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
KT-AL 3015/27 H
Price on request
Overview
Technical data
Compare
Configure

Characteristics

Model family
Van trailers
Total weight
2700 kg
Number of axles
2
The new generation of van trailers. The KT-AL series convinces above all with its robust construction, its all-aluminium body, the high-quality polyester roof with spoiler and many practical detail solutions. The aluminium body ensures high stability. In the interior, this body also allows the attachment of equipment and shelves. Thus the trailer can not only be used as a means of transport for goods or vehicles, but also as a mobile workshop for craftsmen. No matter for what purpose the van trailer is to be used, you will find the perfect companion in our model KT-AL 3015/27 H.

The Böckmann added valuesKT-AL-models

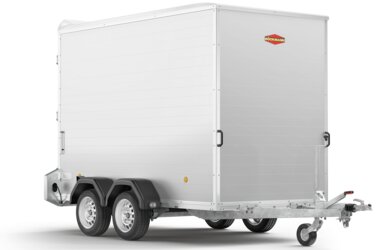

Böckmann Kofferanhänger Tieflader Aluminium
Robust construction

Solid frame construction made of anodised aluminium profiles, continuous steel cross beams and 18 mm anodised aluminium profiles ensure robustness, weather resistance and colour stability.

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Ladehöhe

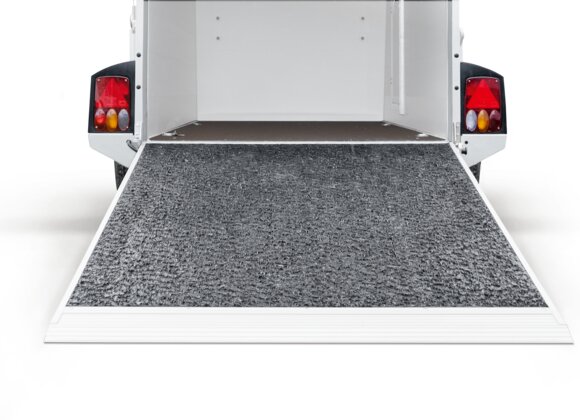

Loading heights

For particularly easy loading and unloading of the van trailer, the F-models have a very low loading height of 440 mm. For the standard models it is 560 mm.

Mehrwert KT-PB-AL CFlexLock
The new CFlexLock system

enables the individual lashing eyes to be moved flexibly. DIN 12640 TÜV-certified 600 daN tensile force per lashing point for all lashing angles (vertical, longitudinal and transverse). Completely freely usable base plate without obstacles along the side wall.

Well thought out construction

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Türkonstruktion

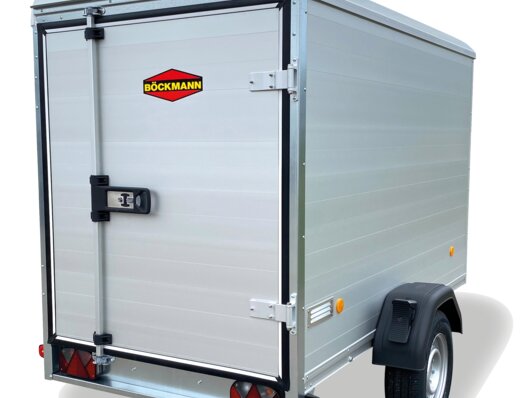

Solid door construction

The door construction consists of a solid rear portal frame with a lockable single or double wing door (depending on the model) and additional reinforcement on the inside. The door is opened by an anodised aluminium espagnolette with a plastic handle and can be fixed by a stop on the side of the trailer. Rubber seal with double rubber lip protects against moisture.

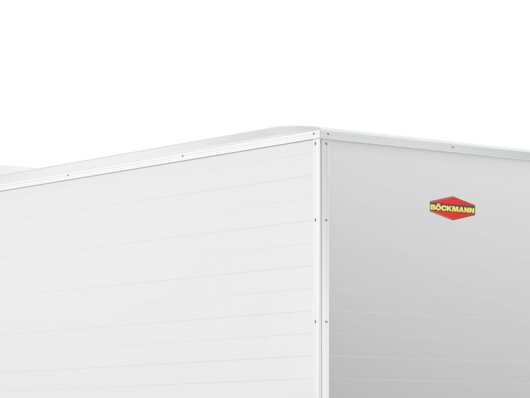

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Dachkonstruktion
Roof construction

The models have a flat polyester roof with a spoiler including rain drain above the door.

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium V-Deichsel

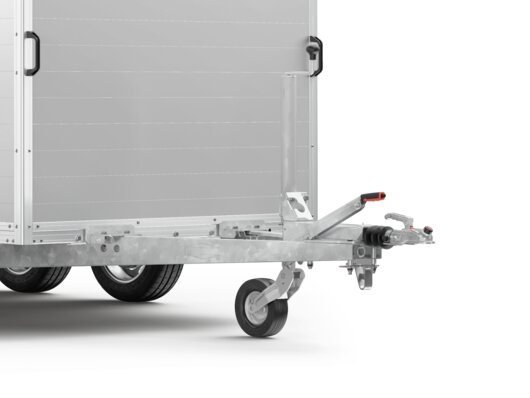

V-drawbar

The V-drawbar with flat handbrake lever is bolted to the chassis, making it particularly easy to operate and maintain - for a long service life for your trailer. (Standard equipment from model 3015).

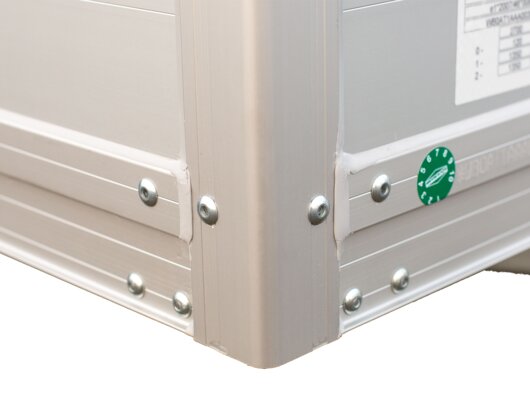

Böckmann Mehrwerte Tieflader Aluminium Eckwinkel
Corner angles

Anodised aluminium corner angles screwed and riveted to the frame ensure high torsional rigidity.

Innovative details

Böckmann Mehrwerte Kofferanhänger Tieflader Drehstangenverschluss

Espagnolette lock

Solid, stainless steel espagnolette made of anodised aluminium square tube.
Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Türdichtungen

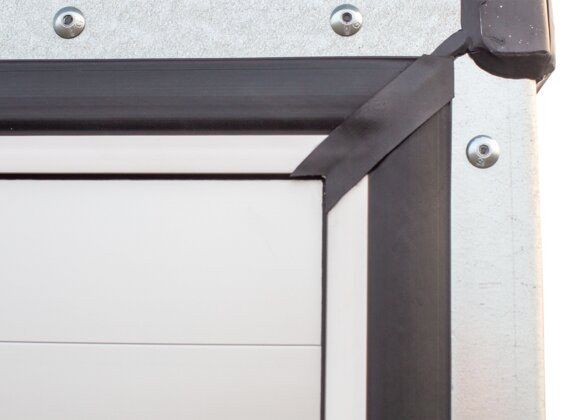

Door joints and sealings

Rubber sealing with double sealing lip and sealing of the whole structure protect against moisture.
Böckmann Mehrwerte Kofferanhänger Rangiergriffe

Manoeuvring handles

2 robust handles facilitate manoeuvring.

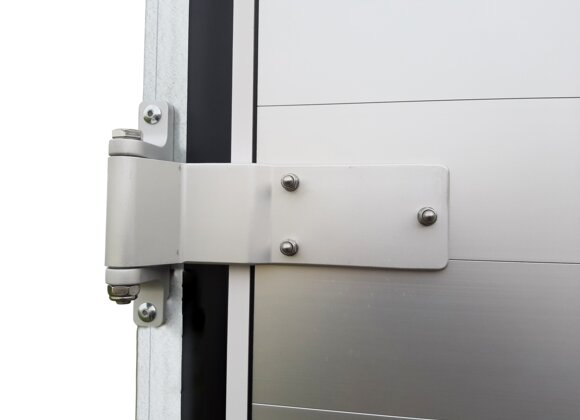

Böckmann Mehrwerte Kofferanhänger Aluminium Scharnier

Solid anodised aluminium hinges

withstand even the greatest loads.

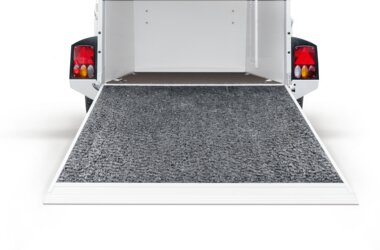

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Ladehöhe

Full-length screen printed floor plate

for a stable, bolted and non-slip loading area, multi-bonded and sealed.
Mehrwert KT-PB-AL Innenbeleuchtung

Interior lighting

Convenient operation thanks to the easily accessible and separate light switch for the interior lighting on the right-hand side wall.
Böckmann Mehrwerte Tieflader KT Werkzeug CFlex Zurrösen

CFlex lashing rings spanner

for easy loosening of the lashing ring bolts. Attached to the right-hand side wall of the trailer.

Practical accessories

Versenkte Verzurrösen im Böckmann Kofferanhänger

Recessed lashing ring

For a safe lashing of the load (maximum tensile forse of 250 daN).

Versenkte Verzurrösen im Böckmann Kofferanhänger
Radstoßdämpfer

Shock absorbers

for safe transport of sensible goods.

Radstoßdämpfer
Kofferanhänger mit Auffahrschienen

Drive-on rails

The original Böckmann aluminium ramps make loading vehicles easier. The load capacity per pair is 2000, 2400 or 2700 kg. Each model can also be equipped with original Böckmann motorbike rails. When loading, please always consider the permissible total weight or the payload of your trailer. We recommend to use the ramps in combination with support legs.

Kofferanhänger mit Auffahrschienen

Technical data

Base
Jockey wheel
Automatic
Tires
Böckmann Icon für die Tieflader.
14.0 Zoll
Loading height
545 mm
Overrun brake
Weight
Total weight
Böckmann Icon für die Kofferanhänger.
2700 kg
Payload
Böckmann Icon für die Kofferanhänger.
2058 kg
passageway dimensions
Headroom
Böckmann Icon für die Kofferanhänger.
1,948 mm
Passage width
Böckmann Icon für die Kofferanhänger.
1,448 mm
External dimensions
Total length
Böckmann Icon für die Kofferanhänger.
4473 mm
Total width
Böckmann Icon für die Kofferanhänger.
2045 mm
Total height
Böckmann Icon für die Kofferanhänger.
2744 mm
Internal dimensions
Interior length
Böckmann Icon für die Kofferanhänger.
3005 mm
Interior width
Böckmann Icon für die Kofferanhänger.
1515 mm
Interior height
Böckmann Icon für die Kofferanhänger.
2085 mm

Standard features

Body

Chassis

Internal Space

Accessories

Body

Chassis

  • Chassis
    • wheel shock absorbers (4 pcs)
