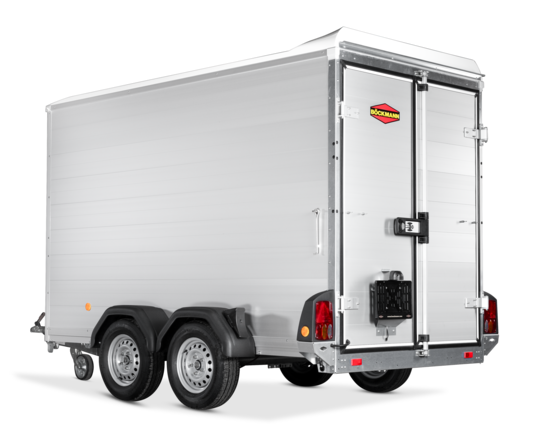

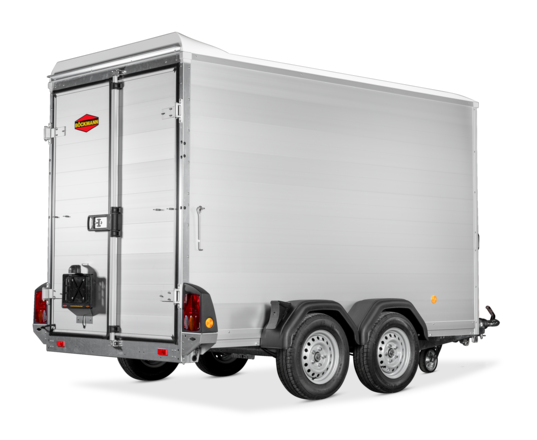

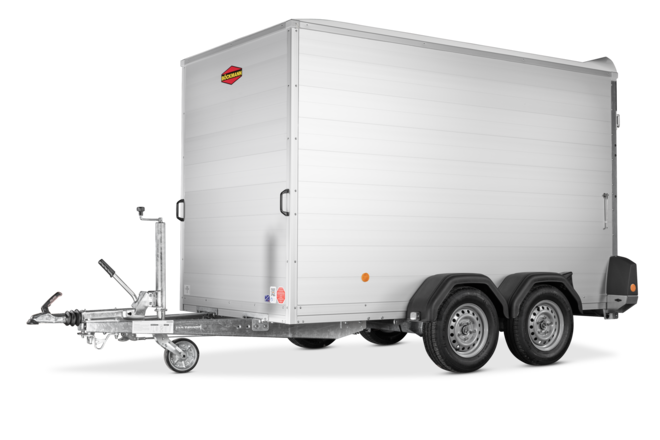

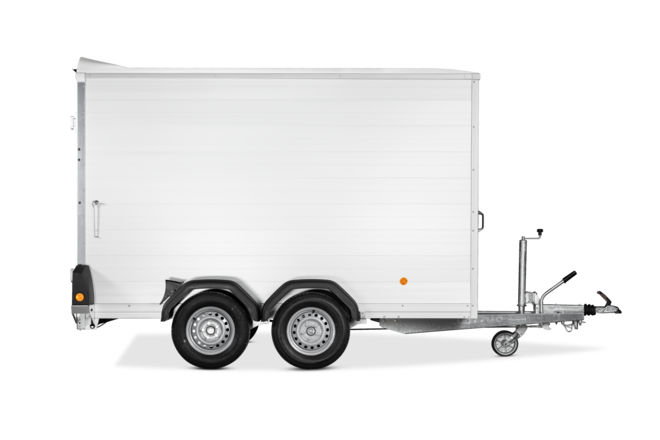

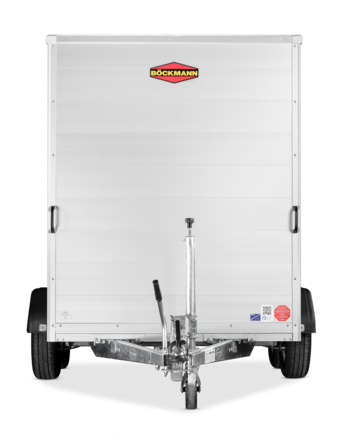

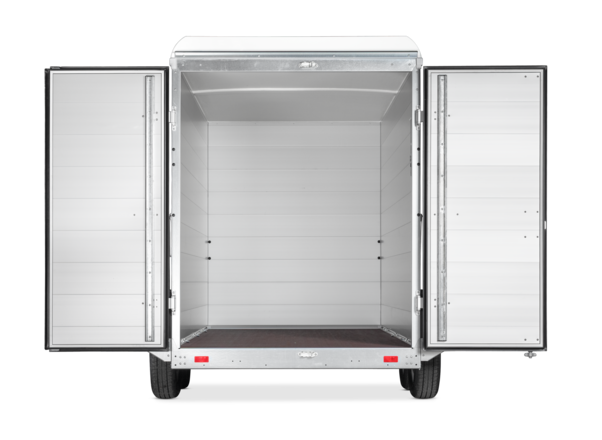

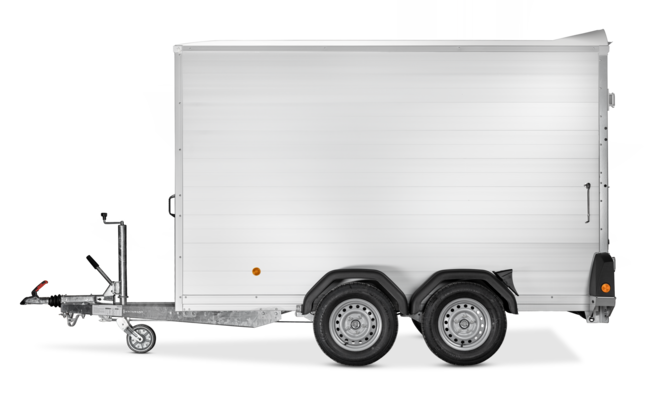

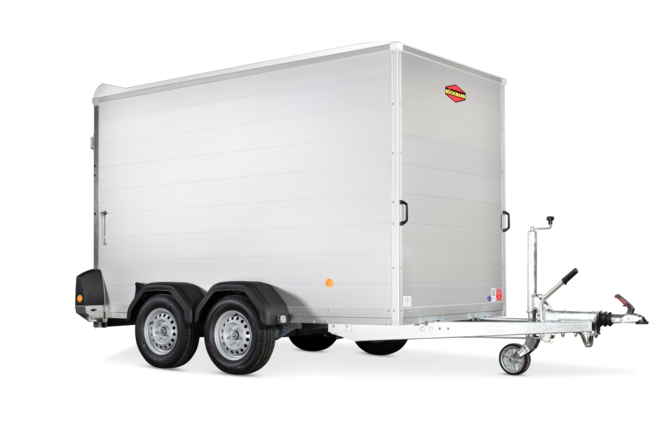

KT-AL 3015/20 M F

KT-AL 3015/20 M F
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
KT-AL 3015/20 M F
Price on request
Overview
Technical data
Configure Compare

Characteristics

Model family
Van trailers
Total weight
2000 kg
Number of axles
2
Comfort meets stability. The van trailers of the KT-AL F series are particularly impressive with their robust construction, all-aluminium body and lowered chassis. In addition, the trailers are equipped with a high-quality polyester roof with spoiler and many practical details, while the aluminium body ensures high stability. In the interior, this body also allows the attachment of equipment and shelves. Thus the trailer can be used not only as a means of transport for goods or vehicles, but also as a mobile workshop for craftsmen. In addition, the lowered chassis ensures comfortable loading and unloading. No matter for what purpose the van trailer is to be used, you will find the perfect companion in our model KT-AL 3015/20 M F.

The Böckmann added valuesKT-AL-models

Böckmann Kofferanhänger Tieflader Aluminium
Robust construction

Solid frame construction made of anodised aluminium profiles, continuous steel cross beams and 18 mm anodised aluminium profiles ensure robustness, weather resistance and colour stability.

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Ladehöhe
Loading heights

For particularly easy loading and unloading of the van trailer, the F-models have a very low loading height of 440 mm. For the standard models it is 560 mm.

Mehrwert KT-PB-AL CFlexLock
The new CFlexLock system

enables the individual lashing eyes to be moved flexibly. DIN 12640 TÜV-certified 600 daN tensile force per lashing point for all lashing angles (vertical, longitudinal and transverse). Completely freely usable base plate without obstacles along the side wall.

Well thought out construction

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Türkonstruktion
Solid door construction

The door construction consists of a solid rear portal frame with a lockable single or double wing door (depending on the model) and additional reinforcement on the inside. The door is opened by an anodised aluminium espagnolette with a plastic handle and can be fixed by a stop on the side of the trailer. Rubber seal with double rubber lip protects against moisture.
Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium Dachkonstruktion
Roof construction

The models have a flat polyester roof with a spoiler including rain drain above the door.

Böckmann Mehrwerte Kofferanhänger Tieflader Aluminium V-Deichsel
V-drawbar

The V-drawbar with flat handbrake lever is bolted to the chassis, making it particularly easy to operate and maintain - for a long service life for your trailer. (Standard equipment from model 3015).
Böckmann Mehrwerte Tieflader Aluminium Eckwinkel
Corner angles

Anodised aluminium corner angles screwed and riveted to the frame ensure high torsional rigidity.

Innovative details

Practical accessories

Technical data

Base
Jockey wheel Jockey wheel
Automatic
Tires Tires
13.0 Zoll
Loading height Loading height
445 mm
Overrun brake Overrun brake
Weight
Total weight Total weight
2000 kg
Payload Payload
1380 kg
passageway dimensions
Headroom Headroom
1748 mm
Passage width Passage width
1448 mm
External dimensions
Total length Total length
4475 mm
Total width Total width
2050 mm
Total height Total height
2425 mm
Internal dimensions
Interior length Interior length
3005 mm
Interior width Interior width
1515 mm
Interior height Interior height
1885 mm

Standard features

Body

Chassis

Internal Space

Accessories

Body

Chassis
