Characteristics
Model family
Van trailers
Total weight
1350 kg
Number of axles
1
Comfort meets stability. The van trailers of the KT-AL F series are particularly impressive with their robust construction, all-aluminium body and lowered chassis. In addition, the trailers are equipped with a high-quality polyester roof with spoiler and many practical details, while the aluminium body ensures high stability. In the interior, this body also allows the attachment of equipment and shelves. Thus the trailer can be used not only as a means of transport for goods or vehicles, but also as a mobile workshop for craftsmen. In addition, the lowered chassis ensures comfortable loading and unloading. No matter for what purpose the van trailer is to be used, you will find the perfect companion in our model KT-AL 2513/135 F.
The Böckmann added valuesKT-AL-models
Well thought out construction
Innovative details
Practical accessories
Technical data
Base
Jockey wheel
Tires
14.0 Zoll
Loading height
430 mm
Overrun brake
Weight
Total weight
1350 kg
Payload
941 kg
passageway dimensions
Headroom
1445 mm
Passage width
1245 mm
Internal dimensions
Interior length
2505 mm
Interior width
1315 mm
Interior height
1515 mm
Standard features
Body
-
Side walls
- without coating on drive-on ramp
- cross bar lock
- Side walls made of 18mm thick aluminum profiles

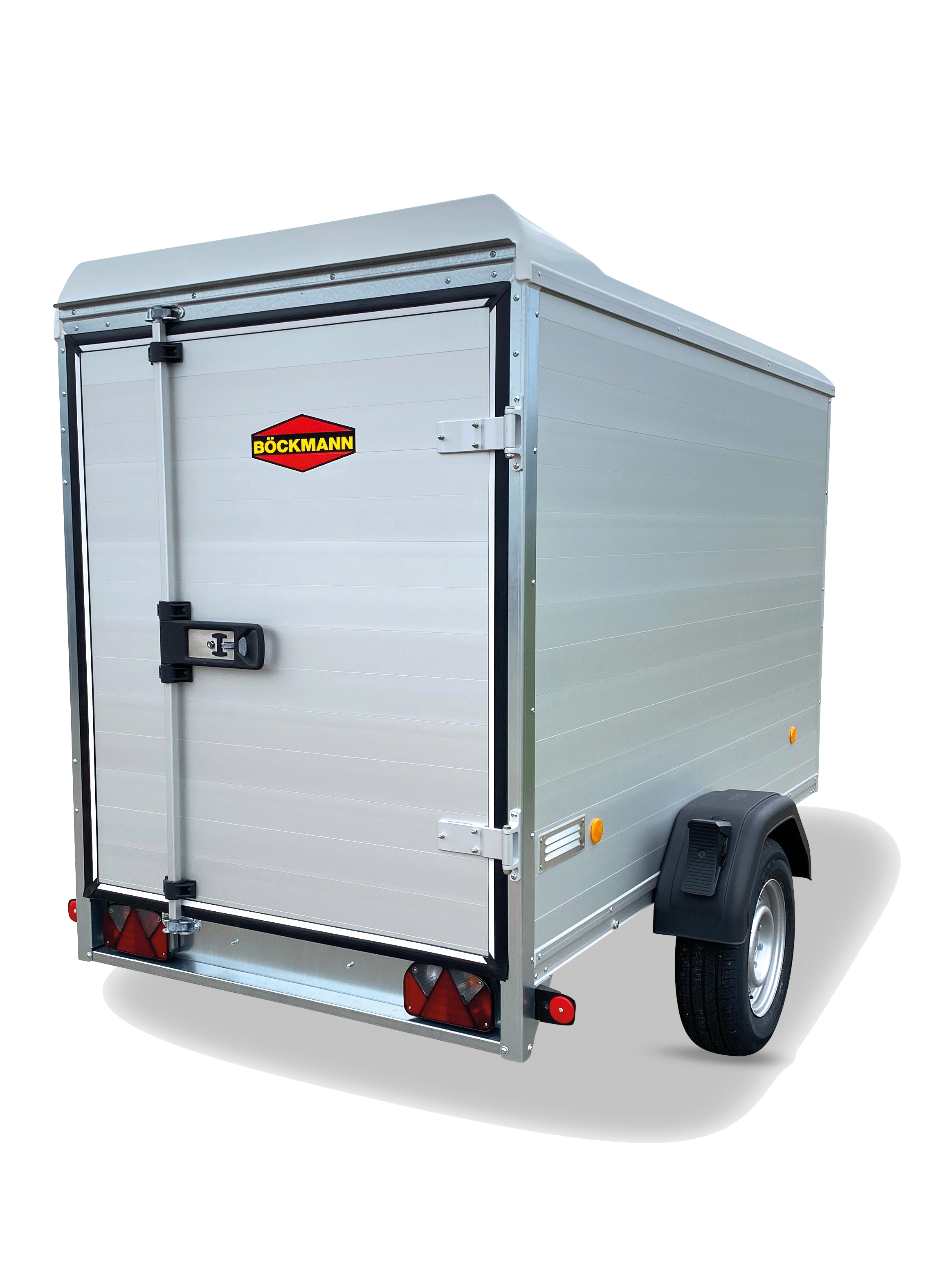

- 1 rear wing-door
-
Attachments

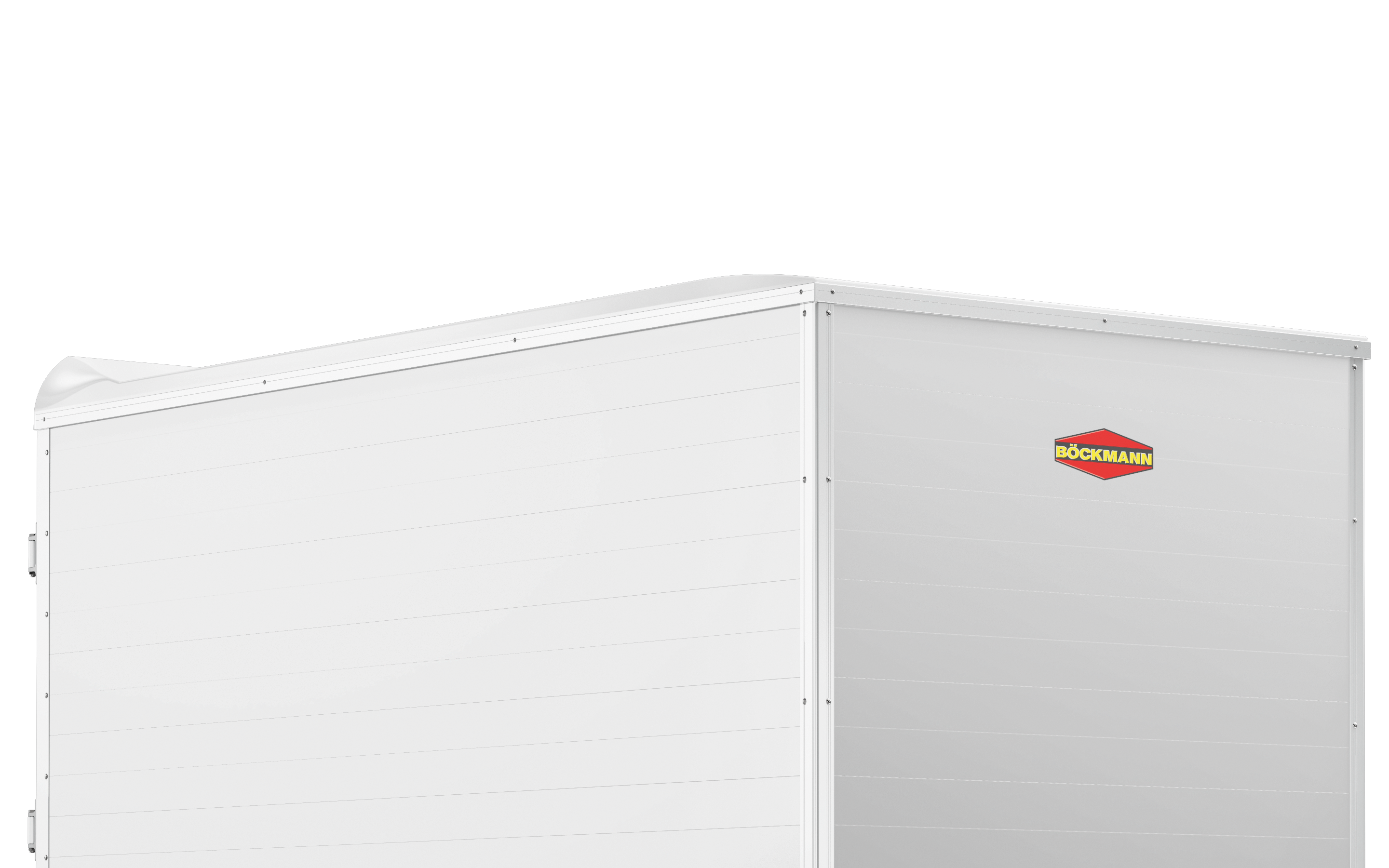

- polyester roof, white
- Floor
- Lashings
Chassis
-
Chassis
- axle with rubber suspension system, free of service

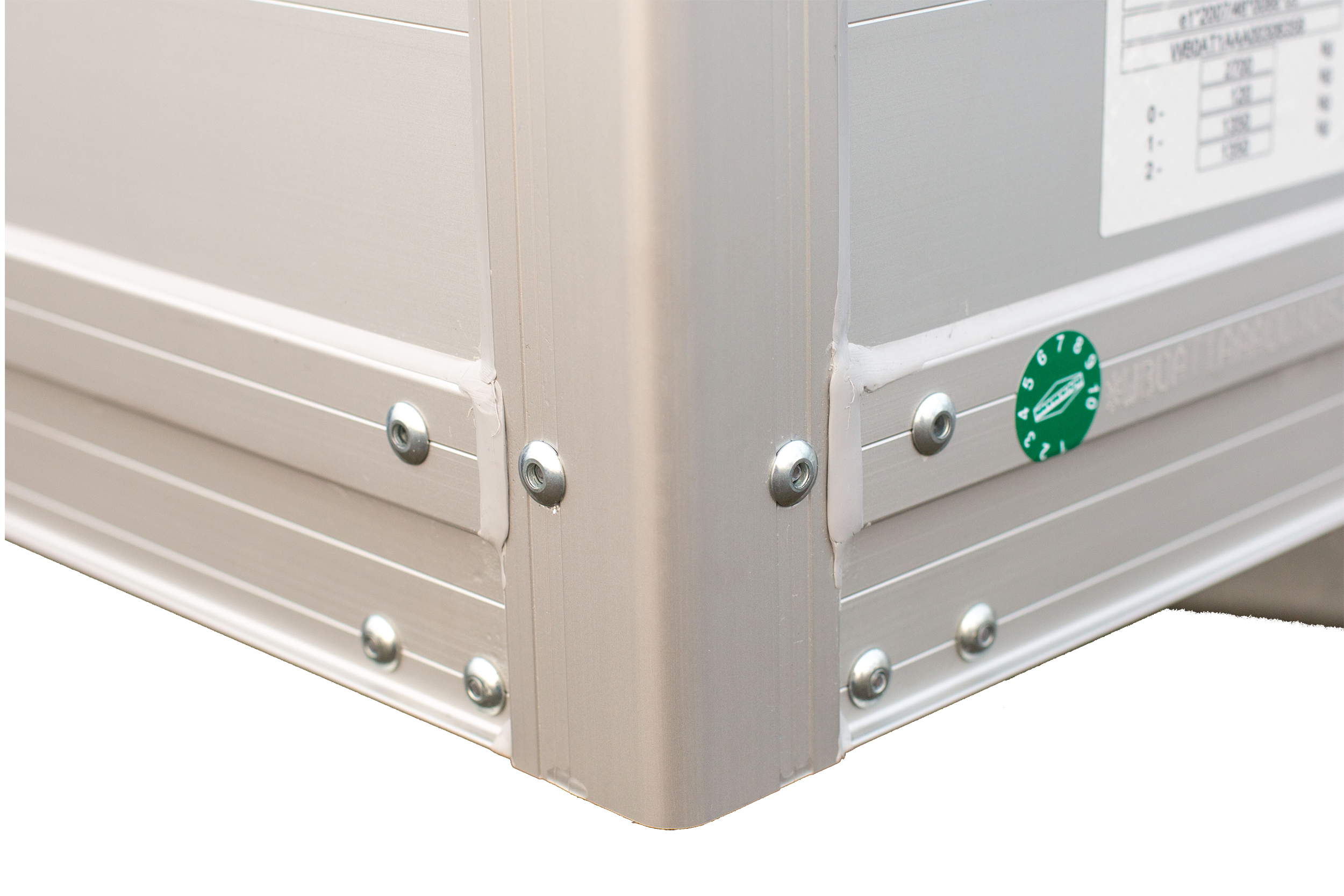

- aluminium anodised double profile frame and corner rungs
- V-tow hitch
- 2 crossmembers
- Tires and wheels
- Jockey wheel
Internal Space
Accessories
Body
-
Side walls
- without coating on drive-on ramp
- aluminium checker plate on drive-on ramp
- rubber on drive-on ramp
- silicone coating on ramp
- 1 rear wing-door
- 2-wing door
- 1-wing door / ramp combination (surface load 1000 kg)
-
Attachments
- polyester roof, white
- polyester roof, anthracite-metallic
- polyester roof, grey
- Selection of attachments
- spare wheel 13"(195/50R13)
- spare wheel 14"
- spare wheel holder (mounted)
- reinforced sliding drop legs (per pair)
- sliding drop legs (per pair)
- telescopic crank drop legs (per pair)
- periphery lighting for reversing
- V-draw-bar with step
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Lashings
- airline rail left
- airline rail left side, mounting height approx. 1000mm
- airline rail left side, mounting height approx. 600mm
- airline rail left side, mounting height approx. 800mm
- AIr
- airline rail right side, mounting height approx. 1000mm
- airline rail right side, mounting height approx. 600mm
- airline rail right side, mounting height approx. 800mm
- Ankerschiene links
- lashing rail left side, mounting height approx. 1000mm
- lashing rail left side, mounting height approx. 600mm
- lashing rail left side, mounting height approx. 800mm
- L
- lashing rail right side, mounting height approx. 1000mm
- lashing rail right side, mounting height approx. 600mm
- lashing rail right side, mounting height approx. 800mm
- Selection of lashings
- shut-off bar (per pc.)
- fitting with ring for airline rail
- shut-off bar for airline rail
- countersunk lashing ring
Chassis
-
Chassis
- wheel shock absorbers (2 pcs)
-
Tires and wheels
- 195/50R13 wheels (reduced loading height)
- Jockey wheel
