Characteristics
Model family
Van trailers
Total weight
3500 kg
Number of axles
2

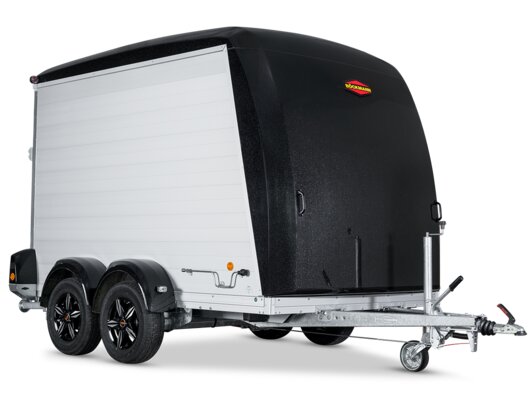

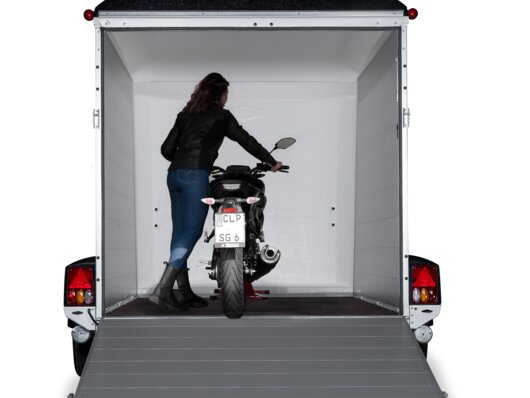

Highest functionality meets shapely design. The aluminium box trailers of the KT-PB-AL F series are particularly impressive due to their robust construction, all-aluminium body and low loading height. The trailers are equipped with a high-quality polyester bow and roof, which can be selected in several colours. The standard 1-wing door/ramp combination and many other detailed solutions complete the equipment of the trailer. The interior has an additional storage compartment in the front. Thanks to its design and the numerous accessories, the trailer is also ideal for transporting e-bikes or motorbikes. The lowered chassis ensures comfortable loading and unloading. With the Böckmann design package, the KT-PB-AL box trailer becomes a real eye-catcher.
The Böckmann added valuesKT-PB-AL-models
Well thought out construction
Innovative details
Design package
Practical accessories
Technical data
Base
Jockey wheel
Automatic
Longitudinal members
2
Tires
14.0 Zoll

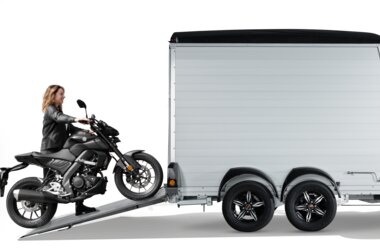

Loading height
490 mm
Overrun brake
Weight
Total weight
3500 kg
Payload
2488 kg
passageway dimensions
Headroom
1748 mm
Passage width
1800 mm
Internal dimensions
Interior length
4244 mm
Interior width
1870 mm
Interior height
2093 mm
Standard features
Body
-
Color of polyester roof
- polyester roof, anthracite-metallic
-
Color of polyester front bow
- polyester front bow, anthracite-metallic
-
Color of polyester cover

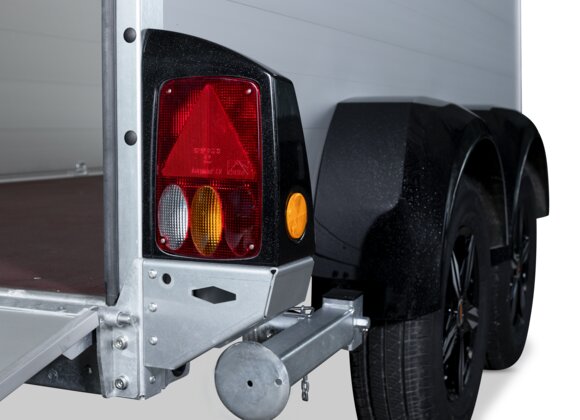

- light box cover plastic, black
-
Side walls
- Side walls made of 18mm thick aluminum profiles

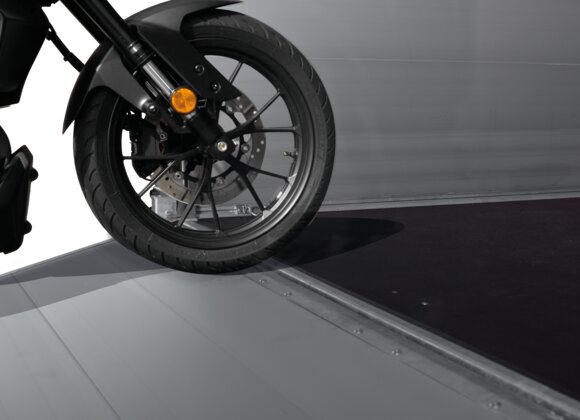

- Combination: 1-wing door / access ramp with silicone coating

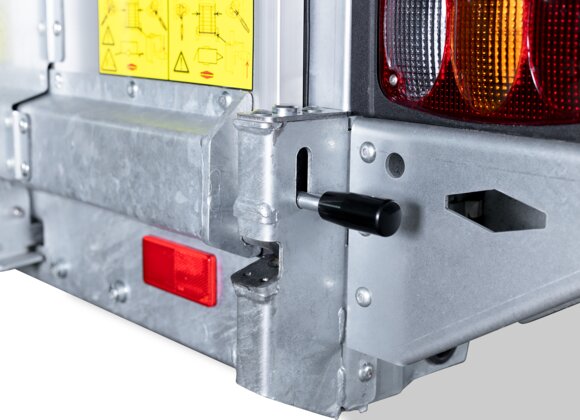

- CFlexLock system integrated in frame
-
Attachments
- side-mounted lighting
- plastic fenders
- Floor
-
Lashings
- 6 lashing rings fixed with sliding blocks
Chassis
-
Chassis
- aluminium anodised double profile frame and corner rungs
- axle with rubber suspension system, free of service
- self-supporting drawbar 1285mm
- V-tow hitch
- 3 galvanised side members
-
Tires and wheels
- Tires 14 ", steel rim
- Jockey wheel
Internal Space
Accessories
Accessory packages
-
Design package
- color of polyester light box cover: anthracite-metallic
- color of polyester fenders: anthracite-metallic

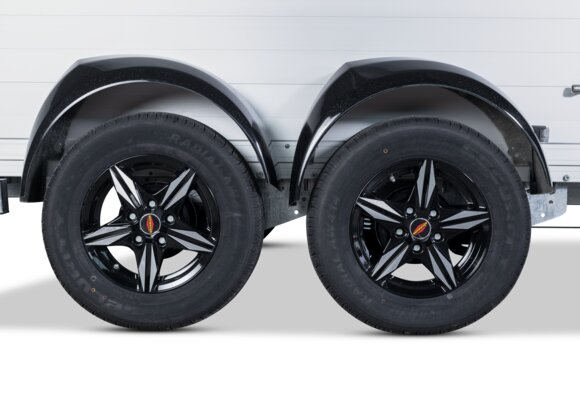

- Böckmann Premium aluminum rims 14"
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
-
Tires and wheels
- 195/50R13 wheels (reduced loading height)
- Böckmann Premium aluminum rims 14"
Body
-
Color of polyester roof
- polyester roof, dark blue
- polyester roof, dark green
- polyester roof, flame red
- polyester roof, yellow
- polyester roof, grey
- polyester roof, white
-
Color of polyester front bow
- polyester front bow, dark blue
- polyester front bow, dark green
- polyester front bow, flame red
- polyester front bow, yellow
- polyester front bow, grey
- polyester front bow, white
- Color of polyester cover
-
Side walls
- Selection right side wall
- side door, right side 1220x460mm
- side door, right side 1595x710mm
- Selection wing-door / drive-on ramp
- Combination: 1-wing door / access ramp with aluminium checker plate
- price reduction: 2-wing door at rear
-
Attachments
- Selection attachments
- spare wheel 13"(195/50R13)
- spare wheel 14"
- spare wheel holder (mounted)
- reinforced sliding drop legs (per pair)
- sliding drop legs (per pair)
- periphery lighting for reversing
- Selection fenders

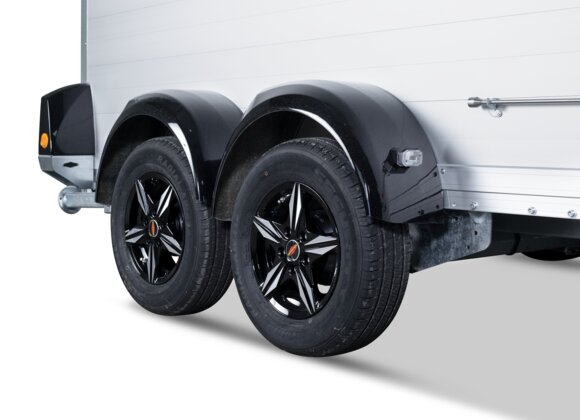

- color of polyester fenders: anthracite-metallic
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor (sheet shared)
-
Lashings
- airline rail left
- airline rail left side, mounting height approx. 1000mm
- airline rail left side, mounting height approx. 600mm
- airline rail left side, mounting height approx. 800mm
- AIr
- airline rail right side, mounting height approx. 1000mm
- airline rail right side, mounting height approx. 600mm
- airline rail right side, mounting height approx. 800mm
- Ankerschiene links
- lashing rail left side, mounting height approx. 1000mm
- lashing rail left side, mounting height approx. 600mm
- lashing rail left side, mounting height approx. 800mm
- L
- lashing rail right side, mounting height approx. 1000mm
- lashing rail right side, mounting height approx. 600mm
- lashing rail right side, mounting height approx. 800mm
- Selection lashing systems
- shut-off bar (per pc.)
- fitting with ring for airline rail
- shut-off bar for airline rail
- countersunk lashing ring
