Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Van trailers
Total weight
2700 kg
Number of axles
2

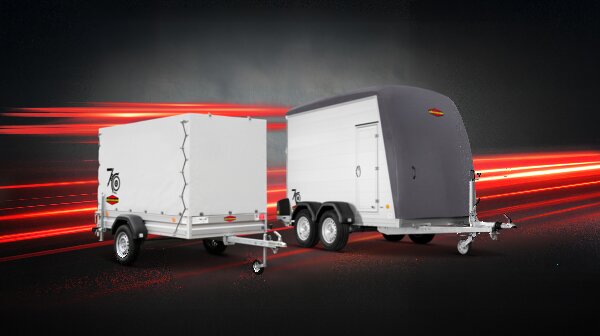

The box trailer anniversary model KT-PB-AL 3015/27 M F is available as a limited edition for a short time only. The trailer impresses with its high-quality construction featuring aluminium side walls and a stable door construction with door-ramp combination. Roof and bow are finished in the special colour slate grey metallic. For flexible load securing, the trailer is equipped with a CFlexLock system. An additional access door on the right side and the Böckmann anniversary logo complete the overall package of this promotional model.
Technical data
Base
Jockey wheel
Automatic
Tires
14.0 Zoll
Loading height
465 mm
Overrun brake
Weight
Total weight
2700 kg
Payload
2045 kg
passageway dimensions
Headroom
1,748 mm
Passage width
1,448 mm
External dimensions
Total length
4571 mm
Total width
2050 mm
Total height
2562 mm
Internal dimensions
Interior length
3255 mm
Interior width
1515 mm
Interior height
2093 mm
Standard features
Body
-
Color of polyester roof
- polyester roof, slate grey-metallic
-
Color of polyester front bow
- colour of polyester front bow: slate grey-metallic
-
Mudguards colour
- plastic fenders
-
Color of polyester cover
- light box cover plastic, black
-
Decors
- Decor 70 years of Böckmann
-
Side walls
- Side walls made of 18mm thick aluminum profiles
- side door, right side 1220x460mm
- Combination: 1-wing door / access ramp with silicone coating
- CFlexLock system integrated in frame
-
Attachments
- side-mounted lighting
- Floor
-
Lashings
- 6 lashing rings fixed with sliding blocks
Chassis
-
Chassis
- aluminium anodised double profile frame and corner rungs
- V-tow hitch
- axle with rubber suspension system, free of service
- self-supporting drawbar 1285mm
- 3 crossmembers
- Tires and wheels
- Jockey wheel
Internal Space
Accessories
