Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Family
Box trailers
Total weight
750 kg
Number of axles
1

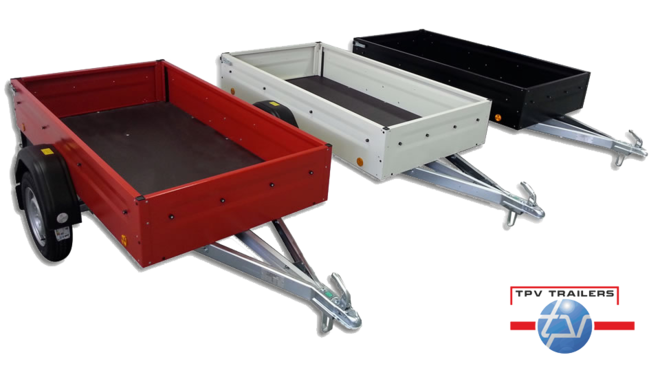

The unbraked TPV low-loaders with sheet-steel side walls and a total weight of 750 kg - quality and service guaranteed.
Technical data
Base
Jockey wheel
Tires
13.0 Zoll
Loading height
0 mm
Weight
Total weight
750 kg
Payload
635 kg
Internal dimensions
Interior length
2020 mm
Interior width
1075 mm
Interior height
345 mm
Standard features
Body
-
Side walls
- Walls are polycarbonate coated on both sides
Chassis
-
Chassis
- 2 additional side members
- dip galvanized
- galvanized tow bar
- Robust frame construction
Accessories
Body
-
Body color
- sidewall colors black
- sidewall colors red
- sidewall colors white
-
Side walls
- Box attachment polycarbonate coated, 340mm high
- Box attachment polycarbonate coated, 680mm high
- Cover polycarbonate coated, 55 mm high
- Cover with roofing liner polycarbonate coated, 55 mm high
- grass rails 340 mm
- grass rails 680 mm
- Mounting profiles for sliding support
- sliding support
-
Tarpaulin and hoops
- Delta canopy white, 1400 mm (without imprint)
- Delta canopy white, 2000 mm (without imprint)

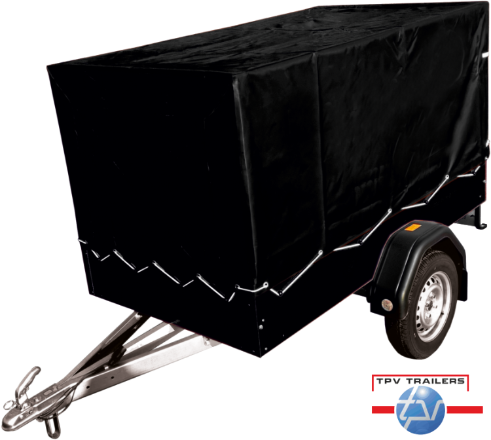

- flat canvas top, blue
- flat canvas top, grey
- frame and PVC canvas (black), 800 mm, 4-sided to open
- frame and PVC canvas (blue), 1000 mm
- frame and PVC canvas (blue), 800 mm
- frame and PVC canvas (grey), 800 mm
- Triangle frame 1400 mm overall Length
- Triangle frame 2000 mm overall Length
Chassis
-
Chassis
- wheel shock absorber
- Jockey wheel
