Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Box trailers
Total weight
1350 kg
Number of axles
1

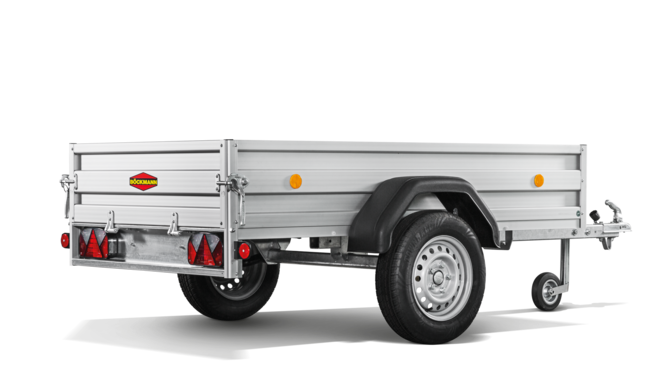

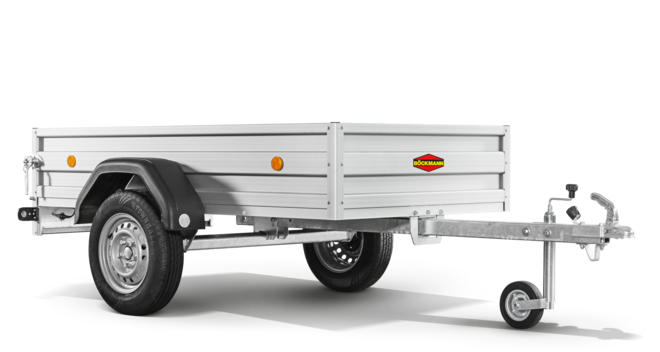

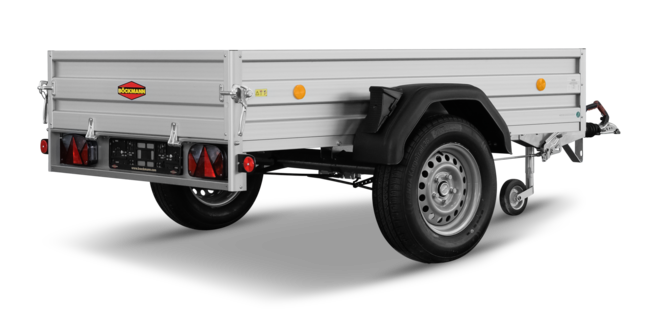

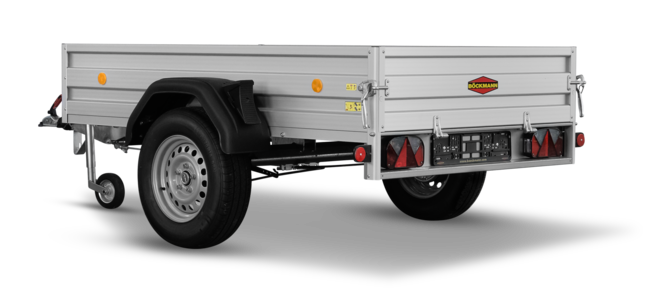

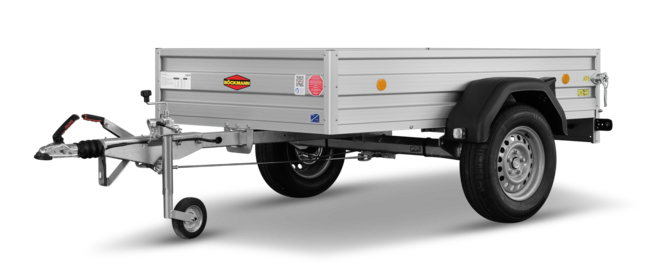

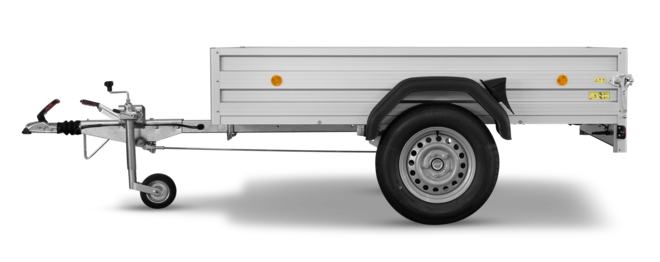

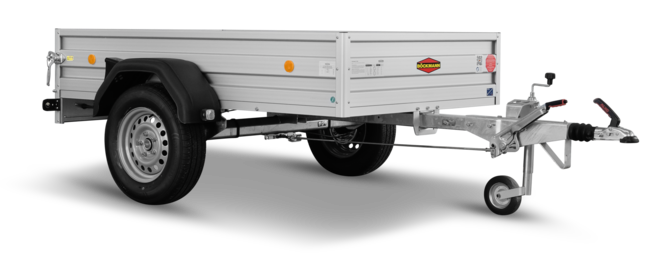

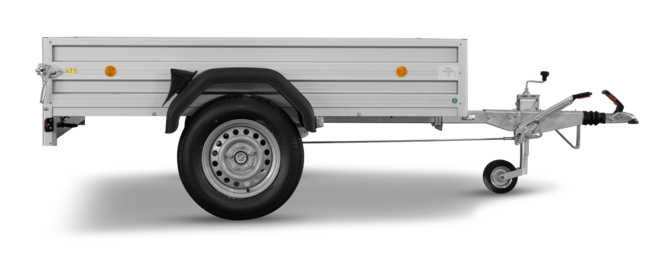

With the Böckmann aluminium box trailers you profit threefold - firstly from the wide range of uses. Secondly from the Böckmann professional quality and thirdly from the outstanding design with the anodised aluminium superstructure.
The Böckmann added valuesBox trailer
Stable construction
Transport lockSafe loading
Practical accessories
Technical data
Base
Jockey wheel
Tires
14.0 Zoll
Loading height
528 mm
Overrun brake
Weight
Total weight
1350 kg
Payload
1130 kg
External dimensions
Total length
3315 mm
Total width
1830 mm
Total height
879 mm
Internal dimensions
Interior length
2100 mm
Interior width
1300 mm
Interior height
350 mm
Standard features
Body
-
Side walls

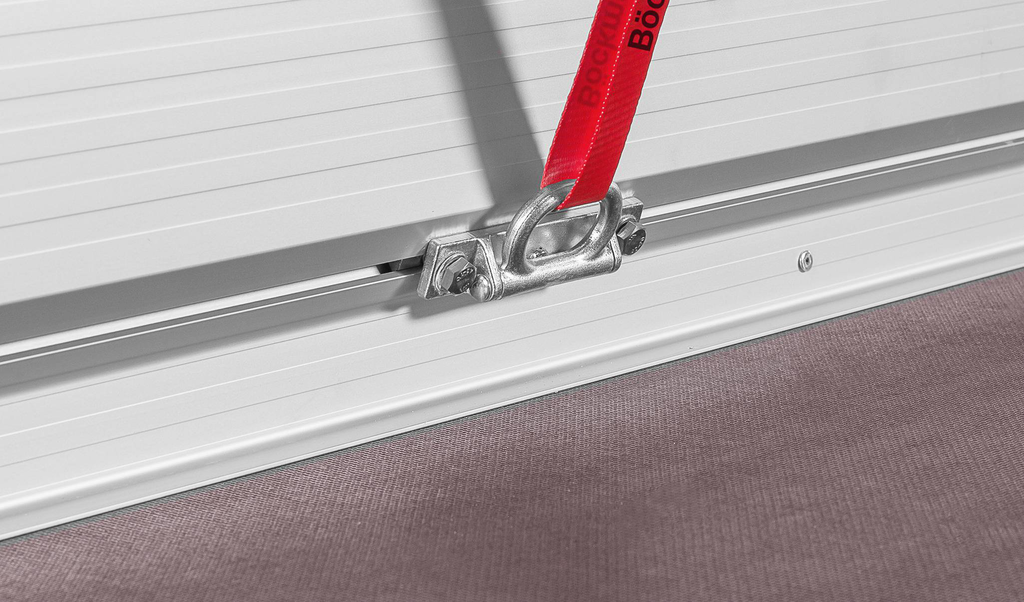

- side walls with integrated load securing CFlexLock System
- sidewalls alu-anodized
- fixed front wall
-
Attachments
- security lights with fog tail light
- reversing light (with 13 pin plug)
- Floor
- Lashings
Chassis
-
Chassis
- self-supporting drawbar 1080mm
- maintenance-free rubber axle with independant wheel suspension
- 2 crossmembers
- Jockey wheel
Accessories
Body
-
Side walls
- Selection side wall height
- sidewall height extended to 1160 mm
- sidewall height extended to 560 mm
- sidewall height extended to 760 mm
- sidewall height extended to 960 mm
- Selection front wall fixed/ foldable
- front wall foldable
-
Attachments
- Selection side wall gallery

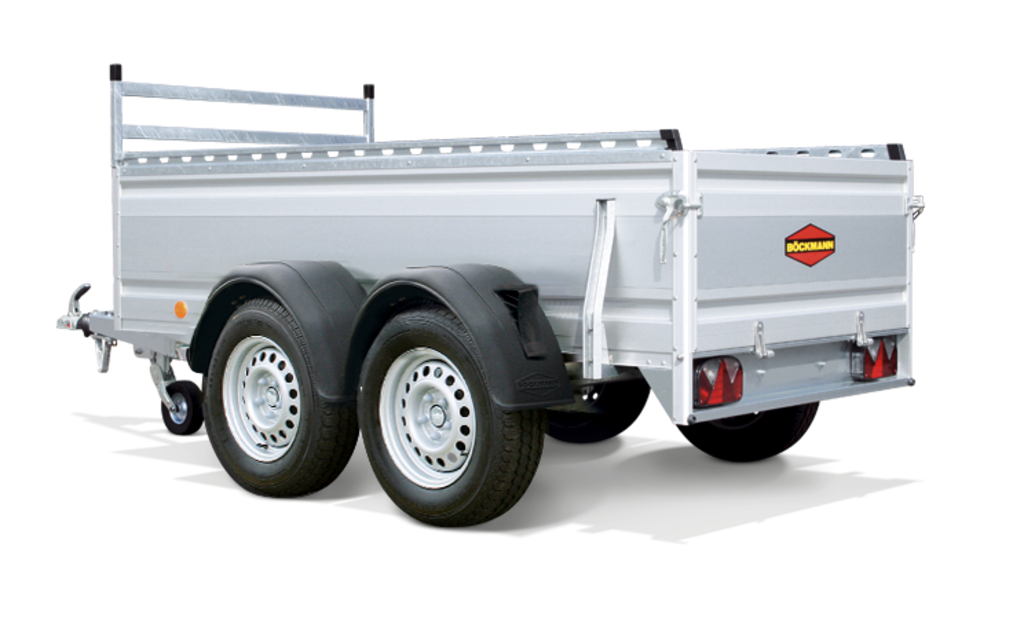

- Profi-Set: sidewall gallery and ladder rack, mounted

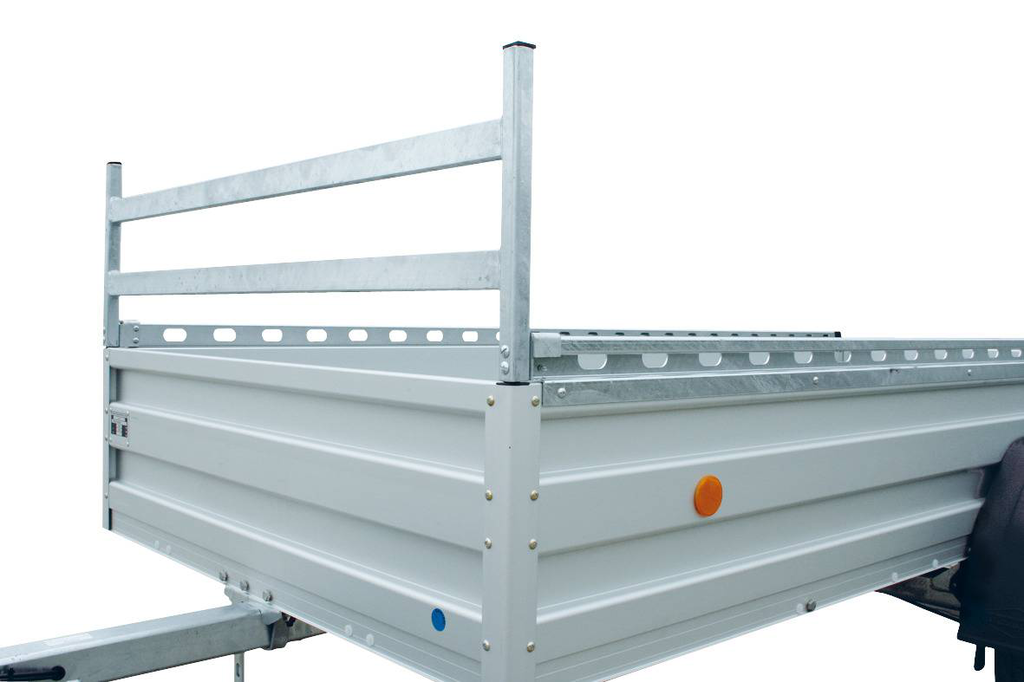

- sidewall gallery
- Selection attachments
- aluminum cover, height 200 mm (left stop)
- aluminum cover, height 200 mm with railing (left stop)
- retaining ropes at rear wall
- spare wheel 14"
- spare wheel holder (mounted)
- sliding drop legs (per pair)
- storage case (plastic)
-
Attachments
- box attachment (alu), 350 mm (unassembled)
- box attachment alu 350mm (unassembled) with sidewall gallery
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Tarpaulin and hoops
- Additional equipment for tarpaulins
- bracket for flat canvas
- frame and canvas fitting charge
- tarpaulin labelling, exclusive marking, 2 sides
- tarpaulin labelling, exclusive marking, 3 sides
- tarpaulin labelling, exclusive marking, 4 sides
- tarpaulin labelling, standard marking, 2 sides
- tarpaulin lettering, standard marking, 3 sides
- tarpaulin labelling, standard marking, 4 sides
- tarpaulin labelling, full marking, 2 sides
- tarpaulin labelling, full marking, 3 sides
- tarpaulin labelling, full marking, 4 sides
- Selection colour of tarpaulin
- canvas colour: blue (similar to RAL5010)
- canvas colour: yellow (similar to RAL1021)
- canvas colour: green (similar to RAL6026)
- canvas colour: orange (similar to RAL2011)
- canvas colour: red (similar to RAL3002)
- canvas colour: black (similar to RAL9005)
- canvas colour: white (similar to RAL9016)
- canvas colour: grey (similar to RAL7035)

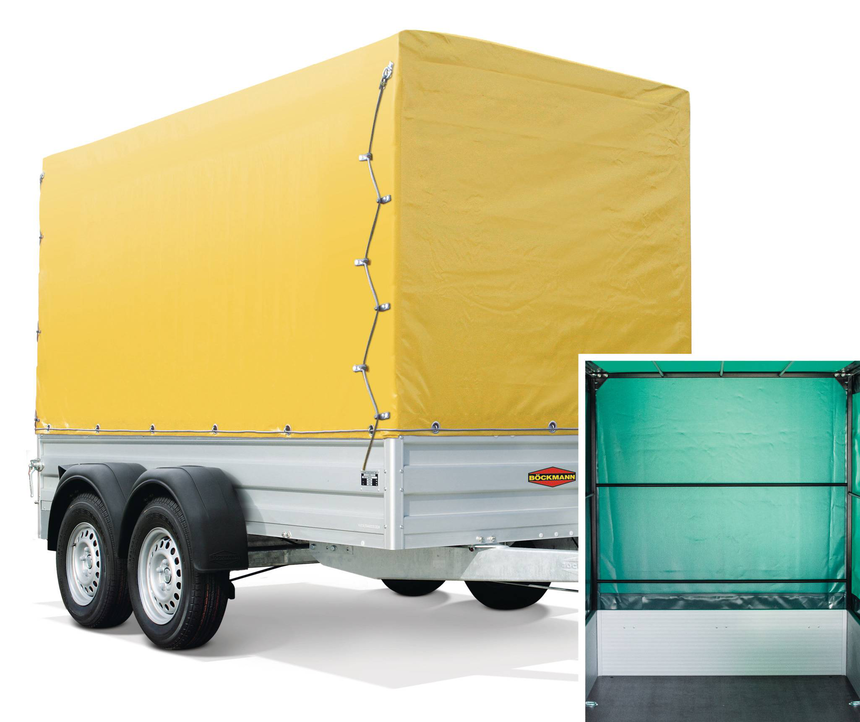

- Selection tarpaulin and hoop (not mounted)

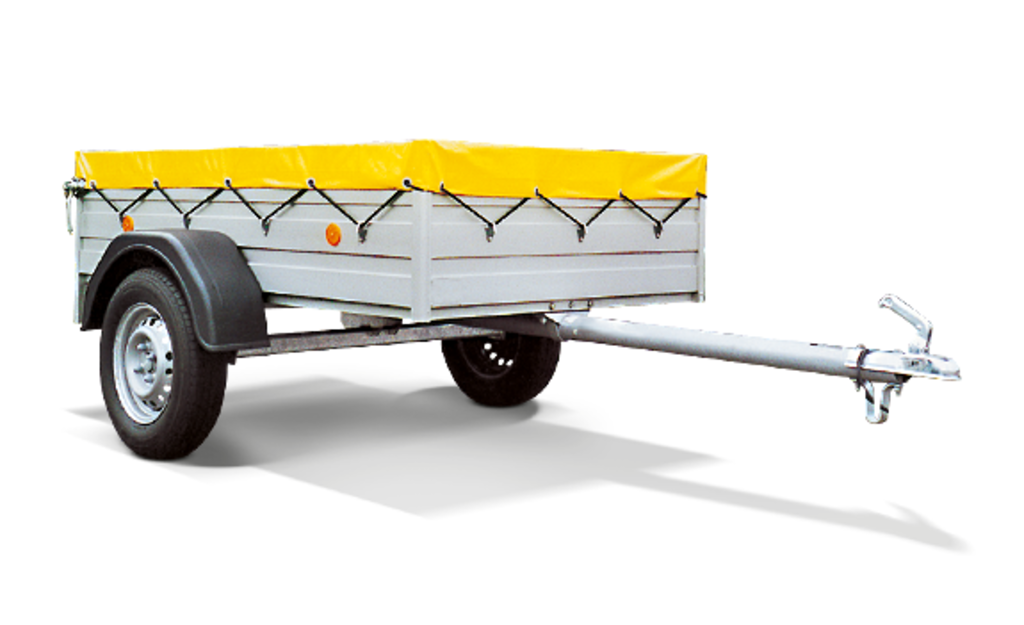

- flat canvas top
- flat canvas top, grey
- frame and PVC canvas, 1200 mm (without pitch)
- frame and PVC canvas, 800 mm (without pitch)
-
Loading
- container net
- brackets for 1 drive-on rail (to use in CFlexLock System), unmounted
- brackets for drive-on rails,attachment to inside left-hand side wall
- brackets for drive-on rails,attachment to inside right-hand side wall
- motorcycle support rail, fixed to bottom of trailer
- Loading equipment
- Lashings
Chassis
-
Chassis
- Selection frame components
- WCF-chassis with wheel shock absorbers (single axle trailers)
- Selection chassis
- wheel shock absorbers (2 pcs)
- Jockey wheel
