TL-AL 2111/75 Eco XXL

TL-AL 2111/75 Eco XXL
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
TL-AL 2111/75 Eco XXL
Price on request
Overview
Technical data
Configure Compare

Characteristics

Model family
Box trailers
Total weight
750 kg
Number of axles
1
With the Böckmann aluminium box trailers you profit threefold - firstly from the wide range of uses. Secondly from the Böckmann professional quality and thirdly from the outstanding design with the anodised aluminium superstructure.

The Böckmann added valuesBox trailer

Böckmann Mehrwerte Tieflader Siebdruckbodenplatte
Screen-printed floor

Optimum protection against moisture as the floor fits perfectly into the frame and is additionally sealed.

Böckmann Mehrwerte Tieflader Eckrungen
Corner rungs

provide practical insertion options for frame and PVC-canvas and other attachments.

Böckmann Mehrwerte Tieflader Winkelhebelverschlüsse
Angle lever lock

for easy and quick operation.

Stable construction

Böckmann Mehrwerte Tieflader Querträger
Crossbeams

Full length, solid steel crossbeams ensure a high torsional rigidity.
Böckmann Mehrwerte Tieflader Einzelradkotflügel Einachser
Single wheel mudguards

Impact-resistant, robust and recyclable plastic mudguards prevent unsightly dent forming.
Böckmann Mehrwerte Tieflader WCF-Fahrwerk für Tempo 100 Zulassung
WCF-Plus chassis

World-Class-chassis according to automobile standard for sensible goods. (accessory)

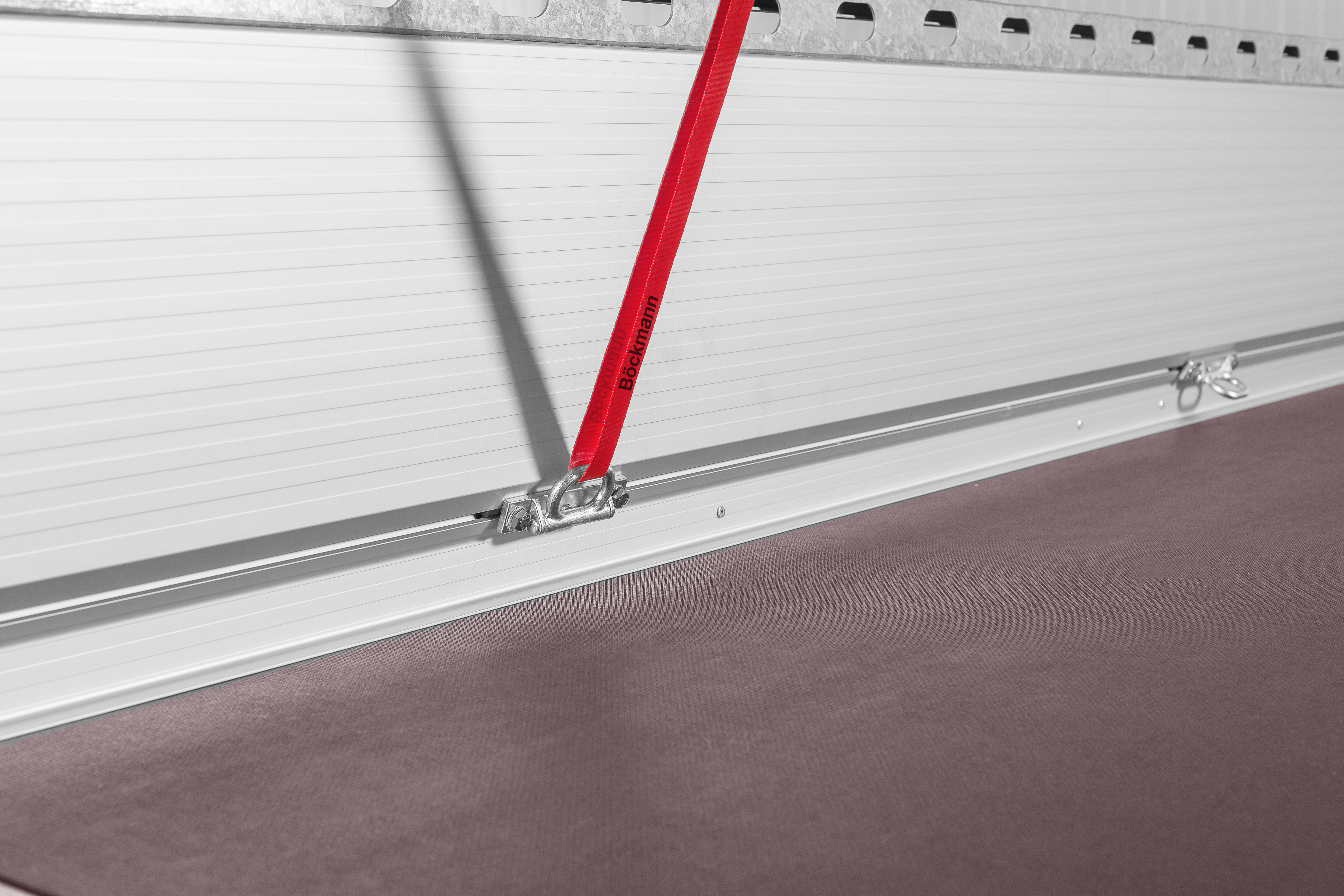

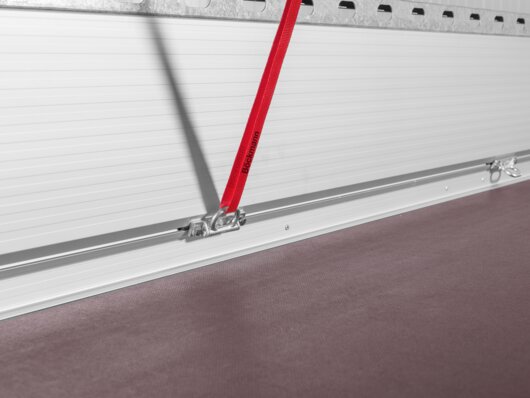

CFlex Lock system

The new CFlexLock system allows flexible sliding of the individual lashing eyes. TÜV certified 600 daN tensile force per lashing point for all lashing angles (vertical, longitudinal and transverse) in accordance with DIN 12640. Completely free usable floor plate without obstacles along the sidewall. Standard on all low-bed models without sidewall extension.

Transport lockSafe loading

Practical accessories

Technical data

Base
Jockey wheel Jockey wheel
Tires Tires
13.0 Zoll
Loading height Loading height
500 mm
Weight
Total weight Total weight
750 kg
Payload Payload
608 kg
External dimensions
Total length Total length
3215 mm
Total width Total width
1570 mm
Total height Total height
845 mm
Internal dimensions
Interior length Interior length
2100 mm
Interior width Interior width
1110 mm
Interior height Interior height
350 mm

Standard features

Chassis

Accessories

Body

Chassis

Brochures & information materialDownload

Download the current brochures or select which brochures we should send you by mail.

Brochure Box trailers

in English

Download PDF
There are no download materials available for this area.
