Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Box trailers
Total weight
750 kg
Number of axles
1

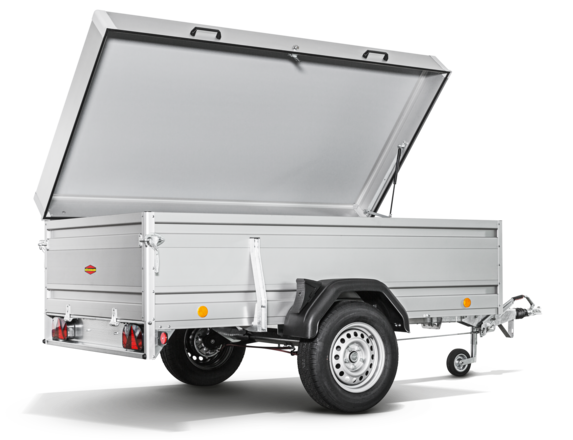

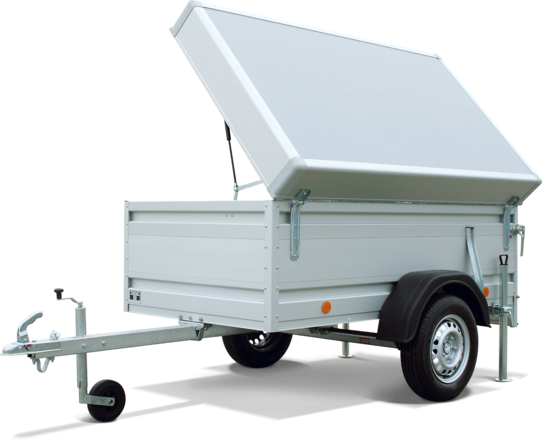

With the Böckmann aluminium box trailers you profit threefold - firstly from the wide range of uses. Secondly from the Böckmann professional quality and thirdly from the outstanding design with the anodised aluminium superstructure.
The Böckmann added valuesBox trailer
Stable construction
Transport lockSafe loading
Practical accessories
Technical data
Base
Jockey wheel
Longitudinal members
1
Tires
13.0 Zoll
Loading height
515 mm
Weight
Total weight
750 kg
Payload
551 kg
External dimensions
Total length
3215 mm
Total width
1570 mm
Total height
1270 mm
Internal dimensions
Interior length
2100 mm
Interior width
1110 mm
Interior height
560 mm
Standard features
Body
-
Side walls
- sidewalls alu-anodized
- fixed front wall
-
Attachments
- plug, 13 pin
- security lights
- aluminum cover, height 200 mm (left stop)
- Floor
- Lashings
Chassis
-
Chassis
- maintenance-free rubber axle with independant wheel suspension
-
Tires and wheels
- Tires 13 ", steel rim
Accessories
Body
-
Attachments
- retaining ropes at rear wall
- spare wheel 13"
- spare wheel 14"
- spare wheel holder (mounted)
- sliding drop legs (per pair)
- storage case (plastic)
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
- Loading
- Lashings
Chassis
-
Chassis
- wheel shock absorbers (2 pcs)
-
Tires and wheels
- tires 14", steel rim
- Jockey wheel
