Uno Esprit

Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!

Home
Trailers
Horse trailers
Uno
Uno Esprit

Uno Esprit

Price on request

Overview

Technical data

Configure Compare

Characteristics

Number of animals

1 Horse

Discipline

English

Material of body

Plywood

As an entry-level 1-horse trailer, the Uno Esprit offers the proven Böckmann added values and combines high quality with an attractive price. The model is available as standard in granite grey and anthracite. The roof is available in silver-metallic, anthracite-metallic, red-, green-, or dark blue-metallic, as well as white.
Benefit from practical accessories such as the safety stall bar system and the comfortable side padding for even more safety and comfort.

Good for your horseLoading and unloading - The Böckmann added values

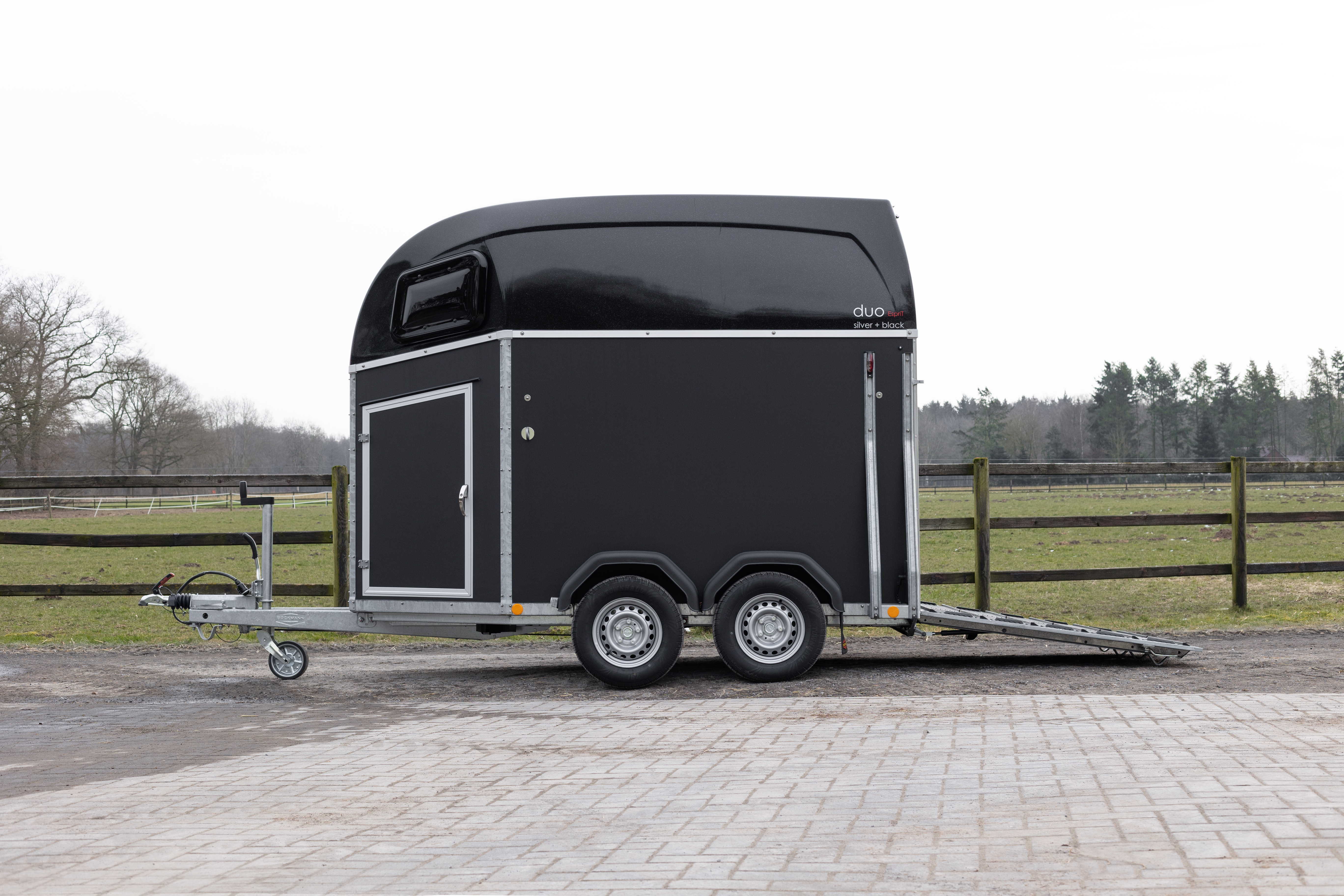

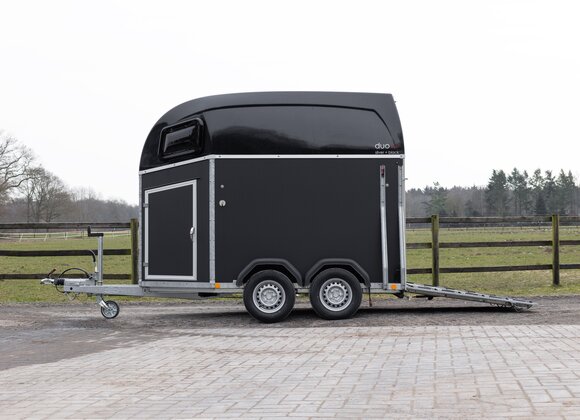

Low loading height

Low loading height ensures comfortable and stress-free entry for the horses.

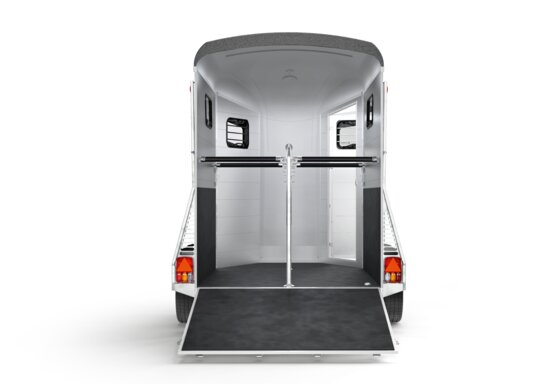

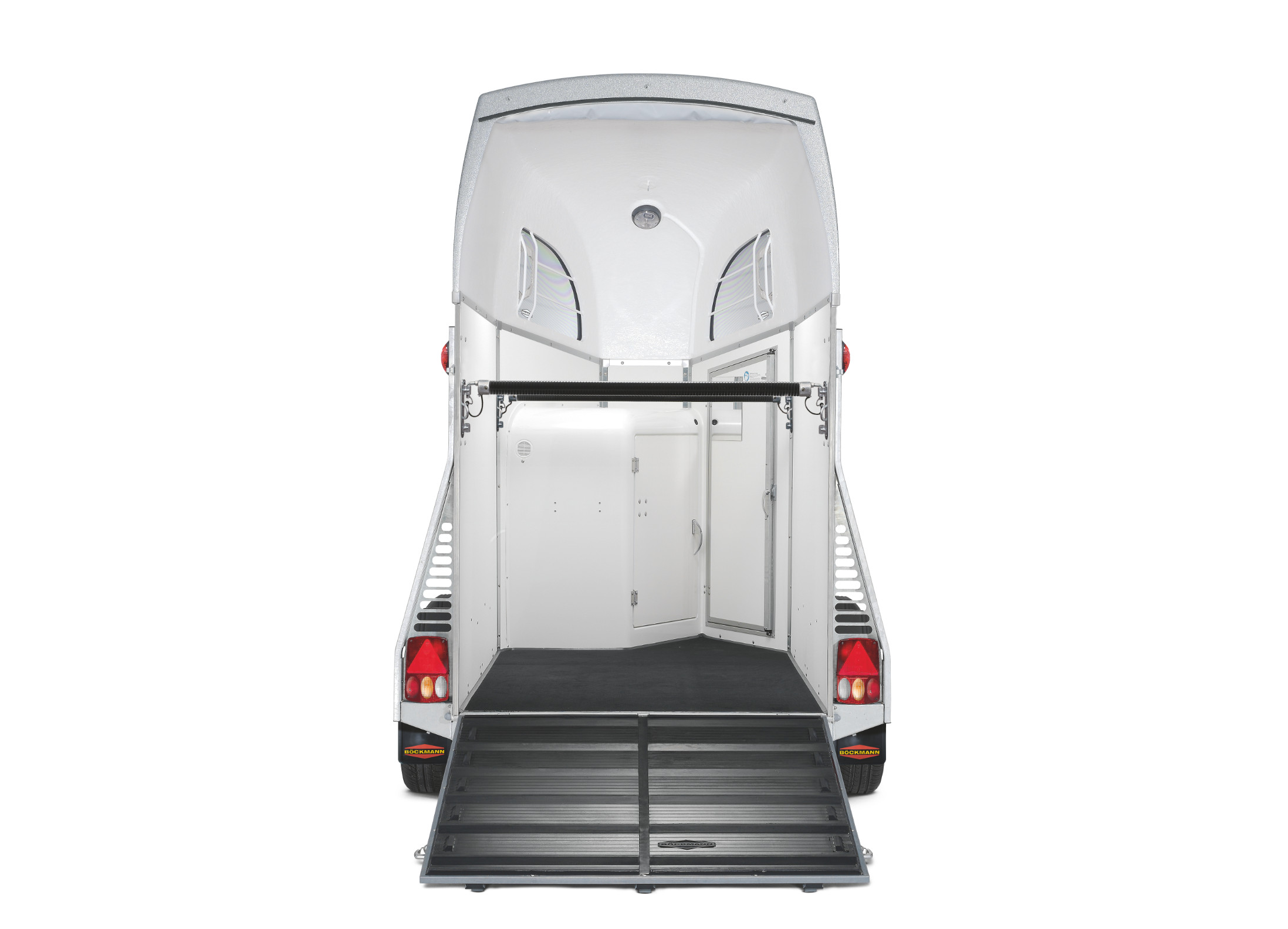

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Easy Entry

due to the lowered chassis and more safety with the reinforced rear ramp with non-slip 8 mm thick rubber.

Low loading height

Low loading height ensures comfortable and stress-free entry for the horses.

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Easy Entry

due to the lowered chassis and more safety with the reinforced rear ramp with non-slip 8 mm thick rubber.

Low loading height

Low loading height ensures comfortable and stress-free entry for the horses.

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Easy Entry

due to the lowered chassis and more safety with the reinforced rear ramp with non-slip 8 mm thick rubber.

Good for your horseThe safety concept - The Böckmann added values

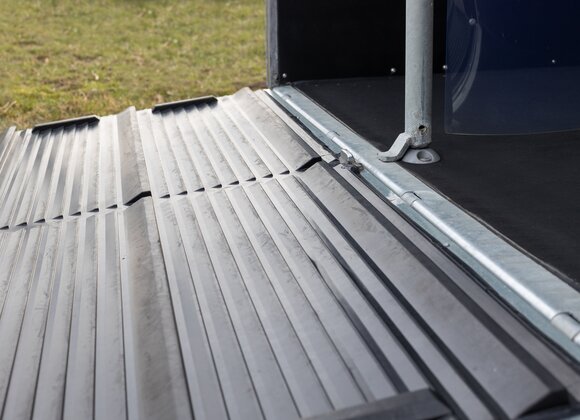

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

No slip of the hoof

No danger of the horse’s hoofs slipping thanks to the closed rear struts with special perforation.

Corner protection

Corner protection by plastic covers on the steel profile struts and at the ends of the rear strut.

No catching the rope

No entangling of the rope due to flat door handles.

No sharp edges

No sharp edges – all hinges and bolt heads have been rounded off.

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

No slip of the hoof

No danger of the horse’s hoofs slipping thanks to the closed rear struts with special perforation.

Corner protection

Corner protection by plastic covers on the steel profile struts and at the ends of the rear strut.

No catching the rope

No entangling of the rope due to flat door handles.

No sharp edges

No sharp edges – all hinges and bolt heads have been rounded off.

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

No slip of the hoof

No danger of the horse’s hoofs slipping thanks to the closed rear struts with special perforation.

Good for your horseThe Böckmann added values

Interior
Dividers
Driving Comfort

Easily accessible hay

Easily accessible hay from feed troughs in the tack room or optimally positioned hooks for a hay net.

Safe stand

A firm foothold due to rubber matting with anti-slip structure.

Lots of headroom

Plenty of headroom thanks to the generous dimensions of all Böckmann models.

Lots of space for the tail

Plenty of space for the tail because of the generous amount of space between the breast bar and the tail gate.

Soothing atmosphere

provided by the blue LED transport light – can be conveniently switched from blue to white.

Comfortable position

Lots of room for a wide stance due to securing of the PVC curtain 60 mm above the floor – for pleasant travelling.

Optical room enlargement

Our transparent PVC dividers, which can be moved to the right or left during loading, create an illusion of even greater space for the horse.

Good visibility while driving

Excellent view on the road with special perforated rear struts; the large lighting unit is also visible when the tail gate is open.

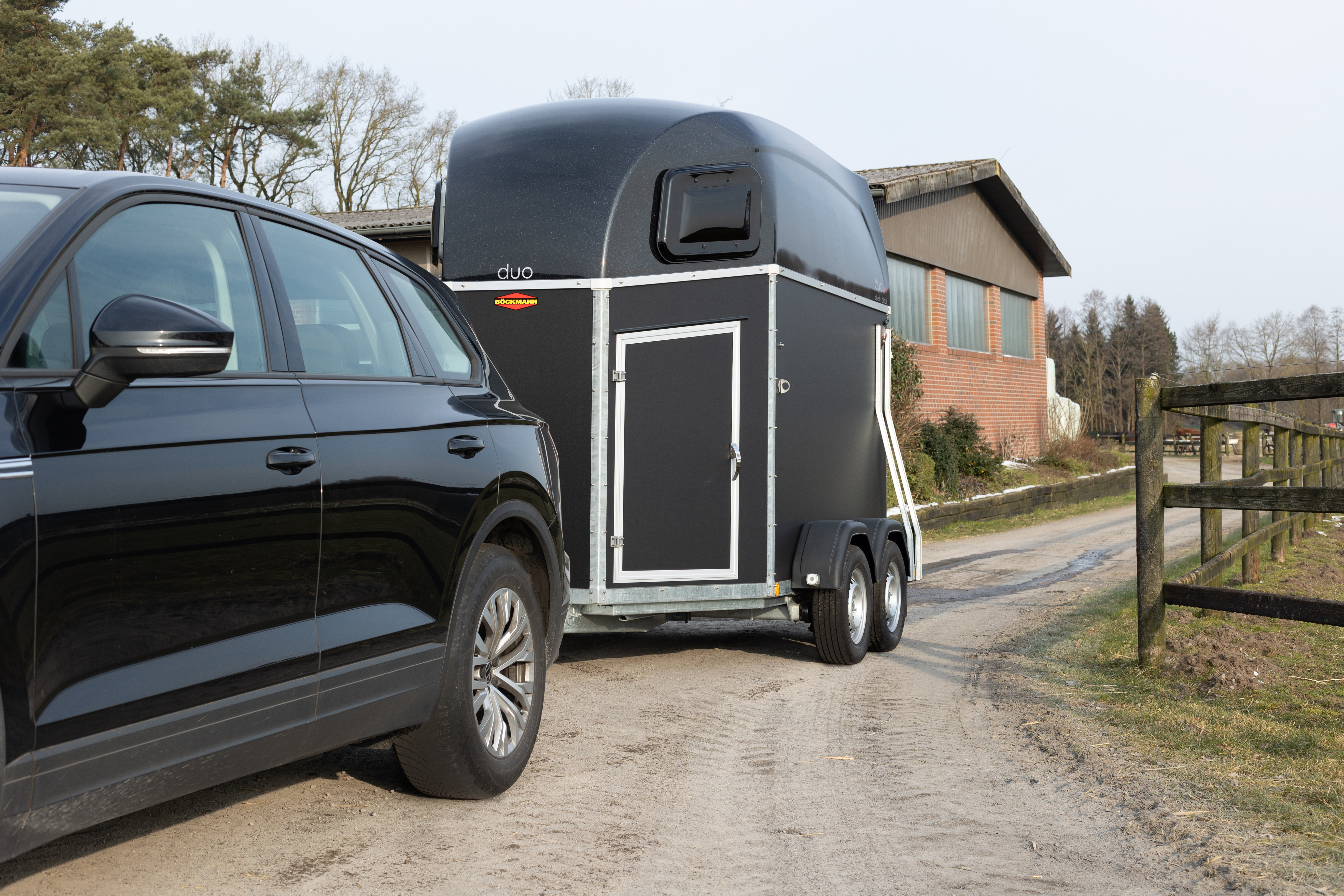

Easy movement

due to the aerodynamic structure and low center of gravity - and therefore also fuel-saving.

Optimum ventilation

provided by the canvas flap lift with automatic roll-up function.

More driving safety

thanks to 13" quality tyres with steel rims or wheel trims in anthracite and impact-resistant plastic mudguards.

Good for you Handling & tying up options - The Böckmann added values

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.

Tying up option in the interior

More driving safety thanks to generously-dimensioned quality tyres.

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.

Tying up option in the interior

More driving safety thanks to generously-dimensioned quality tyres.

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

Good for you Locking systems - The Böckmann added values

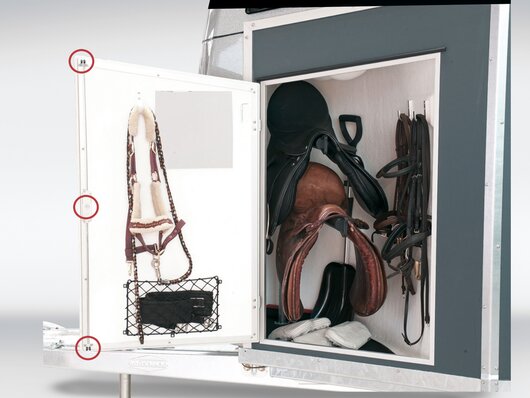

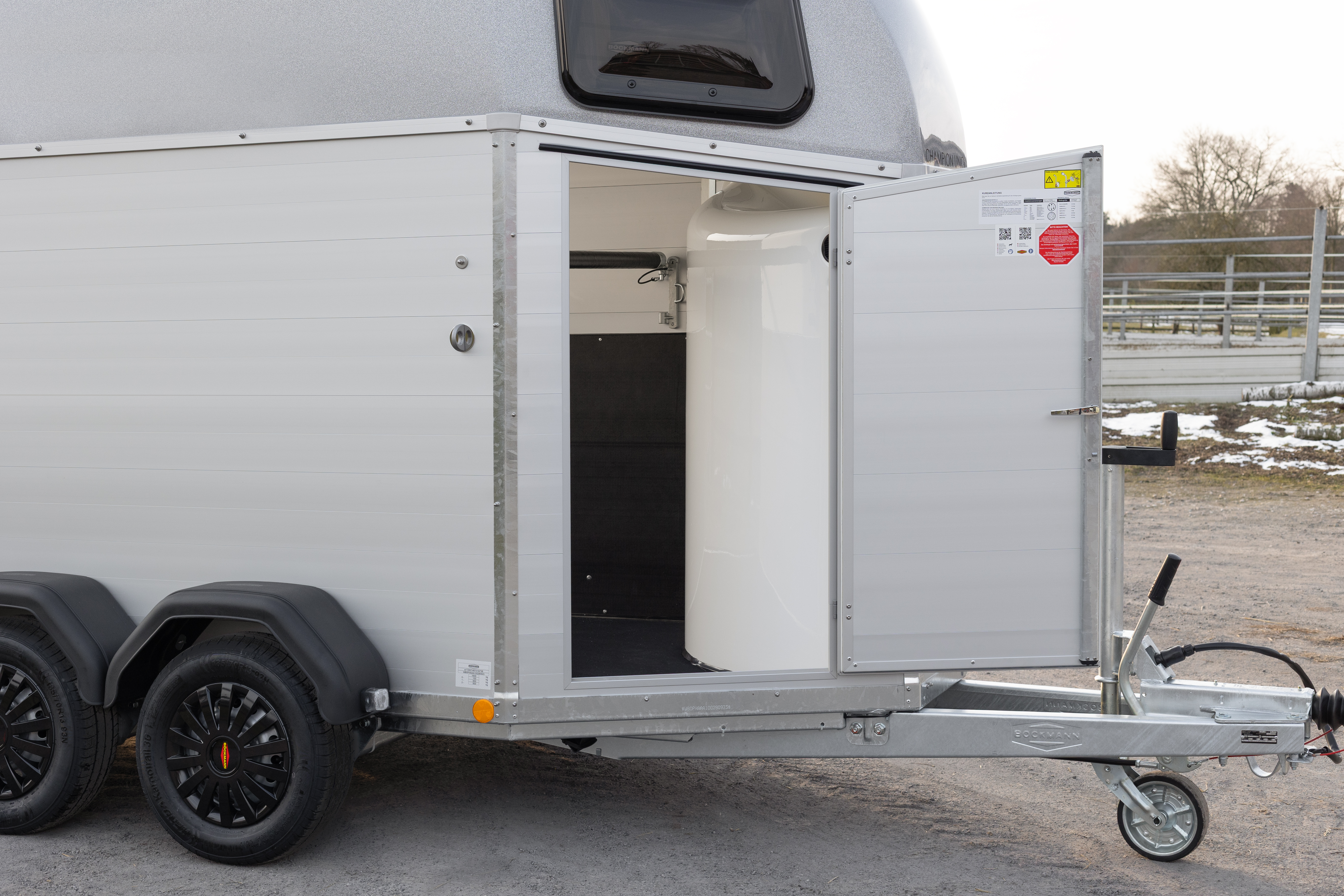

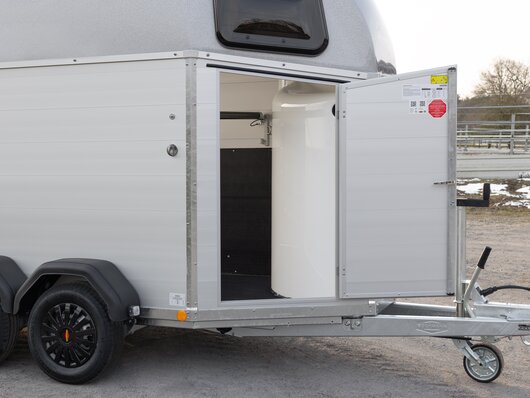

Optimal closing

Perfect closure due to 3-point door lock and rubber seal.

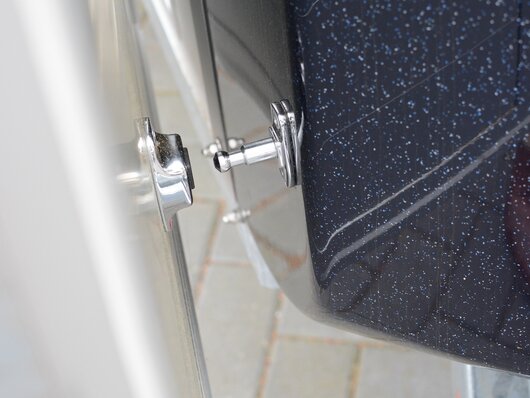

Protection against damage

Protection against damage by locking the entrance door.

Maintains its valueThe Böckmann added values

Chassis
Structure
Interior

Made for heavy loads

Designed for heavy loads thanks to axles with 8-point bolt connection to the longitudinal beam construction and galvanised steel frame.

Higher payload

Higher payload due to 2400 kg total weight as a standard feature instead of 2000 kg.

Stable frame

Stable frame thanks to Z-section frame of galvanised special steel throughout – firmly bolted onto the structure.

Quality and stability

Quality and stability thanks to polyester sandwich-type construction, aluminium twin-web sections or adhesion bonded quality plywood.

Stable structure

Stable structure thanks to overlapping corner unions and galvanised, lateral, steel struts made of solid M sections.

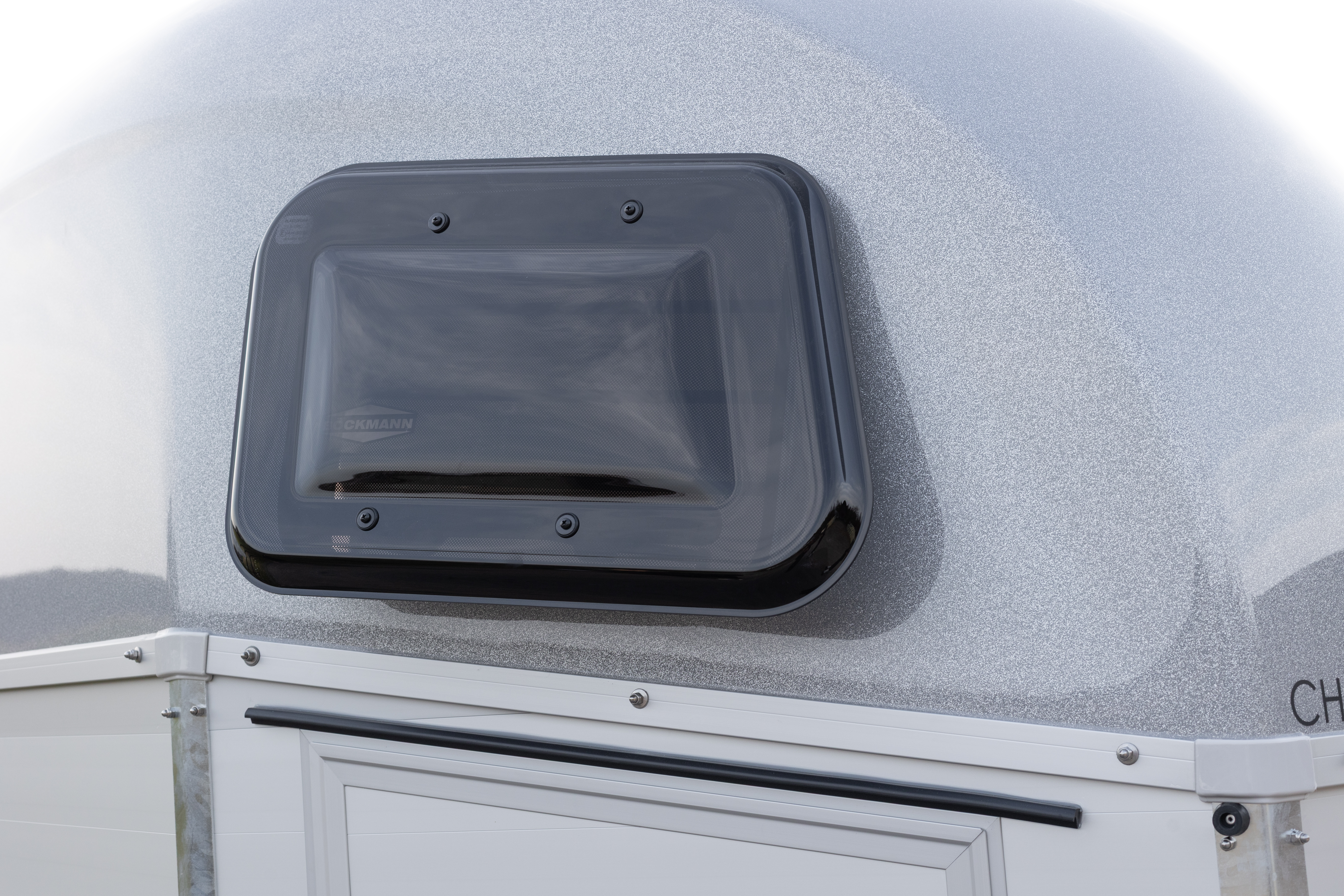

Fresh air

due to the large, dazzle-free 5-way windows (can be opened to the front, back, top and bottom and also completely) with safety grid.

No vulnerable rubber overlaps necessary

No vulnerable rubber overlaps necessary due to closed, narrow tailgate hinge.

Step protection (accessories)

Resilient thanks to adhesion bonding and sealing of rubber flooring throughout.

Technical data

Base

Number of animals

1 Horse

Material of body

Plywood

Weight

Total weight

1600 kg

Payload

900 kg

External dimensions

Total length

4490 mm

Total width

1860 mm

Total height

2730 mm

Internal dimensions

Interior length

3100 mm

Interior width

1300 mm

Interior height

2300 mm

Standard features

Body

Body color
- sidewalls grey, 1500 mm
Color of polyester roof
- colour of polyester roof: silver-metallic
Canvas Lift / polyester flap
- automatic canvas lift
Side walls
- without rear ramp / door combination
- plywood side walls 1500 mm high
- rubber on rear ramp without safety treads
- entrance door right
Attachments
Floor
- rubber floor, glued and sealed
- screen printed floor
Mudguards
- black single plastic fenders
Ventilation
- polyester roof with 2 pop-out windows

Chassis

Chassis
- standard chassis
- side member chassis with V-tow hitch
- stainless steel bolts on structure
Jockey wheel
- automatic jockey wheel
Brake
- Mechanical brake

Internal Space

Comfort and safety
- without lateral kick protection
- safety stall bar system
Lighting
- interior lighting

Accessories

Accessory packages

Esprit Plywood package

Internal Space

Comfort and safety
- Selection kick protection
- lateral kick protection
- Selection side padding
- side padding (2 pc.)
- Selection stall bar system
- safety stall bar system with pin, adjustable in height and length
Tack locker/ room
- Selection tack box / room
- rubber kick protection on saddle box
- Selection tack box
- tack locker with door outside, telescopic saddle holder/net/mirror
further interior
- feeding trough with holder

Body

Body color
- sidewalls anthracite, 1500 mm
Color of polyester roof
Canvas Lift / polyester flap
- tarpaulin lift with integrated net
Side walls
- Version rear strut
- rear ramp / door combination, rear brace closed
- Selection cover on rear ramp
- rubber safety mat on rear ramp with integrated treads+ side stops
Attachments
Floor
- alu floor instead of screen printed floor

Chassis

Chassis
- wheel shock absorbers (4 pcs)
Jockey wheel
- cover for autom. jockey wheel
Coupling
- adapter 7 pin to 13 pin
