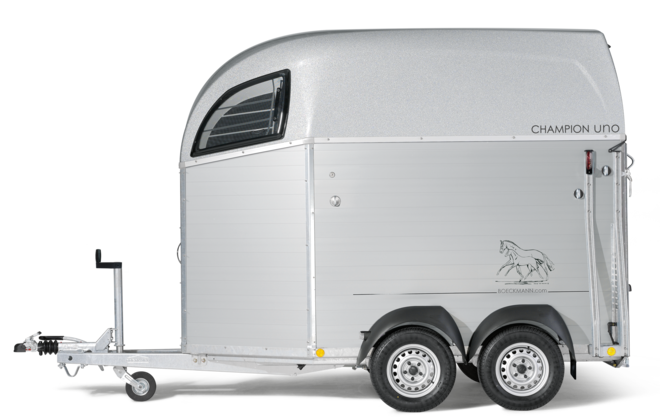

Champion Uno C

Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!

Home
Trailers
Horse trailers
Uno
Champion Uno C

Champion Uno C

Price on request

Overview

Technical data

Configure Compare

Characteristics

Number of animals

1 Horse

Discipline

English

Material of body

Alu

True to promise:?? The Champion Uno C for one horse - or for a mare with foal - is ideal for daily use thanks to their robust aluminium side walls (height 1500 mm), kick protection and premium full aluminium floor as standard equipment.

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

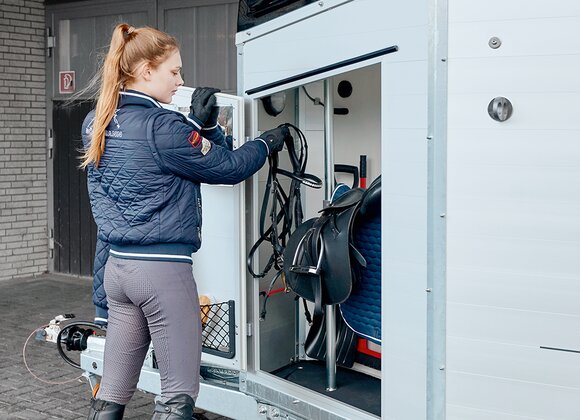

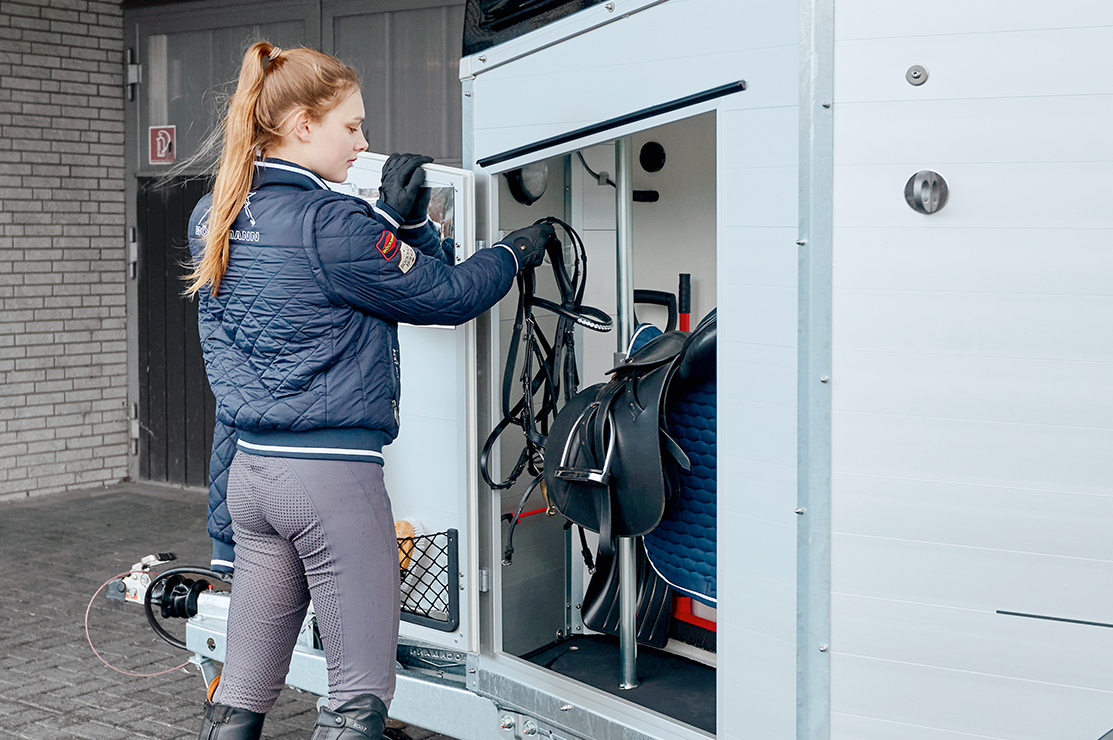

Tack locker (Accessories)

Tack locker

accessible from the outside with a pull-out, padded and height-adjustable saddle rack, optimally positioned bridle hooks, riding crop holder, a plastic shovel, a telescopic broom, a mirror and a door net on the inside of the door, as well as a folding stool with safety catch and LED lighting.

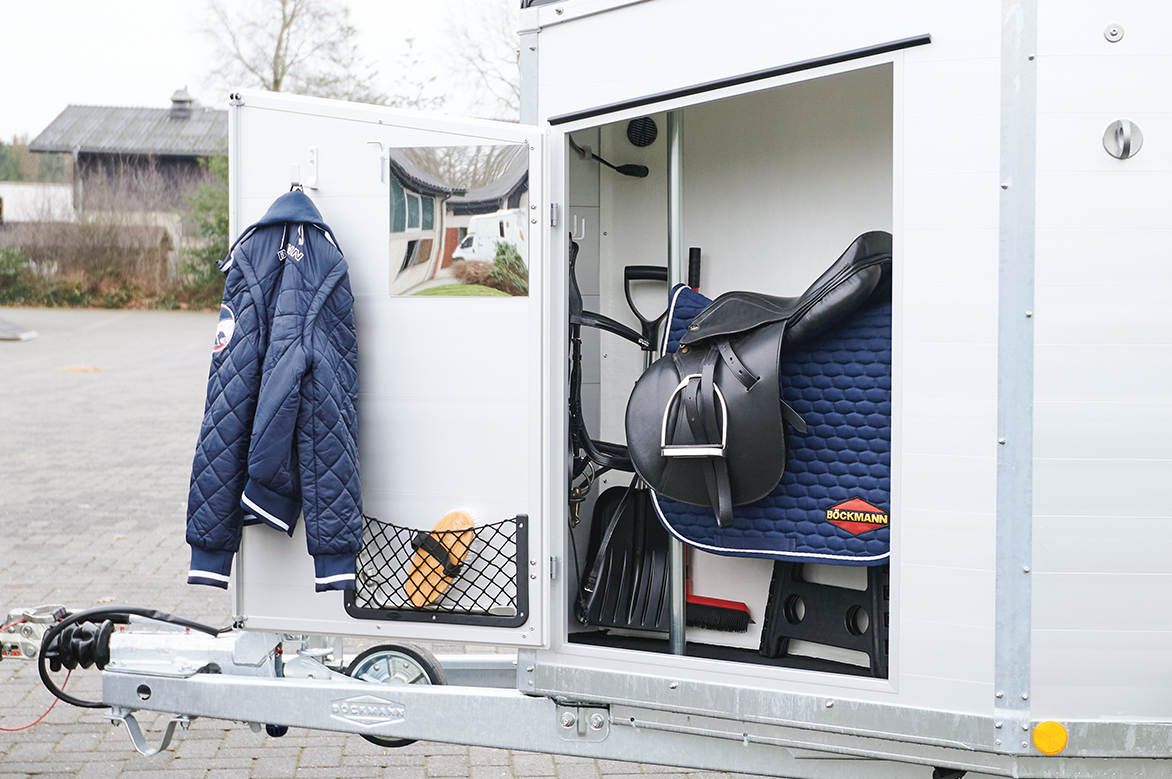

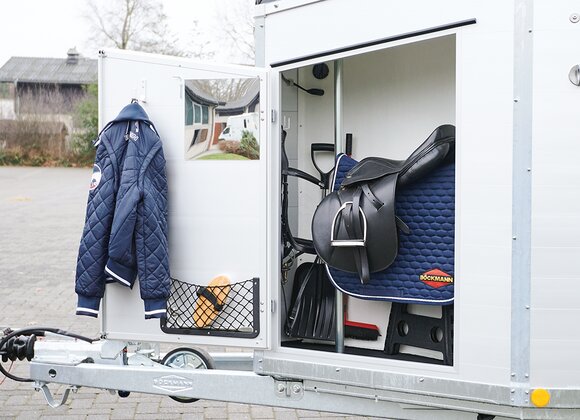

Everything is conveniently accessible from the outside

through the large tack locker door. Perfect closure with the 3-point door lock and rubber seal.

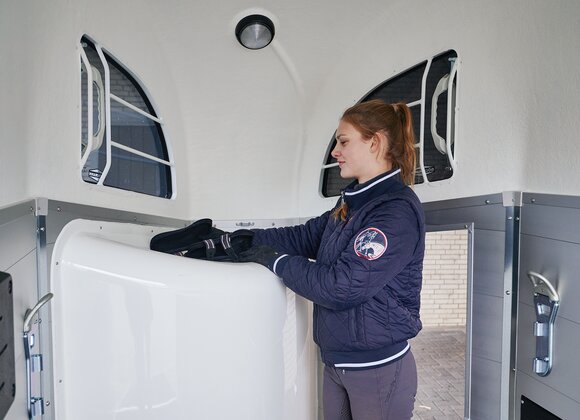

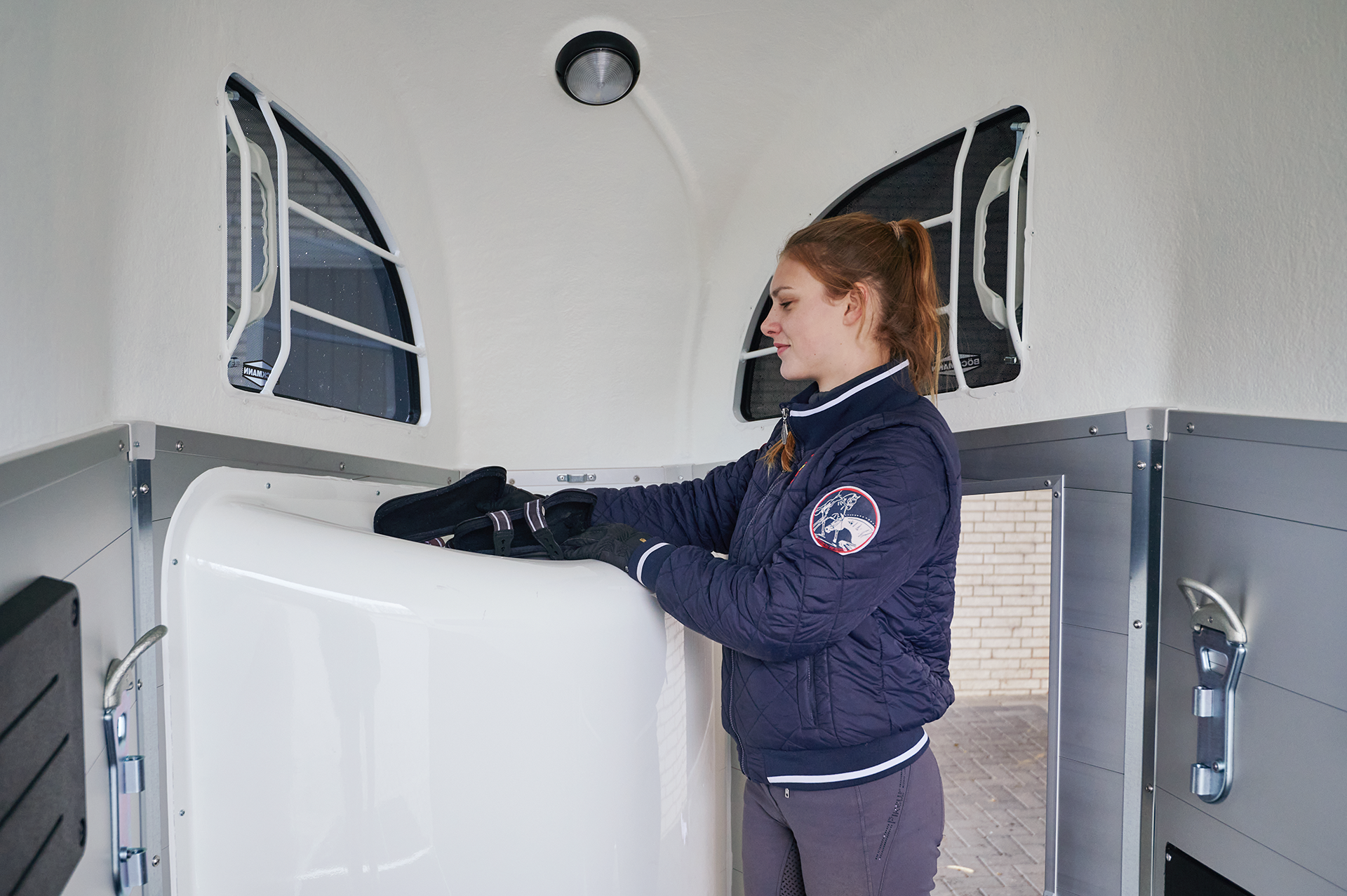

Practical storage

with optimised cleaning and defined water drainage. The special shape with large radii does not have any edges for the horse to bite.

Good for your horseLoading and unloading - The Böckmann added values

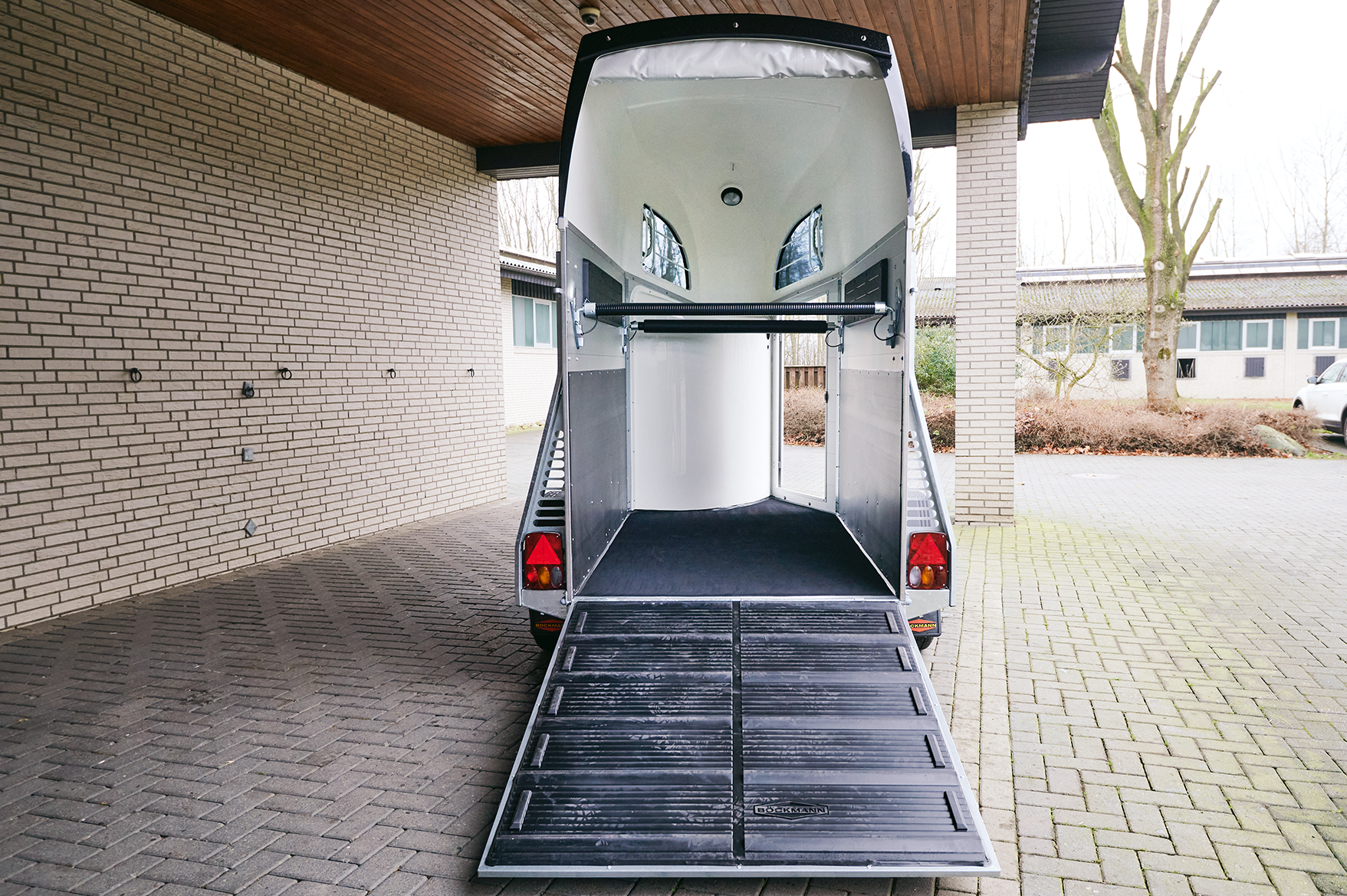

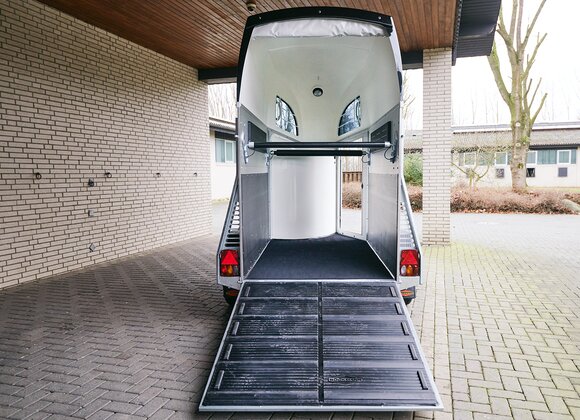

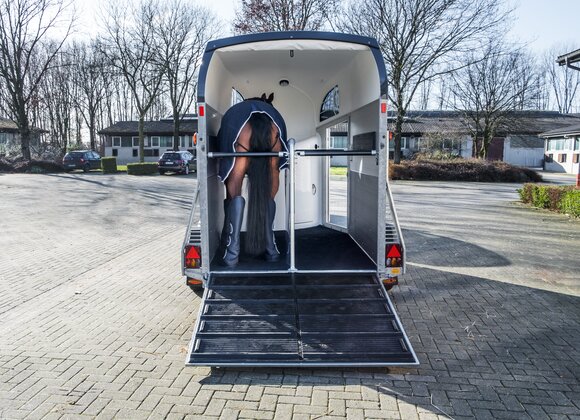

Large and inviting entrance

due to the narrow roof edges, interior canvas lift and the bright, white interior walls. At night the interior lighting provides sufficient light in the interior.

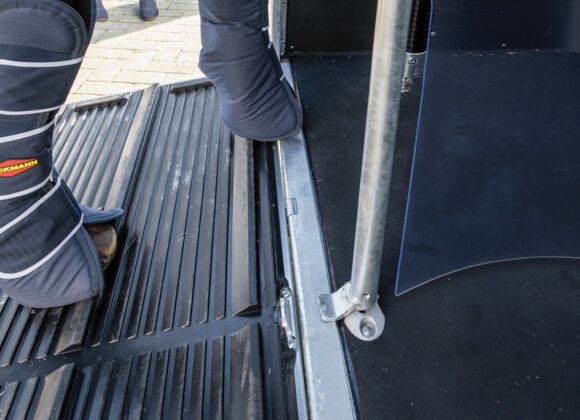

Optimum foothold and minimised risk of slipping

due to safety treads, side stops on the rear ramp covering and the narrow rear ramp hinge.

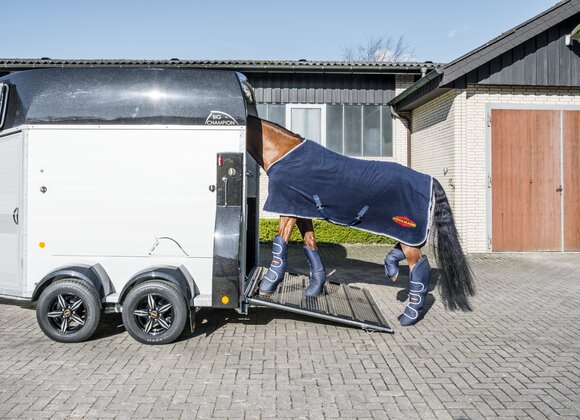

Low loading height

due to the lowered Comfort suspension chassis with wheel shock absorbers and soft suspension.

Good for your horseThe safety concept - The Böckmann added values

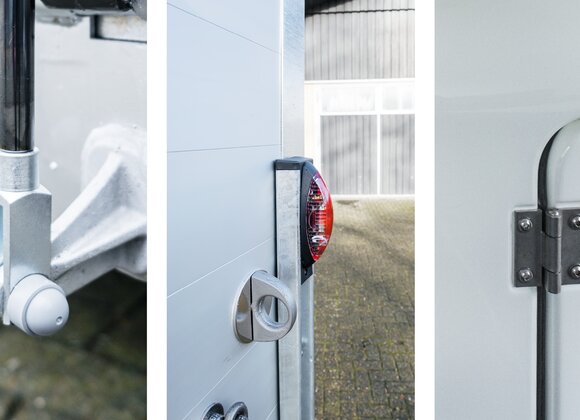

No sharp edges and corners

ensured by rounded hinges and plastic covers on the steel profile struts and at the ends of the rear struts.

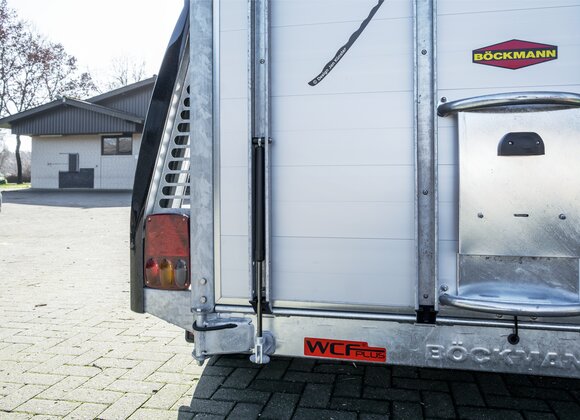

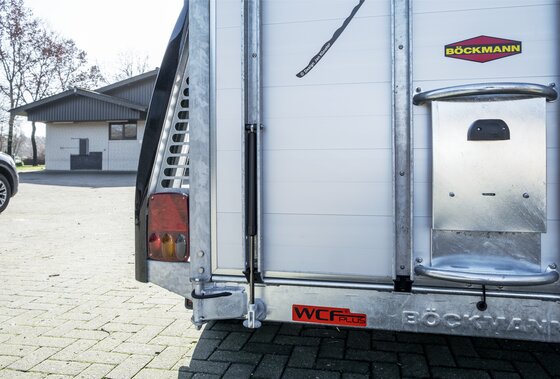

No slipping of the horse’s hooves and good visibility from the car

due to closed, perforated rear struts.

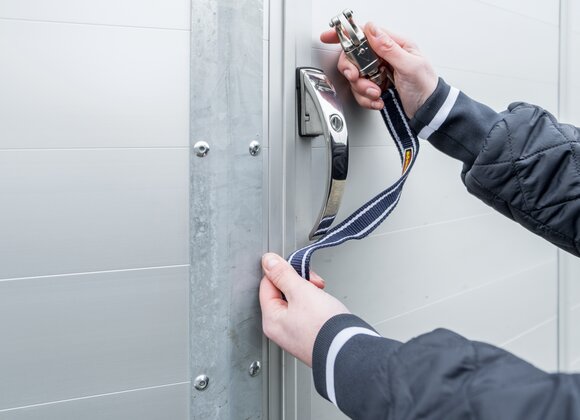

No catching the rope

due to flat door handles.

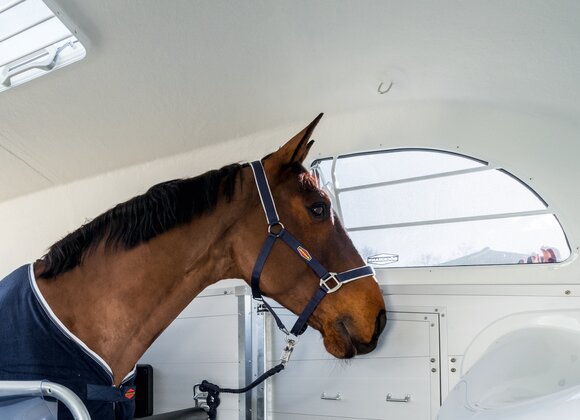

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

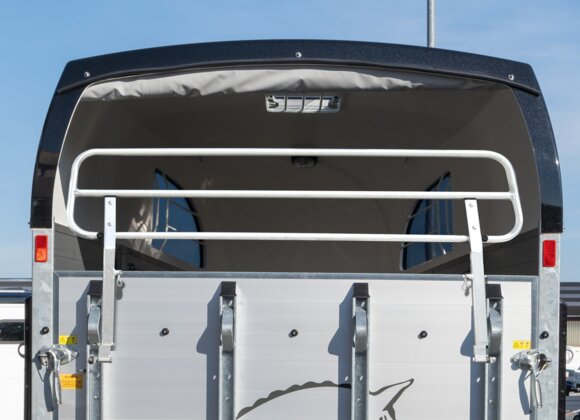

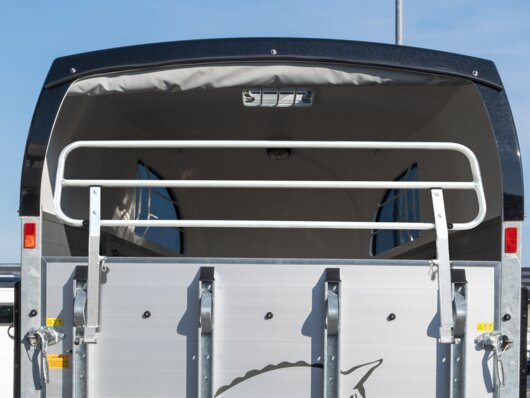

Safe on the move

Foldable foal grille (accessory).

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

Safe on the move
Foldable foal grille (accessory).

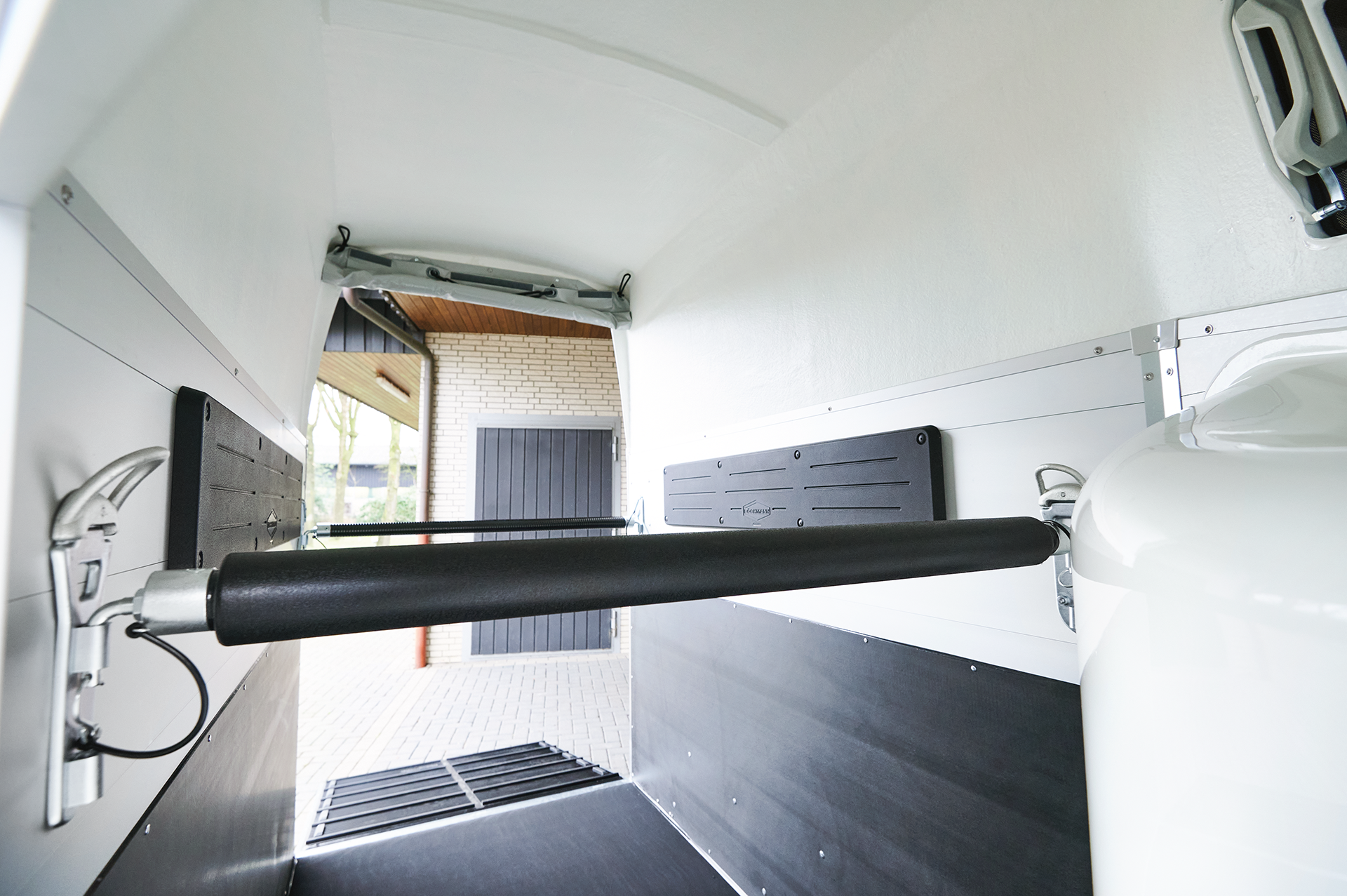

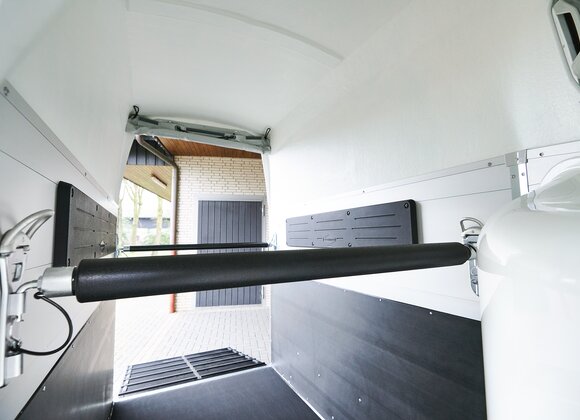

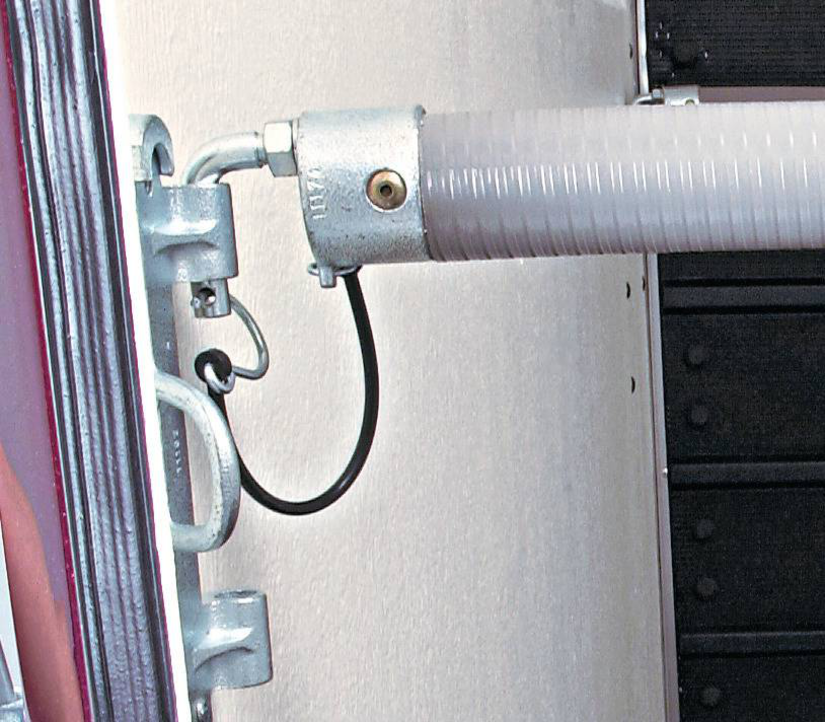

Safe transport

ensured by the track-proven Böckmann partition wall system. Further protection is provided by the additional stall bar padding as well as the padding and kick protection on the side walls.

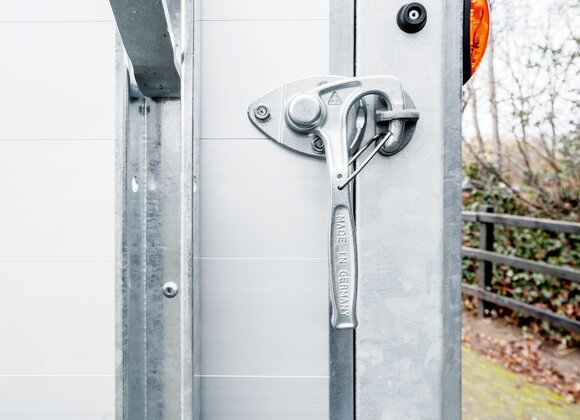

Security

with the robust, angle lever locks with 180° rotation that minimise the risk of injury to your horse.

Good for your horseThe Böckmann added values

Interior
Driving Comfort

Easily accessible hay

with optimally positioned hooks and counterholder for a hay net. The specially shaped tack locker with its large radii does not have any biting edges for the horse.

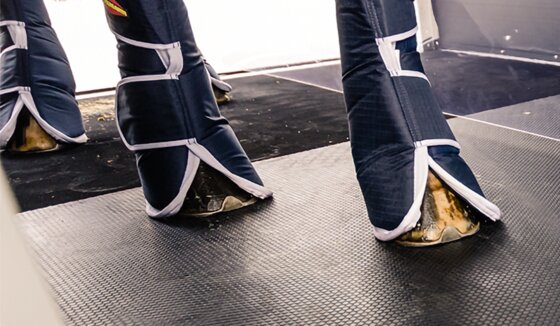

Safe to stand on

due to the rubber floor with non-slip textile structure (wear mat available as an option).

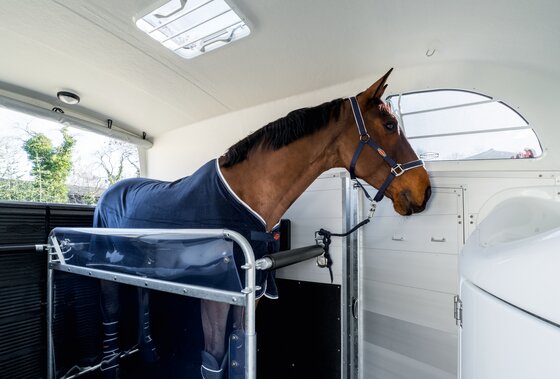

Plenty of headroom, space and light interior

ensured by the generous space concepts of the Champion family. The tinted pop-up windows with integrated grille, large radii without corners and edges and flat hinges provide additional protection.

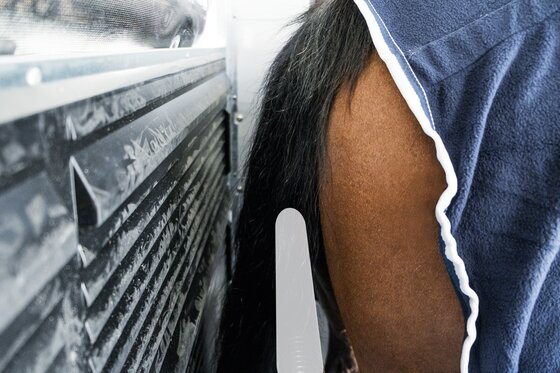

Plenty of room for the tail

due to the generous clearance between the stall bar and the rear ramp.

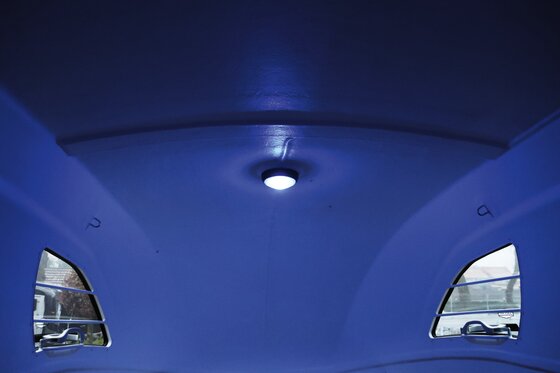

Calming atmosphere

provided by the blue LED transport light – can be conveniently switched from blue to white.

Good visibility while driving

Excellent view on the road with special perforated rear struts; the large lighting unit is also visible when the tail gate is open.

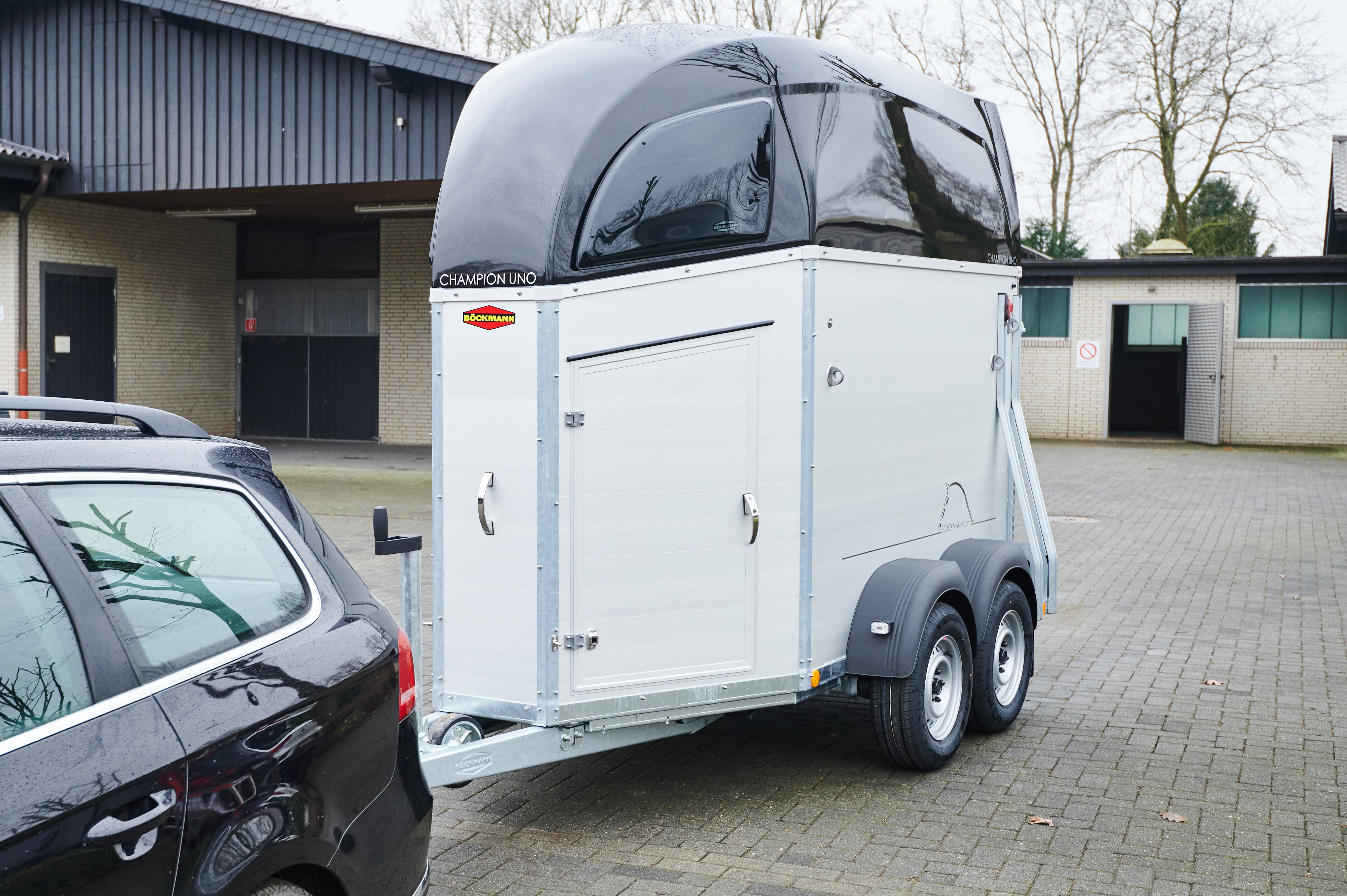

Easy to tow

due to the aerodynamic body and low centre of gravity – also saves fuel.

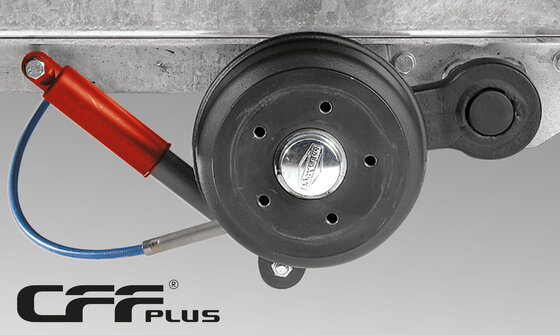

Optimal road holding

Even more comfort on the road with the world-class chassis with galvanised independent wheel suspension, coil spring suspension and wheel shock absorbers.

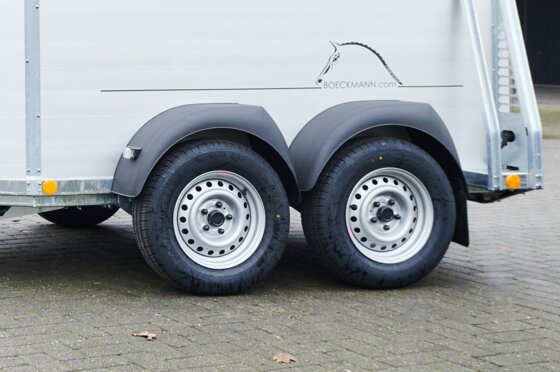

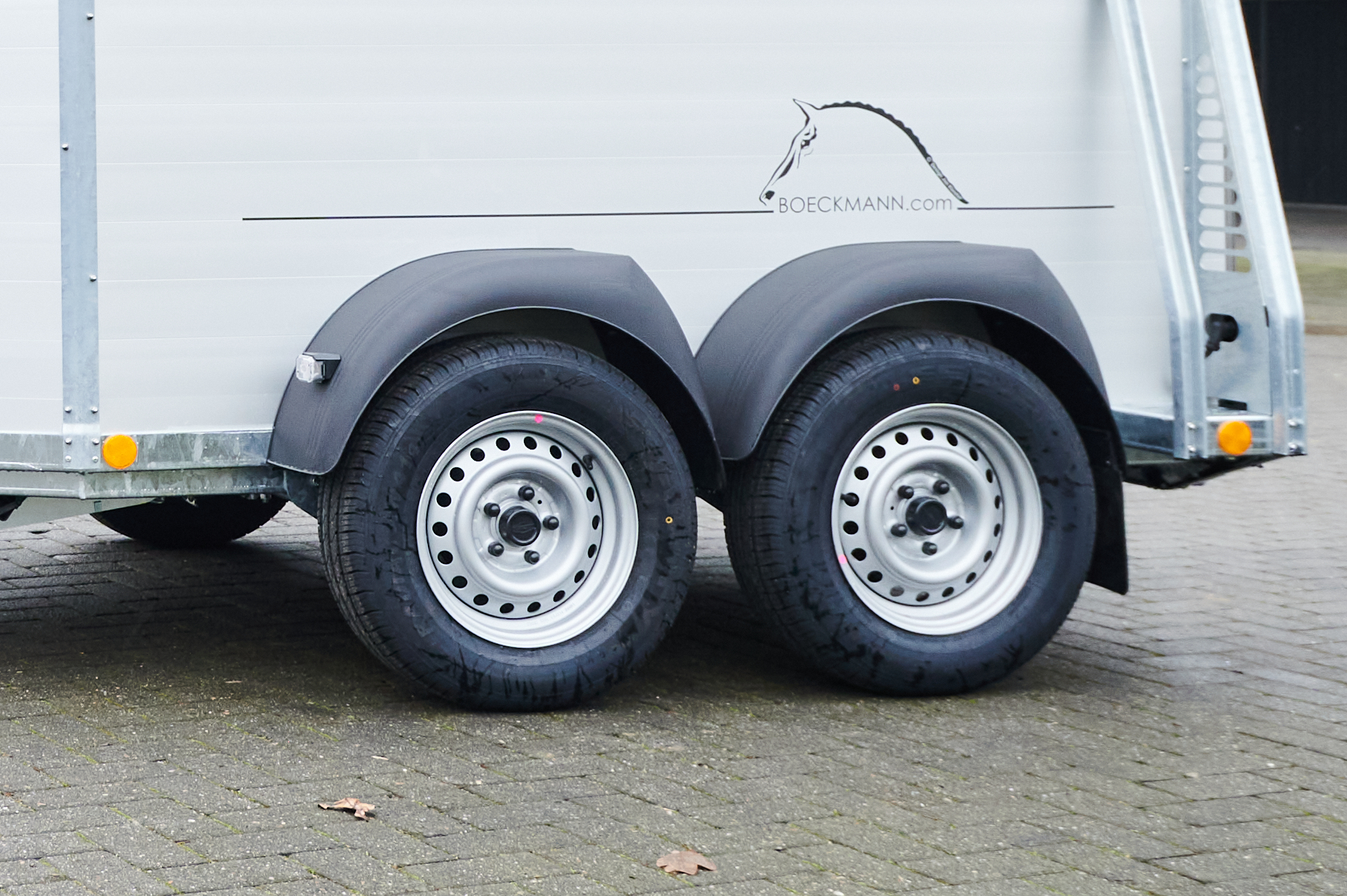

More travelling safety

due to the large-dimensioned quality tires. Alu rims available as accessory.

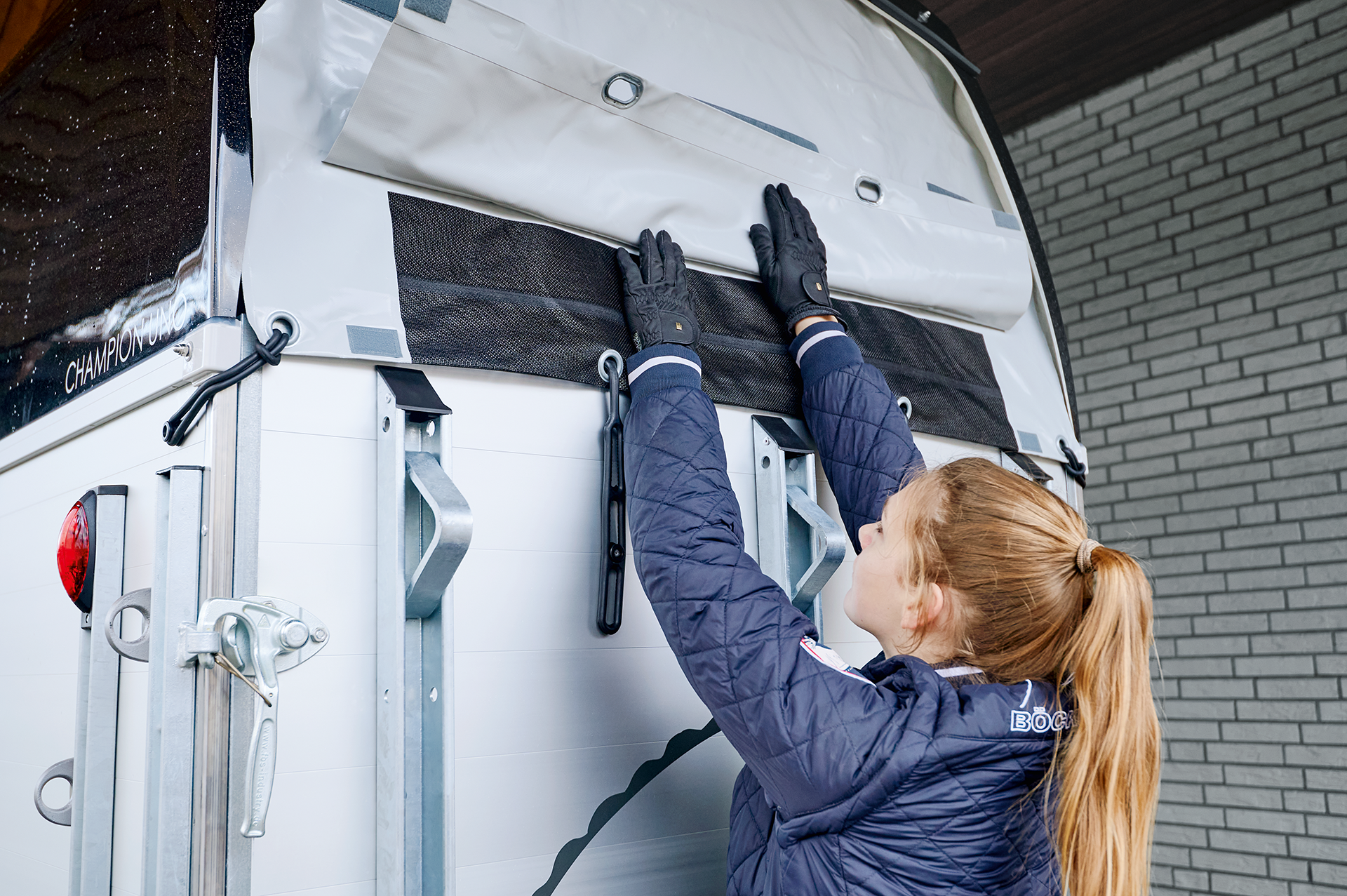

Optimal indoor climate

Optimum interior atmosphere thanks to tarpaulin lift with integrated net and roll-up function.

Good for you Handling & tying up options - The Böckmann added values

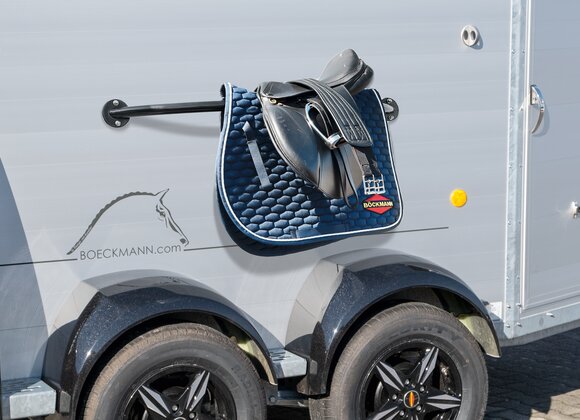

Practical storage option

by a storage bracket (accessory) for saddle and saddle pad (on the side of the trailer).

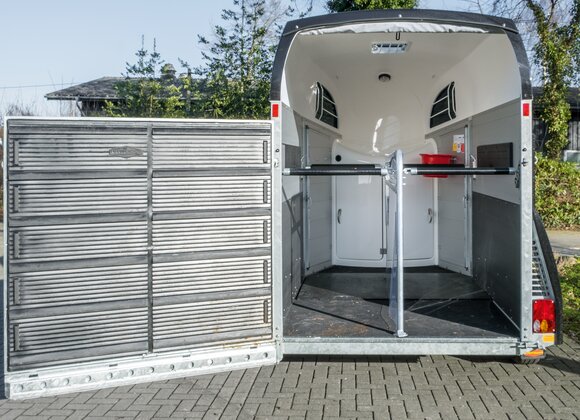

Many possible applications

with the rear ramp/door combination (accessory).

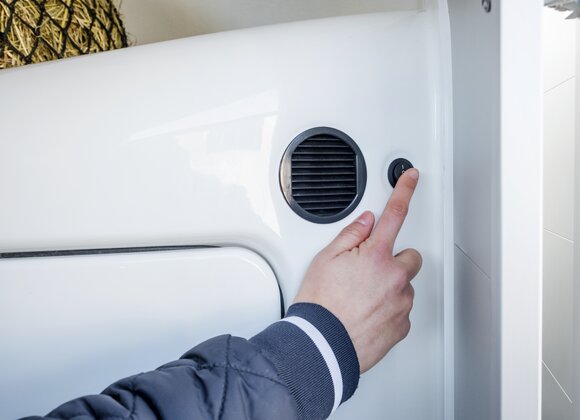

Convenient operation

due to the easily accessible and separate light switch for the interior lighting on the right-hand entrance door.

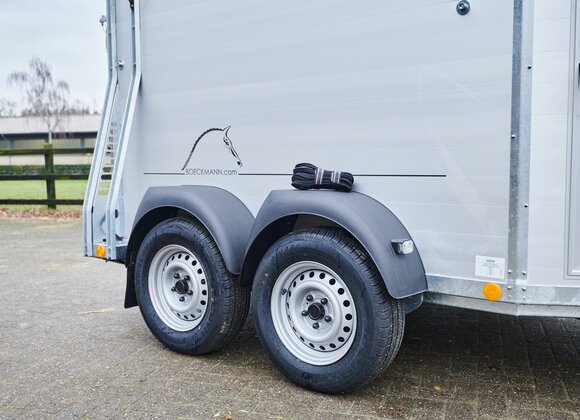

Mudguards as shelf

with the wide and open, straight form of the impact-resistant plastic or polyester mudguards (accessory).

Quick access to the horse compartment

through a man-high entrance door and plenty of space once inside.

Plenty of space for loading and unloading

due to the large clearance between the stall bar and tack locker in the front area of the trailer.

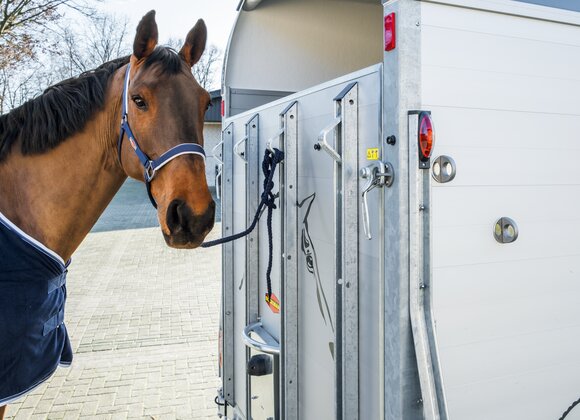

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.

Tying up option on the side wall

on the side wall by means of 4 Multi Safe System (MSS) fittings.

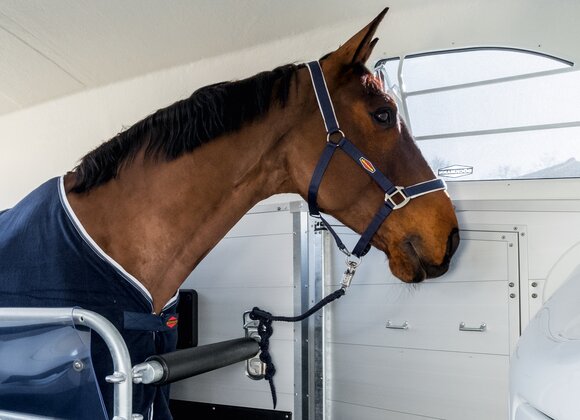

Tying up option in the interior

More driving safety thanks to generously-dimensioned quality tyres.

Good for you Hitching and unhitching - The Böckmann added values

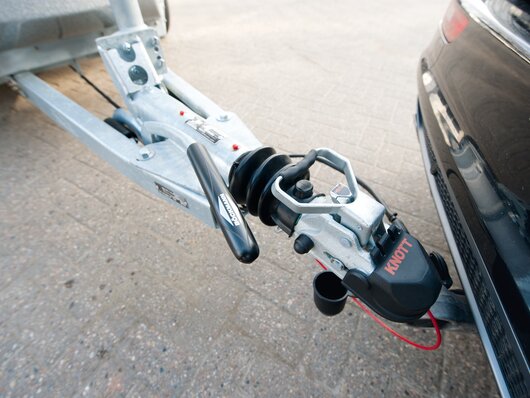

Crash and theft protection

provided by the lockable cast-iron coupling with soft-top crash protection and rubberised, convenient heart-shaped handle.

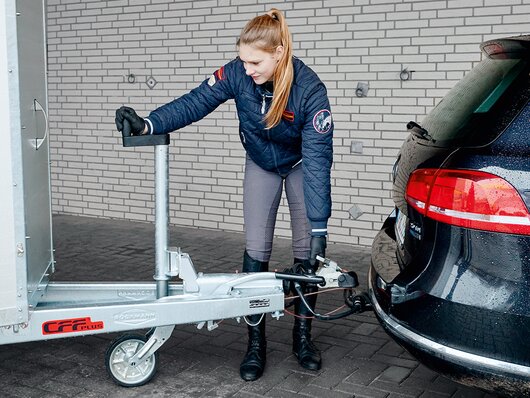

Easy manoeuvring

due to the automatic jockey wheel – extra-long with an easy-to-handle crank and optimally positioned manoeuvring handle, perfect to use, even in cold weather.

Simple operation of the support wheel

via an easy to use winch.

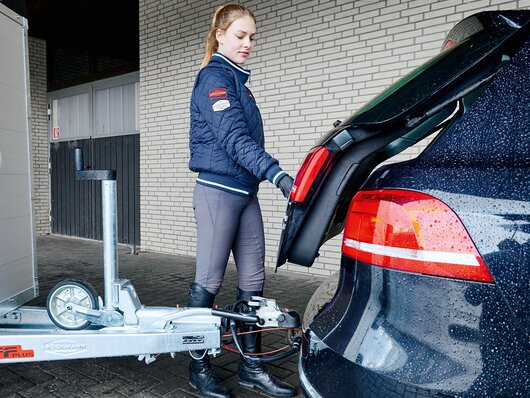

Unimpeded access to the car boot

due to the rubberised, convenient heart-shaped coupling handle and the flat brake lever – also when attached.

Good for you Locking systems - The Böckmann added values

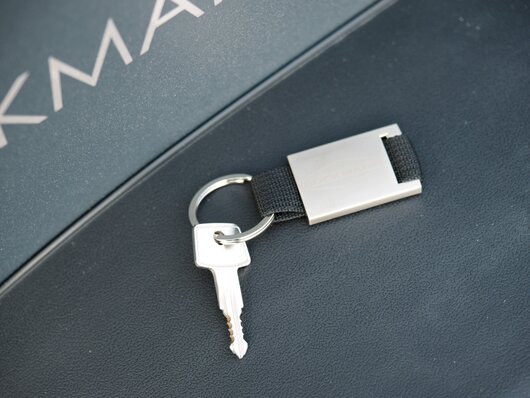

One key for all locks

with a master key in triplicate for the tack locker door, access door and cast coupling.

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

One key for all locks
with a master key in triplicate for the tack locker door, access door and cast coupling.

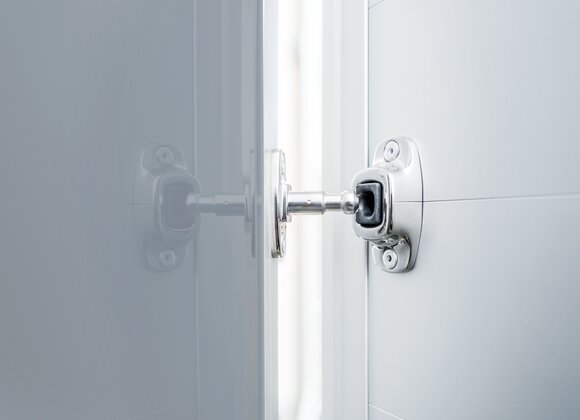

Protection against damage

Protection against damage by locking the entrance door.

Lockable cast coupling

Operated with the door key.

Maintains its valueThe Böckmann added values

Chassis
Structure
Interior

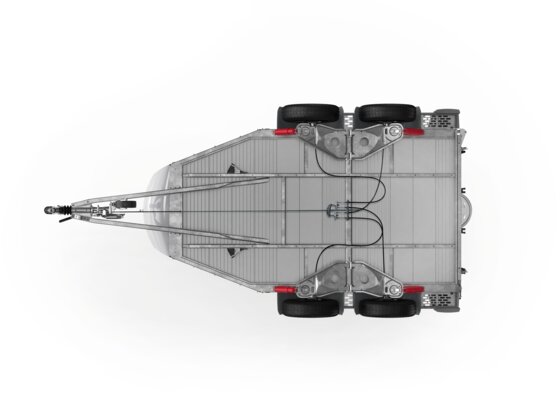

Made for high loads

Designed for heavy loads thanks to axles with bolt connection to the longitudinal beam construction and galvanised steel frame.

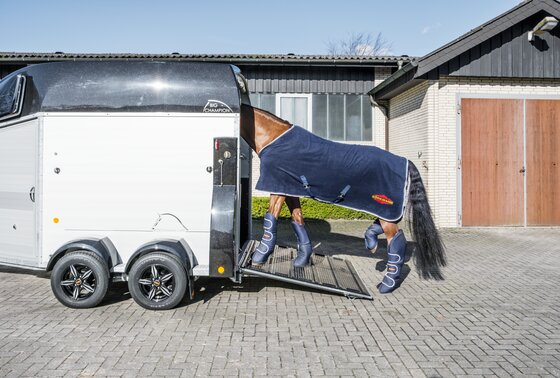

Higher payload

due to the 2000 kg total weight as a standard feature.

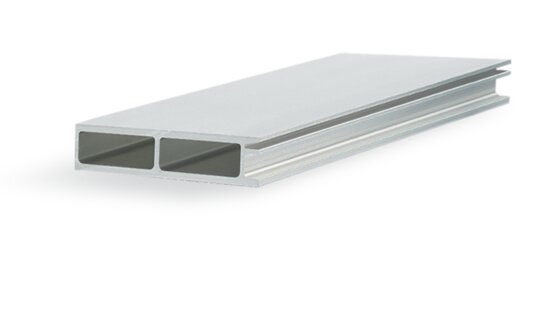

Robust and rot-proof

due to the solid quality full aluminium floor with closed profile for reinforcement in the horse compartment.

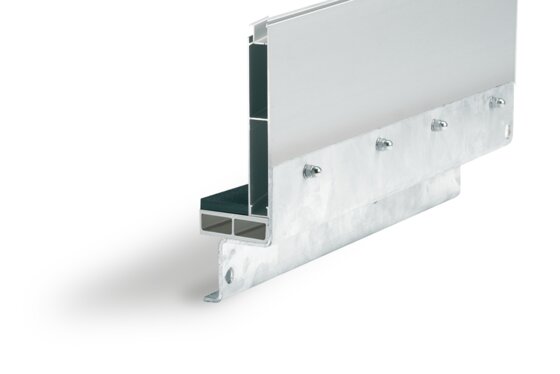

Stable frame

due to a full-length Z-profile frame of galvanised special steel – firmly bolted to the body.

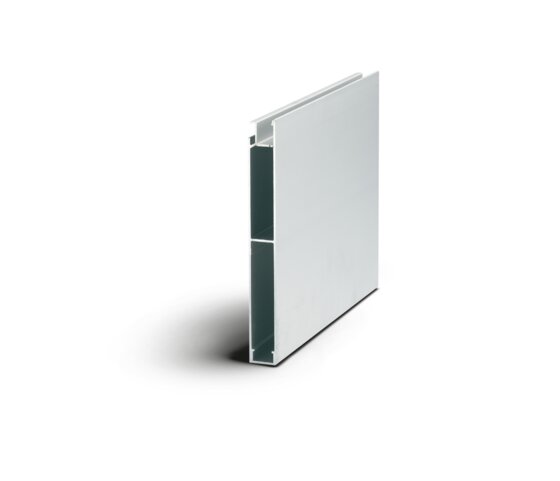

Anodised aluminium double web profile

for outstanding durability.

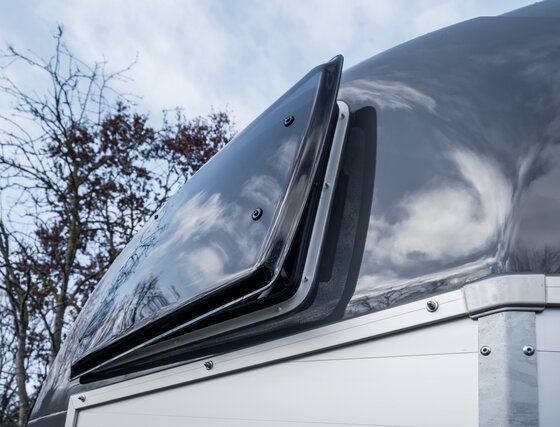

Good ventilation

due to the pop-up side windows. Dazzle-free, with sunshade and safety grille.

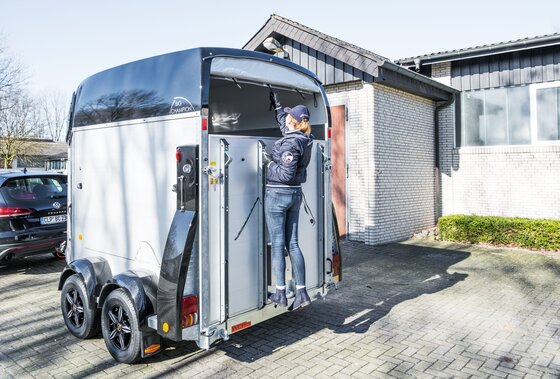

Robust rear ramp

with four galvanised steel profile struts with integrated lifting device; additionally with new, robust double step.

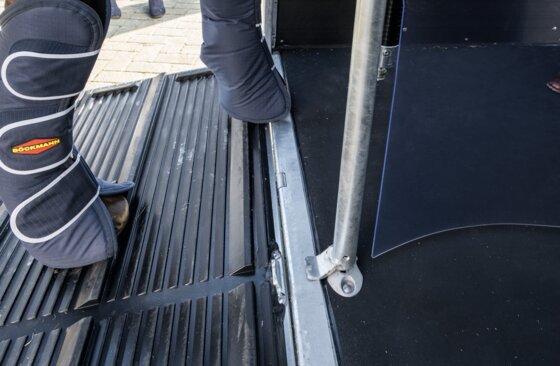

No vulnerable rubber overlaps necessary

No vulnerable rubber overlaps necessary due to closed, narrow tailgate hinge.

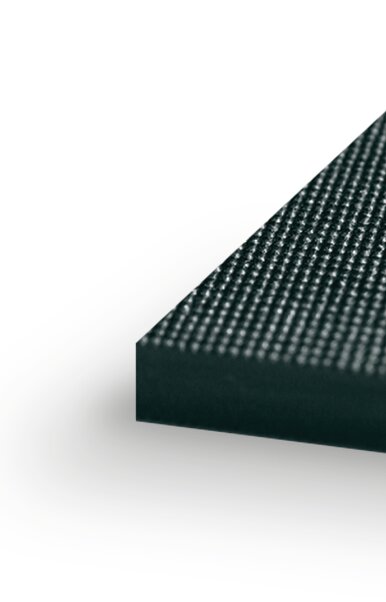

Resilient

due to the fully bonded and sealed rubber floor (8 mm) throughout.

Kick protection

with a particularly impact-resistant plastic on the side walls.

Technical data

Base

Number of animals

1 Horse

Material of body

Alu

Weight

Total weight

1600 kg

Payload

840 kg

External dimensions

Gesamtlänge

4490 mm

Gesamtbreite

1830 mm

Gesamthöhe

2730 mm

Internal dimensions

Interior length

3100 mm

Interior width

1300 mm

Interior height

2300 mm

Standard features

Body

Color of polyester roof
- colour of polyester roof: silver-metallic
Mudguards colour
- single black mudguard, plastic
Canvas Lift / polyester flap
- canvas lift with integrated net
Decors
- decoration stripes "Künster"
Side walls
Attachments
Floor
- alu floor instead of screen printed floor
- rubber floor, glued and sealed
Ventilation
- polyester roof with 2 pop-out windows

Chassis

Chassis
Tires and wheels
- Tires 14", steel rim
Jockey wheel
- automatic jockey wheel
Brake
- Mechanical brake
Coupling
- trailer hitch lockable

Internal Space

Comfort and safety
Lighting
- interior lighting

Accessories

Body

Color of polyester roof
Mudguards colour
Color of polyester cover
Decors
Side walls
- rear ramp / door combination
Attachments
- 3. brake light on rear ramp
- tie bar on outside of trailer (cathodic dip-coated)
- approach mirror for hitching up process, unmounted
- climbing aid
- spare wheel 14"
- spare wheel holder (mounted)
- spare wheel cover
- periphery lighting for reversing
Lashings
- additional angle lever lock at door
Ventilation
- sliding windows (700x300 mm), left/right in poly roof
- roof vent in polyester roof

Chassis

Tires and wheels
- Böckmann Premium aluminum rims 14"
- M+S tyres 15"
Jockey wheel
- cover for autom. jockey wheel
Coupling
- Selection coupling
- adapter 7 pin to 13 pin
- Selection ball coupling
- anti-skid coupling (up to 2,7 t total weight), not lockable

Internal Space

Partition wall systems
- foldable foal grill
Comfort and safety
- rubber wear mat
Lighting
- additional interior lighting at rear
Tack locker/ room
- Selection tack box
- tack locker with door outside, telescopic saddle holder/net/mirror
- additional entrance door
- Selection tack box / room
- broom with telescopic handle
- rubber kick protection on saddle box
- plastic shovel
further interior
- feeding trough with holder

Other

Multimedia
- video monitoring device
- cables and holder for video surveillance
