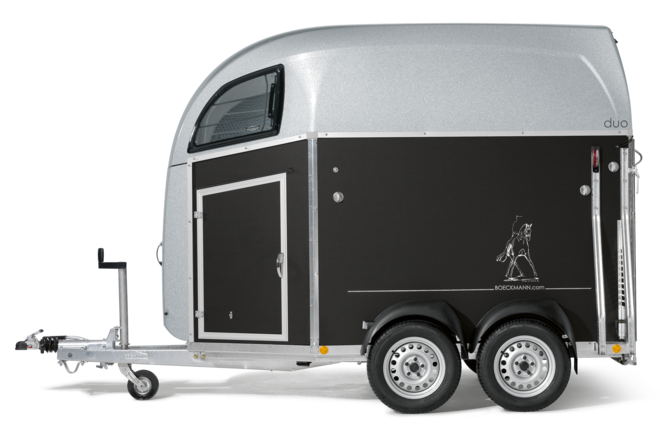

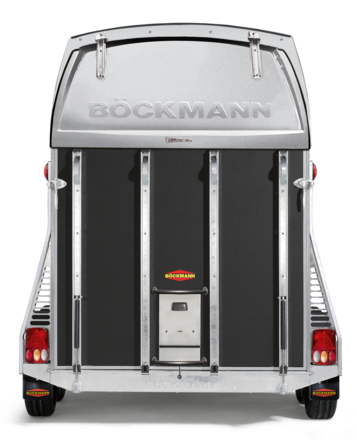

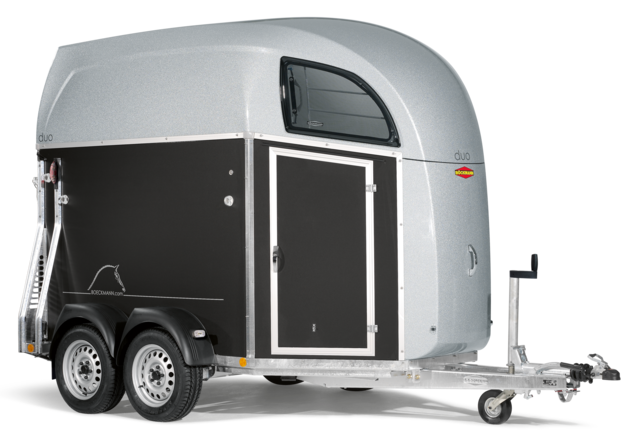

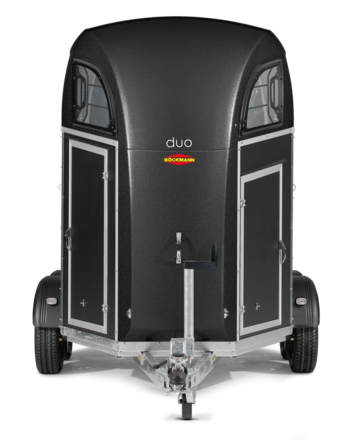

Duo R

Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!

Home
Trailers
Horse trailers
Duo
Duo R

Duo R

Price on request

Overview

Technical data

Configure Compare

Characteristics

Number of animals

2 Horses

Discipline

English

Material of body

Plywood

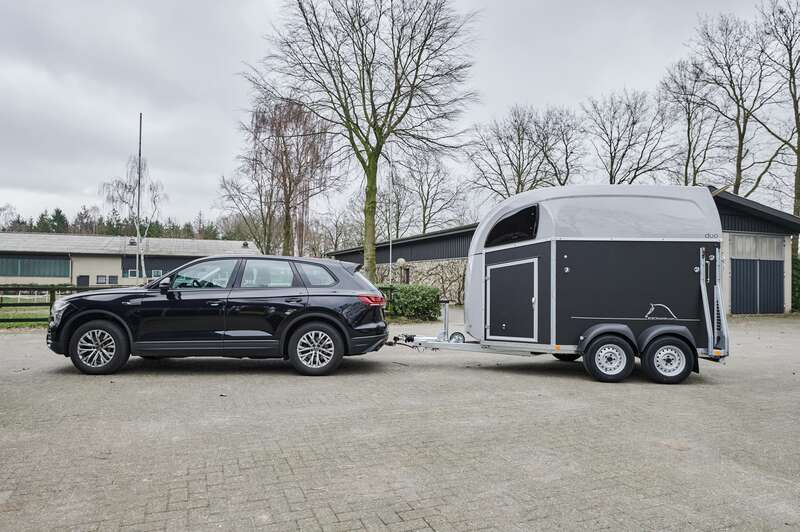

Flowing lines - optimum configuration: The aerodynamic Duo R provides plenty of headroom for your horse, and apart from its luxurious appearance thanks to the generously dimensioned Böckmann polyester bow, it gives you plenty of extra space in the standard tack room. Including pull-out, height-adjustable saddle racks. The perfect combination of design and space!

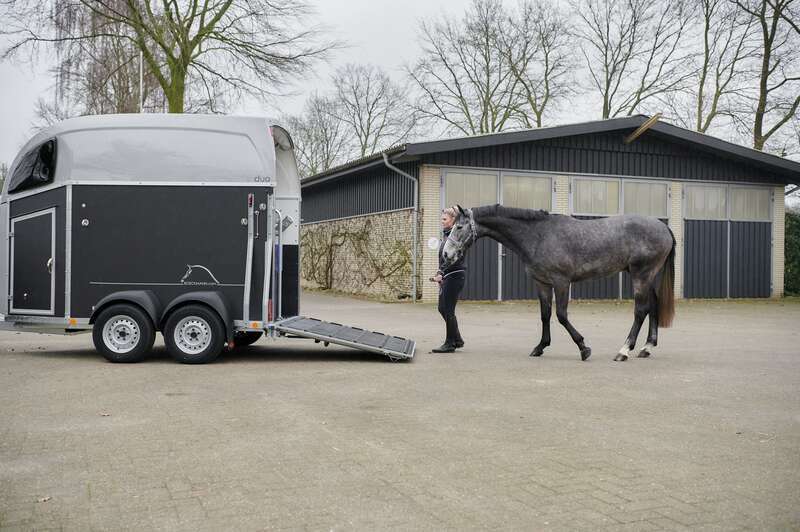

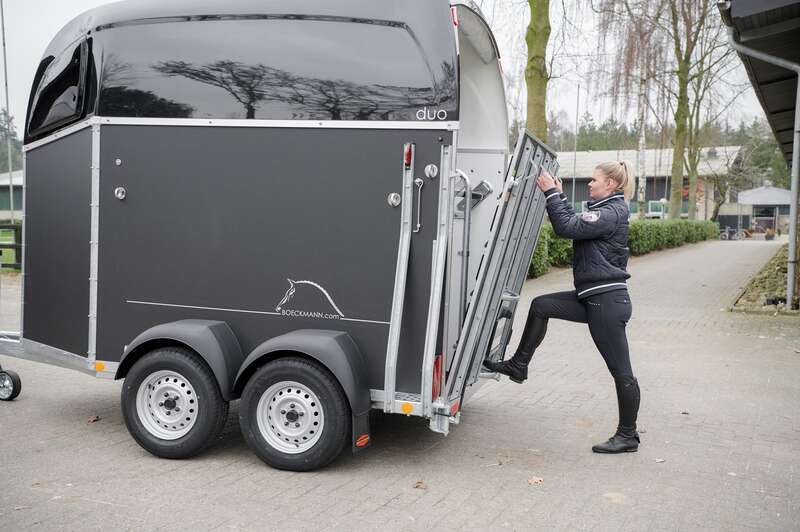

Good for your horseLoading and unloading - The Böckmann added values

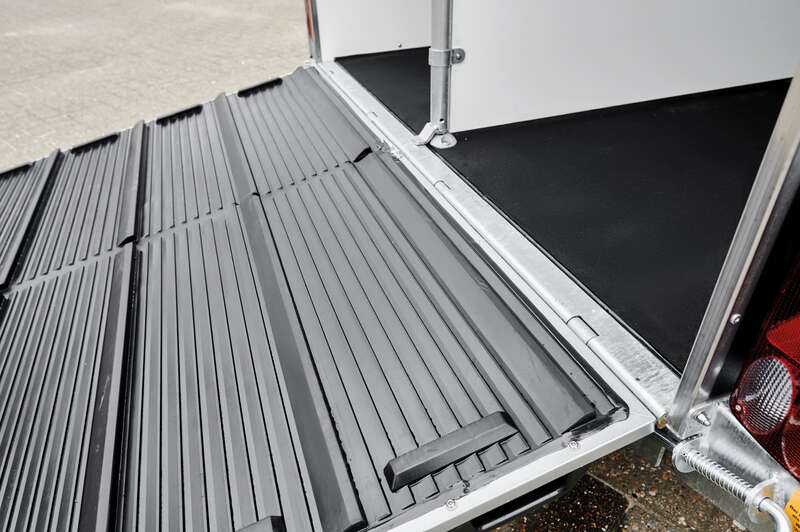

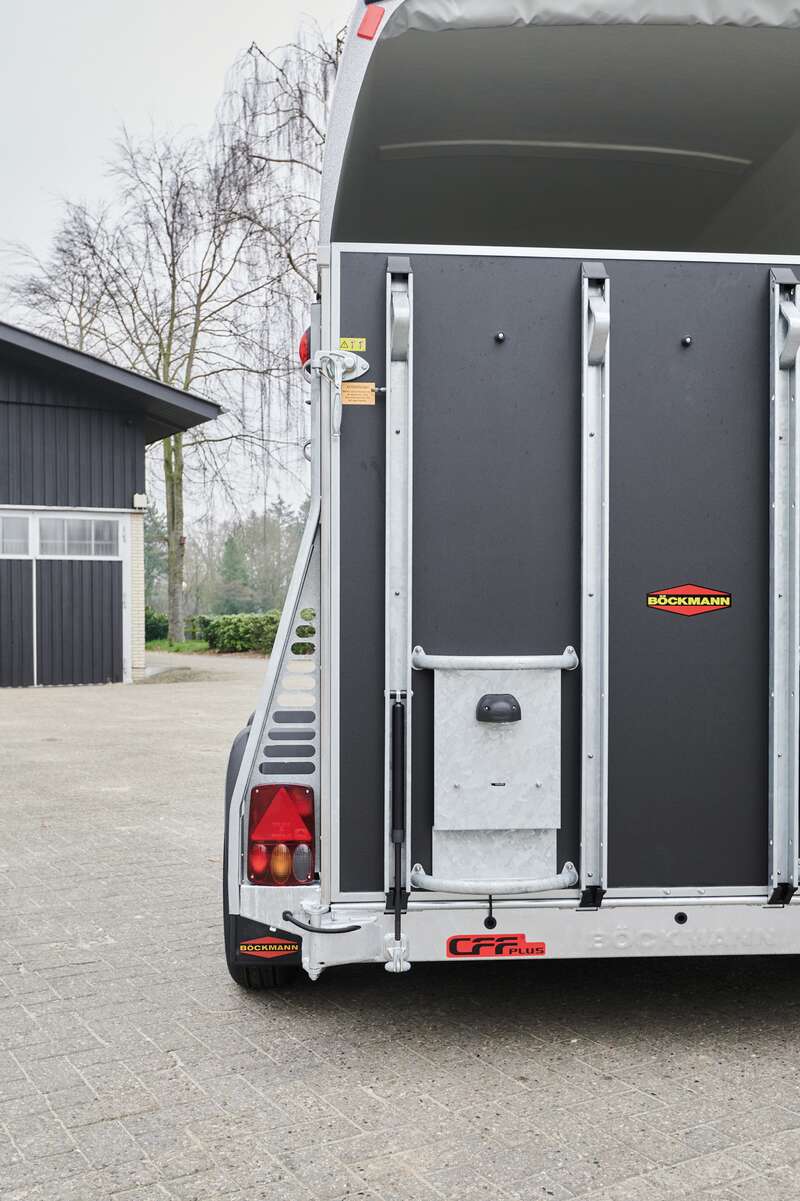

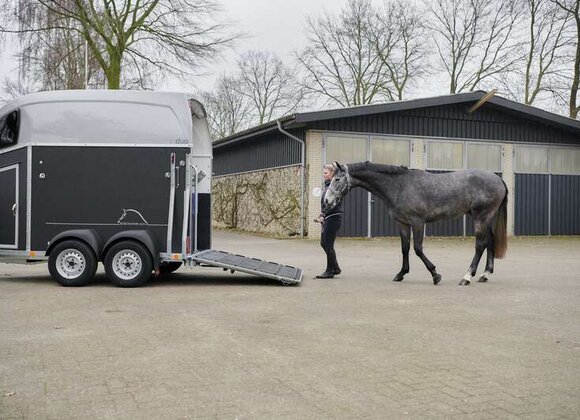

Low loading height

Easier access for the horse as a result of the lowered comfort suspension chassis “CFFplus”.

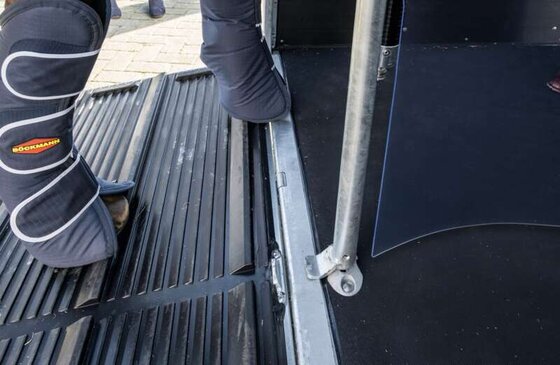

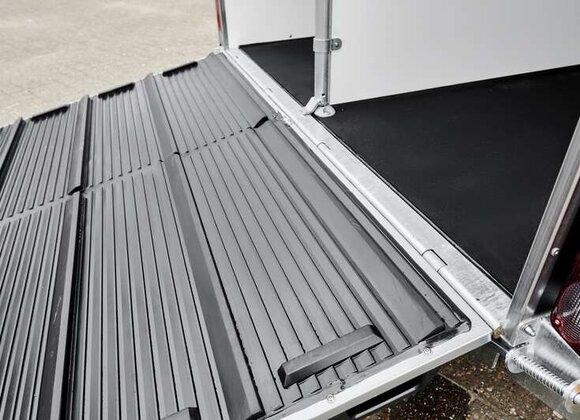

Optimal hold

No slipping because of the special cross step bars and side stops on the rear ramp covering.

Great passage

A maximum of space due to narrow cover edges and tarpaulin lift installed on the inside.

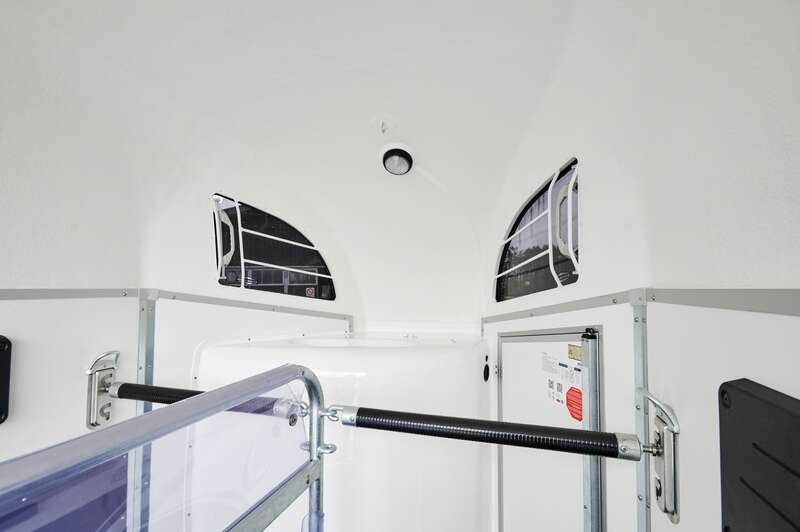

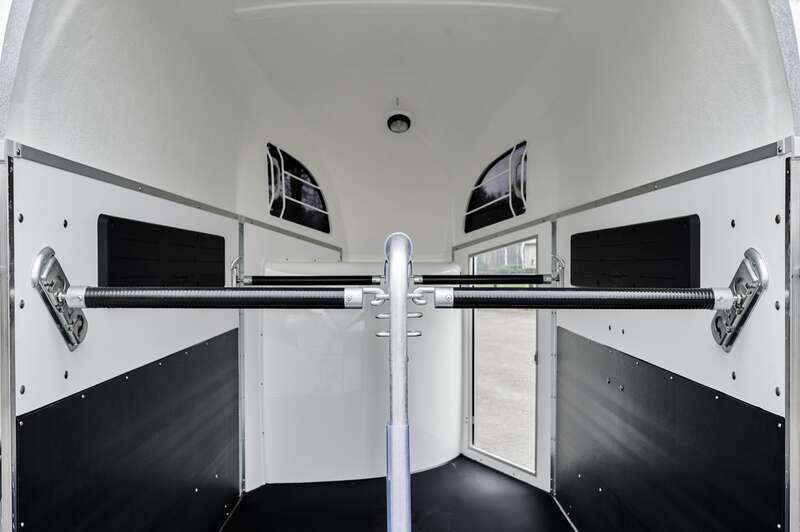

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Good for your horseMulti Safe System (MSS) - The Böckmann added values

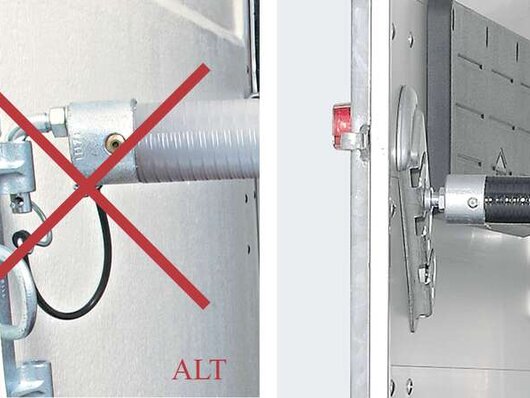

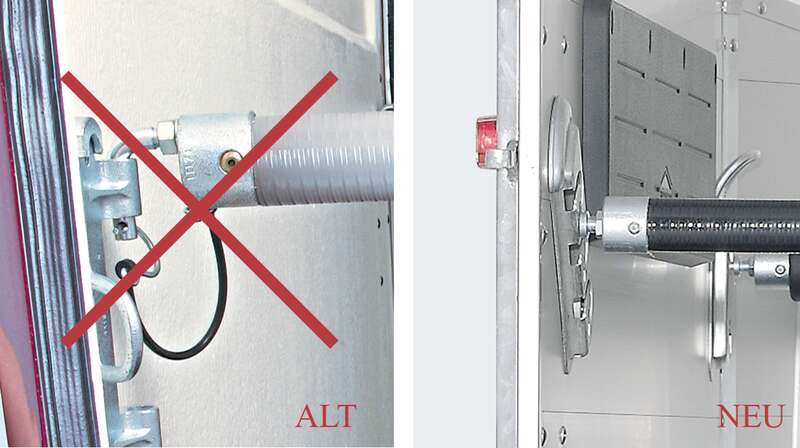

One step saved

One job saved by the functional solution without safety chain – the horse's tail cannot become entangled, for example.

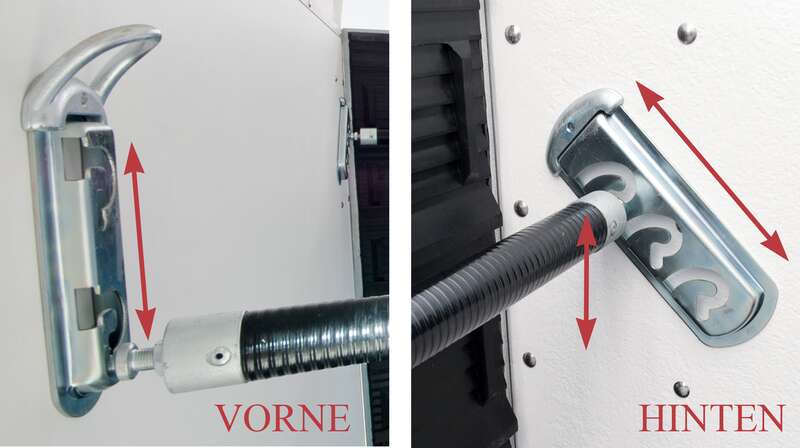

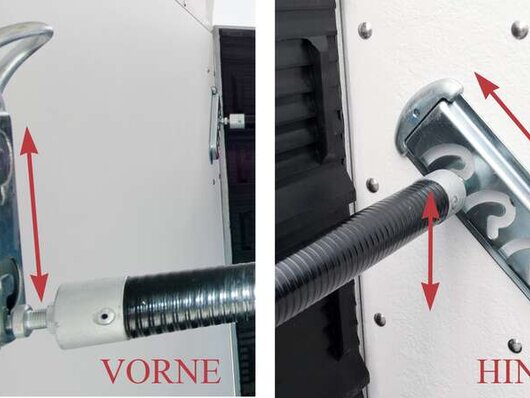

Individual adaptation

Space can be individually adjusted as the height of the front breast bars and height and length of the rear breast bars can be changed.

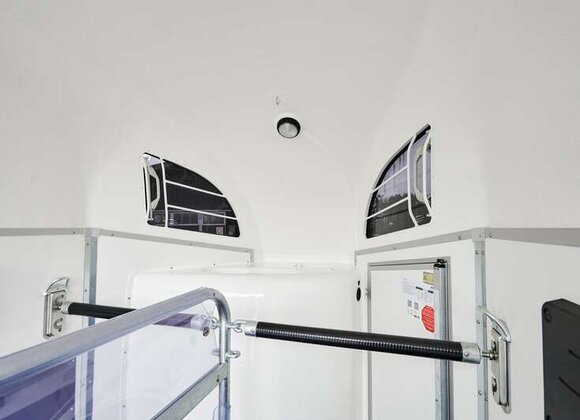

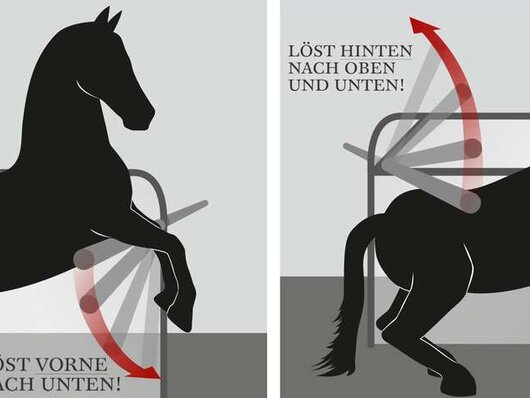

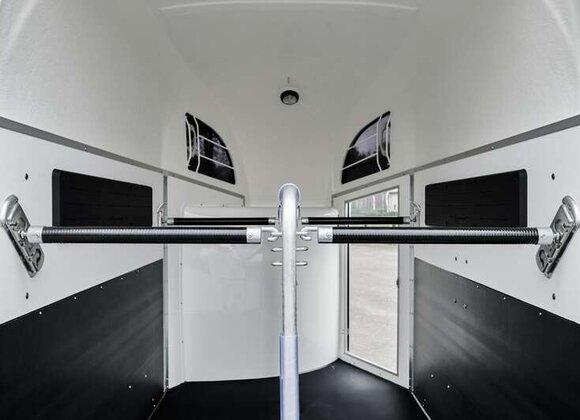

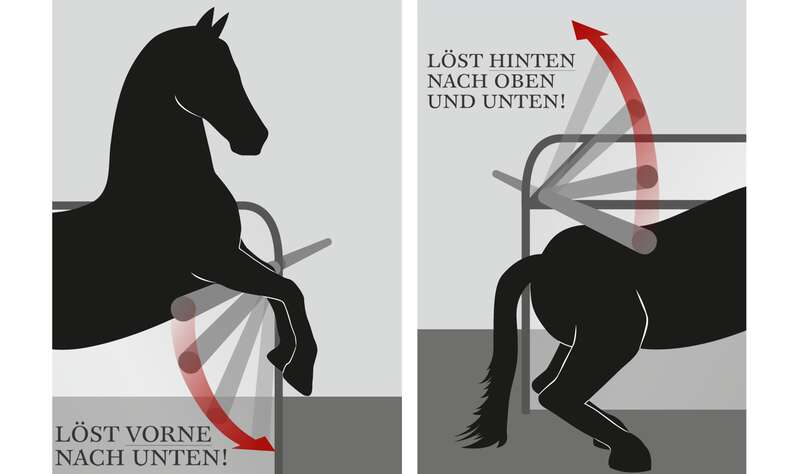

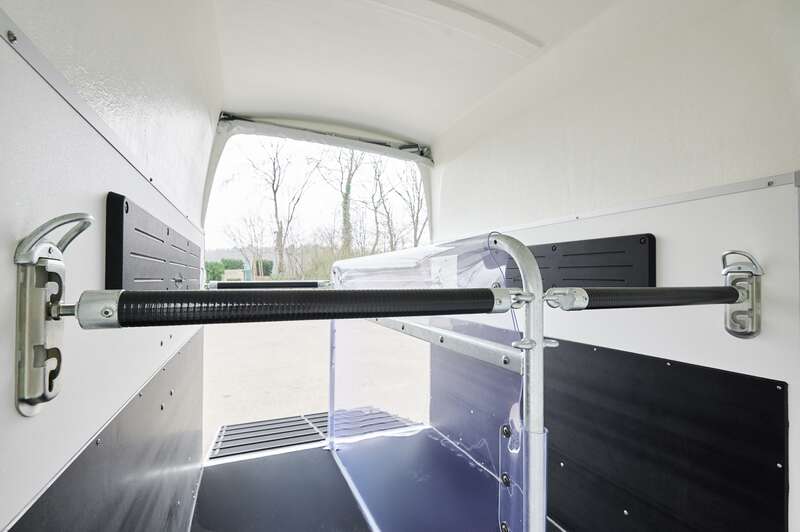

Multi Save System (MSS)

The safety revolution: The multi safe system (MSS), adjustable in height and length, for front and rear. The padded safety stall bar system can be triggered both downwards at the front, and at the rear upwards and downwards.

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

Multi Save System (MSS)
The safety revolution: The multi safe system (MSS), adjustable in height and length, for front and rear. The padded safety stall bar system can be triggered both downwards at the front, and at the rear upwards and downwards.

Quick release system

Quick release system as the front breast bars can be opened by lifting them, the rear bars both by lifting and dropping them.

Good for your horseThe safety concept - The Böckmann added values

Corner protection

Corner protection by plastic covers on the steel profile struts and at the ends of the rear strut.

No slip of the hoof

No danger of the horse’s hoofs slipping thanks to the closed rear struts with special perforation.

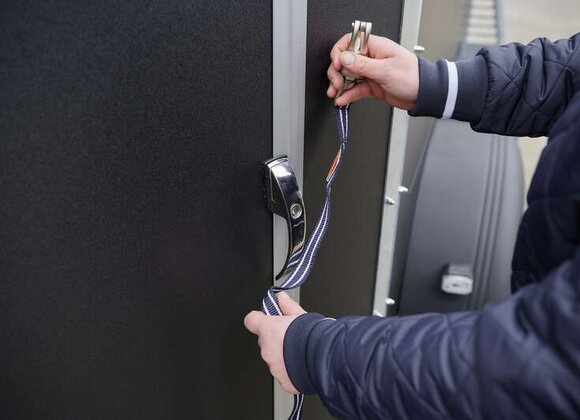

No catching the rope

No entangling of the rope due to flat door handles.

No sharp edges

No sharp edges – all hinges and bolt heads have been rounded off.

Comfort

More comfort and durability thanks to the additional padding on the stable bars and the side padding (option in some cases).

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

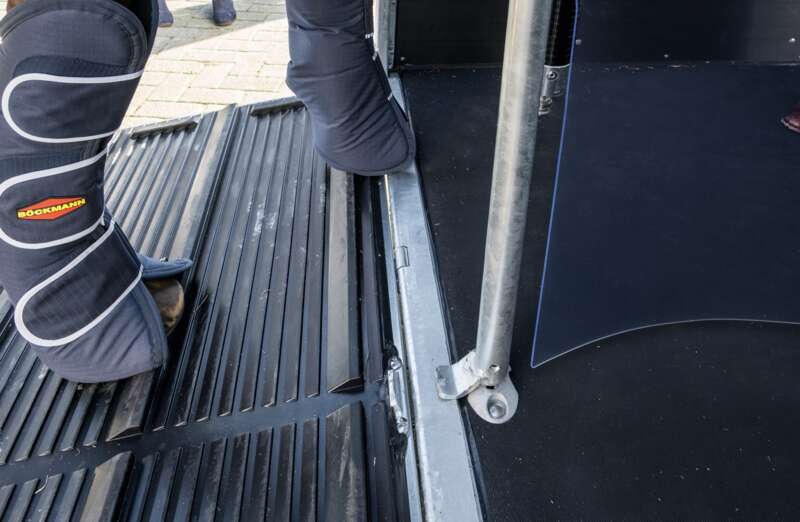

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Safe on the move

Foldable foal grille (accessory).

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

Safe on the move
Foldable foal grille (accessory).

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

Good for your horseThe Böckmann added values

Interior
Dividers
Driving Comfort

Easily accessible hay

Easily accessible hay from feed troughs in the tack room or optimally positioned hooks for a hay net.

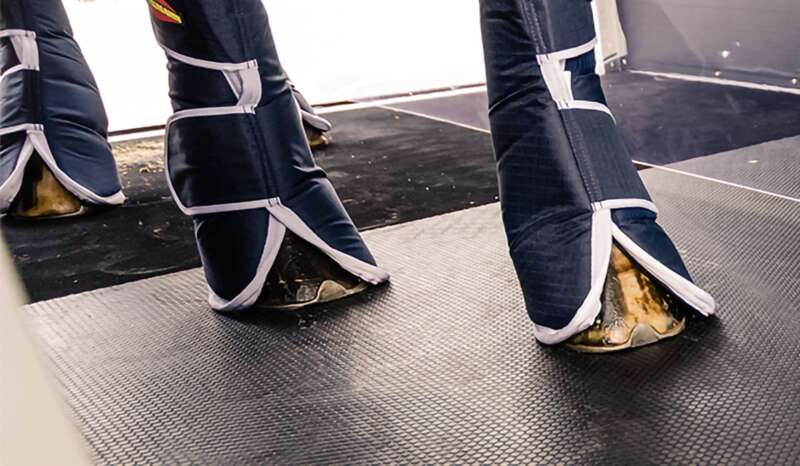

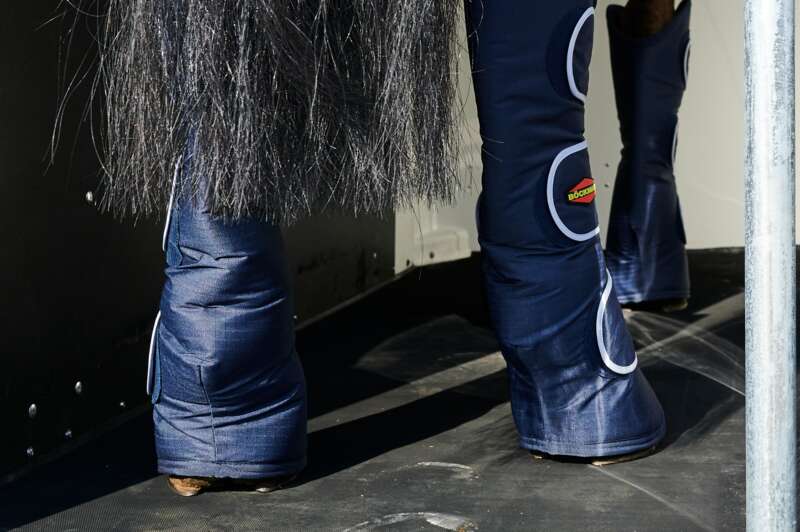

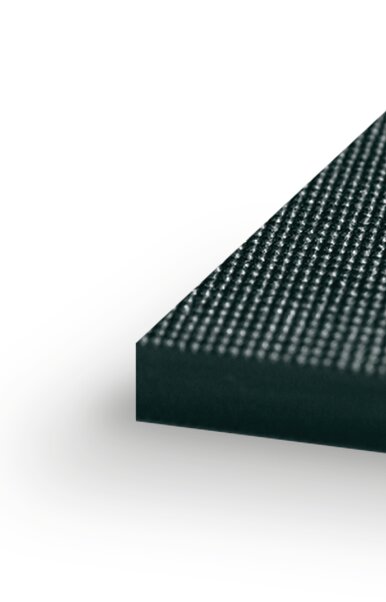

Safe stand

A firm foothold due to rubber matting with anti-slip structure.

Lots of headroom

Plenty of headroom thanks to the generous dimensions of all Böckmann models.

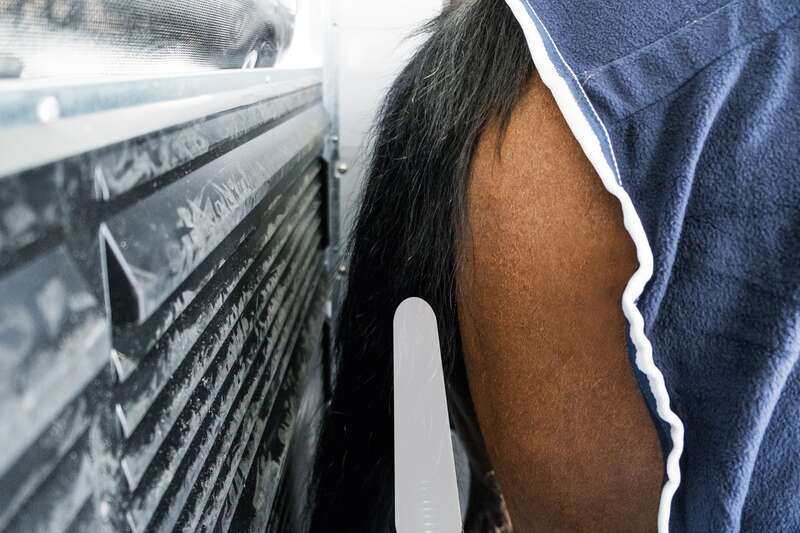

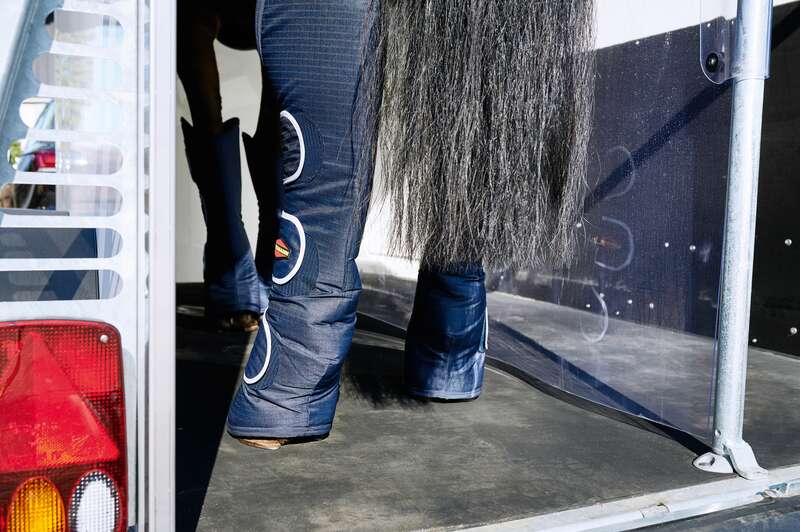

Lots of space for the tail

Plenty of space for the tail because of the generous amount of space between the breast bar and the tail gate.

Comfortable position

Lots of room for a wide stance due to securing of the PVC curtain 60 mm above the floor – for pleasant travelling.

Comfortable transport for every horse size

Divider concept: The product designs already include the right dividers for your horse. On request you can equip your horse trailer with a divider that perfectly fits your horse.

Optical room enlargement

Our transparent PVC dividers, which can be moved to the right or left during loading, create an illusion of even greater space for the horse.

Optimal road holding

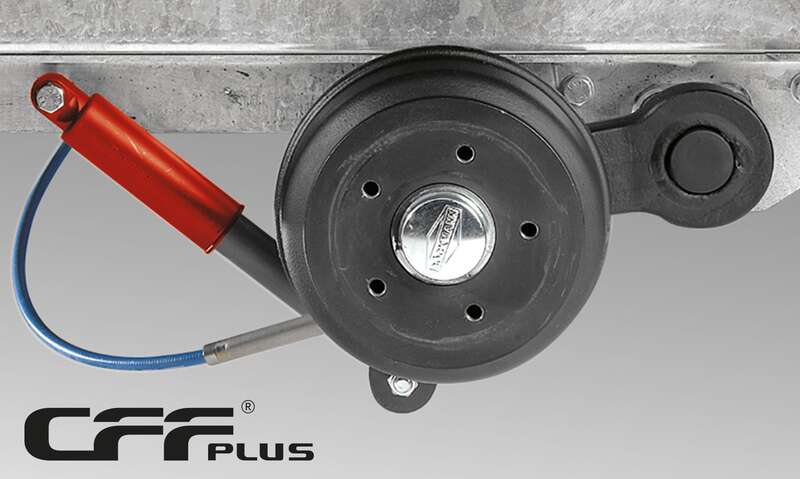

Even more comfort on the road with the world-class chassis with galvanised independent wheel suspension, coil spring suspension and wheel shock absorbers.

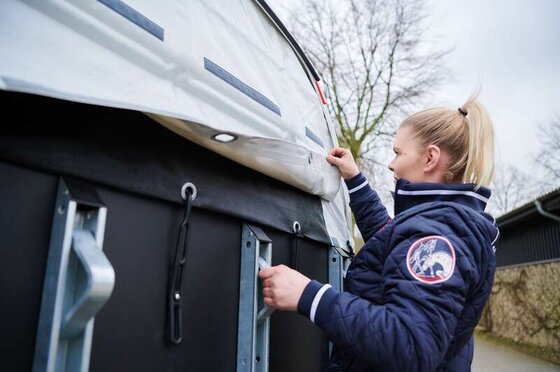

Optimal indoor climate

Optimum interior atmosphere thanks to tarpaulin lift with integrated net and Velcro fasteners (also protects against rain and cold).

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

Optimal indoor climate
Optimum interior atmosphere thanks to tarpaulin lift with integrated net and Velcro fasteners (also protects against rain and cold).

Good for you Handling & tying up options - The Böckmann added values

Tail gate / 1-wing door combination

Tail gate/1-wing door combination (accessories).

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

Tail gate / 1-wing door combination
Tail gate/1-wing door combination (accessories).

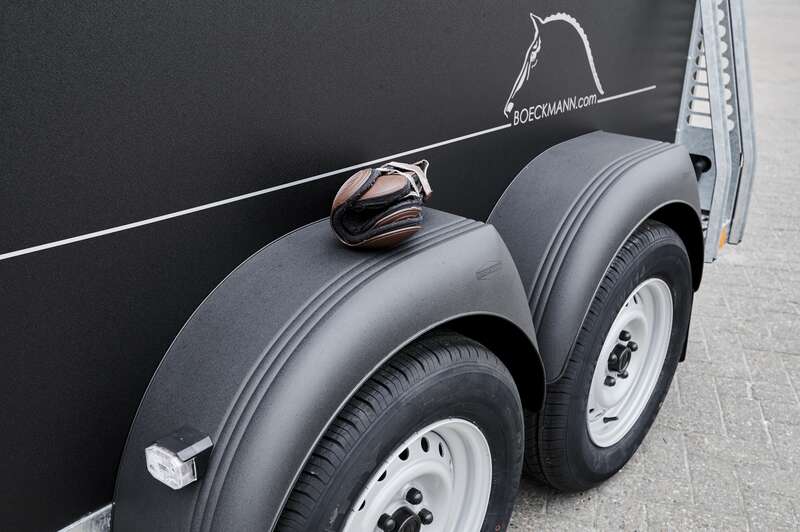

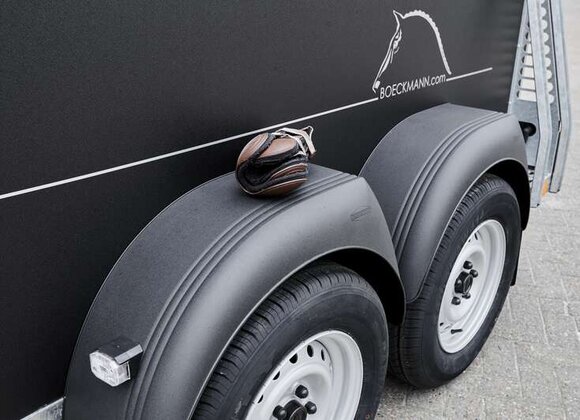

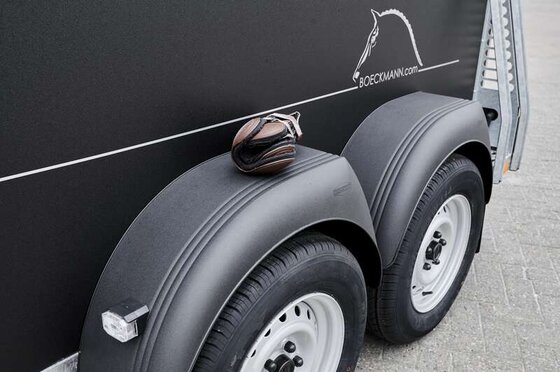

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

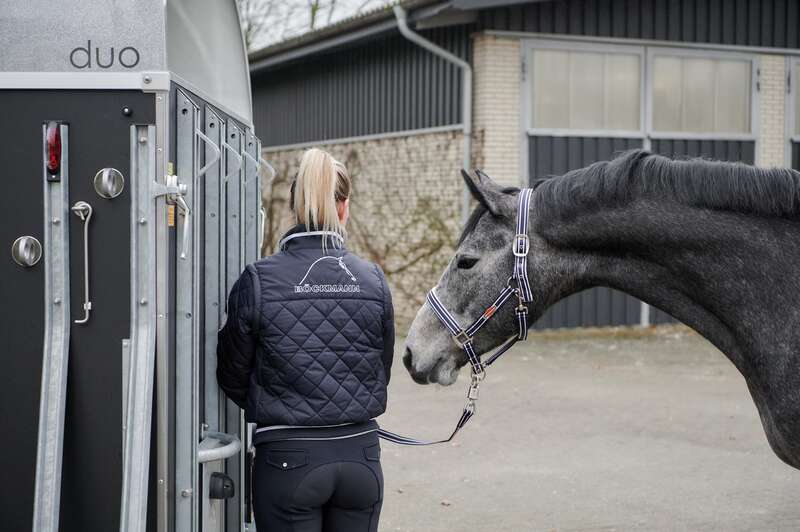

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

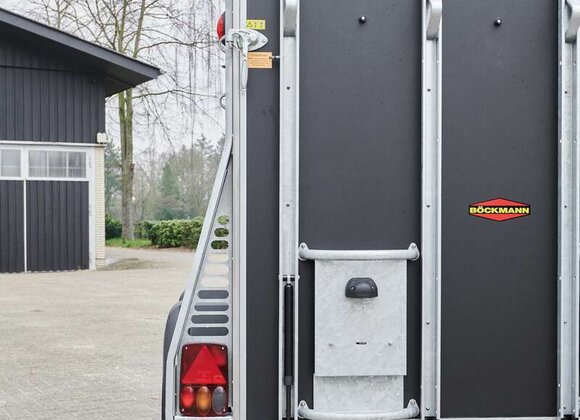

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.

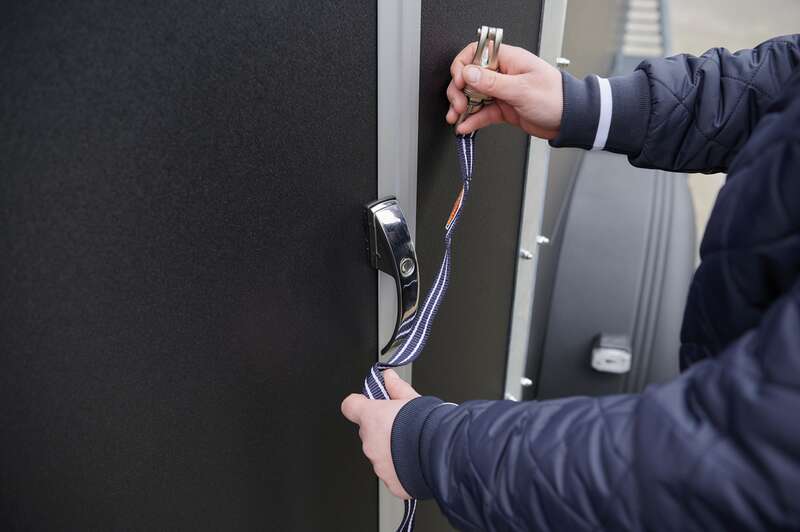

Tying up option on the side wall

on the side wall by means of 4 Multi Safe System (MSS) fittings.

Tying up option in the interior

More driving safety thanks to generously-dimensioned quality tyres.

Tying up option on the side wall

On the side wall due to a saddle storage bar (accessory).

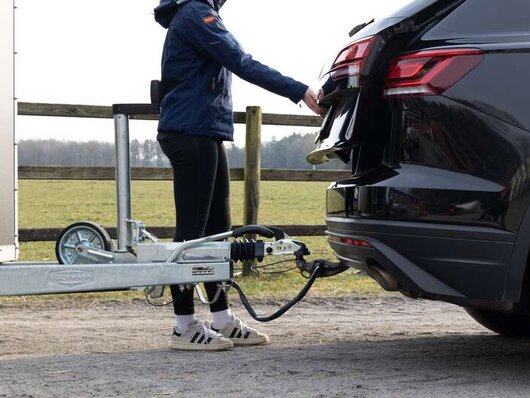

Good for you Hitching and unhitching - The Böckmann added values

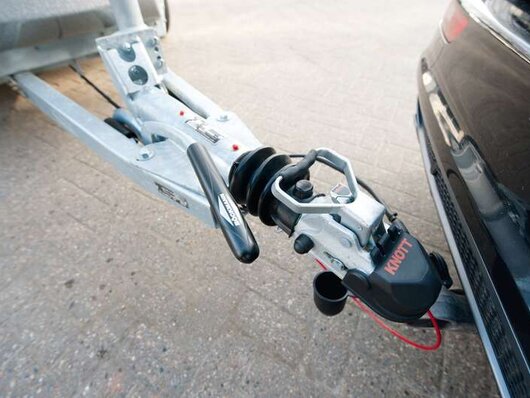

Start-up and theft protection

Drive-off protection with soft-top drive-off protection and rubberised, ergonomic, heart-shaped handle.

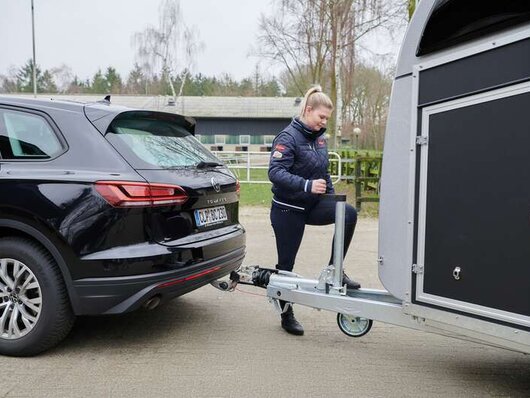

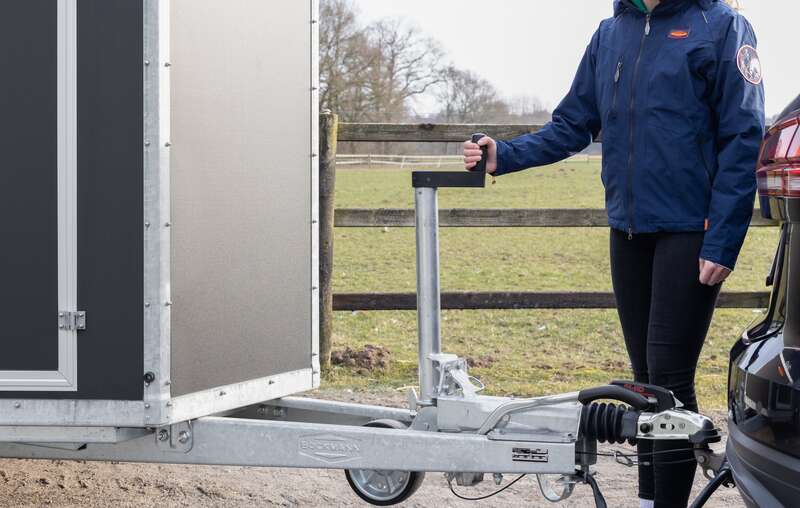

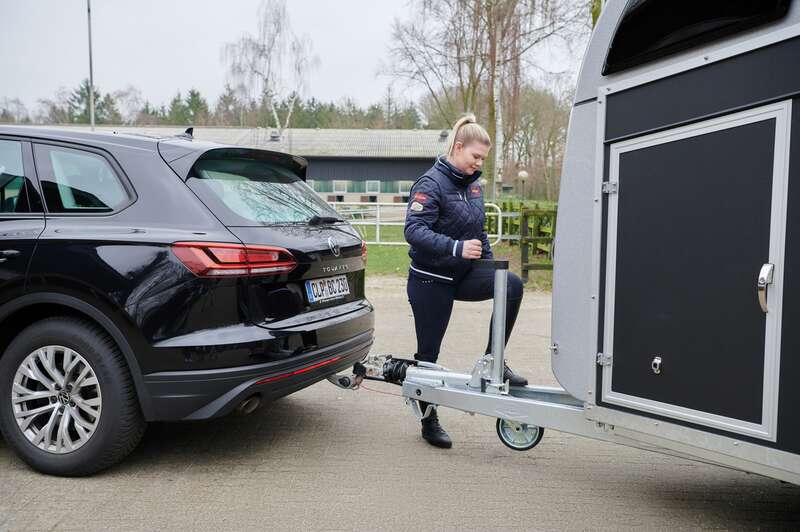

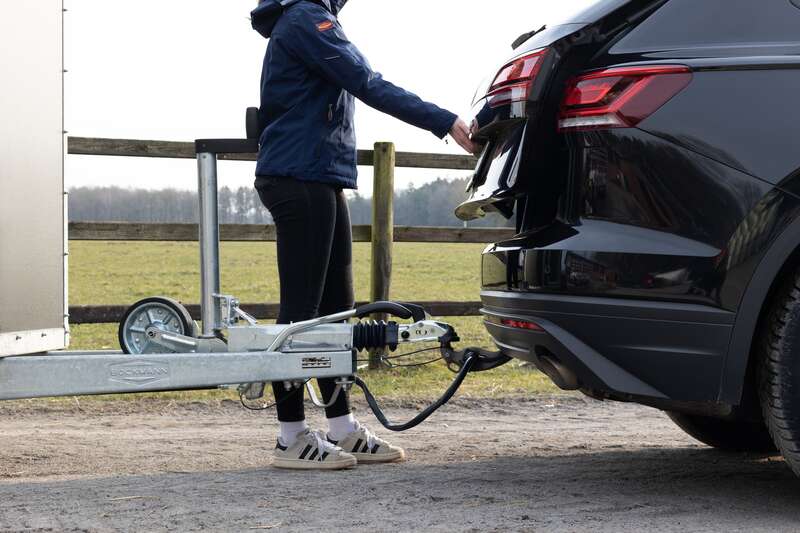

Convenient maneuvering

Easy to move around due to a tall and hard wearing automatic jockey wheel and perfectly positioned shunting handles.

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

Convenient maneuvering
Easy to move around due to a tall and hard wearing automatic jockey wheel and perfectly positioned shunting handles.

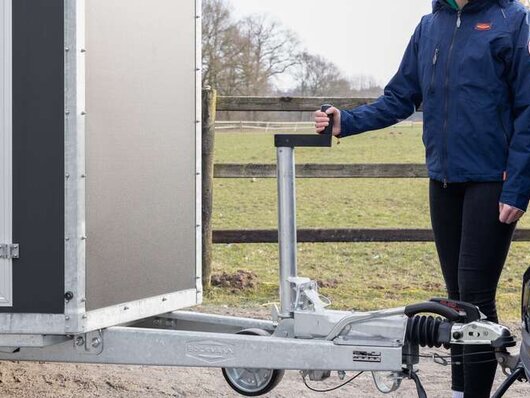

Simple operation of the support wheel

via an easy to use winch.

Unimpeded trunk access

Easy access to your boot thanks to the flat, heart-shaped handle and flat brake handle – even when hitched to the car.

Good for you Locking systems - The Böckmann added values

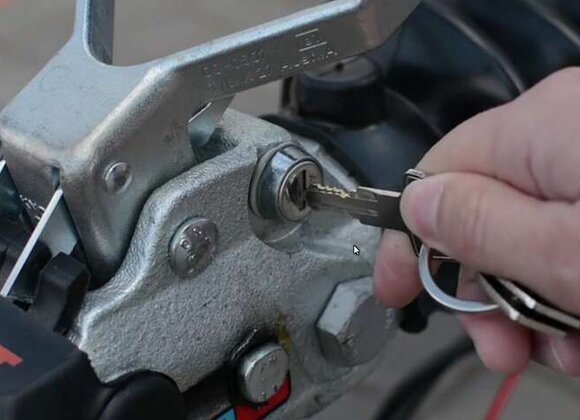

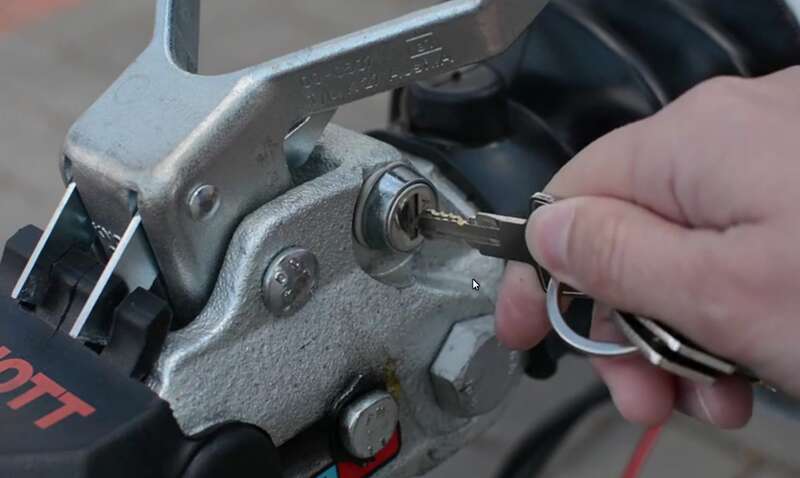

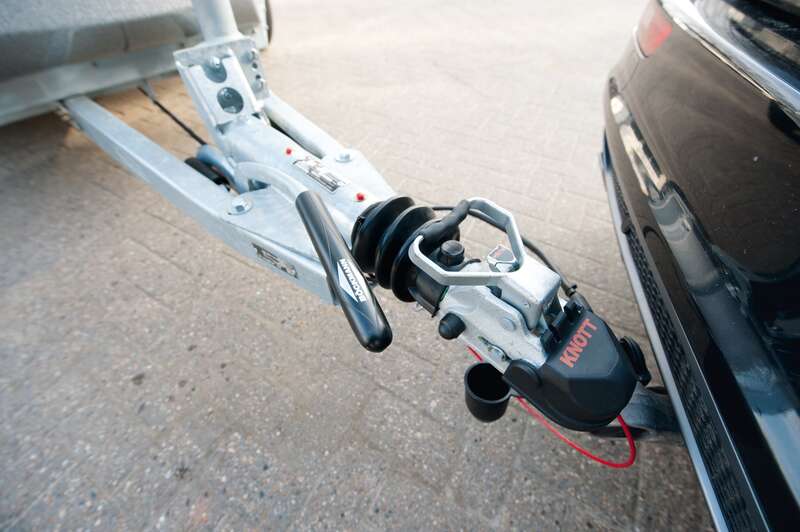

Lockable cast coupling

Operated with the door key.

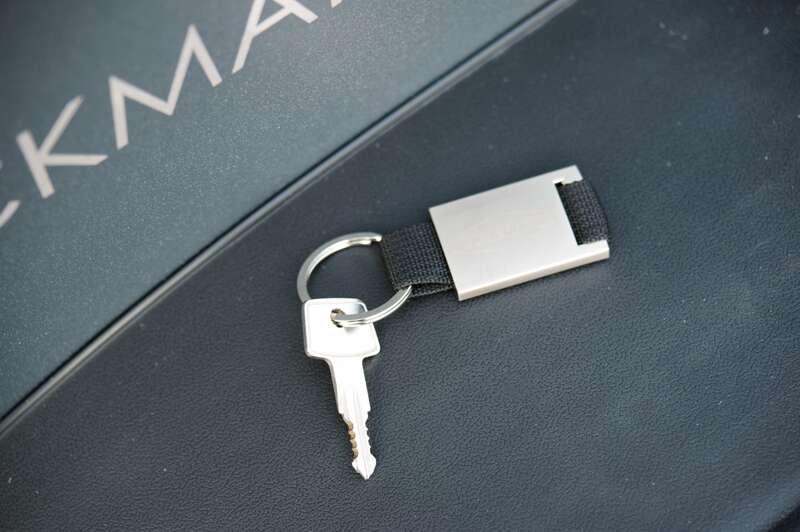

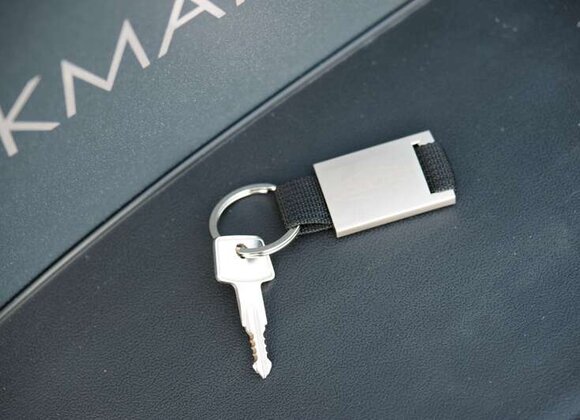

A key

One key for all locks.

To play the video, marketing cookies must be accepted:

Renew or change your cookie consent

A key
One key for all locks.

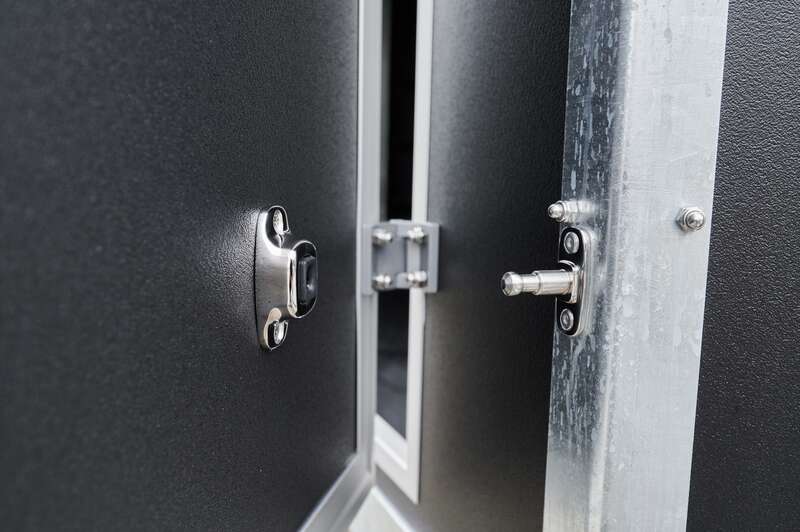

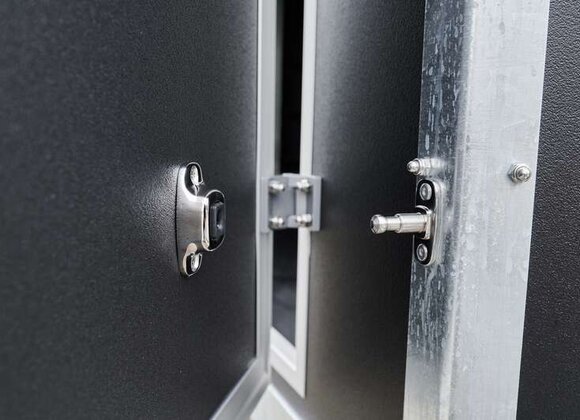

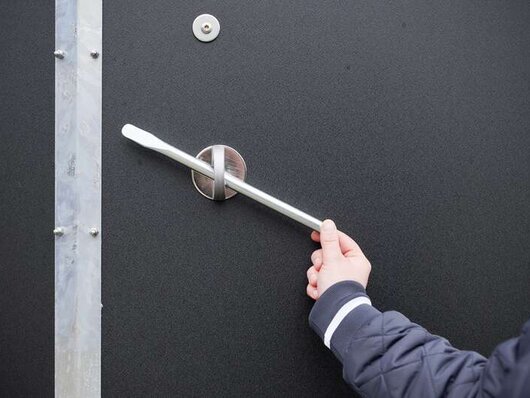

Optimal closing

Perfect closure due to 3-point door lock and rubber seal.

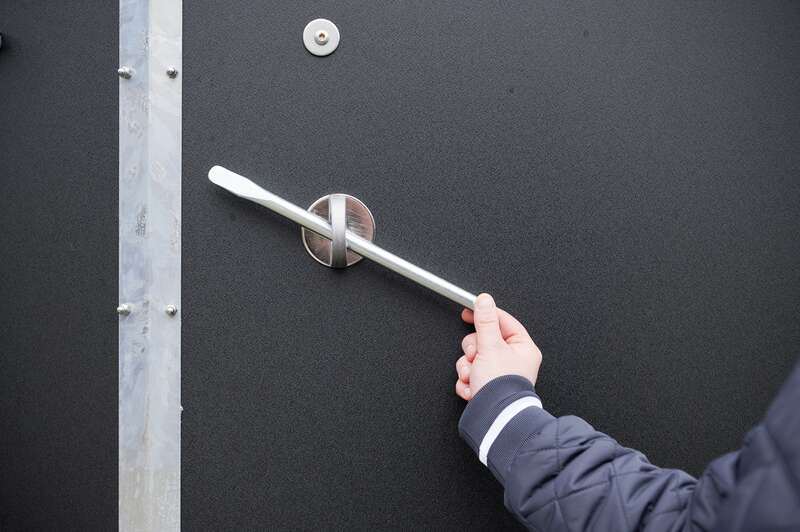

Protection against damage

Protection against damage by locking the entrance door.

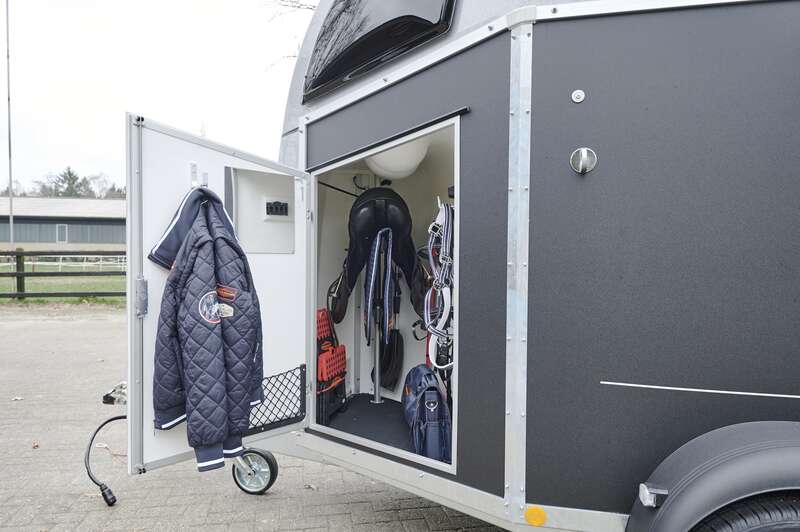

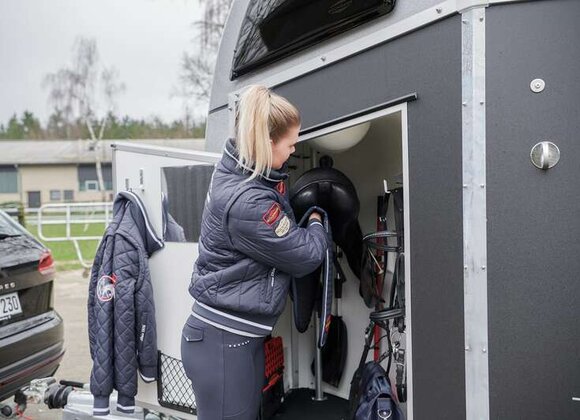

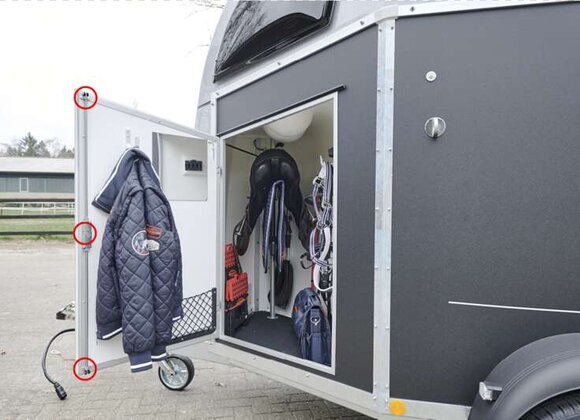

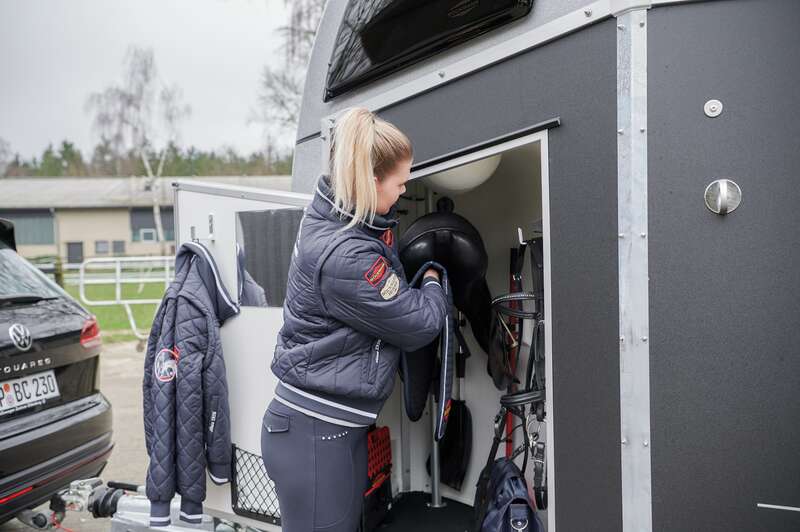

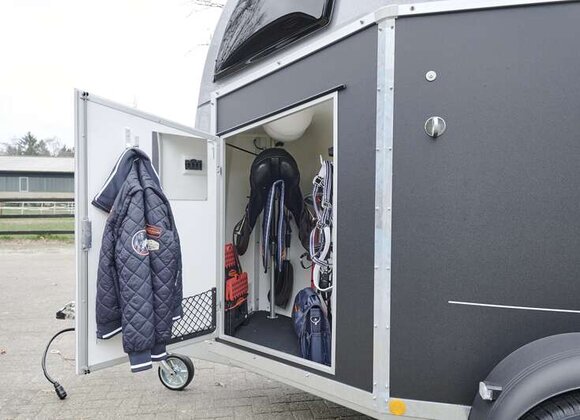

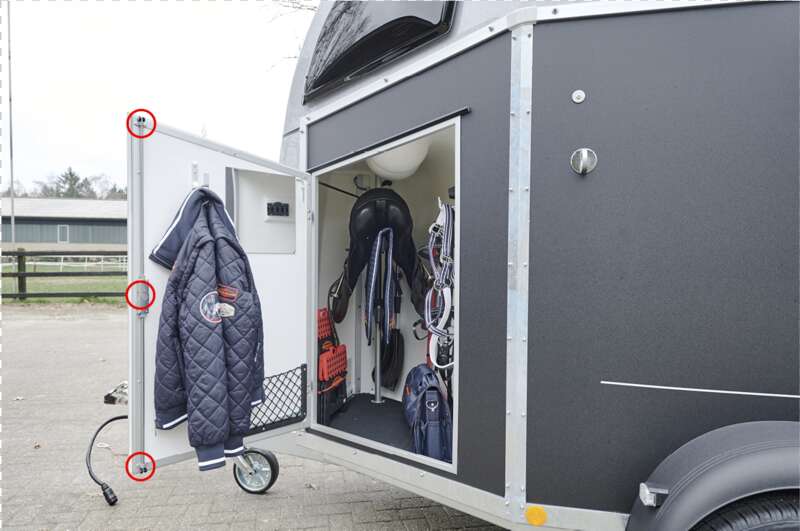

Tack lockers and tack rooms

Tack rooms

Spacious tack rooms with sufficient storage options. Also available as a Western versions.

Maintains its valueThe Böckmann added values

Chassis
Structure
Interior

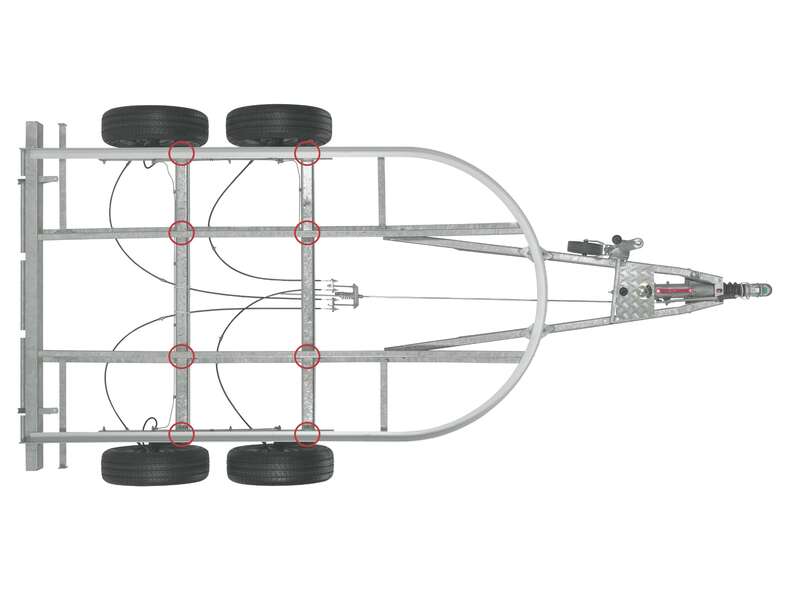

Made for heavy loads

Designed for heavy loads thanks to axles with 8-point bolt connection to the longitudinal beam construction and galvanised steel frame.

Higher payload

Higher payload due to 2400 kg total weight as a standard feature instead of 2000 kg.

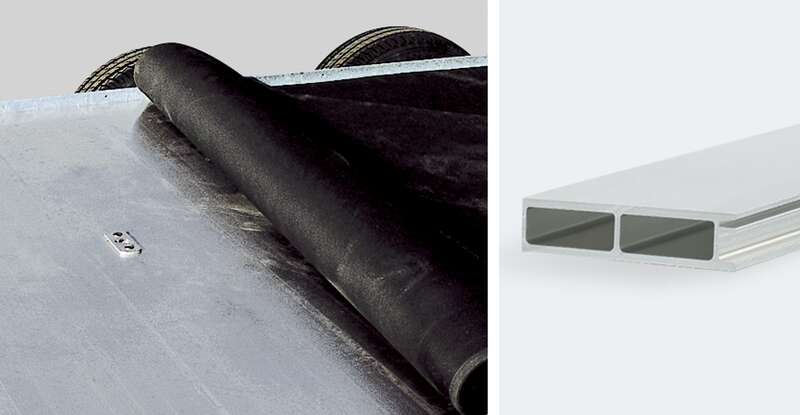

Robust and rot-proof

Robust and rot-proof thanks to quality solid aluminium floor (option in some cases); reinforced with a closed profile in the stall area.

Stable frame

Stable frame thanks to Z-section frame of galvanised special steel throughout – firmly bolted onto the structure.

Stable structure

Stable structure thanks to overlapping corner unions and galvanised, lateral, steel struts made of solid M sections.

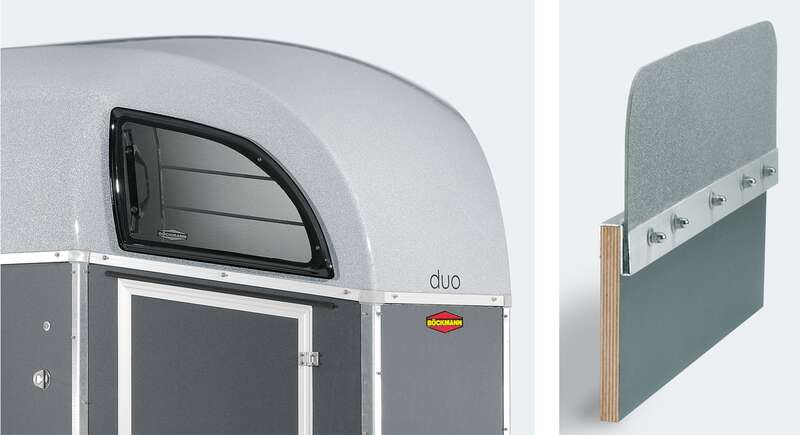

Stable polyester cover

Stable polyester cover thanks to aluminium top support sections bolted with stainless steel bolts.

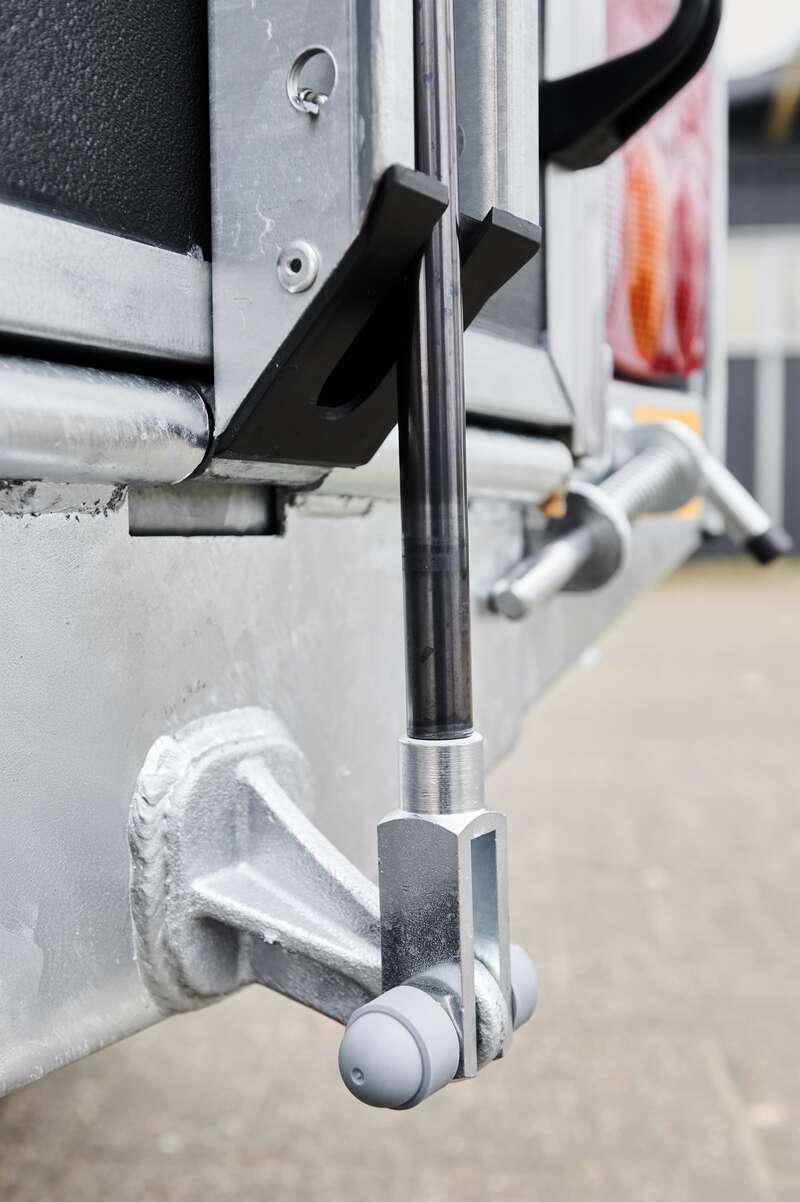

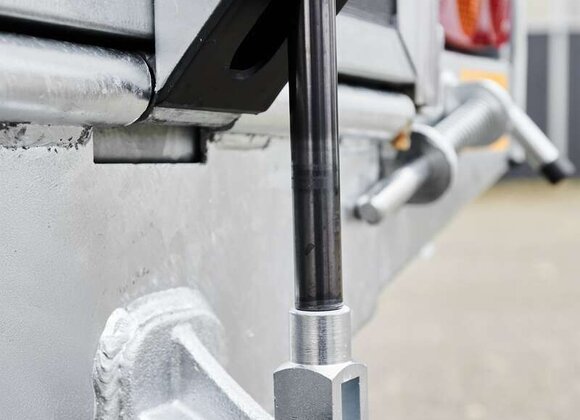

Stable rear flap

By 4 hot dip galvanised steel frame struts with embedded lifting device: additional with the new and stable two-step.

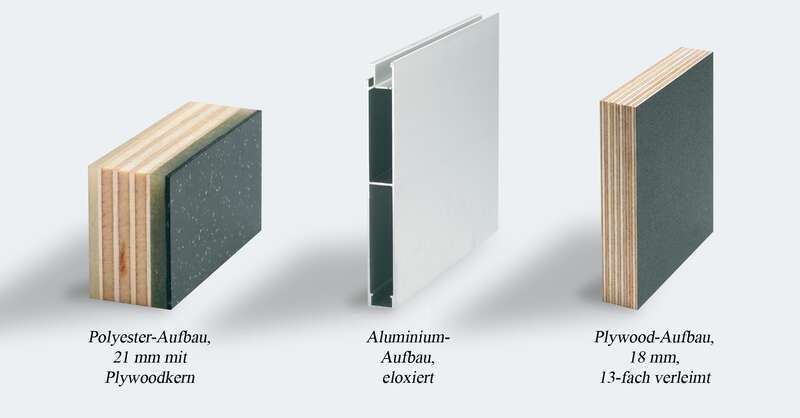

Quality and stability

Quality and stability thanks to polyester sandwich-type construction, aluminium twin-web sections or adhesion bonded quality plywood.

Better cushioning for the horse

Better damping for the horse due to the wear mat fitted. It also protects the rubber floor.

No vulnerable rubber overlaps necessary

No vulnerable rubber overlaps necessary due to closed, narrow tailgate hinge.

Stable divider wall construction

Stable divider wall construction thanks to solid, welded steel frame.

Step protection

Resilient thanks to adhesion bonding and sealing of rubber flooring throughout.

Technical data

Base

Number of animals

2 Horses

Material of body

Plywood

Weight

Total weight

2400 kg

Payload

1509 kg

External dimensions

Gesamtlänge

4500 mm

Gesamtbreite

2200 mm

Gesamthöhe

2730 mm

Internal dimensions

Interior length

3280 mm

Interior width

1650 mm

Interior height

2300 mm

Standard features

Body

Body color
- sidewalls anthracite, 1500 mm
Color of polyester roof
- colour of polyester roof: silver-metallic
Color of polyester front bow
- colour of polyester front bow: silver-metallic
Mudguards colour
- single black mudguard, plastic
Canvas Lift / polyester flap
- canvas lift with integrated net
Decors
- decoration stripes "Künster"
Side walls
Attachments
Floor
- screen printed floor
- rubber floor, glued and sealed
Ventilation

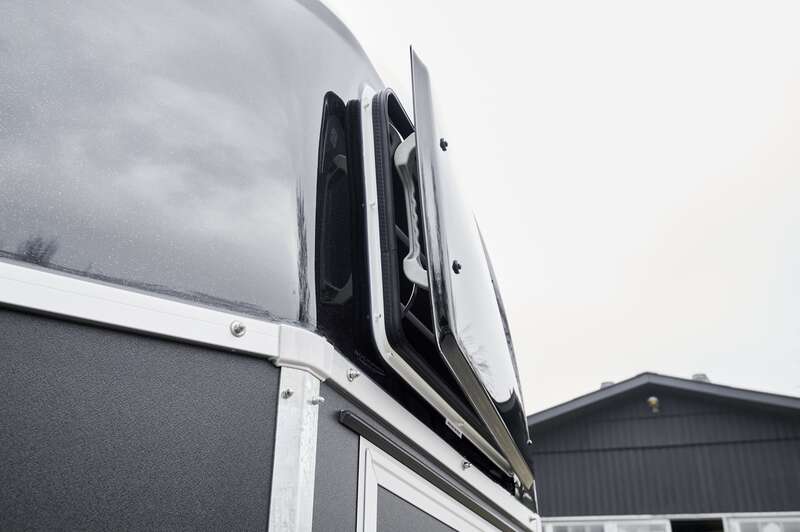

- polyester roof with 2 pop-out windows

Chassis

Chassis
Tires and wheels
- Tires 14", steel rim
Jockey wheel
- automatic jockey wheel
Brake
- Mechanical brake
Weights
- 2.4 t total weight
Coupling
- trailer hitch lockable

Internal Space

Partition wall systems
- transparent PVC divider with upper section (withers height 165 cm)
Comfort and safety
- Multi Safe System (anti-panic stall bar system)
- without lateral kick protection

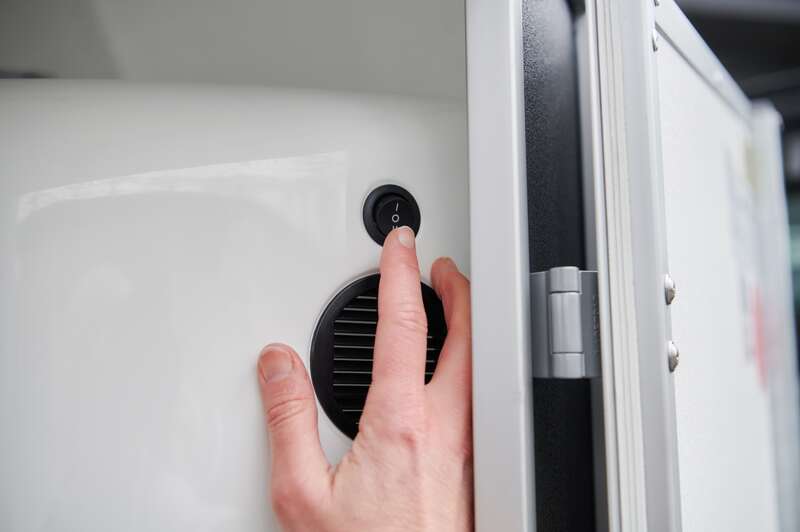

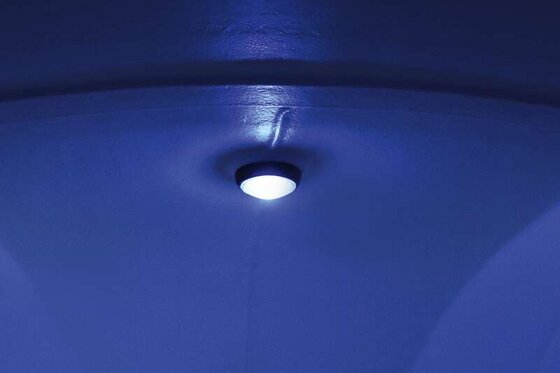

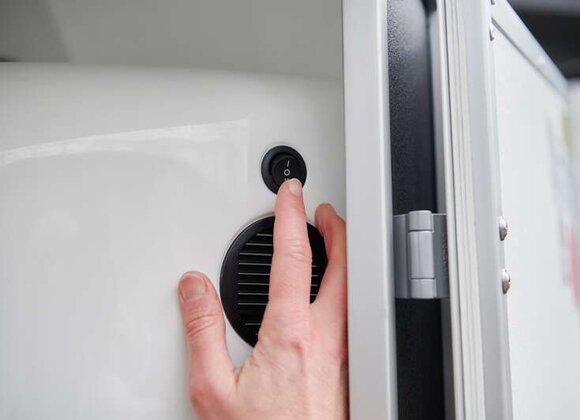

Lighting
- interior lighting
Tack locker/ room
- tack locker inside with telescopic saddle rack,shovel/mirror/broom/net

Accessories

Body

Body color
- side walls: granite-grey
Color of polyester roof
Color of polyester front bow
Mudguards colour
Color of polyester cover
Canvas Lift / polyester flap
- polyester-flap above rear ramp (lockable)
Decors
Side walls
- rear ramp / door combination
Attachments
- 3. brake light on rear ramp
- tie bar on outside of trailer (cathodic dip-coated)
- approach mirror for hitching up process, unmounted
- climbing aid
- spare wheel 14"
- spare wheel holder (mounted)
- spare wheel cover
- sulky holder on rear ramp
- periphery lighting for reversing
Floor
- alu floor instead of screen printed floor
Lashings

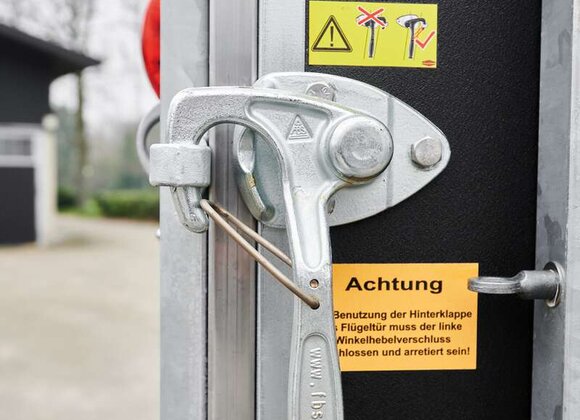

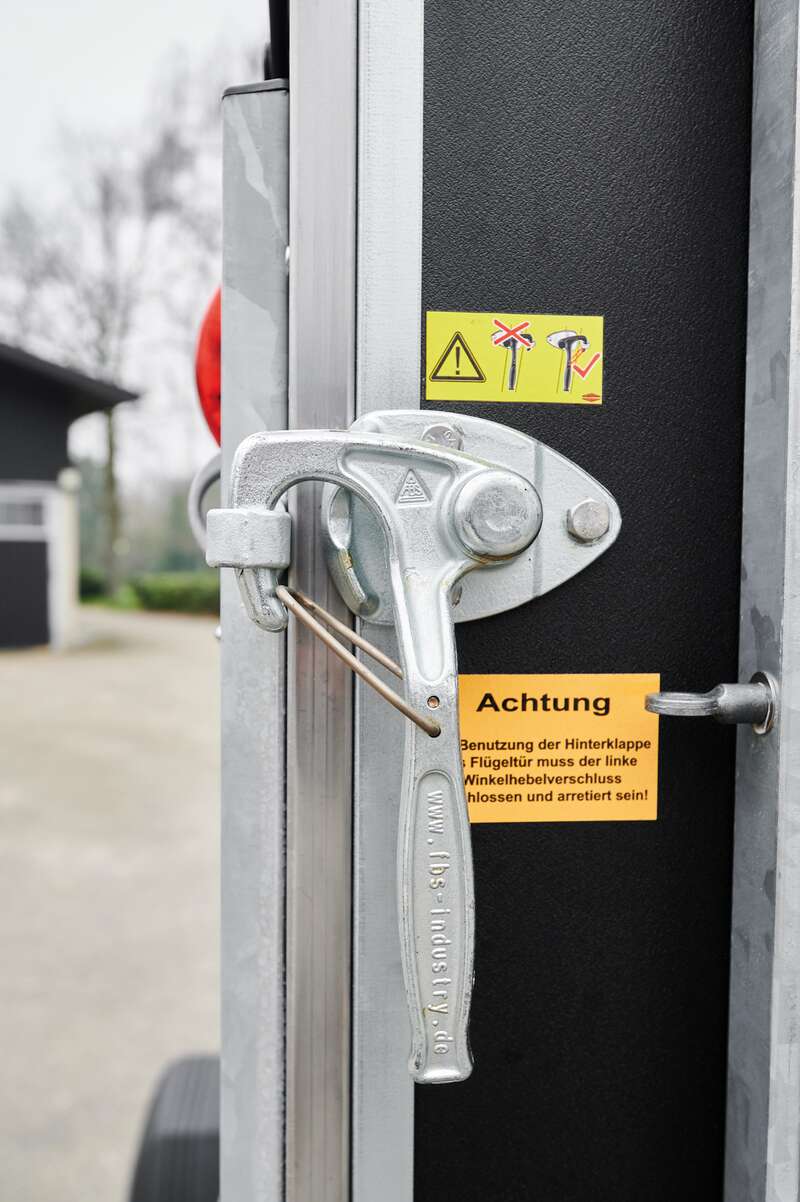

- additional angle lever lock at door
Ventilation
- sliding windows (700x300 mm), left/right in poly roof
- roof vent in polyester roof

Chassis

Chassis
- WCF-chassis with wheel shock absorbers
Tires and wheels
- Böckmann Premium aluminum rims 14"
- M+S tyres 15"
Jockey wheel
- cover for autom. jockey wheel
Weights
- Selection total weight
- surcharge for 2,7 t total weight
- Selection weights
- weight reduction to 2000 kg
Coupling
- Selection ball coupling
- anti-skid coupling (up to 2,7 t total weight), not lockable
- Selection coupling
- adapter 7 pin to 13 pin

Internal Space

Partition wall systems
- Selection partition systems
- foldable foal grill
- additional floor bracket for partition wall
- Selection head divider
- head divider "aluminium"
- head divider "lattice"
- Selection partition
- transparent PVC divider with upper section (withers height 145 cm)
- transparent PVC divider with upper section (withers height 155 cm)
- transparent PVC divider with upper section (withers height 180 cm)
Comfort and safety
- Selection kick protection
- lateral kick protection
- Selection comfort and safety
- full-width butt bar, padded
- full-width breast bar, padded
- additional breast bar padding
- rubber wear mat
- Selection side padding
- side padding (2 pc.)
Lighting
- additional interior lighting at rear
Tack locker/ room
- without tack locker (price reduction)
further interior
- feeding trough with holder

Other

Multimedia
- video monitoring device
- cables and holder for video surveillance

Brochures & information materialDownload

Download the current brochures or select which brochures we should send you by mail.

There are no download materials available for this area.

Further brochures

More catalogues

Operating instructions horse- and livestock trailer

All languages

Download PDF

Brochure Master family

in English

Download PDF

Brochure Horse trailers

in Danish and Swedish

Download PDF

Brochure Horse trailers

in Spanish and Italian

Download PDF

Brochure Horse trailers

in English and Norwegian

Download PDF

Brochure Neo

in English

Download PDF

Brochure Comfort

in English

Download PDF

Brochure Portax family

in English

Download PDF

Brochure Champion Family

in English

Download PDF

Prospekt Traveller

in Deutsch

Download PDF

Brochure Traveller

in English

Download PDF

There are no download materials available for this area.

0 Brochures selected

Request selection by post

Request brochures by post

Please send printed copies of the selected information material to the following address

You have not selected any printed copies.You have selected the following print copies:

Title*

First name*

Last name*

Shipping address

Street / No.*

Zip code*

Place*

Country*

Contact options

e-mail*

Phone number*

Message (optional)

I agree that my data will be used for further processing of this request at Böckmann Fahrzeugwerke GmbH and the Böckmann dealers. For all further details, please read our Privacy & Cookie Policy.*

Yes, I would like to subscribe to the Böckmann newsletter and/or receive information material on products, innovations and promotions.

^*Mandatory field
