Champion Esprit

Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!

Home
Trailers
Horse trailers
Champion
Champion Esprit

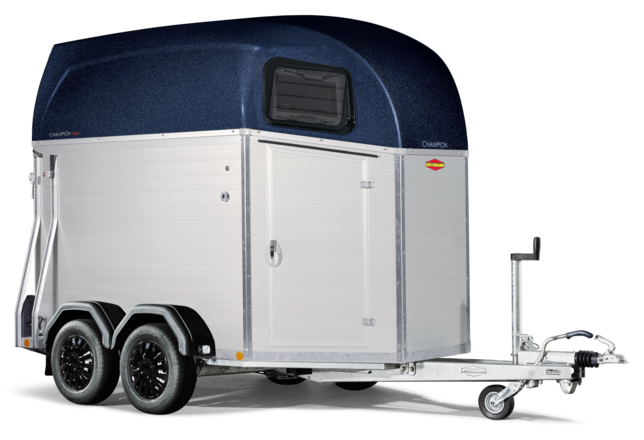

Champion Esprit

Price on request

Overview

Technical data

Configure Compare

Characteristics

Number of animals

2 Horses

Discipline

English

Material of body

Alu

The Champion Esprit impresses with its sturdy aluminum side walls and original Böckmann aluminum floor. As an entry-level model, it offers the proven Böckmann added values and combines high quality with an attractive price.
Benefit from practical accessories such as the Multi Safe System and the comfortable side padding for even more safety and comfort.

Tack locker (Accessories)

Tack room

Spacious tack room with sufficient storage options.

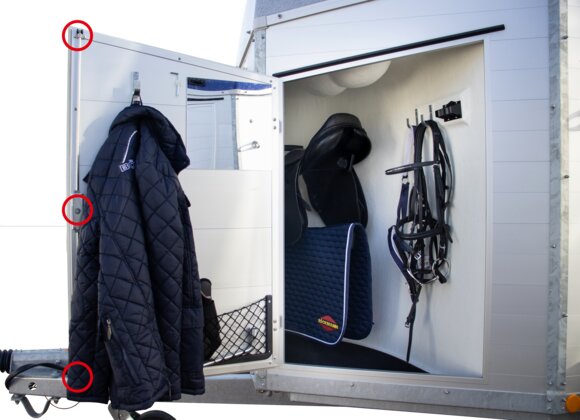

Optimal closing

Perfect closure due to 3-point door lock and rubber seal.

Good for your horseLoading and unloading - The Böckmann added values

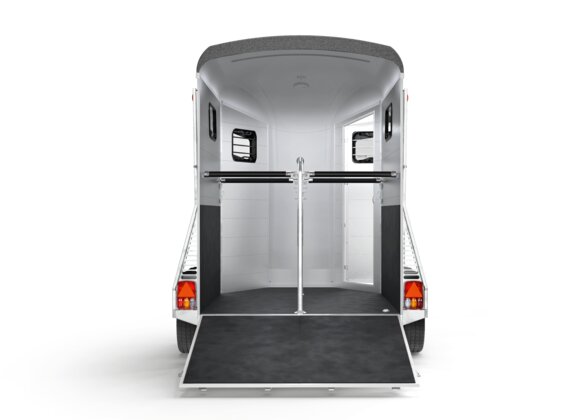

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Great passage

A maximum of space due to narrow cover edges and tarpaulin lift installed on the inside.

Low loading height

Low loading height ensures comfortable and stress-free entry for the horses.

Easy Entry

due to the lowered chassis and more safety with the reinforced rear ramp with non-slip 8 mm thick rubber.

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Great passage

A maximum of space due to narrow cover edges and tarpaulin lift installed on the inside.

Low loading height

Low loading height ensures comfortable and stress-free entry for the horses.

Easy Entry

due to the lowered chassis and more safety with the reinforced rear ramp with non-slip 8 mm thick rubber.

Inviting interior

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Great passage

A maximum of space due to narrow cover edges and tarpaulin lift installed on the inside.

Low loading height

Low loading height ensures comfortable and stress-free entry for the horses.

Good for your horseThe safety concept - The Böckmann added values

Comfort

More comfort and durability thanks to the additional padding on the stable bars and the side padding (option in some cases).

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

No sharp edges and corners

ensured by rounded hinges and plastic covers on the steel profile struts and at the ends of the rear struts.

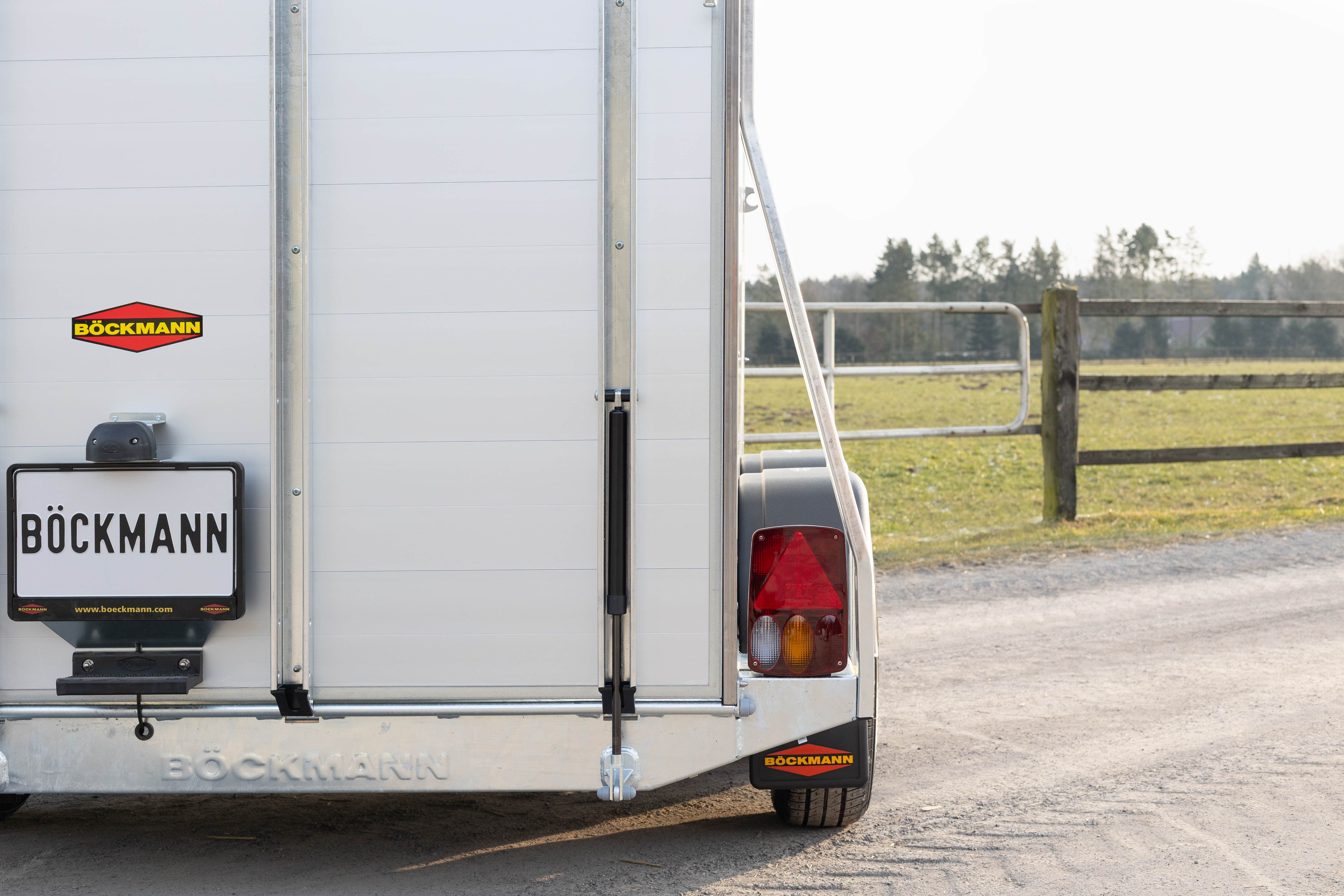

No slipping of the horse’s hooves and good visibility from the car

due to closed, perforated rear struts.

No catching the rope

due to flat door handles.

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

Comfort

More comfort and durability thanks to the additional padding on the stable bars and the side padding (option in some cases).

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

No sharp edges and corners

ensured by rounded hinges and plastic covers on the steel profile struts and at the ends of the rear struts.

No slipping of the horse’s hooves and good visibility from the car

due to closed, perforated rear struts.

No catching the rope

due to flat door handles.

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

Comfort

More comfort and durability thanks to the additional padding on the stable bars and the side padding (option in some cases).

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

Good for your horseThe Böckmann added values

Interior
Dividers
Dividers

Easily accessible hay

Easily accessible hay from feed troughs in the tack room or optimally positioned hooks for a hay net.

Safe stand

A firm foothold due to rubber matting with anti-slip structure.

Lots of headroom

Plenty of headroom thanks to the generous dimensions of all Böckmann models.

Lots of space for the tail

Plenty of space for the tail because of the generous amount of space between the breast bar and the tail gate.

Soothing atmosphere

provided by the blue LED transport light – can be conveniently switched from blue to white.

Comfortable position

Lots of room for a wide stance due to securing of the PVC curtain 60 mm above the floor – for pleasant travelling.

Optical room enlargement

Our transparent PVC dividers, which can be moved to the right or left during loading, create an illusion of even greater space for the horse.

Safe Transport

ensured by the track-proven Böckmann partition wall and the safety stall bar system with tie rings and an adjustable height range of 15 cm.

Comfortable position

Lots of room for a wide stance due to securing of the PVC curtain 60 mm above the floor – for pleasant travelling.

Optical room enlargement

Our transparent PVC dividers, which can be moved to the right or left during loading, create an illusion of even greater space for the horse.

Good for you Handling & tying up options - The Böckmann added values

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.

Tying up option in the interior

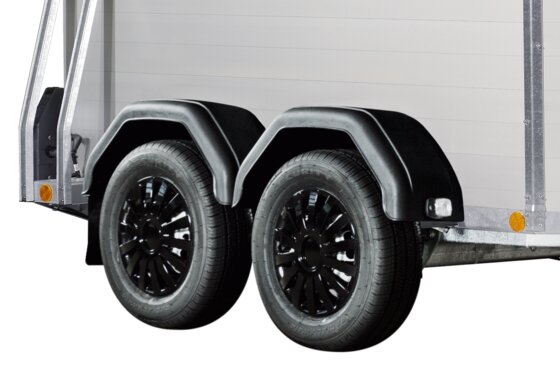

More driving safety thanks to generously-dimensioned quality tyres.

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.

Tying up option in the interior

More driving safety thanks to generously-dimensioned quality tyres.

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.

Good for you Hitching and unhitching - The Böckmann added values

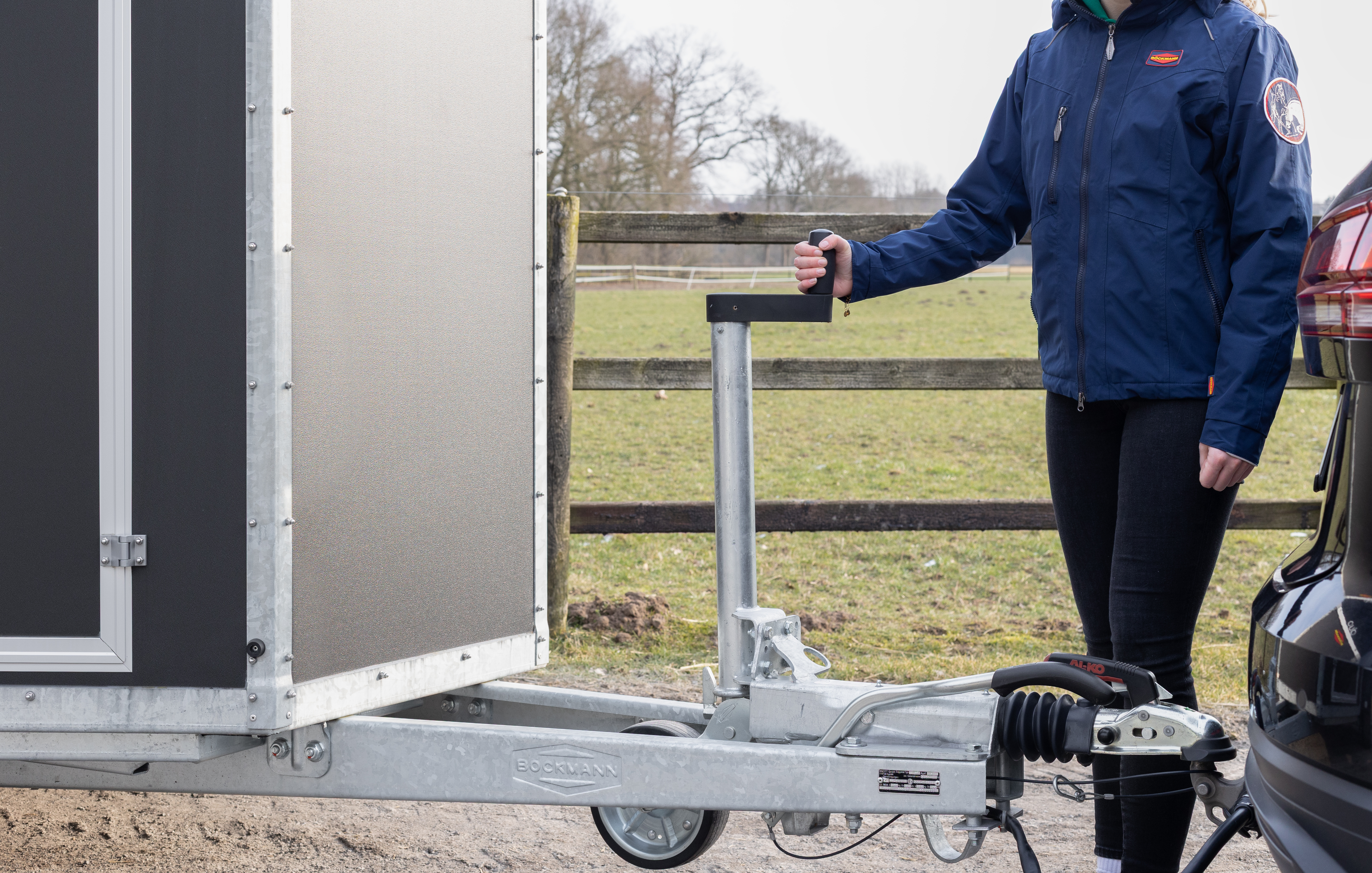

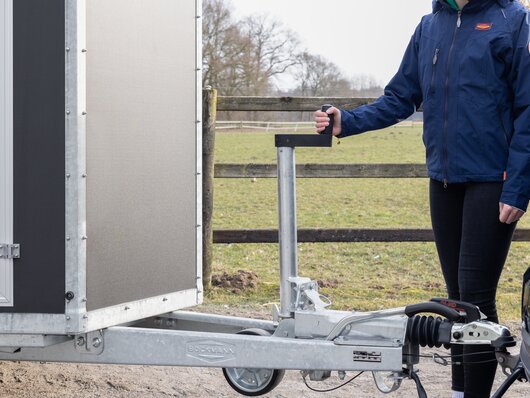

Easy manoeuvring

due to the automatic jockey wheel – extra-long with an easy-to-handle crank and perfect to use in all weather conditions.

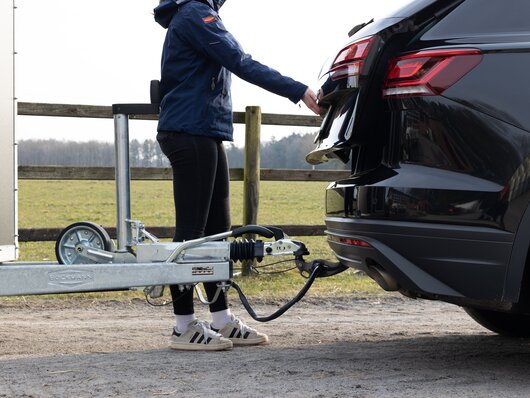

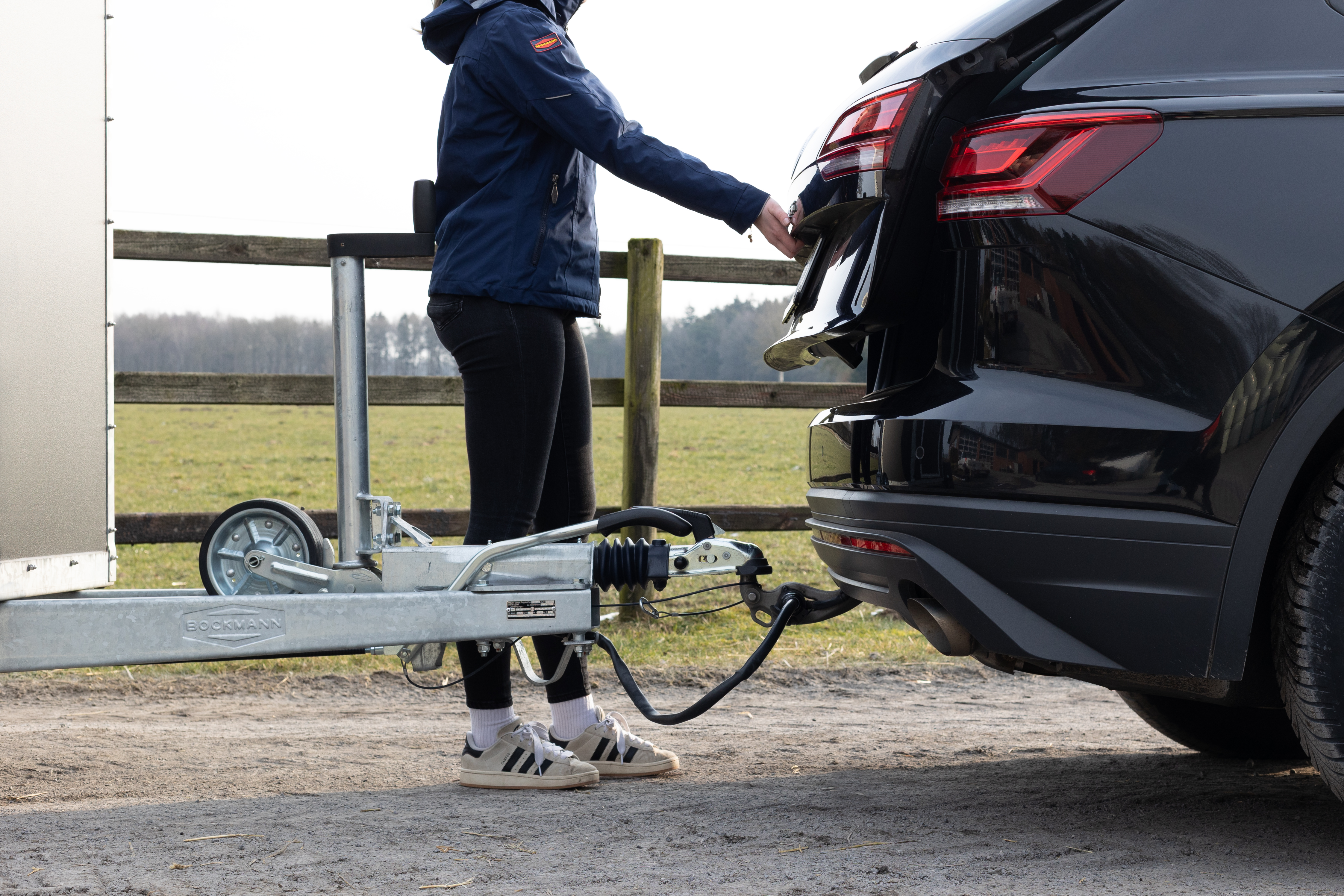

Unimpeded trunk access

Easy access to your boot thanks to the flat, heart-shaped handle and flat brake handle – even when hitched to the car.

Good for you Locking systems - The Böckmann added values

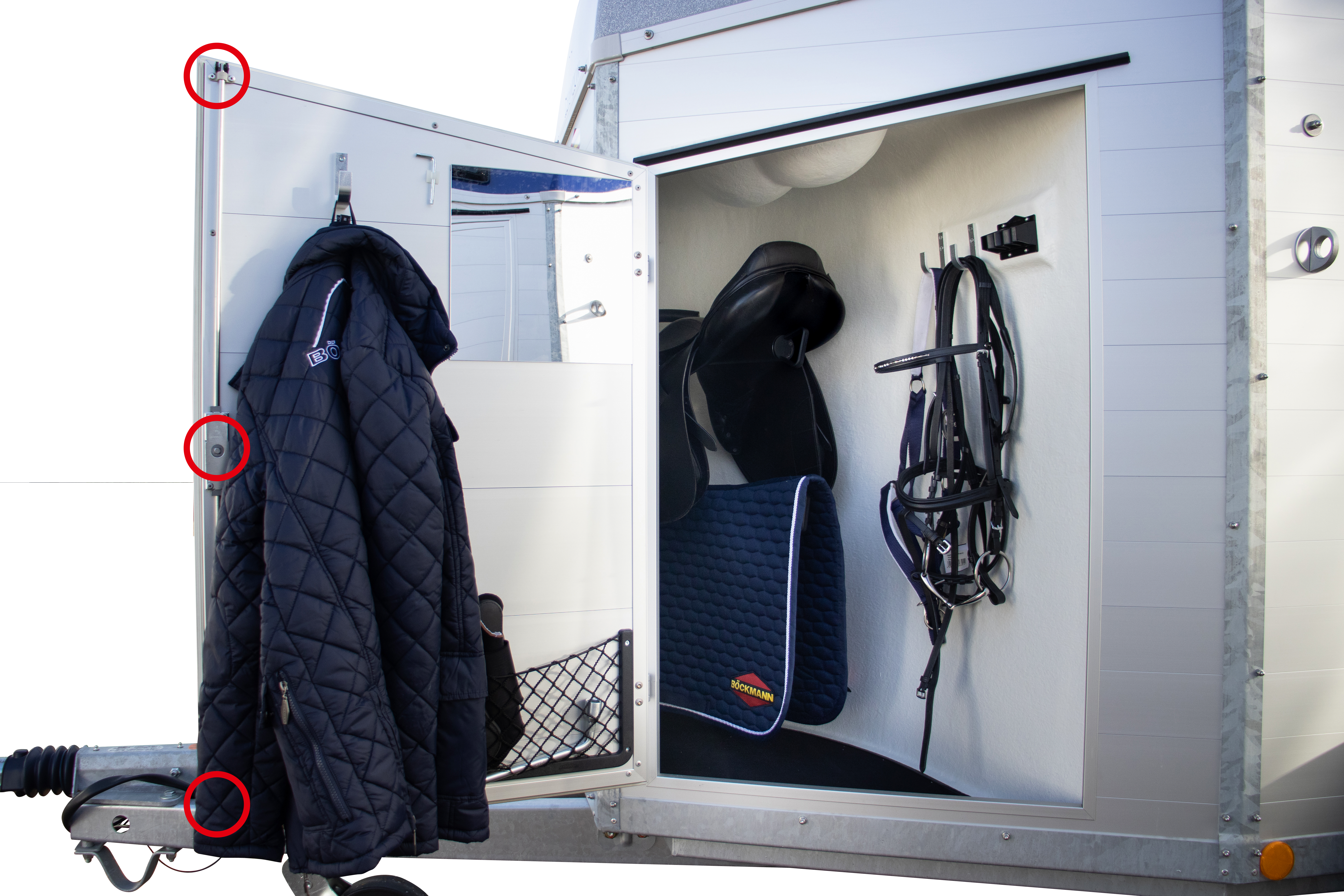

Optimal closing

Perfect closure due to 3-point door lock and rubber seal.

Protection against damage

Protection against damage by locking the entrance door.

Maintains its valueThe Böckmann added values

Chassis
Structure
Interior

Made for heavy loads

Designed for heavy loads thanks to axles with 8-point bolt connection to the longitudinal beam construction and galvanised steel frame.

Higher payload

Higher payload due to 2400 kg total weight as a standard feature instead of 2000 kg.

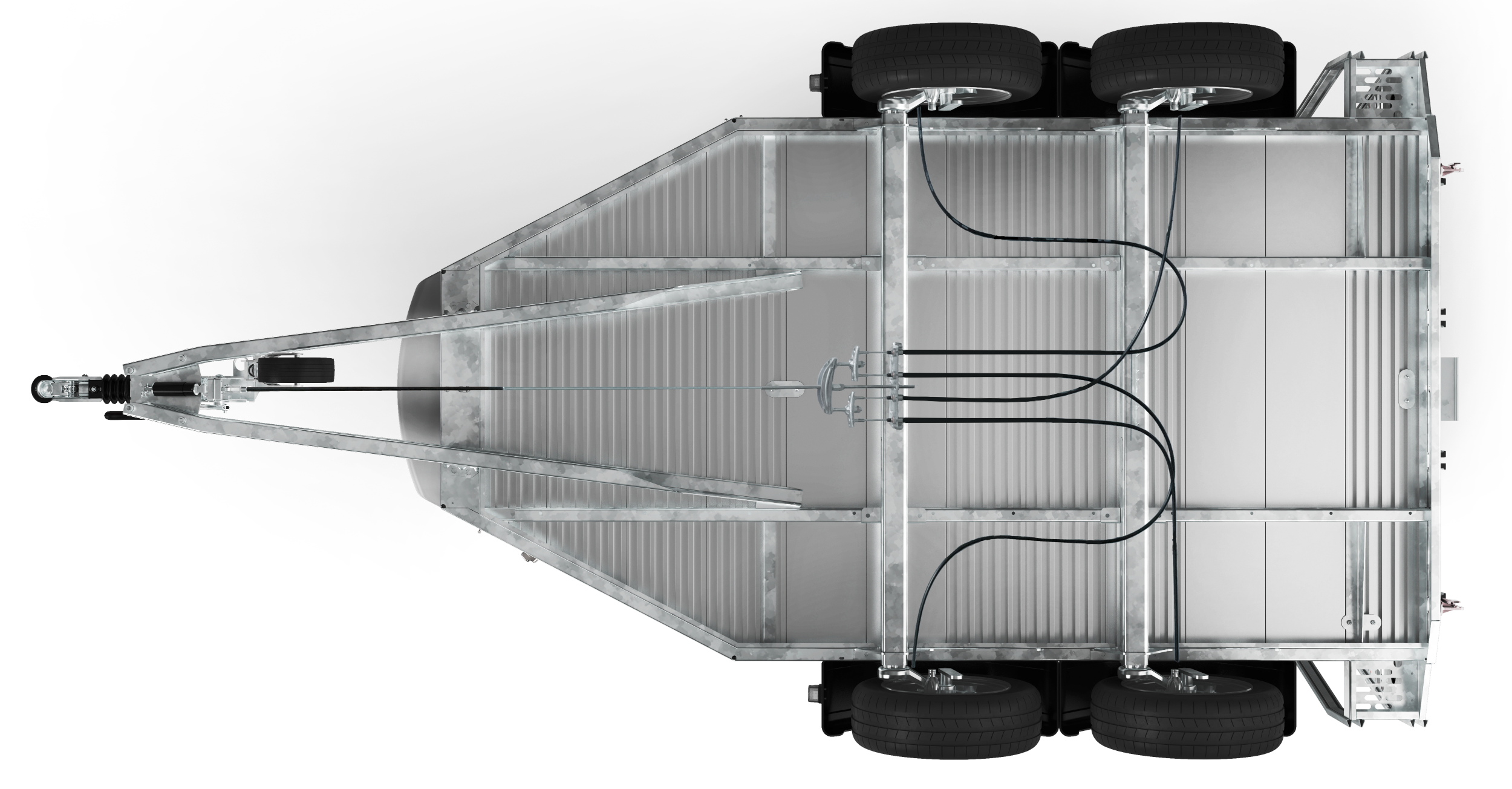

Stable frame

due to a full-length Z-profile frame of galvanised special steel – firmly bolted to the body.

Robust and rot-proof

due to the solid quality full aluminium floor with closed profile for reinforcement in the horse stall area.

Quality and stability

Quality and stability thanks to polyester sandwich-type construction, aluminium twin-web sections or adhesion bonded quality plywood.

Stable structure

Stable structure thanks to overlapping corner unions and galvanised, lateral, steel struts made of solid M sections.

Fresh air

due to the large, dazzle-free 5-way windows (can be opened to the front, back, top and bottom and also completely) with safety grid.

No vulnerable rubber overlaps necessary

No vulnerable rubber overlaps necessary due to closed, narrow tailgate hinge.

Step protection (accessories)

Resilient thanks to adhesion bonding and sealing of rubber flooring throughout.

Stable divider wall construction

Stable divider wall construction thanks to solid, welded steel frame.

Technical data

Base

Number of animals

2 Horses

Material of body

Alu

Weight

Total weight

2400 kg

Payload

1565 kg

External dimensions

Total length

4500 mm

Total width

2200 mm

Total height

2730 mm

Internal dimensions

Interior length

3100 mm

Interior width

1650 mm

Interior height

2300 mm

Standard features

Body

Color of polyester roof
- colour of polyester roof: silver-metallic
Canvas Lift / polyester flap
- canvas lift (without net)
Side walls
- anodised alu sidewalls, 1500 mm high
- entrance door right
- rubber on rear ramp without safety treads
Attachments
Floor
- alu floor instead of screen printed floor
- rubber floor, glued and sealed
Mudguards
- black single plastic fenders
Ventilation
- polyester roof with 2 pop-out windows

Chassis

Chassis
- stainless steel bolts on structure
- side member chassis with V-tow hitch
- standard chassis
Tires and wheels
- wheel covers (black)
Jockey wheel
- automatic jockey wheel
Brake
- Mechanical brake

Internal Space

Partition wall systems
- transparent PVC partition without PVC in upper section
Comfort and safety
- without lateral kick protection
- safety stall bar system
Lighting
- interior lighting

Accessories

Accessory packages

Esprit Alu package

Internal Space

Partition wall systems
- transparent PVC divider with upper section (withers height 165 cm)
Comfort and safety
- Selection kick protection
- lateral kick protection
- Side padding
- side padding (2 pc.)
- Selection stall bar system
- Multi Safe System (anti-panic stall bar system)
Tack locker/ room
- tack locker inside with telescopic saddle rack,shovel/mirror/broom/net

Body

Color of polyester roof
Canvas Lift / polyester flap
- tarpaulin lift with integrated net
Side walls
- Selection rear ramp / door combination
- rear ramp / door combination, rear brace closed
- Selection cover on rear ramp
- rubber safety mat on rear ramp with integrated treads+ side stops
Attachments

Chassis

Chassis
- wheel shock absorbers (4 pcs)
Jockey wheel
- cover for autom. jockey wheel
Weights
- weight reduction to 2000 kg
Coupling
- adapter 7 pin to 13 pin
