Characteristics
Loading area
6.6 qm
Total weight
3500 kg
Material of body

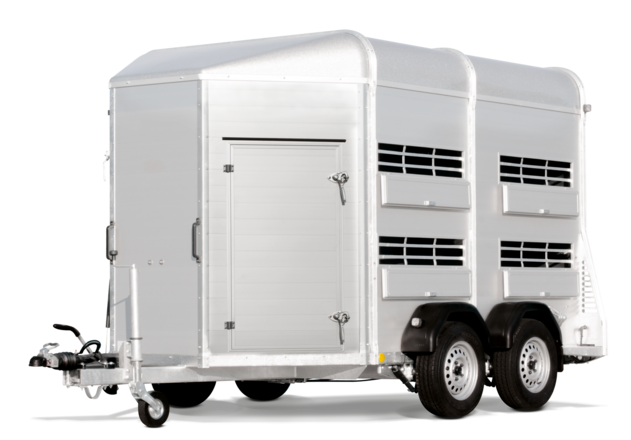

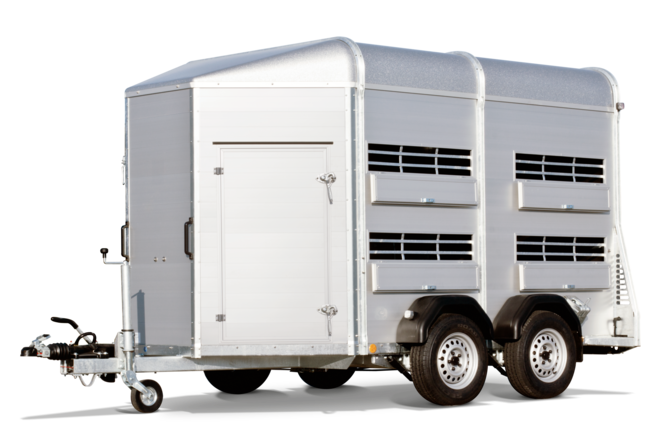

Also equipped with the anodised aluminium superstructure and lowered chassis, the VA 3520/35 P model has a solid superstructure construction with a polyester cover with a silver-metallic finish and three all-round steel profile struts. With a total length of 3540 mm and a loading area of 6.6 m² this animal trailer provides lots of space for transporting your stock.
The Böckmann added values
Safe and low-maintenance
Comfort and stability
Well thought out construction
Technical data
Base
Loading area
6.6 qm
Weight
Total weight
3500 kg
Payload
2264 kg
Internal dimensions
Interior length
3545 mm
Interior width
2000 mm
Interior height
2090 mm
Standard features
Body
- Color of polyester roof
-
Canvas Lift / polyester flap
- PVC curtain in net design
-
Side walls
- 4 hinges on rear ramp
- anodised alu sidewalls, 1800 mm high
- access door right (with 2 angle lever locks)
- rubber safety mat with integ.security treads+ side stops on rear ramp
-
Attachments
- 3 special profile bows

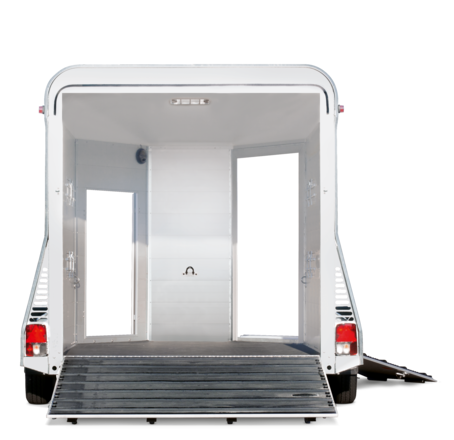

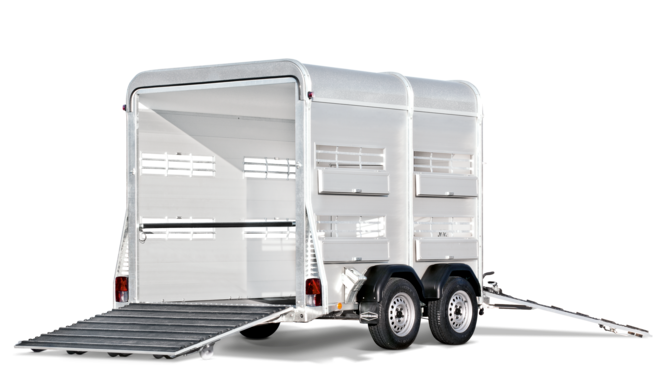

- rear ramp with roles
- rear braces with grid
- rear ramp with lifting mechanism
- 2 manoeuvring handles
- reversing light (with 13 pin plug)
- Floor
- Mudguards
- Ventilation
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
- chassis lower positioned
- Jockey wheel
Internal Space
-
Comfort and safety
- full-length stall bar in front of rear ramp
- 3 tie up rings
- Lighting
Accessories
Body
-
Canvas Lift / polyester flap
- tarpaulin lift instead of net lift
-
Side walls
- Selection door / front ramp right side

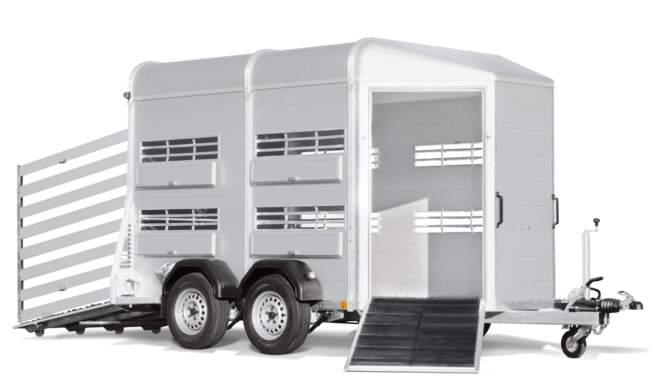

- unloading ramp in front right with alu cover (door on left)
- unloading ramp in front right with rubber cover (door on left)
- Selection cover on rear ramp
- alu checker plate on rear ramp + security treads
- Attachments
-
Floor
- Selection floor
- drain valve (in front of the rear ramp)
- urine stop (overflow edge of aluminium checker plate), height approx.
- Selection floor cover
- floor cover out of aluminium checker plate
- rubber flooring, liquid rubber
-
Ventilation
- Selection ventilation flap in front wall
- ventilation flap, 1000 mm, in front wall
- ventilation flap, 600 mm, in front wall
- Selection ventilation flap in side walls
- ventilation flap, 1000 mm
- ventilation flap, 600 mm
Internal Space
-
Partition wall systems
- alu partition grid (h: 1400 mm), swivelling, without side rails
- alu partition grid (h: 1400 mm), swivelling, incl. 4 side rails
- alu partition grid as 2-wing door (h:1400mm),incl 4 side rails
- alu partition grid as 2-wing door (h:1400mm),without rails
- holder for separation grid
-
Comfort and safety
- alu partition grid (h:1000 mm) as outer ramp stop, swivelling
- alu partition grid (h:1400 mm) as outer ramp stop, swivelling
- Lighting
- further interior
