Characteristics
Loading area
6.6 qm
Total weight
3500 kg
Material of body

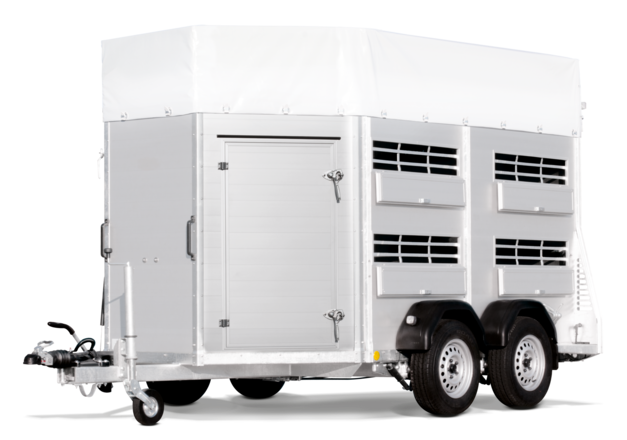

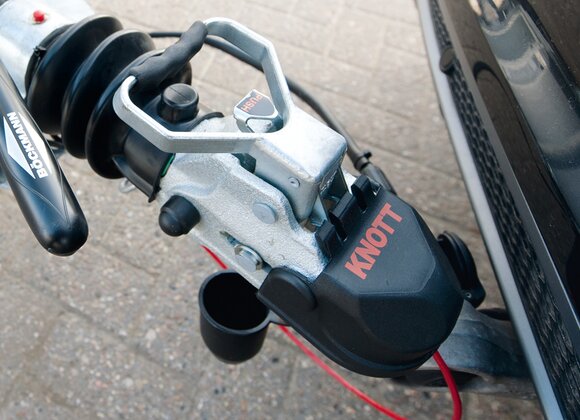

With the anodised aluminium superstructure and the solid hoop construction of square tubing the VA 3520/35 model is a powerful partner every day. Detail solutions such as the lowered chassis, the quality aluminium floor, the automatic jockey wheel and the lockable cast coupling are naturally standard features. A special highlight: The tarpaulin can be rolled up on both angle sections at the front.
The Böckmann added values

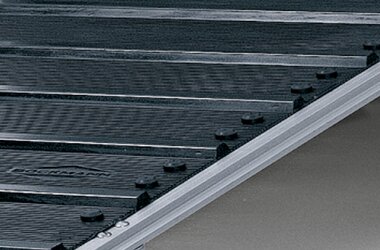

Safe and low-maintenance

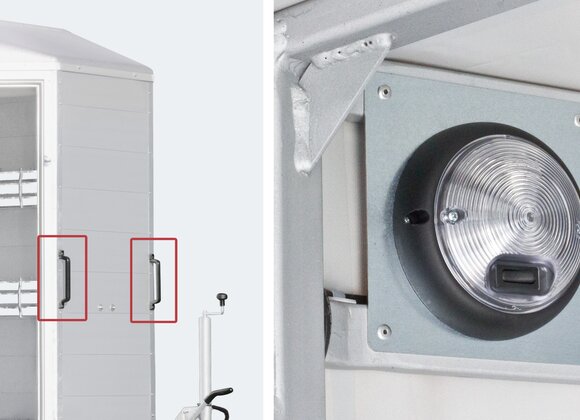

Comfort and stability

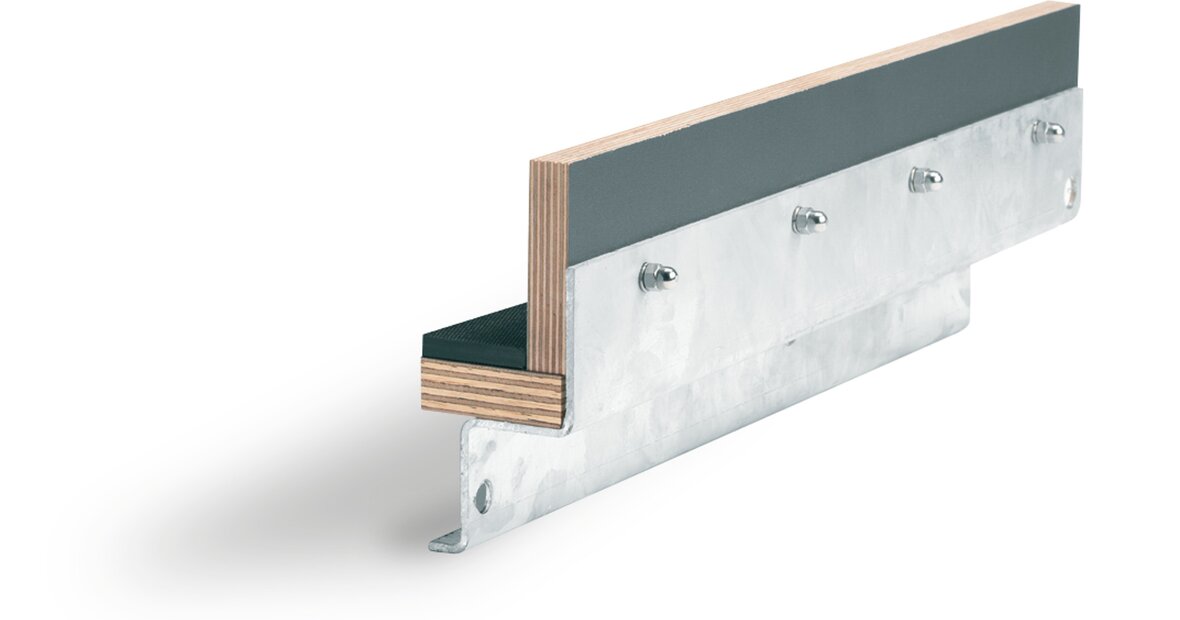

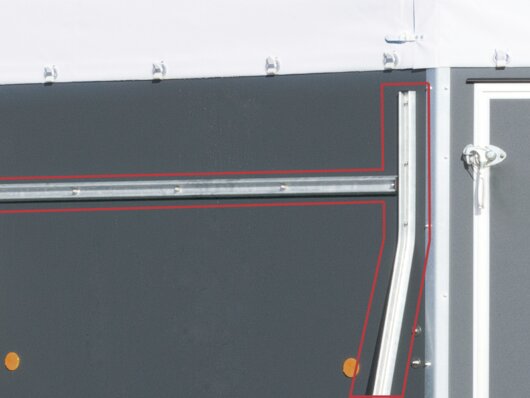

Well thought out construction
Technical data
Base
Loading area
6.6 qm
Weight
Total weight
3500 kg
Payload
2264 kg
Internal dimensions
Interior length
3545 mm
Interior width
2000 mm
Interior height
2120 mm
Standard features
Body
- Side walls
-
Attachments
- 2 manoeuvring handles
- rear braces with grid

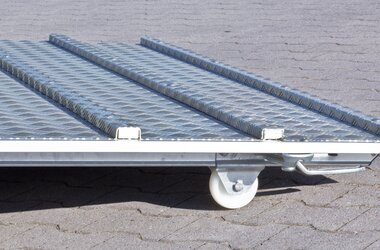

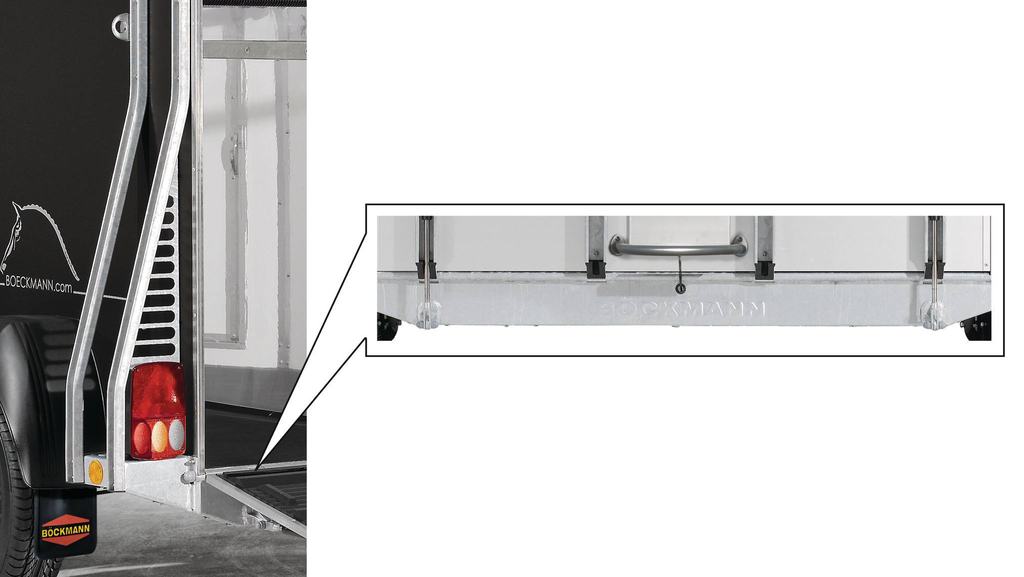

- rear ramp with roles
- rear ramp with lifting mechanism
- 2 side braces, 4 hinges on rear ramp
- reversing light (with 13 pin plug)
- Floor

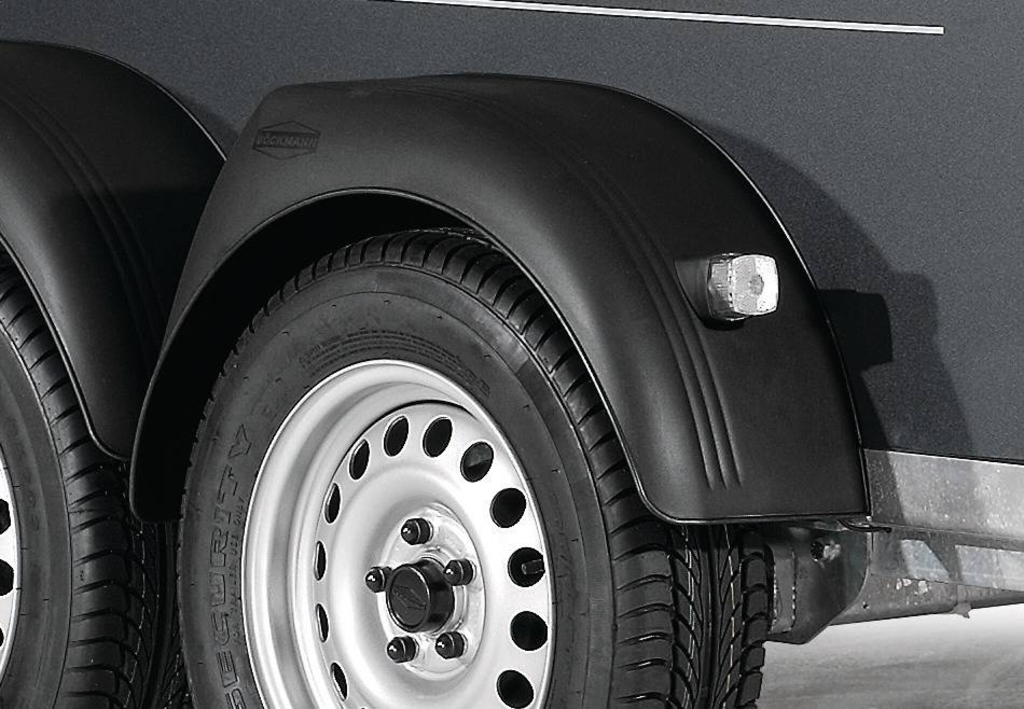

- Mudguards
-

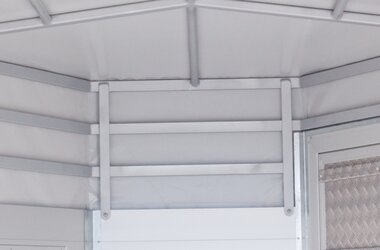

Tarpaulin and hoops
- tarpaulin and hoop
- tarpaulin: grey

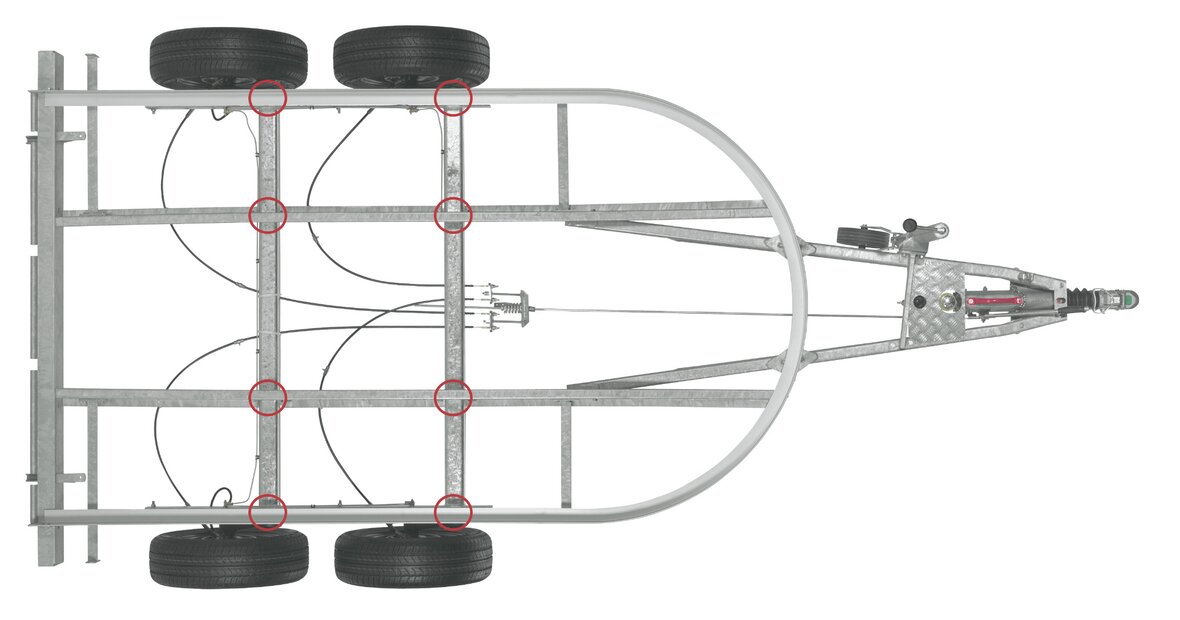

Chassis
-
Chassis
- chassis lower positioned

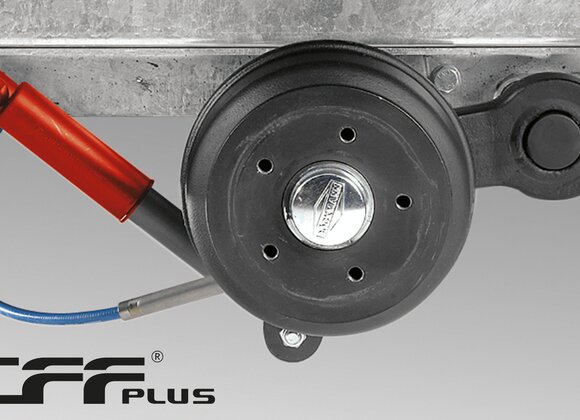

- wheel shock absorbers (4 pcs)

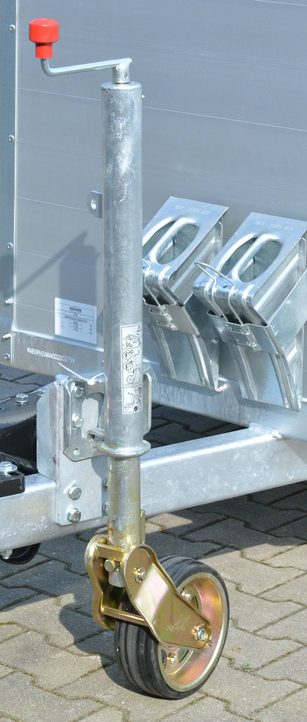

- Jockey wheel
Internal Space
-
Comfort and safety
- full-length stall bar in front of rear ramp
- 3 tie up rings

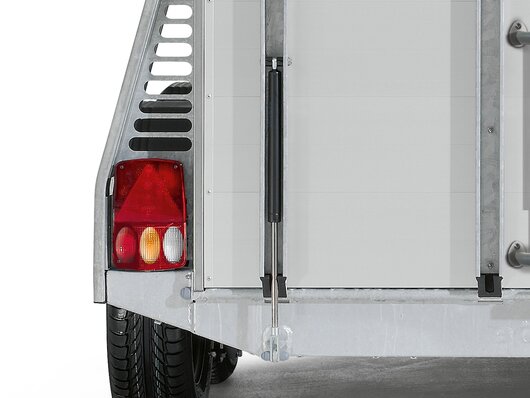

- Lighting
Accessories
Body
-
Side walls
- Selection cover on rear ramp
- alu checker plate on rear ramp + security treads

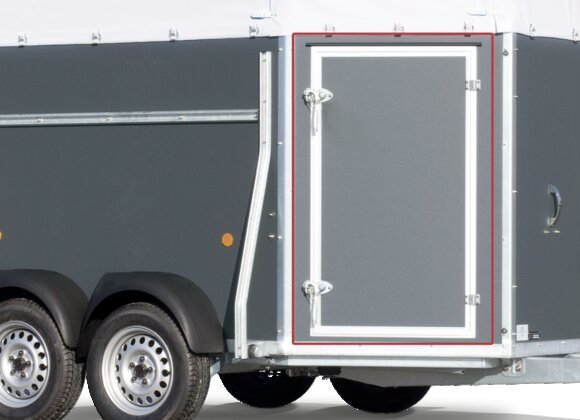

- Selection door / front ramp right side
- unloading ramp in front right with alu cover (door on left)
- unloading ramp in front right with rubber cover (door on left)
- Attachments
-
Floor
- Selection floor
- drain valve (in front of the rear ramp)
- urine stop (overflow edge of aluminium checker plate), height approx.
- Selection floor cover
- floor cover out of aluminium checker plate

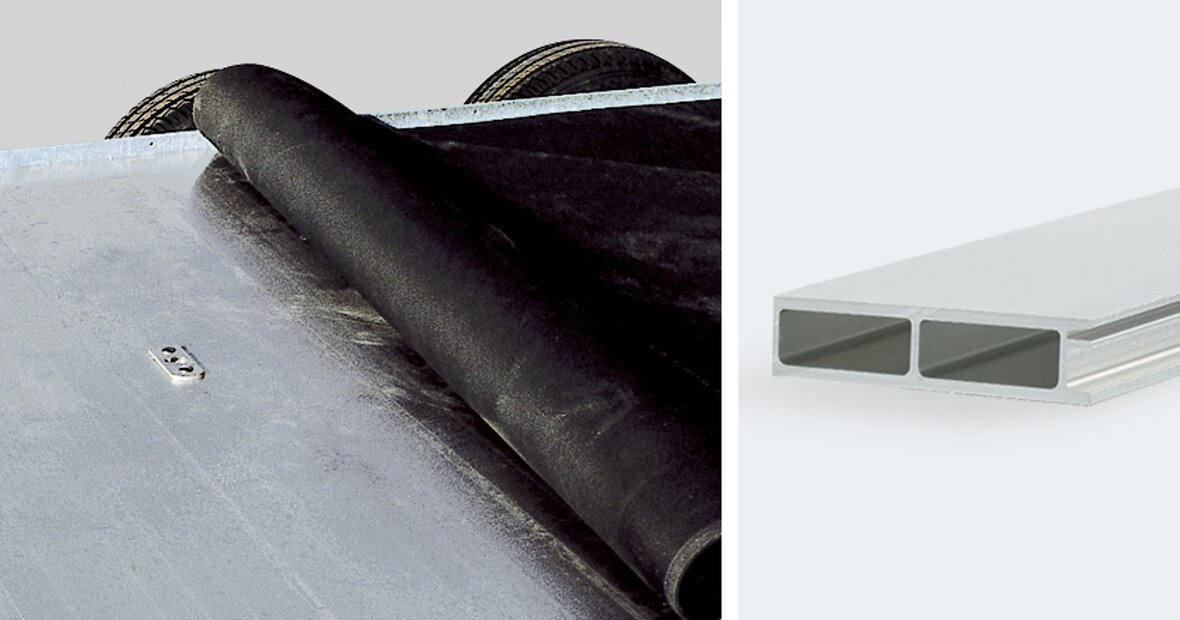

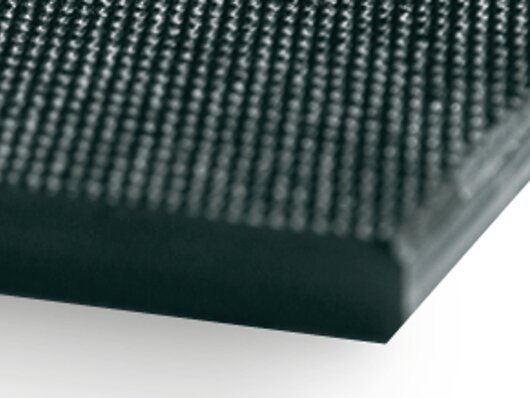

- rubber flooring, liquid rubber
-
Tarpaulin and hoops
- tarpaulin to be rolled up on both side walls
-
Ventilation
- Selection ventilation flap in front wall
- ventilation flap, 1000 mm, in front wall
- ventilation flap, 600 mm, in front wall
- Selection ventilation flap in side walls
- ventilation flap, 1000 mm
- ventilation flap, 600 mm
Internal Space
-
Partition wall systems
- alu partition grid (h: 1400 mm), swivelling, without side rails
- alu partition grid (h: 1400 mm), swivelling, incl. 4 side rails
- alu partition grid as 2-wing door (h:1400mm),incl 4 side rails
- alu partition grid as 2-wing door (h:1400mm),without rails
- holder for separation grid
-
Comfort and safety
- alu partition grid (h:1000 mm) as outer ramp stop, swivelling
- alu partition grid (h:1400 mm) as outer ramp stop, swivelling
- Lighting
- further interior
