Characteristics
Loading area
3.96 qm
Total weight
2400 kg
Material of body
The VA 3014/24 model with its quality aluminium floor and anodised aluminium superstructure are designed to withstand even the toughest working conditions. The large entrance door permits easy access to the animal stall area and the many other highlights of the standard equipment make this model a true all-rounder for daily work.
The Böckmann added values
Safe and low-maintenance
Comfort and stability
Well thought out construction
Technical data
Base
Loading area
3.96 qm
Weight
Total weight
2400 kg
Payload
1665 kg
Internal dimensions
Interior length
3050 mm
Interior width
1450 mm
Interior height
2030 mm
Standard features
Body
-
Side walls
- reinforcement for side walls
- anodised alu sidewalls, 1500 mm high
- access door right (with 2 angle lever locks)

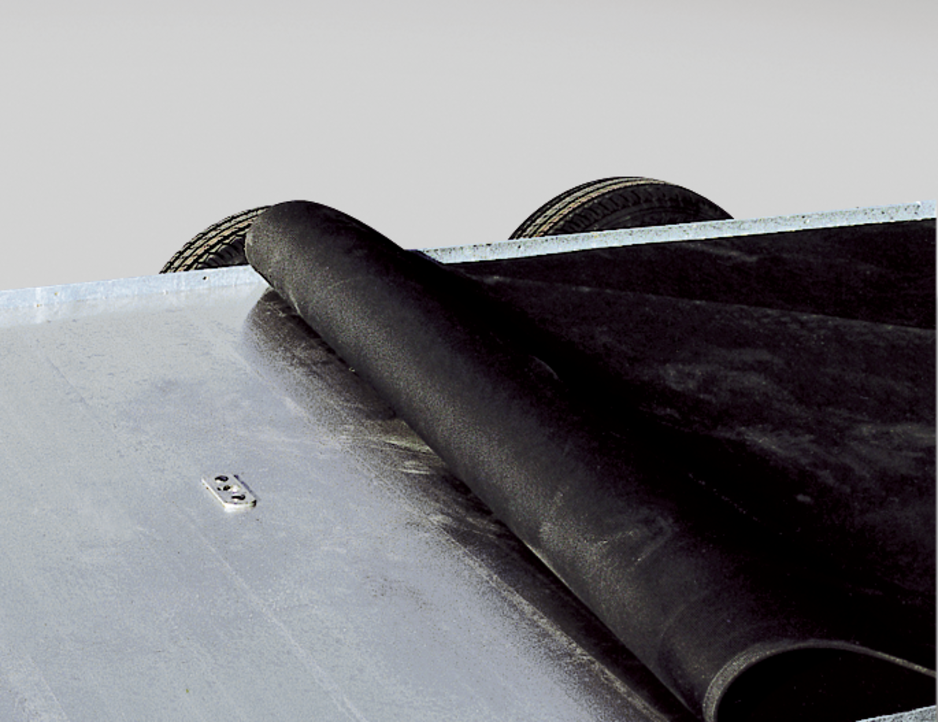

- rubber safety mat with integ.security treads+ side stops on rear ramp
-
Attachments
- grab handle
- 3 side braces, 3 hinges on rear ramp
- rear ramp with lifting mechanism
- rear ramp with roles
- reversing light (with 13 pin plug)
- Floor
-
Mudguards
- plastic fenders
-
Tarpaulin and hoops
- tarpaulin and hoop
- tarpaulin: grey
Chassis
-
Chassis
- comfort suspension chassis (CFF)
- Jockey wheel
Internal Space
-
Comfort and safety
- full-length stall bar in front of rear ramp
- 3 tie up rings
- Lighting
Accessories
Body
-
Side walls
- Selection rear ramp / door combination
- rear ramp / door combination
- Selection door / front ramp right side
- unloading ramp in front right with alu cover (door on left)
- unloading ramp in front right with rubber cover (door on left)
- Selection cover on rear ramp
- alu checker plate on rear ramp + security treads
- Attachments
- Floor
-
Tarpaulin and hoops
- tarpaulin to be rolled up on both side walls
-
Ventilation
- Selection ventilation flap in front wall
- ventilation flap, 1000 mm, in front wall
- ventilation flap, 600 mm, in front wall
- Selection ventilation flap in side walls
- ventilation flap, 1000 mm
- ventilation flap, 600 mm
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
Internal Space
-
Partition wall systems
- alu partition grid (h: 1400 mm), swivelling, without side rails
- alu partition grid (h: 1400 mm), swivelling, incl. 4 side rails
- alu partition grid as 2-wing door (h:1400mm),incl 4 side rails
- alu partition grid as 2-wing door (h:1400mm),without rails
- holder for separation grid
-
Comfort and safety
- alu partition grid (h:1000 mm) as outer ramp stop, swivelling
- alu partition grid (h:1400 mm) as outer ramp stop, swivelling
- Lighting
- further interior
